CLW-LIT-20 хорошее качество 20 мм Диаметр телецентрические
- Категория: Lenses >>>
- Поставщик: Hangzhou,Contrastech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 202.36 $* | 206.78 $* |
| Jul-16-2025 | 164.85 $* | 167.24 $* |
| Jun-16-2025 | 199.13 $* | 203.28 $* |
| May-16-2025 | 197.54 $* | 201.94 $* |
| Apr-16-2025 | 157.14 $* | 160.36 $* |
| Mar-16-2025 | 194.23 $* | 198.3 $* |
| Feb-16-2025 | 192.12 $* | 196.7 $* |
| Jan-16-2025 | 191.66 $* | 195.32 $* |
Характеристики

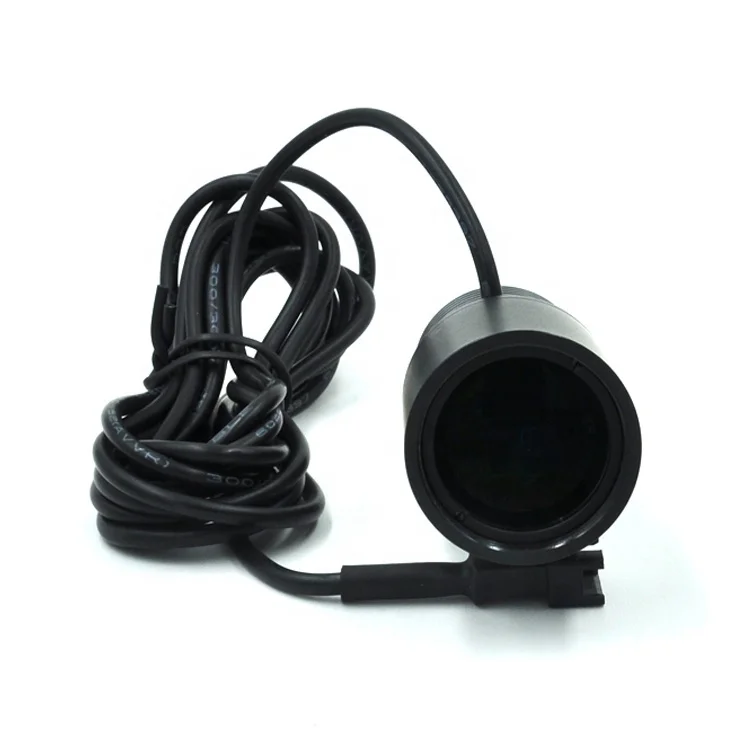

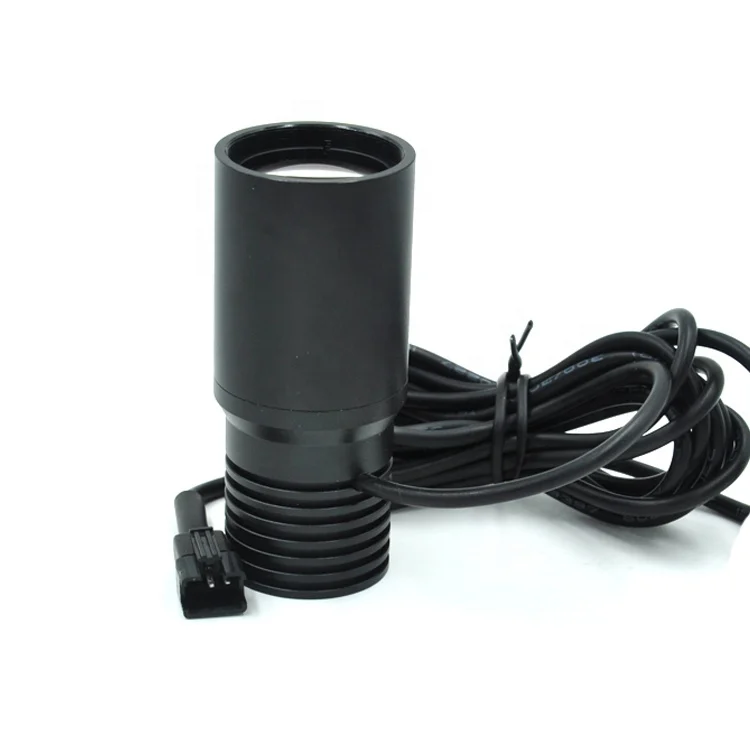

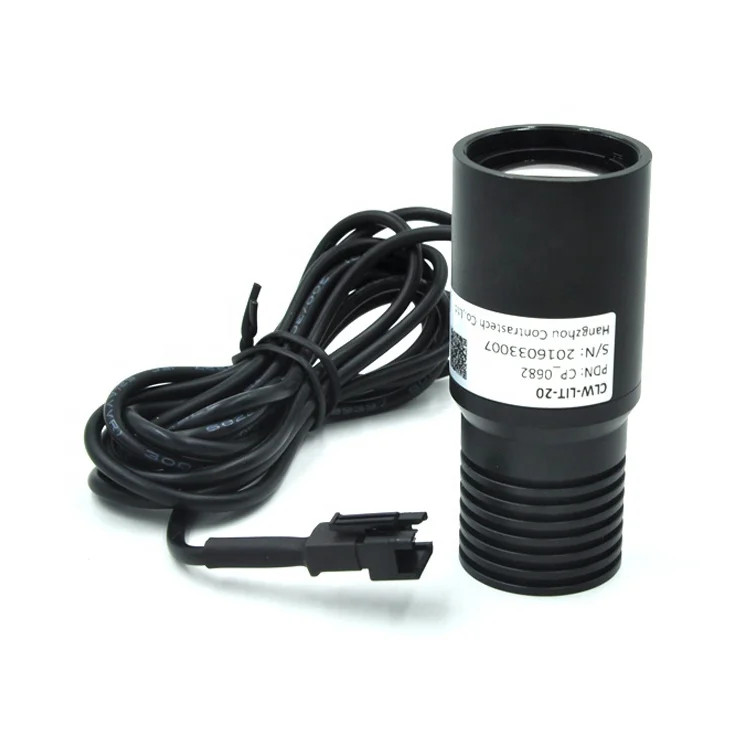

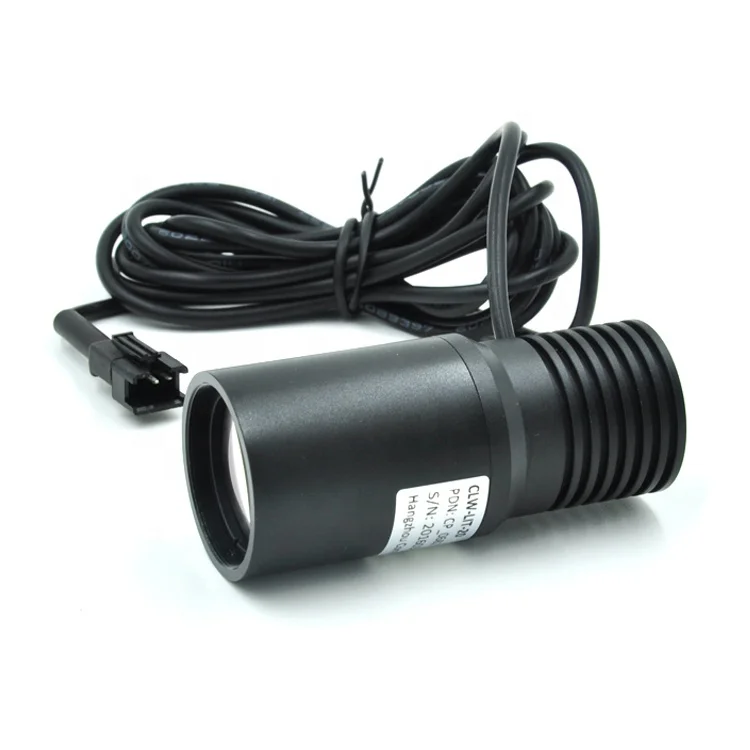

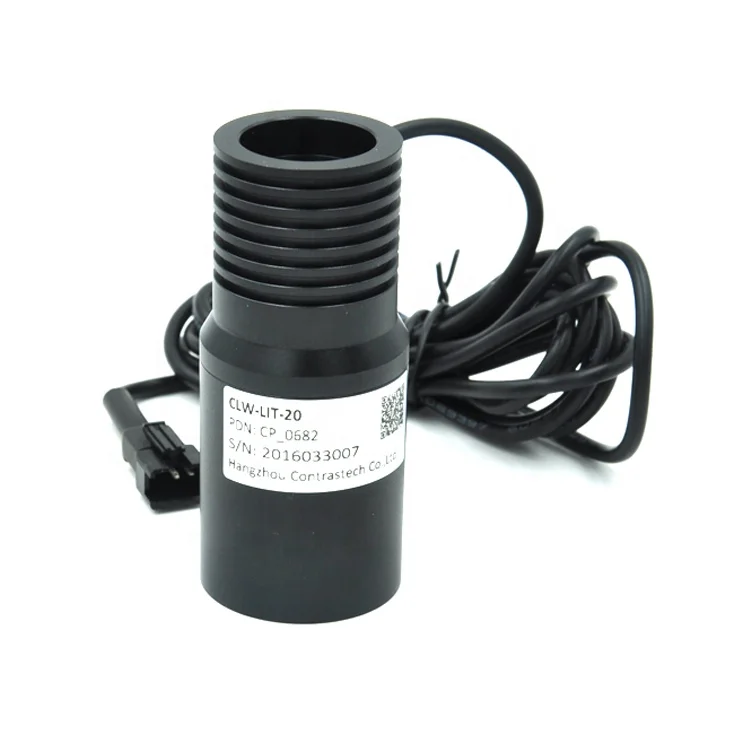

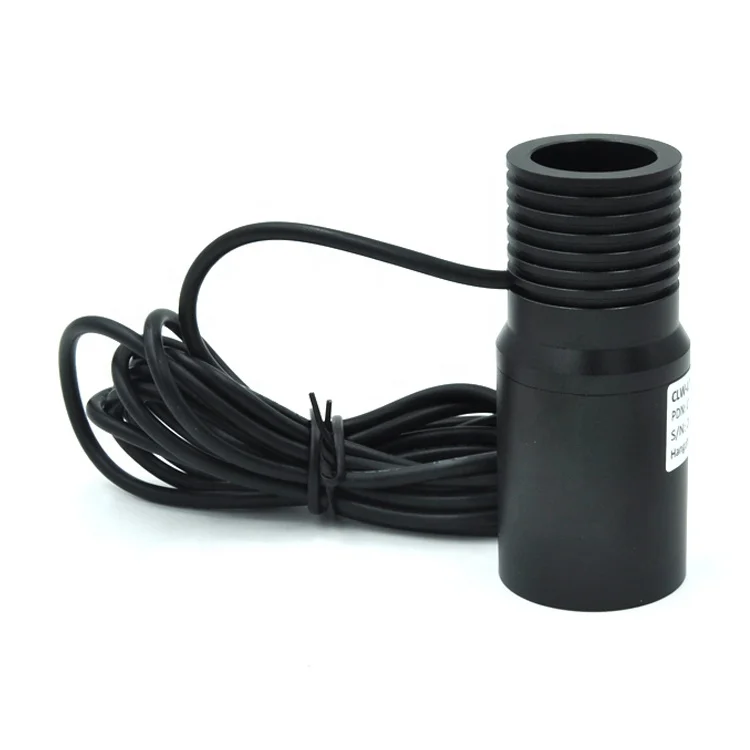

CLW-LIT-20 Good Quality 20mm Diameter Telecentric Illumination
Product Features
1. Telecentric lens cooperate with LIT series telecentric illuminator, can remove diffused back-illumination introduced border confuse, and increase profile measurement accuracy.
2. Telecentric illumination can provide telecentric optical system with higher light couple efficiency and signal-noise ratio.
3. Using telecentric illuminator can get better DOF and telecentricity.
CLW-LIT-20 Good Quality 20mm Diameter Telecentric Illumination
Model Explanation
| Modle | CLW-LIT-20 | |
| Output Beam Diameter | 20mm | |
| White(Wavelength) | 430-680nm | |
| Red(Wavelength) | 630nm | |
| Green(Wavelength) | 520nm | |
| Blue(Wavelength) | 460nm | |
| LED Rated Power | 1W/3W(Standard 1W) | |
CLW-LIT-20 Good Quality 20mm Diameter Telecentric Illumination
Product Drawing
1. Spectral Graph
We recommend the green light for high precision measurement.
So that you can get the best telecentricity, minimum optical distortion and the highest resolution.
Installation Note: The telecentric illuminator and lens should be kept in the same axis, the higher be parallelism the better the result.
| Light Color & Wavelength(nm) | Positive Voltage(V) | Positive Max. Current(mA) |
| W 430-680 | 3.5 | 350 |
| R 630 | 2.5 | 350 |
| G 520 | 3.5 | 350 |
| B 460 | 3.5 | 350 |
2. Dimensions(mm)
CLW-LIT-20 Good Quality 20mm Diameter Telecentric Illumination
Company Information
As one high-tech enterprise Hangzhou Contrastech Co., Ltd. specializes in providing professional machine vision software, hardware and equipments. Contrastech has been researching and developing machine vision applications, and the major products include industrial camera, scientific standard camera, high definition frame grabber card, industrial FA lens, telecentric lens, machine vision lights and image processing software. The Engineering Dept. of Contrastech have lots of mature and successful machine vision solutions based on automatic industrial inspection, high precision measuring and module distinguishing.
Our Services
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit our website: http://contrastech.en.alibaba.com/
3.OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. High quality, ultra-Small designs, reasonable and competitive price, fast lead time.
5. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
6. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
7. Payment:
You can pay for the order via:T/T,L/C,D/P and Western Union.
8.Shipping
We have strong cooperation with FedEX, DHL, UPS, TNT and ARAMEX.
You also can choose your own shipping forwarder.
