Thread Rolling Machines
Вибрационная пластина типа винтовой болт резьбонарезной

Вибрационная пластина типа винтовой болт резьбонарезной

Категория: Thread Rolling Machines >>>
Поставщик: Foshan,Nanhai,District,Yu,Hai,Machinery,Manufacturing,Co.,Ltd.

Цена:9 228,00 $ - 10 312,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	10981.98 $*	11530.49 $*
Aug-17-2025	10889.43 $*	11433.41 $*
Jul-17-2025	9136.31 $*	9593.90 $*
Jun-17-2025	10704.97 $*	11239.69 $*
May-17-2025	9320.41 $*	9786.92 $*
Apr-17-2025	10520.69 $*	11046.51 $*
Mar-17-2025	10428.96 $*	10949.40 $*
Feb-17-2025	10335.21 $*	10852.49 $*
Jan-17-2025	10243.86 $*	10755.8 $*

Характеристики

Detailed Images

wKiAiVVJ046

Description:

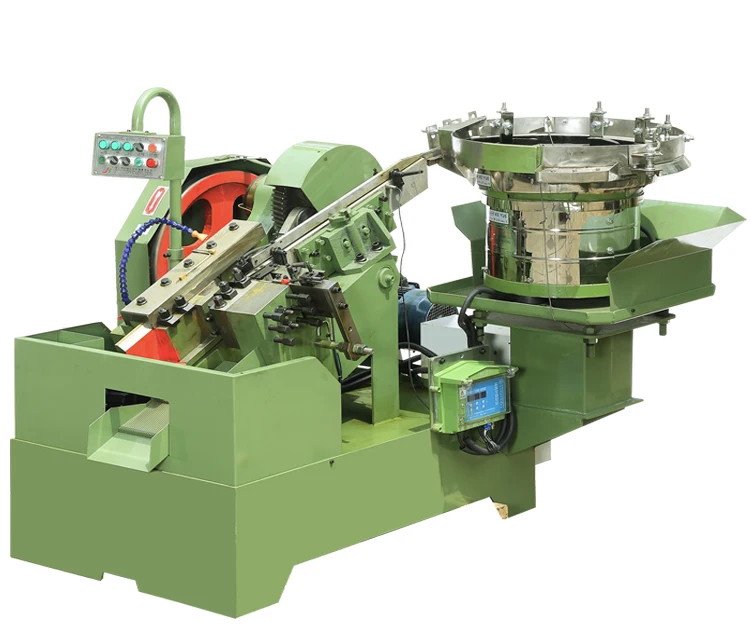

1.This thread rolling machine is mainly used for processing precision standard parts of external thread and high strength, including regular thread, trapezoid thread and modulus thread.

2.The objective material to be processed including carbon steel, alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kg/mm².

3. Main functions of thread rolling machine make products happen plastic deformation by pressing of two dynamic and statics screw plates, and form the thread needed, it can accurately grinding various standard thread tooth of national standard,ISO,DIN, JIS, ANSI, BS,GB,etc., the machine has the advantages of rapid speed and good stability, the minute capacity can be up to about 300pcs, it is advanced thread machine with higher speed in the current market, which is suitable for mass production in the large scope thread factory. It can also design, coil abnormal screw and abnormal hardware and metal products especially according to the customers’ requirements.

Characters:

1.Machine tool use steel welding,through finish machining.

2.Rolling wheel adopt hard alloy material.

3.Sliding parts after manual grinding,improve the machining precision.

4.Small size,efficient,low noise.

5.Use high quality motor,make the machine perfect.

6.Power distribution box use high quality gear which through high frequency quenching,make the machine durable.

7.Distribution gear use the hollow design,make no longer restricted the length of the screw,the length of screw is unlimited in theory.

8.Use Time Relay,reduce the labour,make the screw thread have a high consistency.

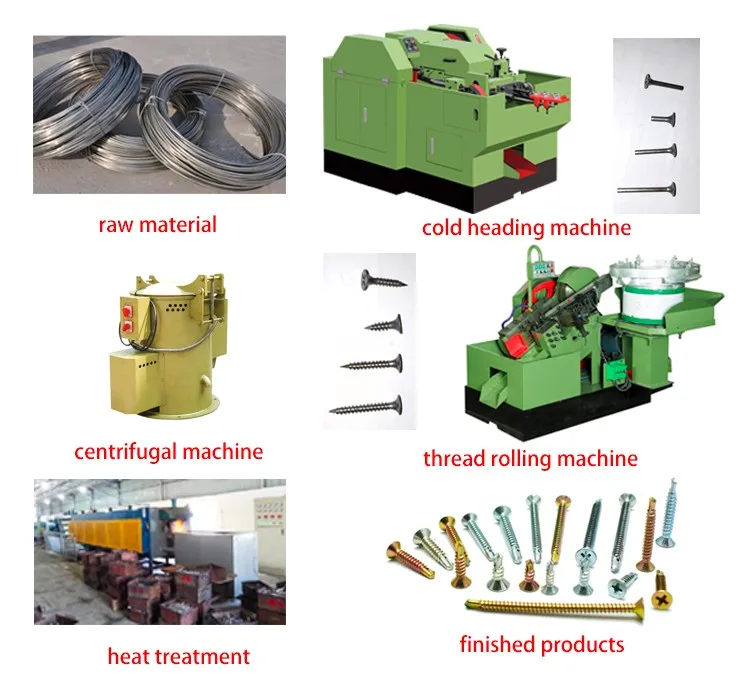

Production Flow

1_245-234000 → D5-60 →→→ 18dcf3a9a8

Brief introduction of processes and machines needed:
(1). Pull the coarse line to the line patch needed. (Wire drawing machine)
(2). Adjust, produce, and form the head of screw on the heading machine. (Screw heading machine)
(3).Grind tooth on the coil thread rolling machine, and form the screw completely (Thread rolling machine)
(4). Treat the semi-finished screw in the heat treatment according to the standard (Heat treatment furnace)
(5). According to the requirements, process plating etc. (Zinc plating machine)
(6). Packing and out of factory

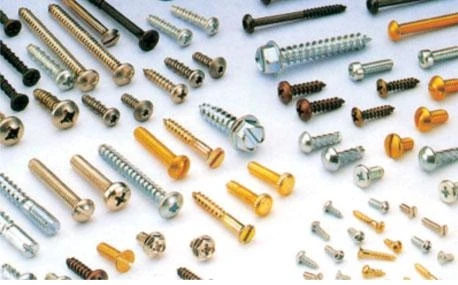

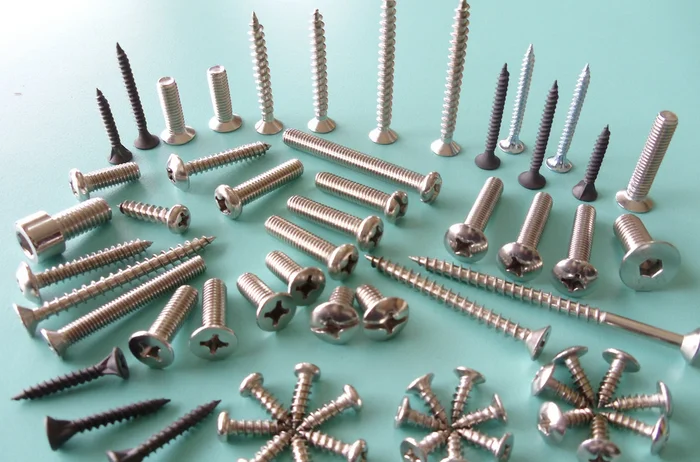

Finished Products

aece4f58ee0c9 18dcf3a9a8

After-Sales Service

Before sales
Our professional technical recommend the right machine,also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales

We will send technical to customer's factory to install and testing machines.
We have after-sell service to supply all life-time machine maintance and repairment service.

Welcome to visit our factory, we also can take you visit our client's factory that you can clear for each process. we can provide you the most advanced technology in the world.please feel free to contact us if you are interested.
