Product Description:

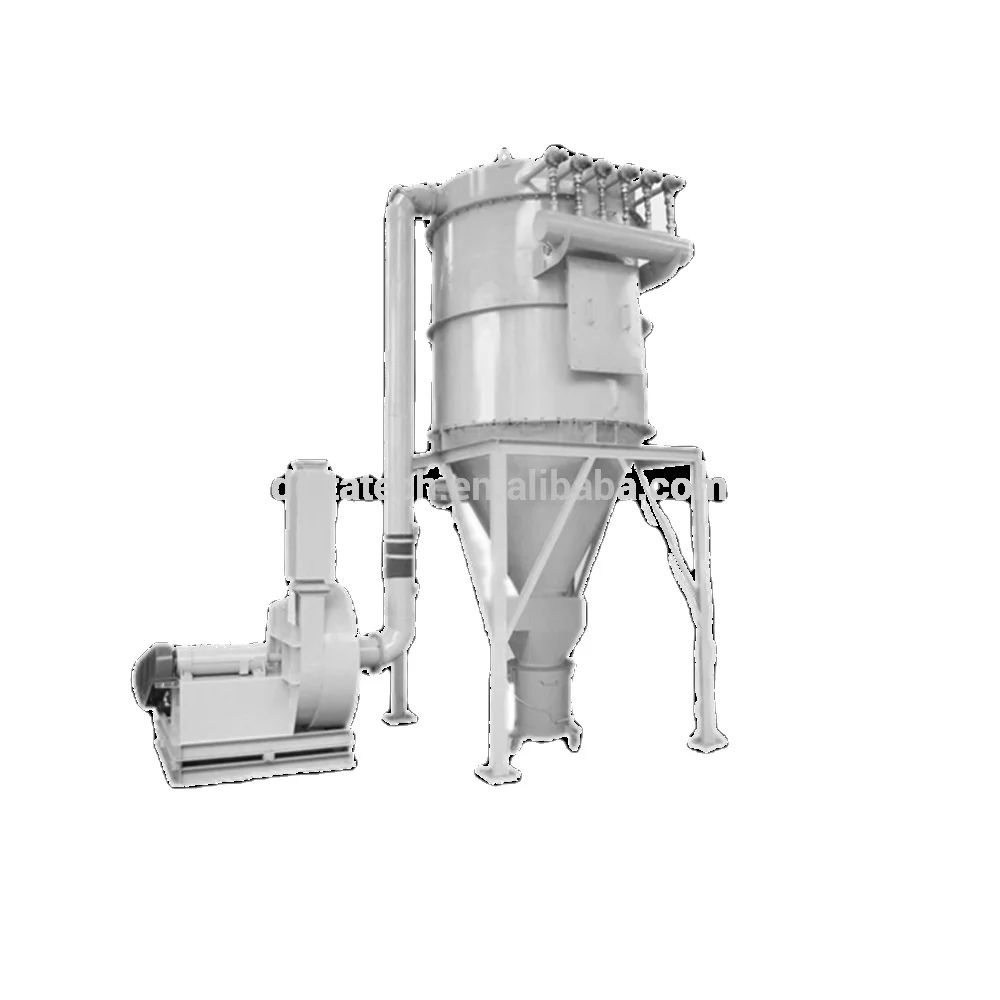

Cyclone dust collector for wood :

Bag filter is a kind of dry dust filtering device.

After a period of time,due to the screen,collision,stranding,diffusion,electrostatic effect,such as a layer of dust accumulation on the surface of filter bag,at the beginning of the dust layer is called layer,after the movement process,early become the main filter to filter material layer,depending on the role of the first layer.large mesh filter material can also get higher filtration efficiency.

As in the accumulation of dust on the surface of the filter material,filter efficiency and resistance are corresponding increase,when the pressure difference on both sides of the filter material is very big,can put some tiny dust particles are attached to the filter material has been squeezed in the past,the dust collector efficiency decline.In addition,the resistance is too high will make the system of dust control of air volume dropped significantly.

Filter resistance after reaching a certain value,therefore,to timely remove and ash removal could not be broken when the first layer,so as to avoid the efficiency decline.



Product Detail:



With powder repeat attached to the filter bag surface,the powder layer thickening and flow resistance value also increase;Pulse valve diaphragm issue instructions,around submerged pulse valve opens,the high pressure gas compressed air through the package,if there is no dust or small to certain degree,mechanical soot cleaning work will stop working.



Model Parameters		HMC-32	HMC-48	HMC-64	HMC-80	HMC-96	HMC-112
Air Volume(m3·h)		1500-2100	2100-3200	2900-4300	4000-6000	5200-7000	6000-9000
Filter Area(m2)		24	36	48	60	72	84
Filter Wind Speed(m/min)		1.0—1.5	1.0—1.5	1.0—1.5	1.1—1.7	1.2—1.7	1.2—1.8
No.of Filter Bag		32	48	64	80	96	112
Entrance Gas Temperature(℃)		≤120
Equipment Resistance(Pa)		≤1200
Entrance Dust Concentration(g/m3)		<200
Outlet Dust Concentration(mg/m3)		≤50
Soot Cleaning With Air Pressure(MPa)		0.4~0.6
Soot Cleaning With Air Consumption(m3/min)		0.10	0.14	0.20	0.24	0.29	0.34
Under Negative Pressure(Pa)		5000
No.of Pulse Valve		4	6	8	10	12	14
Blower Motor Power(KW)		1.5	3.0	3.0	5.5	5.5	7.5
Weight(Kg)	A type	1350	1620	1850	2360	2800	3200
	B type	1220	1470	1670	2150	2540	2880





Advantages:

1.Dust removal efficiency is high,generally over 99%,precipitator dust concentration of outlet gas in dozens of 50mg/m³,the fine dust of submicron particle size high classification efficiency.

2.Simple structure,convenient maintenance operations.

3.Under the premise of guarantee same high dust removal efficiency,cost is lower than the electric dust catcher.

4.Using glass fiber,the high temperature resistant filter materials such as ptfe,P84,can run under the condition of high temperature above 200℃.

5.Is not sensitive to the characteristics of dust from dust and influence of the resistance.





Transport:





Customer Visit:





Our Company:





Our Service:



 1.All products will be well packed before shipping.

 2.All products have 12 months warranty and we sure the products will be free from maintenance within warranty periods.

 3.Reply your inquiry in 24 working hours.

 4.Customized design is available.

 5.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers.

 6.As an honest seller,we always use high quality material,advanced machines,skilled technicians to ensure quality.



When you send an enquiry,please including the basic design factorsin email:



1.What kind of factory the dust collector will be installed in?



2.The medium will be filtered?



3.The temperature at dust collector inlet?



4.The capacity?



Because with these factors,we are able to give you a fast answer.
