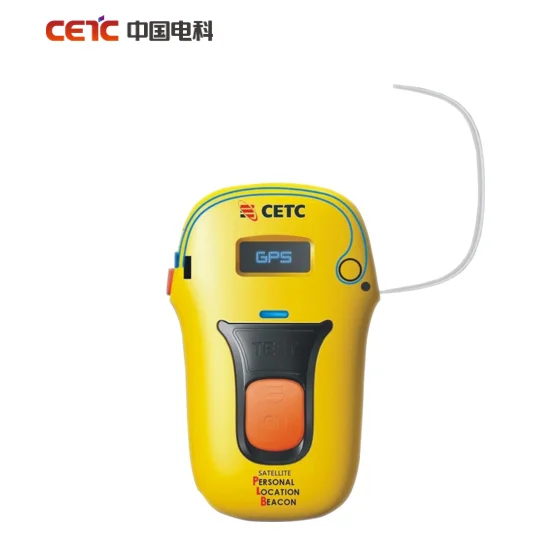

Brief introduction:	Model Number:		VSA8
	Application Area:		VSA8 is specially developed for crew’s daily working. It can also be used in the person working under dangerous environment. VSA8 is with 8year’s free maintenance, no need to pay communication fee and extremely low cost.
	Certificate:		It is complied with the standard of IEC61097-14, ITU-R M.1371.
Specification	1. GENERAL:
	Battery: lithium battery,8 years’ life
	Performance time:>24h@-20℃/ 0.5min~5min transmission signal/optional
	Antenna: vertical monopole?
	programming interface:Two-way infrared
	Compass: electronic formula
	LCD: 128*64 lattices
	Activation way: manual/By water
	Agreement support: MSG1, MSG14
	Water-proof properties: 5m/10 mins
	Size: 90mm*49mm*30mm
	Weight: 116g
	Working Temp.:-20℃- 55℃
	Storage Temp.:-40℃- 70℃
	2.AIS Transmitter
	Output frequency: 161.975 MHz, 162.025 MHz
	Output power:2W(33dBm)±1.5dB
	Data rate: 9600bps
	Modulation bandwidth: 25 KHz
	Modulation mode: GMSK, FM
	Repeat cycle: 1 min
	Action distance: 7km (Typical)
	3.Satellite positioning receiver (GNSS)
	Satellite positioning system: GPS, Beidou satellite (compass 2)
	Receiving channel: 56 channels, L1+B1
	Receiving Antenna: built-in ceramic plate
	Receiving Sensitivity:-165dBm
	Positional error: 2.5m



Ningbo Maritime Electronics Co., LTD is a wholly owned enterprise by China Electronics Technology Group Corporation with a registered capital of RMB 30 million. We are professional for innovation and development of high-tech ship-borne (marine engineering) electronics, including maritime communication and navigation products. Moreover, we possess powerful capabilities of research, development, design, manufacturing, sales and services.
Our products consist of two series. One is radio communication and navigation device, including all the electronics information devices for ships, which key units are GMDSS, AIS, ECDIS and Navigation radar. The other is navigation-control equipments, just like unmanned surface vessel (USV), main engine remote control system, autopilot stand, etc. And now we possess 12 patents and some professional certifications, just like CCS, Cospas.
With professional design, high quality, good service and competitive price, our products are popular at domestic and abroad markets. Looking forward to cooperate with you!

Q: Where is your factory located? How can I visit it?
A: Our Head-office is in Ningbo and our Production line is located in Jiaxing. Ningbo of Zhejiang, 30 Minutes by car from Ningbo Airport,and Jiaxing of Zhejiang,30Minutes by high-speed train from Shanghai.

Q: How can I get the sample?
A:Samples could be sent within 3-5 days if there is in stock.Generally,sample is not free.

Q: What's the lead time?
A:If we have stocks of the item you need,we can send goods to you within 3-5 working days after 100% payment into our bank account.If we don’t have enough stocks,different products will take different days.Generally,it need around 30-35 days.

Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team with inspectors in our factory.

Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome, there are around 30 persons in our R&D team, and customized colours are optional. From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.

Q: What is your Minimum Order Quantity?
A: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.

Q: What’s about shipping?
A: Small order can be shipped by air and large quantities can shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Ningbo,which is China’s best harbor port!

Q: What’s your agency/distributor policy?
A: We have too many different policies according to target markets,so please send email for detailed discussion or talk face to face.
