Характеристики

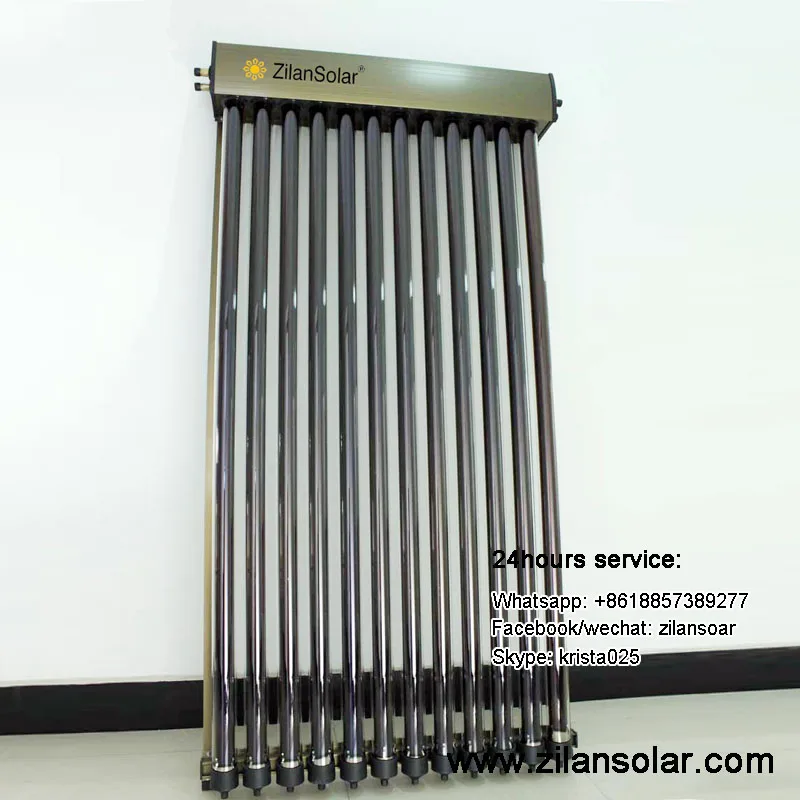

1, Photos :

2, Material:

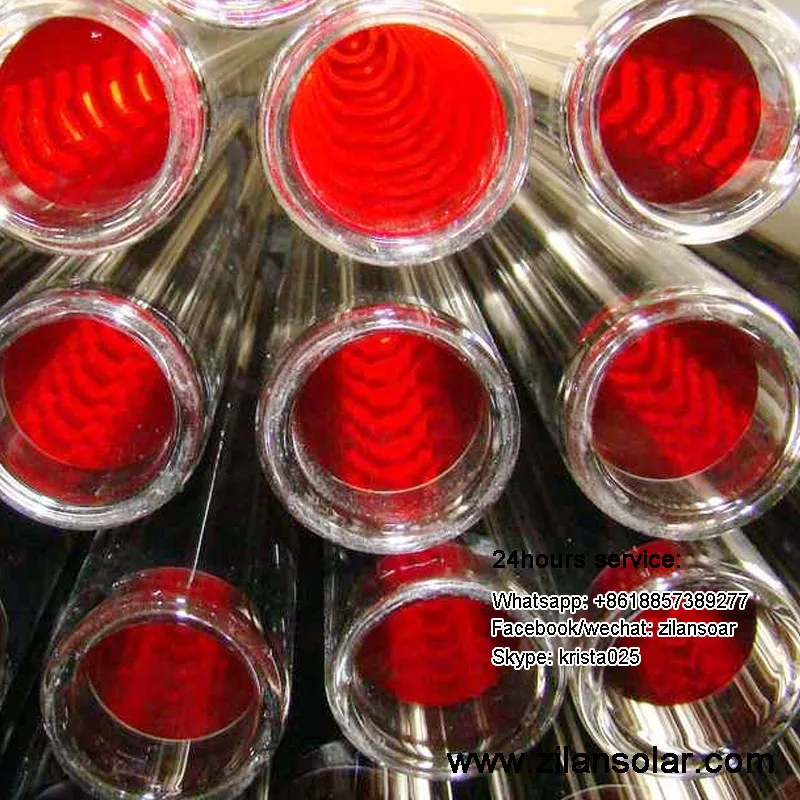

Vacuum Tube With U Pipe

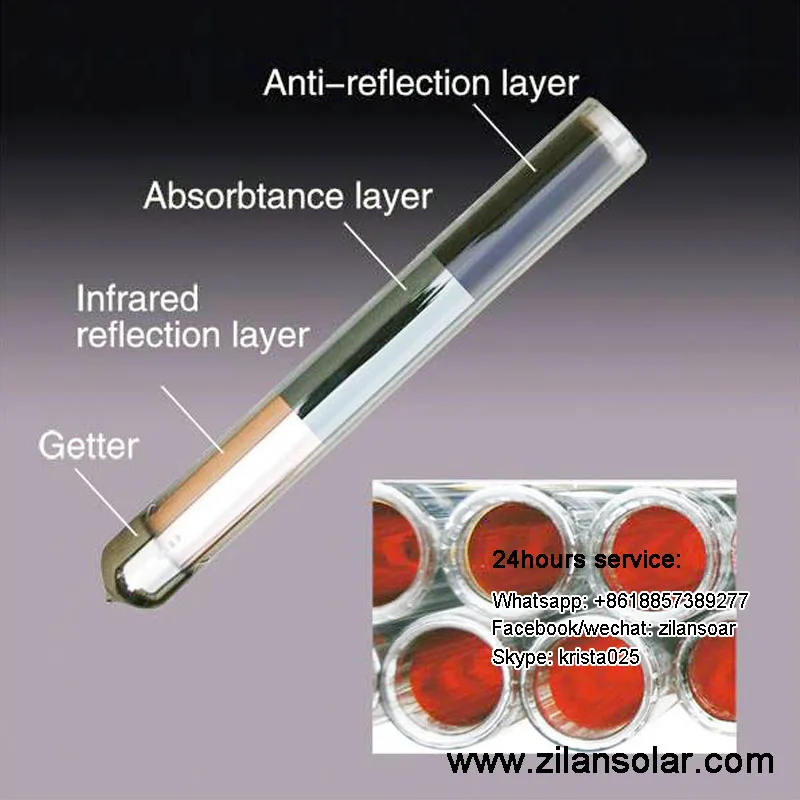

<1> Three targets solar vacuum tube, Size: Φ58 x 1800mm or Φ47 x 1500mm

<2> U pipe: Red copper, diameter: 8mm, wall thickness: 0.6mm

<3> Heat transfer fluid: Anti-freeze fluid (Water-glycol)

<4> Aluminum fin: Whole piece aluminum sheet

<5> Length for 58 x 1800mm vacuum tube: 1600mm, thickness: 0.2mm

<6> Length for 47 x 1500mm vacuum tube: 1300mm, thickness: 0.2mm

<7> Sealing plug: Silicone rubber with stainless steel

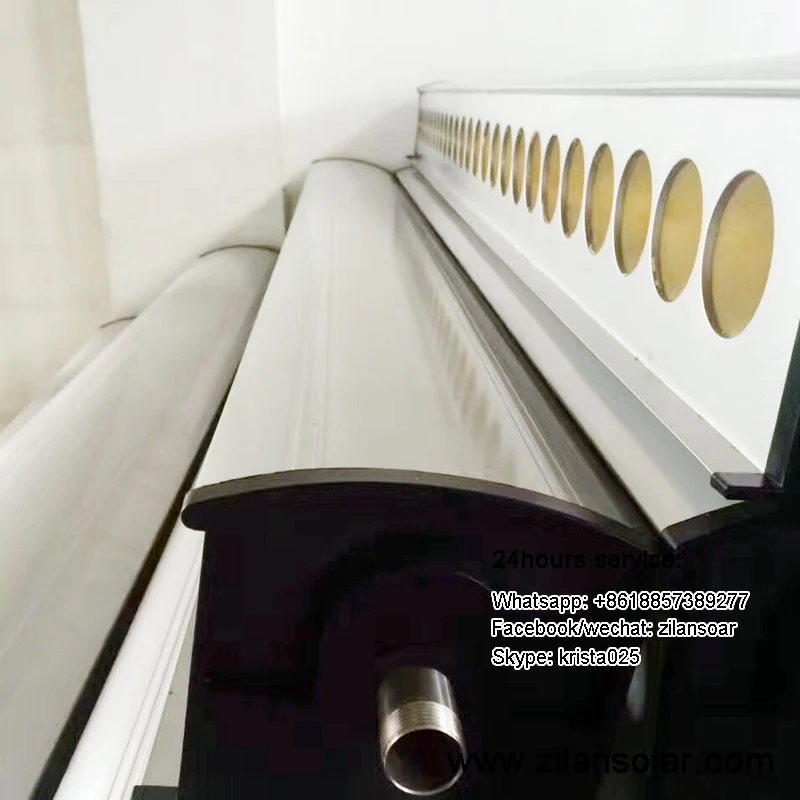

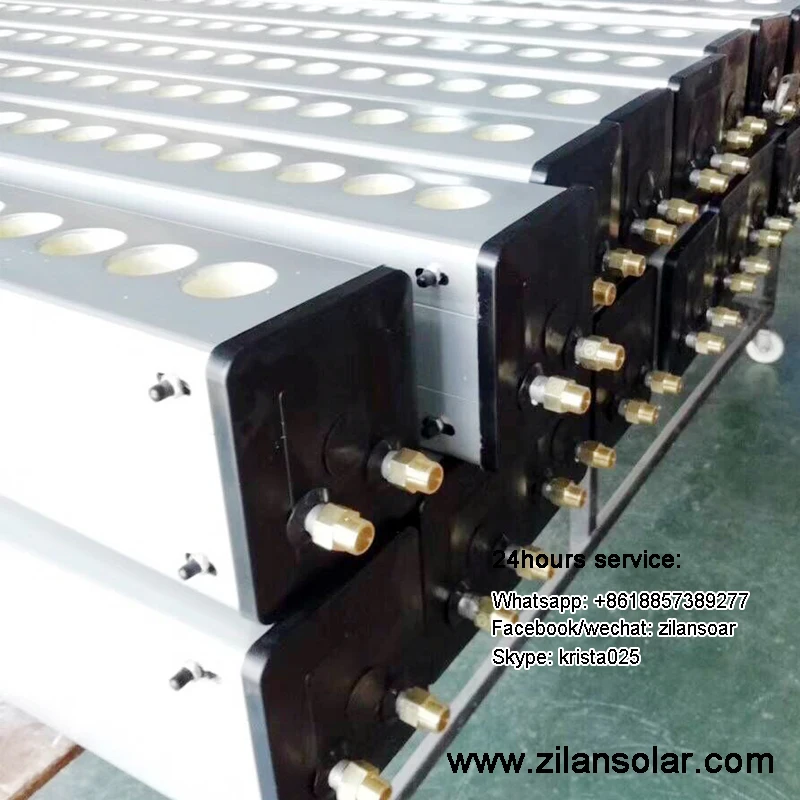

Manifold Casing

<1> Material: Aluminum alloy, thickness: 2mm

<2> End cover: Nylon plastic parts

<3> Manifold anti-water ring: Silicone rubber

<4> Collector anti-dust cover: Silicone rubber

<5> Header Pipe: Red copper, diameter: 22mm, thickness: 1.0mm

<6> Insulation: Rock wool, thickness: 45mm, density: 50Kgs/M3

<7> Connections' Material & Size: Brass, G3/4" male thread



Bracket

<1> Material: Aluminum alloy, thickness: 2mm

<2> Bracket angle: 20°-70°

<3> Tube supporter: Adjustable nylon plastic parts

<4> CPC: for Z-USC47, collector with Φ 47 x 1500mm vacuum tube



3, Size range:



ART.NO.	U PIPE TUBE SIZE		QTY(pcs)	CPC	EFFECTIVE AREA(sq)	CAPABILITY(L)	COLLECTOR SIZE(mm)
							A	B	C	D
Z-USC5810	D58-L1800MM		10	N	1.35	100	895	1980	770	145
Z-USC5815	D58-L1800MM		15	N	2.03	150	1270	1980	1145	145
Z-USC5820	D58-L1800MM		20	N	2.7	200	1645	1980	1520	145
Z-USC479	D47-L1500MM		9	Y	1.43	90	1070	1650	1010	125
Z-USC4712	D47-L1500MM		12	Y	1.91	120	1400	1650	1340	125
Z-USC4715	D47-L1500MM		15	Y	2.38	150	1730	1650	1670	125



4, Payment



<1> T/T(wire transfer)

<2> L/C at sight

<3> 30% T/T in advance as deposit, the rest paid before shipment

<4> 30% T/T in advance as deposit, the rest paid against B/L copy



5, Certificate





6, Our advantages:



<1> We have 8 senior engineers working on development. that will make us lead the trend whatever on structure or technolgy

<2> 15 QC control the quality, just make sure all is right

<3> Aftersale service is quick, any problem you mentioned will be dealt with in 24 hours!

<4> Our professional salesmen always online for your questions

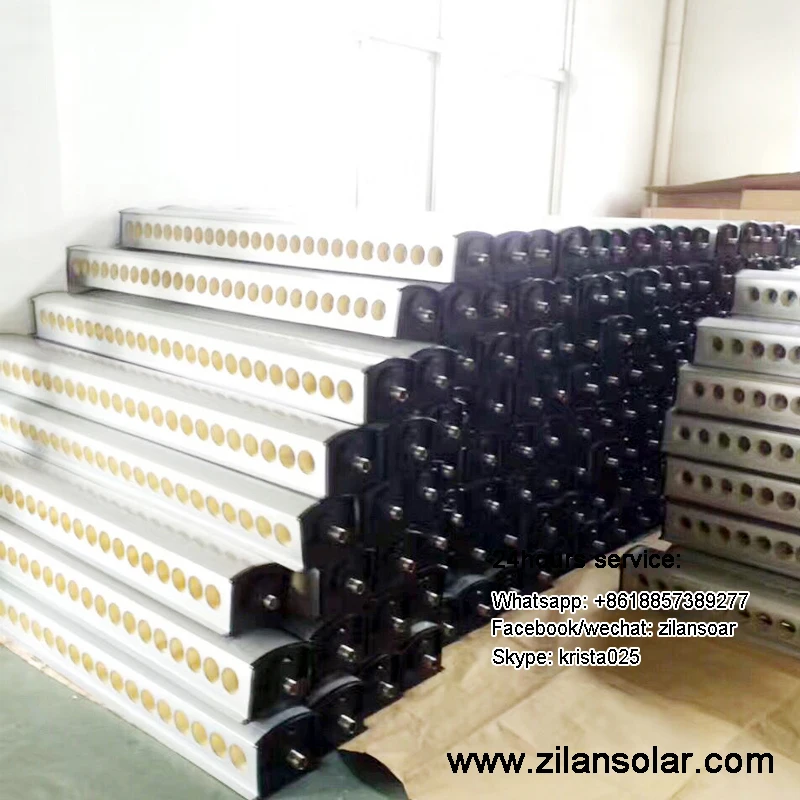

7, Factory photos:
