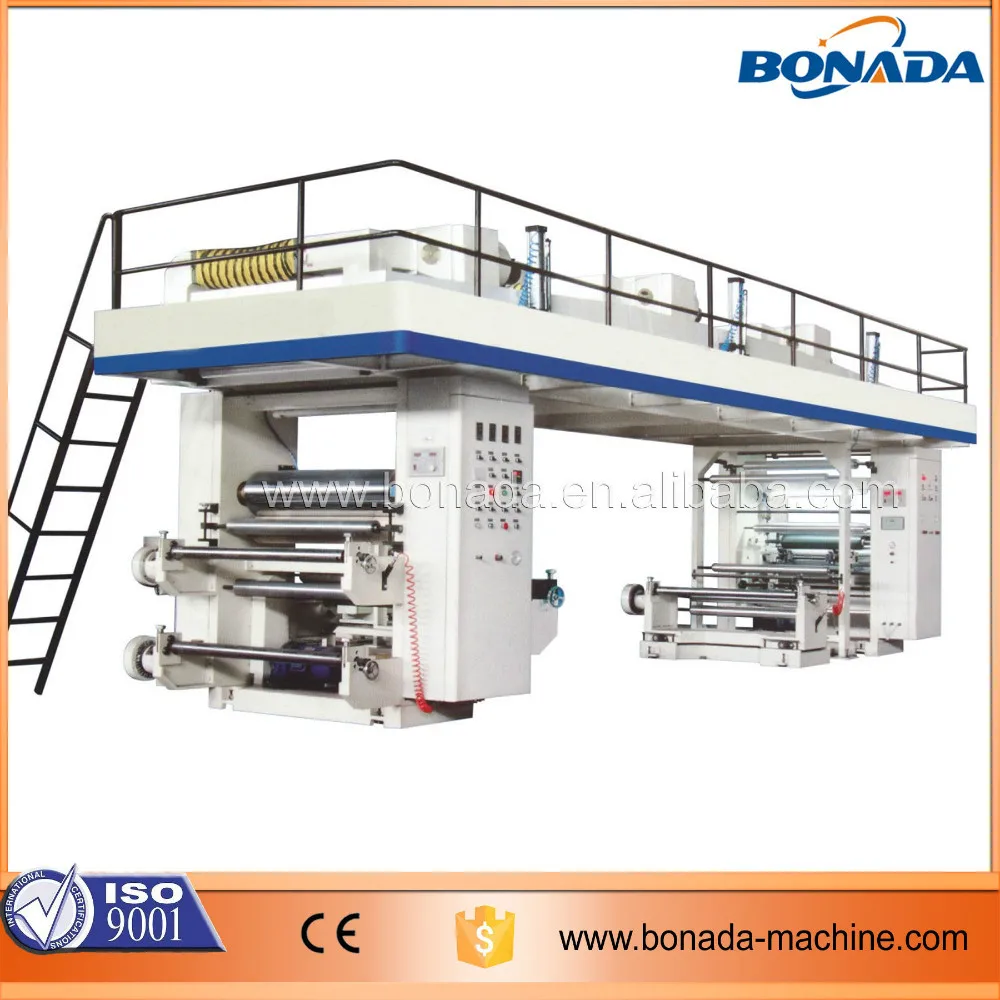

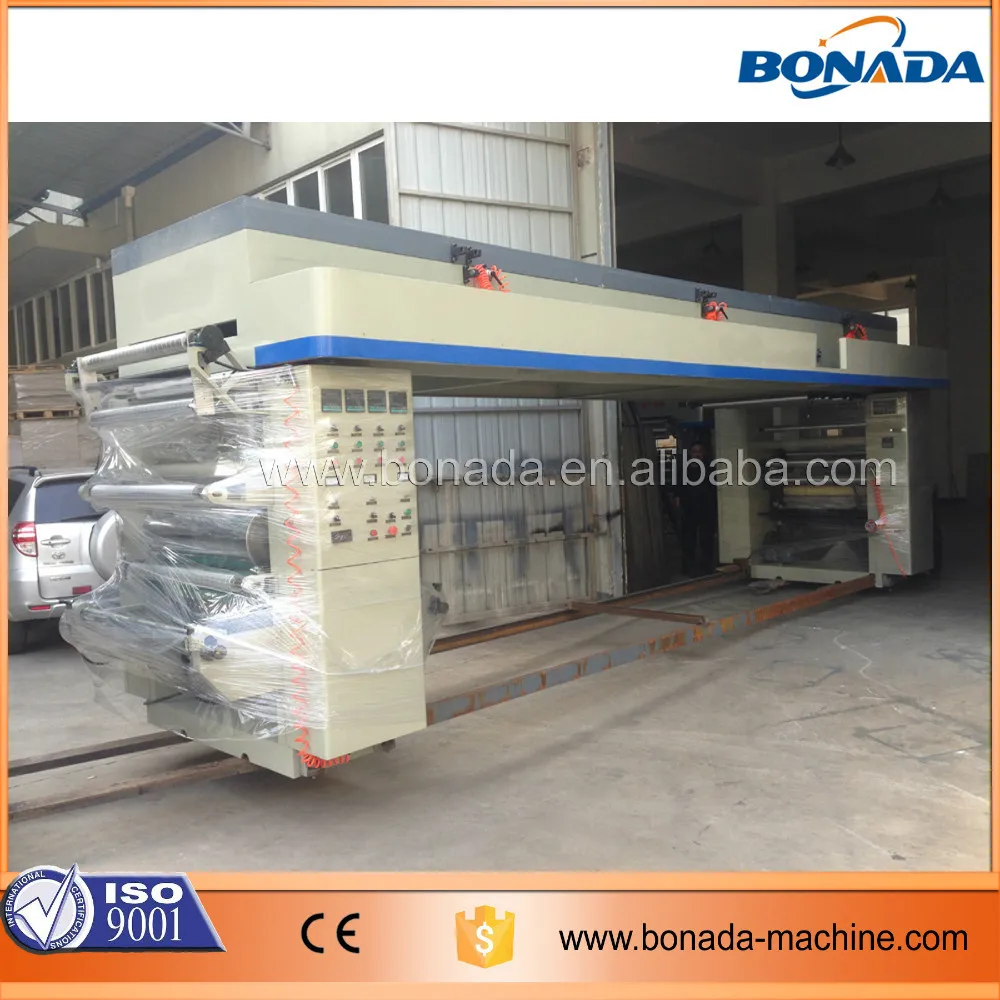

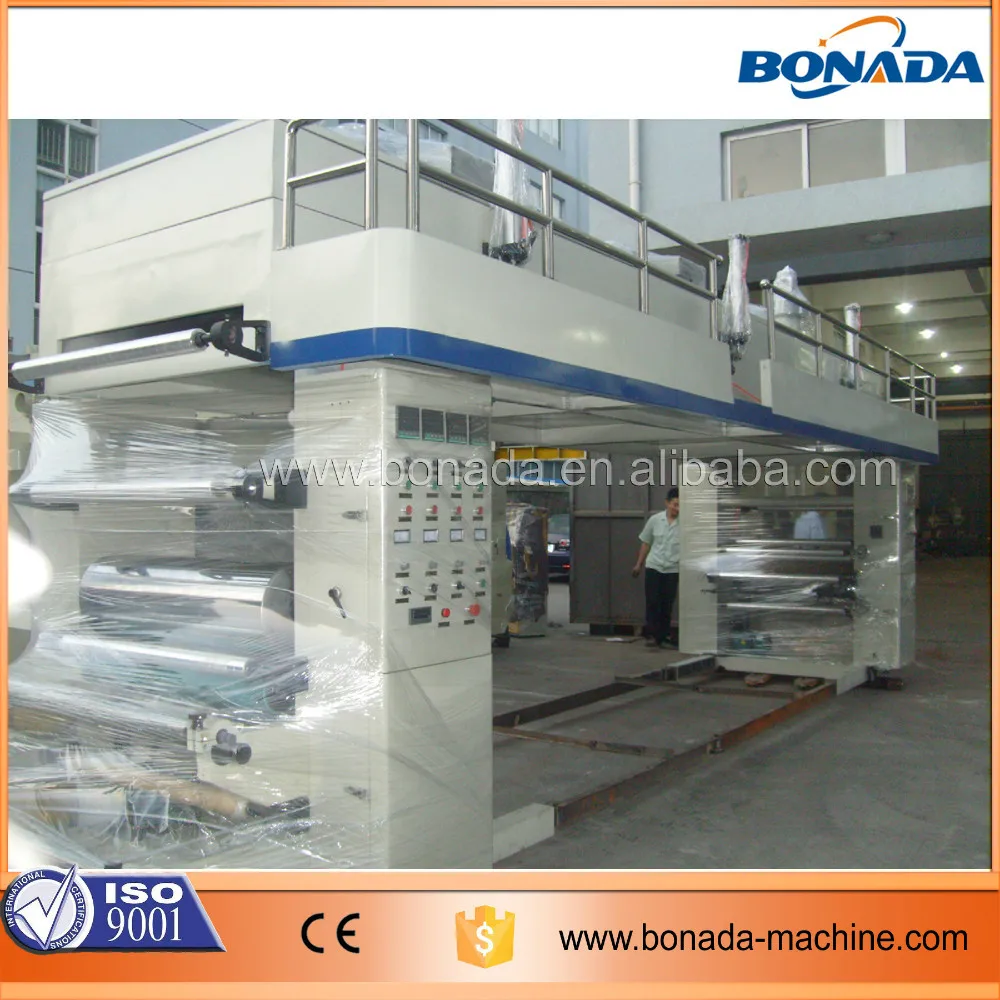

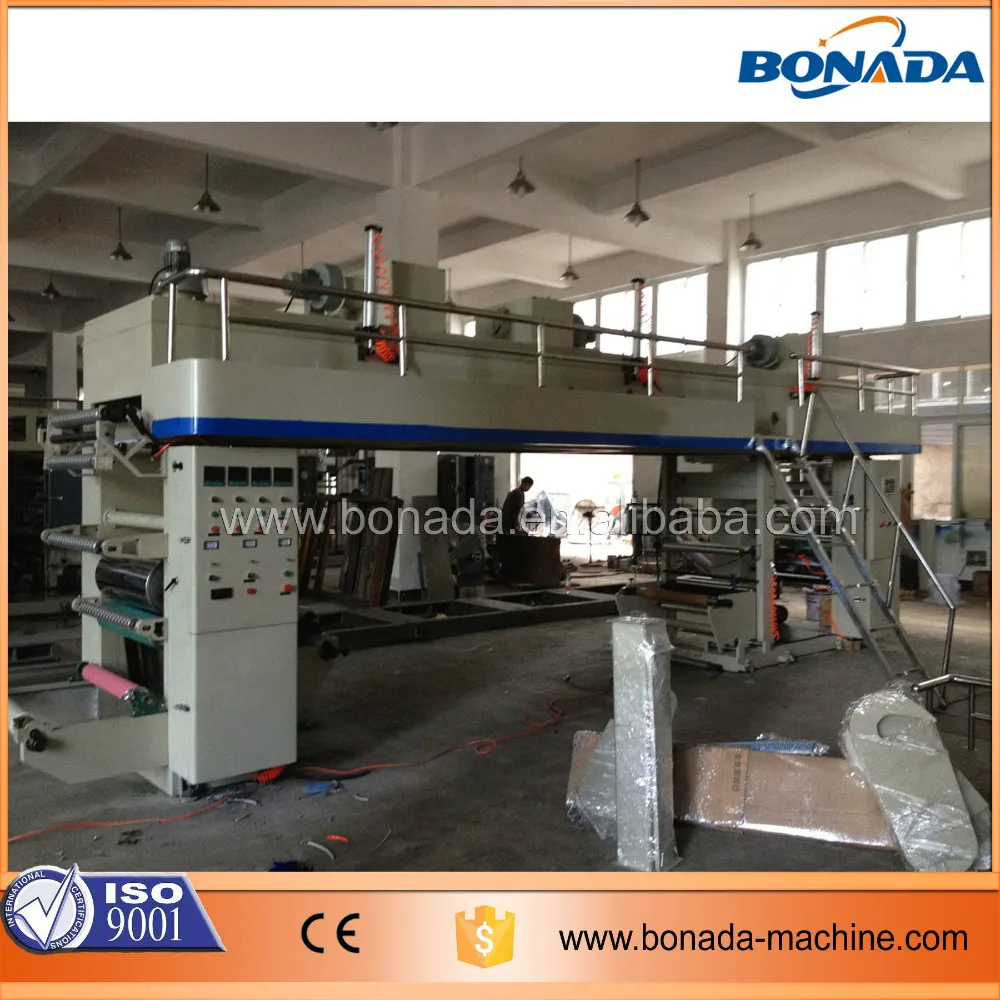

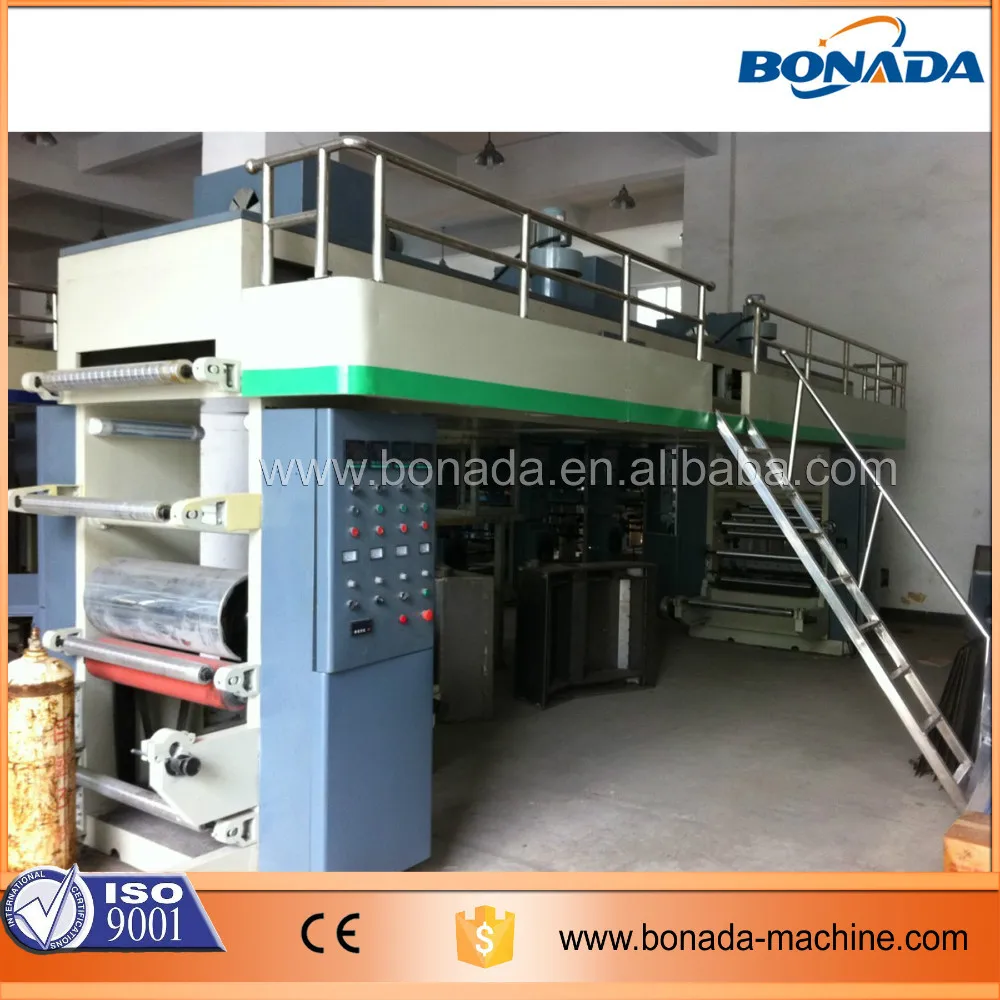

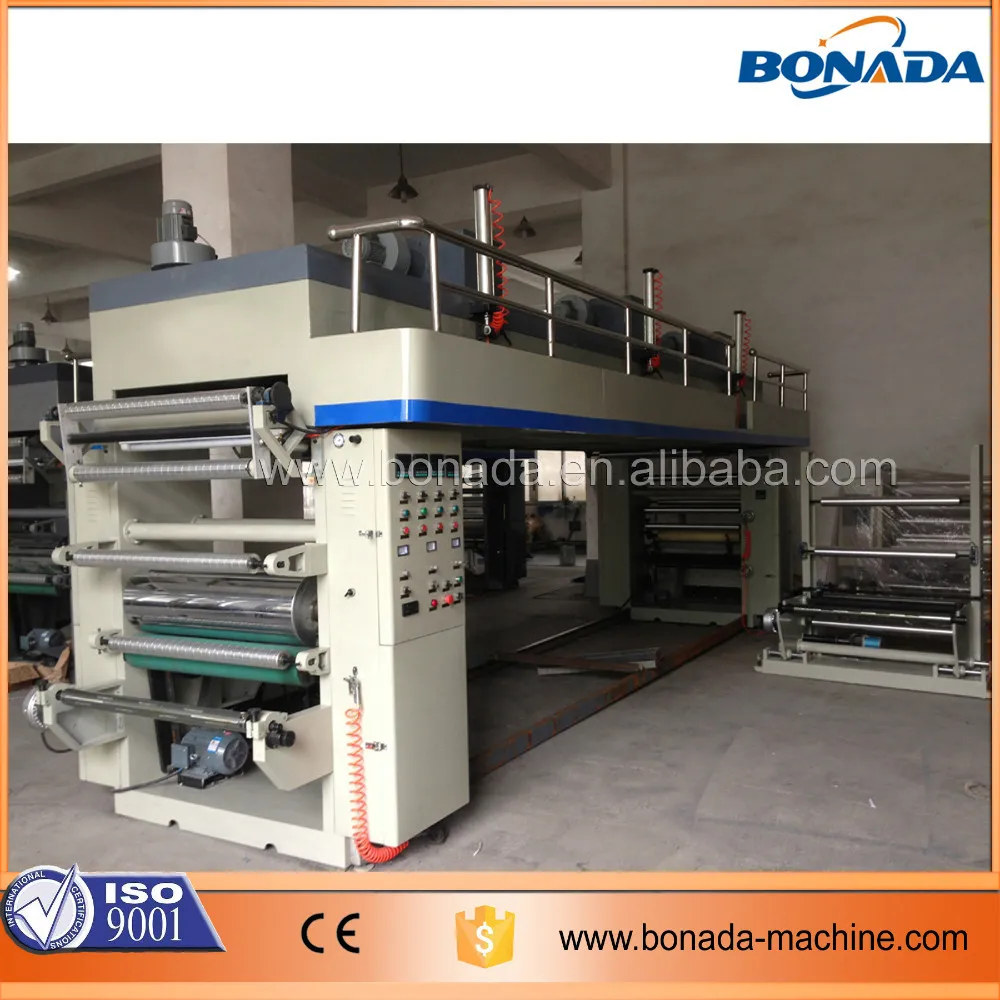

FG-B Series Dry Laminating Machine

Main Features:

1-Lamination and coating adopts double inverter motors.

2-Dry box tension controlling adopt pressure sensor automatically adjusting.

3-The first unwinding station adopts photoeyes EPC controlling system, the second unwinding station adopts two stations (double unwinder)

4-Lamination and coating adopts air-cylinder pressing.

5-Rewinding unit adopts moment motor(torque motor) to control the tension.



Parameters:

Model	FG-B800	FG-B1000	FG-B1100	FG-B1200
Laminating Material	Plastic film, Paper, aluminium foil, compound film etc.
Laminating layer	2layers	2layers	2layers	2layers
Max. width of lamination	800mm	1000mm	1100mm	1200mm
Lamination speed	90-120m/min	90-120m/min	90-120m/min	90-120m/min
Mechanical speed	150m/min	150m/min	150m/min	150m/min
Max. rewinding/unwinding diameter	600, 800	600, 800	600, 800	600, 800
Dry box temperature available	120℃	120℃	120℃	120℃
Total Power	48KW	50KW	53KW	56KW
