Гравировальная машина для гранита мрамора с ЧПУ 9015 3 кВт
- Категория: Stone Machines >>>
- Поставщик: Jinan,Dwin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.22 $* | 0.38 $* |
| Aug-16-2025 | 0.55 $* | 0.24 $* |
| Jul-16-2025 | 0.63 $* | 0.18 $* |
| Jun-16-2025 | 0.67 $* | 0.93 $* |
| May-16-2025 | 0.16 $* | 0.44 $* |
| Apr-16-2025 | 0.0 $* | 0.52 $* |
| Mar-16-2025 | 0.17 $* | 0.82 $* |
| Feb-16-2025 | 0.92 $* | 0.34 $* |
| Jan-16-2025 | 0.27 $* | 0.73 $* |
Характеристики
9015 3kw DSP cnc granite marble engraving machine marble router
Product Description
Machine brief introducing
This machine, cnc marble engraving machine or marble router is mainly used in engraving on common stone like marble, blue stone, even hard stone, granite.
The machine can also be used for cutting nonmetal and metal materials, like ceramic, wood, aluminium, the cutting thickness is very large.
The whole machine is heavy duty design, which is powerful to bear more loadings.
Technical parameter
| No. | Name | Details | Options |
| 1 | Model | 9015 marble engraving machine | 1218 1224 1325 etc. |
| 2 | X,Y Working area | 900mmx1500mm | can be customized |
| 3 | Z Working area | 250mm | can be customized |
| 4 | Table size | 1100mmx2000mm | |
| 5 | Processing precision | 0.05mm | |
| 6 | Reposition precision | 0.02mm | |
| 7 | Table structure | aluminium | |
| 8 | X,Y,Z structure | X,Y,Z ballscrew | |
| 9 | Command | G CODE | |
| 10 | Machine power | 2KW | |
| 11 | Max processing speed | 6000mm/min | |
| 12 | Max speed | 8000mm/min | |
| 13 | Working voltage | AC380V/50Hz | |
| 14 | Spindle power | 3KW | 5.5kw |
| 15 | Spindle rotating speed | 0-24000rpm/min | |
| 16 | Drive motor | Stepper | servo |
| 17 | Operation system | PCI CARD control | DSP control |

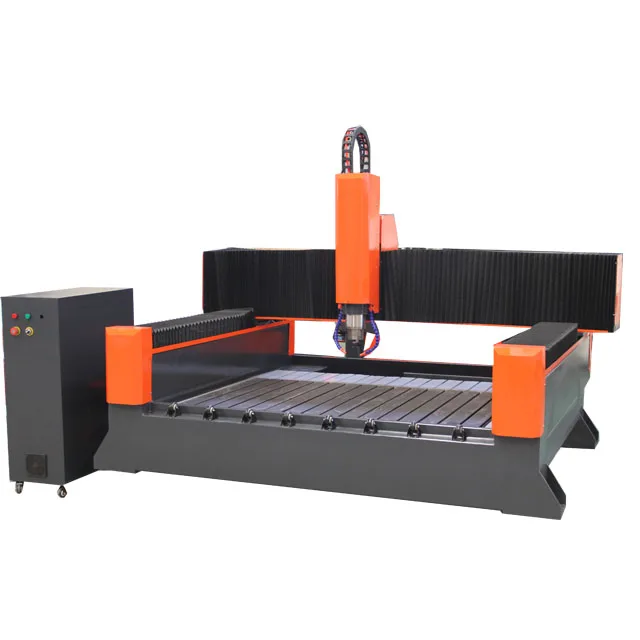

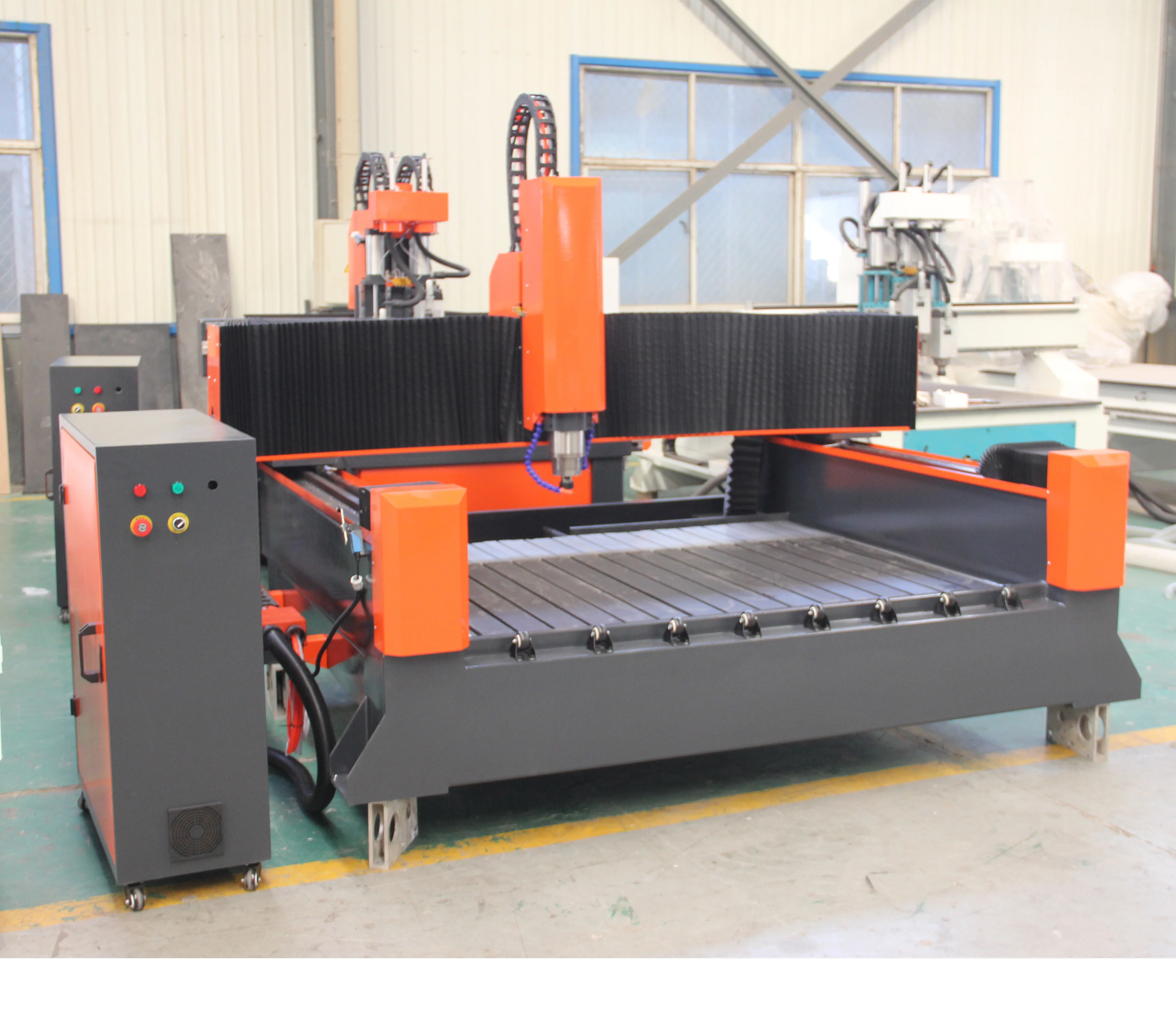

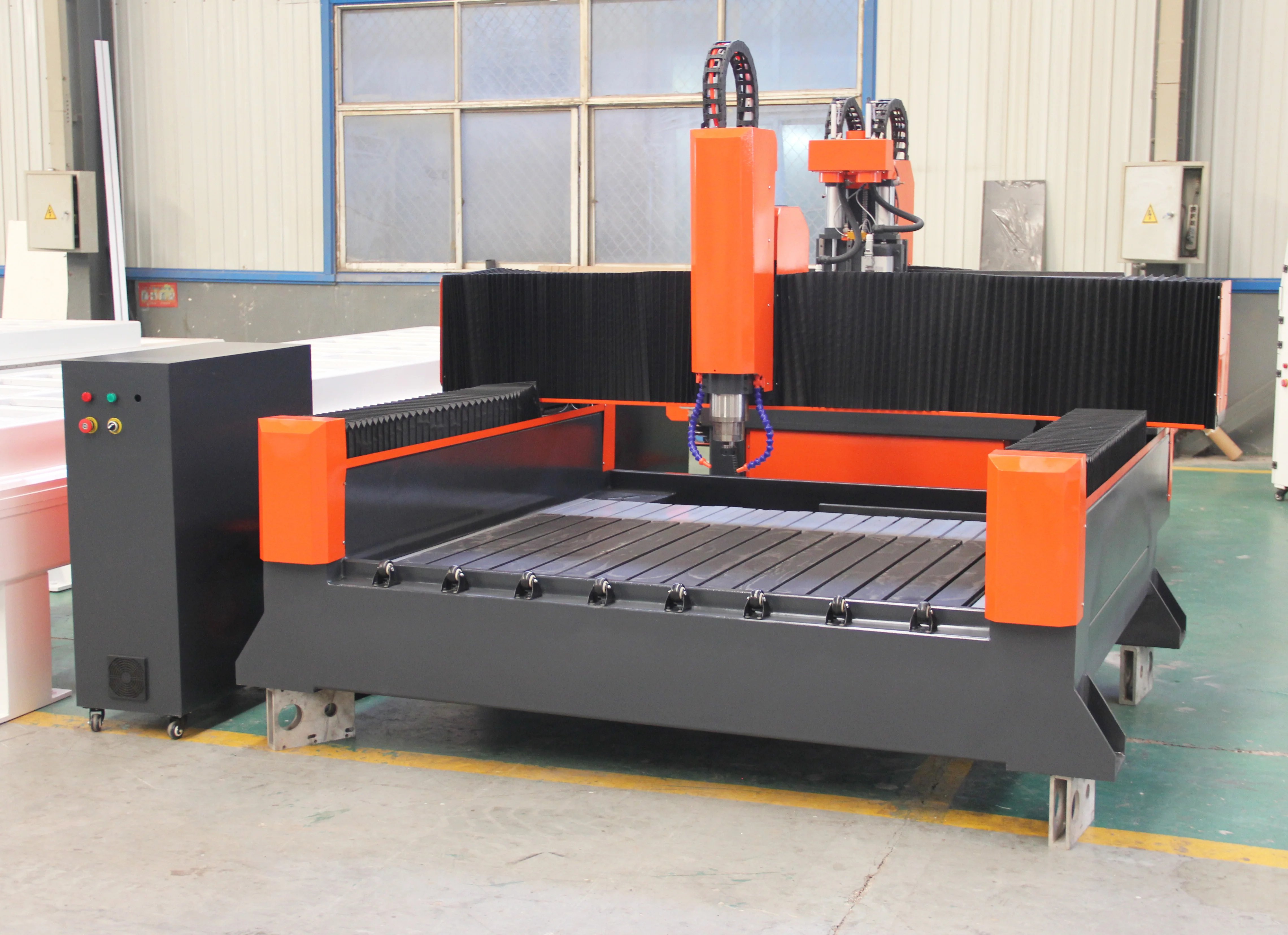

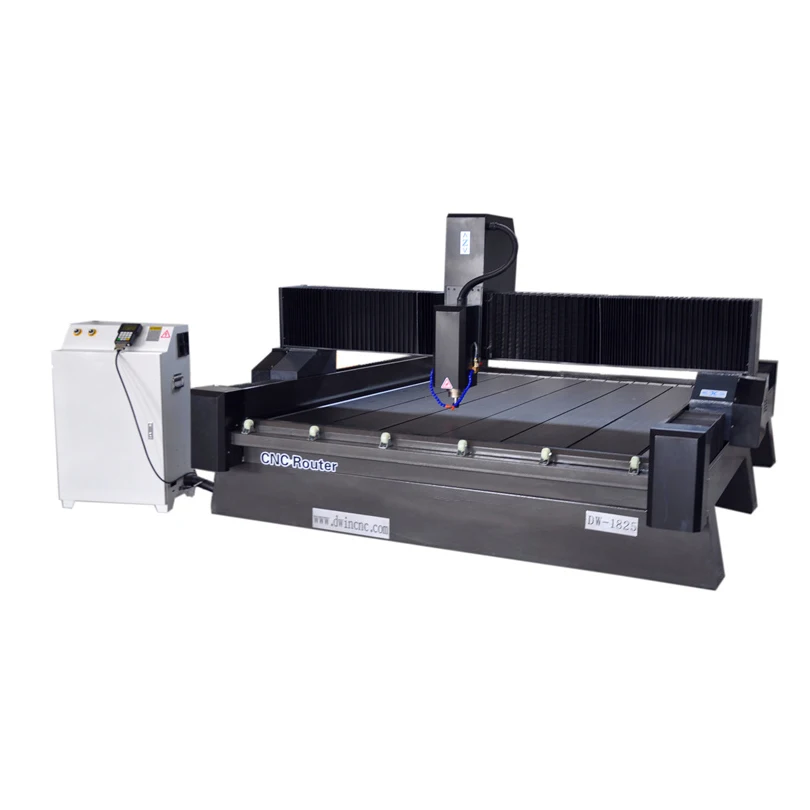

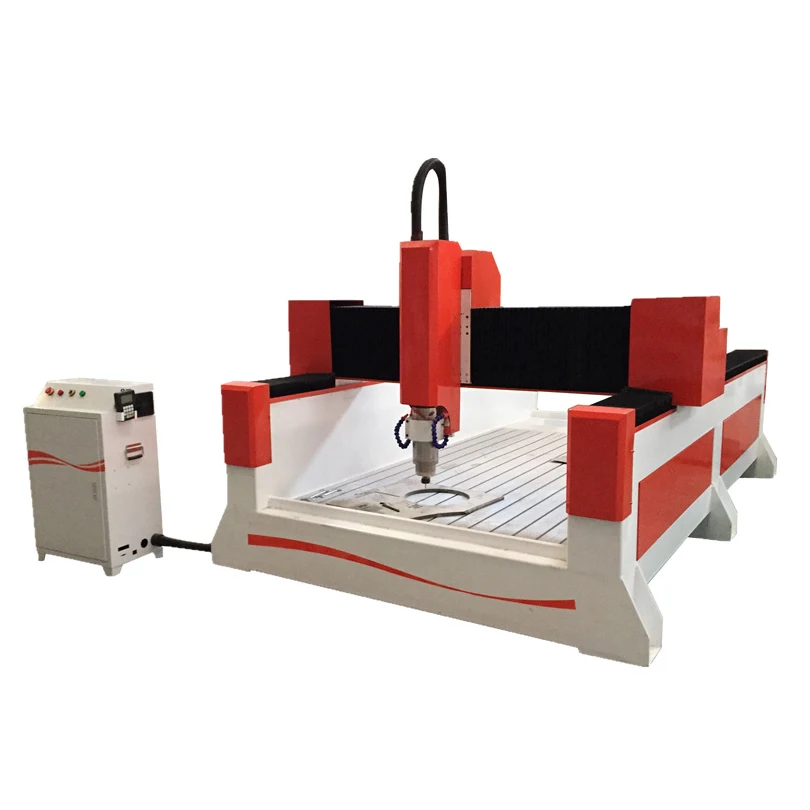

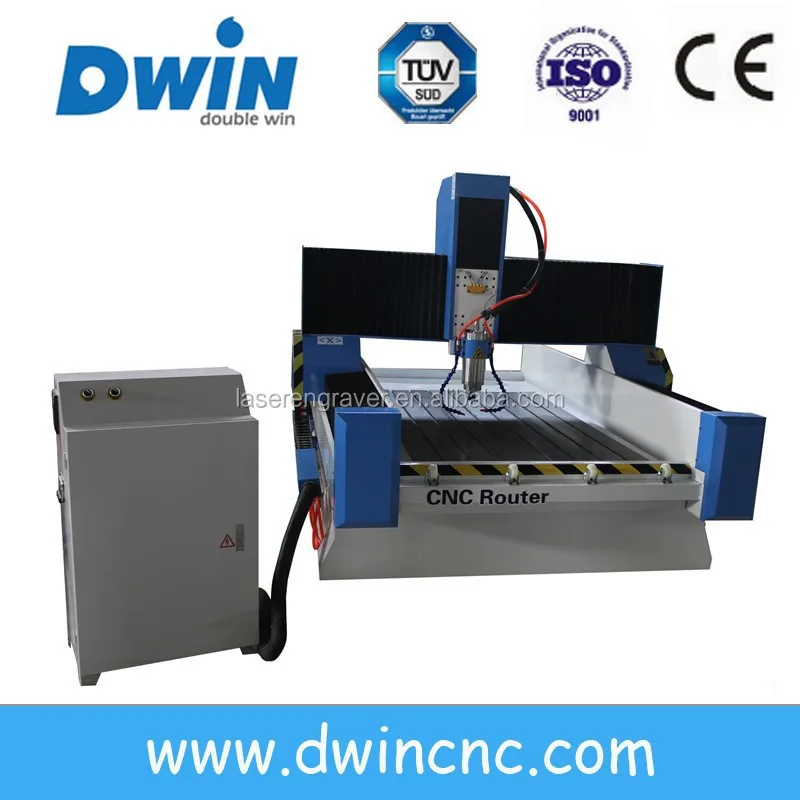

Machine overview
Sample
Packaging
Company Information
DWIN Service and advantage
1. We are manufacturer, so accept customization and support machine design for particular request for different purpose or material.
2. We have professional technician, they can help when you need any technological support.
3. Self-development knife head and customized high quality knife realize perfect cutting, and more durable than normal.
4. With our patented correction system, cutting more exact.
5. We promise to use the high quality components, also support customization.
6. Any output format is DXF or PLT can be recognized by the machine.
After-Sales Service
1).One year free warranty(except consumable parts), main parts are free of charge when problems happened because of quality problem during this period.
2).Life time free maintenance service.
3).Consumable parts(like blade, table cover) alway supply at cost price when needed.
4).A free operation training in our factory, and if don't have enough time, we will send a detailed training video.
5).24 hours online service, free technical support with different languages.
6).Door to door technical support when needed.
