Cheapest low pressure PA blown film extruder machine pe plastic air bubble nylon blowing
- Категория: Рукавных пленок производственная линия >>>
- Поставщик: Ruian,Mingde,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 777343.3 $* | 792890.77 $* |
| Jul-16-2025 | 630443.67 $* | 643052.29 $* |
| Jun-16-2025 | 765101.47 $* | 780403.74 $* |
| May-16-2025 | 758980.88 $* | 774160.73 $* |
| Apr-16-2025 | 605960.4 $* | 618079.54 $* |
| Mar-16-2025 | 746739.22 $* | 761674.39 $* |
| Feb-16-2025 | 740618.69 $* | 755430.94 $* |
| Jan-16-2025 | 734497.95 $* | 749187.40 $* |
Характеристики

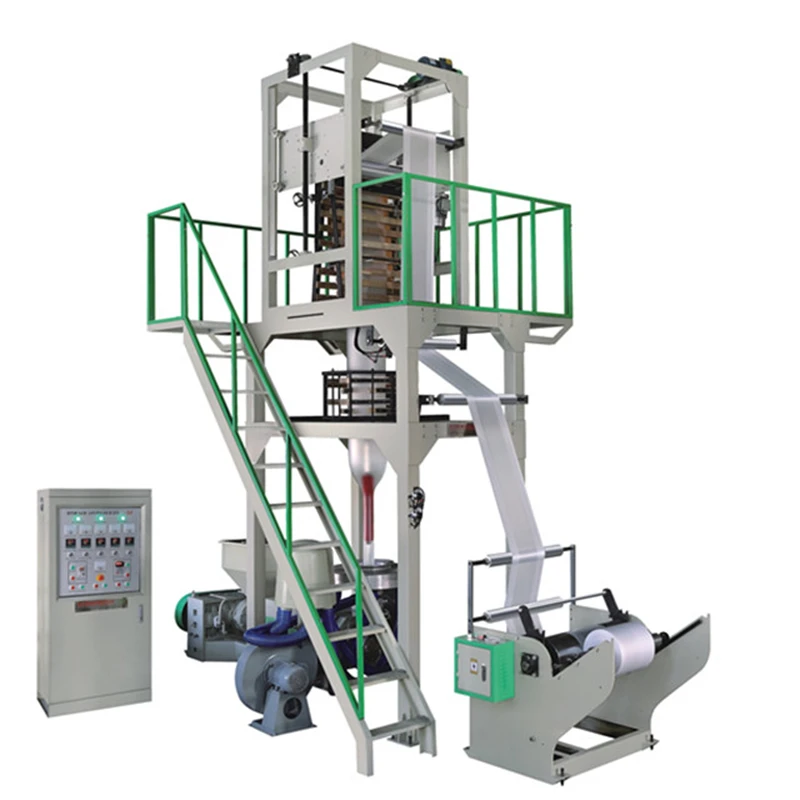

Cheapest low pressure PA blown film extruder machine pe plastic air bubble nylon blowing shrink film machine
Product Description
| Model | MDH45/50 | MD-H55 | MD-H60 | MD-H65 |
| Suitable Material | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE |
| Max Film Width(mm) | 600 | 800 | 1000 | 1200 |
| Film Thickness(mm) | HD:0.008-0.08 | HD:0.008-0.08 | HD:0.008-0.08 | HD:0.008-0.08 |
| Max Extrusion Output HD | 30/40kg/hr | 50kg/hr | 60kg/hr | 80kg/hr |
| Extrusion Unit | ||||
| Gear Box | 133/146 | 173 | 173 | 200 |
| Screw Diameter(mm) | φ45/50 | φ55 | φ60 | φ65 |
| Screw's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Cooling Fan | 200W*2 | 200W*2 | 200W*2 | 200W*2 |
| Thermo Control (zone) | 3 | 3 | 3 | 4 |
| Driving Motor (kw) | 7.5/11 | 18.5 | 22 | 30 |
| Extrusion Die | ||||
| Die Size (mm) | HD:φ60/80 | HD:φ80/100 | HD:φ100/120 | HD:φ120/150 |
| Screen changer | Standard manual | Standard manual | Standard manual | Standard manual |
| Thermo Control(zone) | 2 | 2 | 2 | 2 |
| Air Ring | φ620 | φ620 | φ620 | φ760 |
| Cooling Blower(kw) | 1.5 | 2.2 | 2.2 | 3 |
| Take-up Unit | ||||
| Roller Width(mm) | φ138*650 | φ138*850 | φ138*1100 | φ138*1300 |
| Embossing roller width | 550mm | 750mm | 1100mm | 1200mm |
| Take-UP Motor (kw) | 0.75 | 1.1 | 1.1 | 1.5 |
| Take-UP Speed(M/min) | 10-60 | 10-60 | 10-60 | 10-60 |
| Height adjustable type | 700mm | 700mm | 700mm | 700mm |
| Winding Unit | ||||
| Type of Winder | Surface friction winder | Surface friction winder | Surface friction winder | Surface friction winder |
| Roller Width (mm) | 700 | 900 | 1100 | 1300 |
| Winding Motor(KW) | 6 | 10 | 10 | 16 |
| Winding Speed(M/min) | 10-60 | 10-60 | 10-60 | 10-60 |
| Voltage | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE |
| Cover Dimensins | 4.5*2*4.3m | 4.5*2.2*4.5m | 5*2.5*4.8m | 5.5*2.8*5.2m |
