Receding Head Hydraulic Die Cutting Press
Product Description
Usage and characteristics of Receding Head Hydraulic Die Cutting Press
1. Receding Head Hydraulic Die Cutting Press is used for cutting operation of nonmetal materials such as leather, paper, plastic film, rubber and textile etc.by die cutter.
2. The machine adopts PLC control and human-machine interface operation with convenient use.
3. The machine is installed with front and rear movable cutting heads(pressing boards) draven by the motor.
During the operation, it provides workers with optimal excellent visual field, safety and reliability.
4. All movable connecting parts are equipped with central oil supply automatic lubricating device, which can raise abrasive resisitance
5. The special hydraulic design guarantees the continuous output of cutting force so as to realize low energy consumption.
6. The machine is provided with automatic cutting depth adjustment device to guarantee the cutting precision.
7. The machine is provided with high-precision safety screen on its operation surface, which can guarantee personal safety of operators and realize automatic operation of the machine.
8. The quenched steel plate can be optionally allocated to realize precise cutting without consumption of cutting board.
9. The heating board can be optionally allocated so that the machine can carry out pressure holding forming operation,
10. Products of special specifications can be customized.
Main Technical Data(Customizable)
Model | KTR | |
Maximum cutting force | 50T | 80T |
Cutting area | 1200*850mm | 1600*850mm |
Motor power | 3.0KW | 5.5KW |
| Tension Distance | 25-200mm | 25-200mm |
| Automatic Blocking Adjustable Range | 40mm | 40mm |
Machine Details:

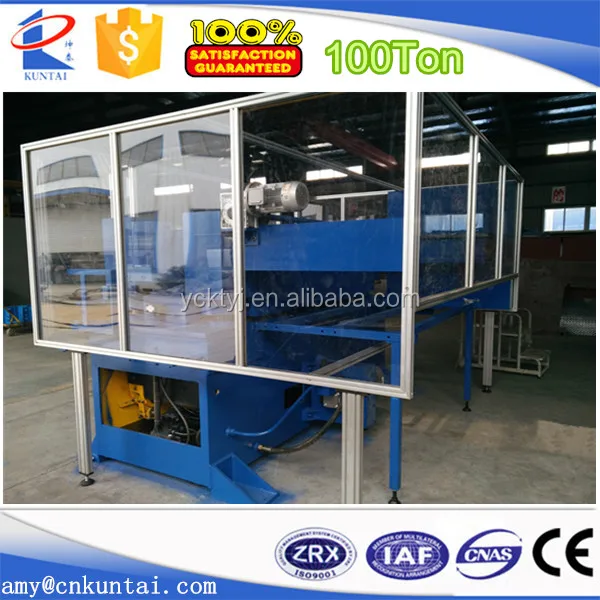

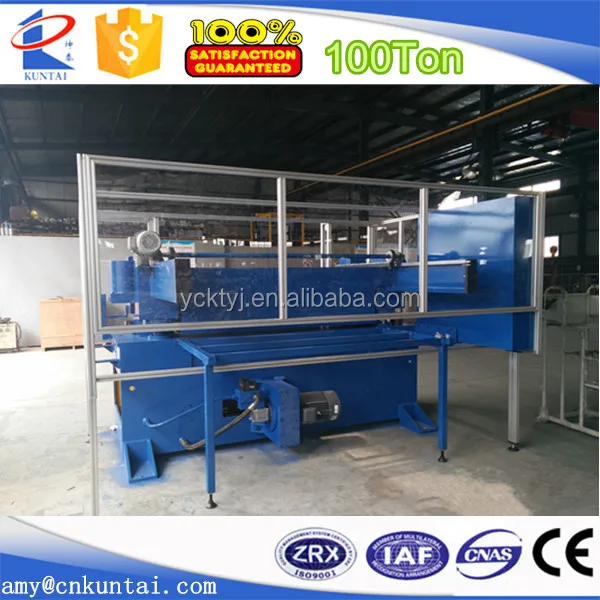

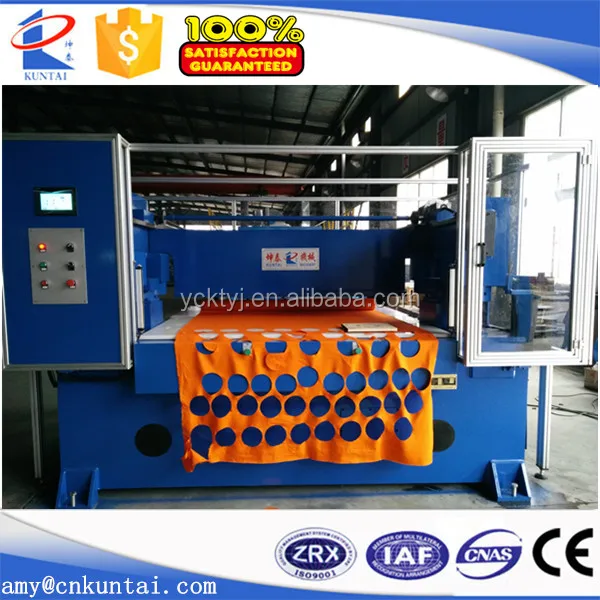

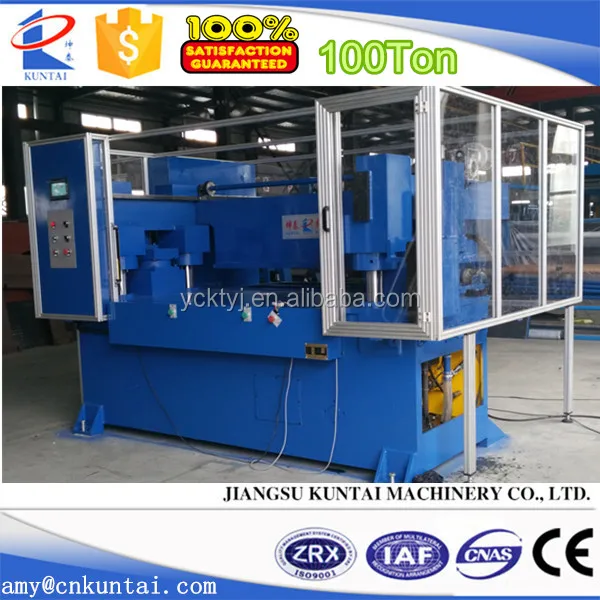

Receding Head Hydraulic Die Cutting Press
Receding Head Hydraulic Die Cutting Press

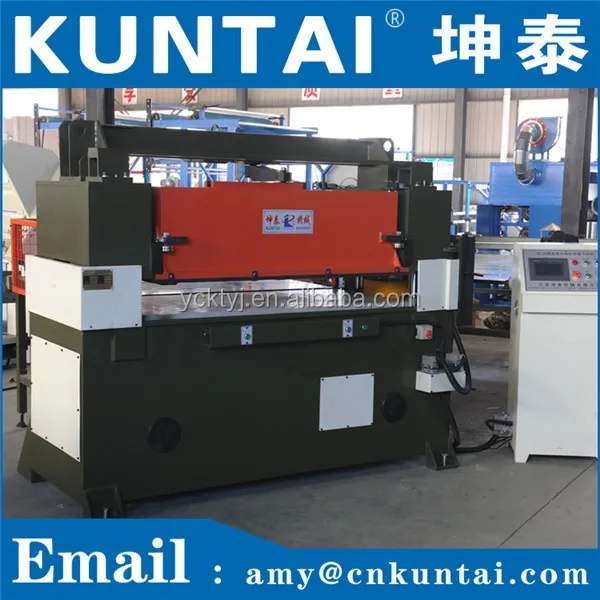

Other Types of Die Cutting Machine
Automatic Belt Hydraulic Fabric Cutting Machine
Hydraulic Die Cutting Machine
Hydraulic Die Cutting Machine
Hydraulic Die Cutting Machine
Packaging & Shipping
Cutting Machine
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Our Services
Company Information
CE & ISO Certificates:
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer with strong export capability.
2. Where is your factory?
We are in Yancheng city, three and a half hours' drive away from Shanghai, China.
3. Do you have individual research and development department?
Yes, we have. We believes in technology and market oriented research. Every year, we will work out a number of solutions to actual onsite application problems and develop brand new machines for our customers.
Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.
4. How can I trust your quality?
- We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.
- We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until the item passes all the inspections can it go to the following step.
- At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.
- We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.
- Throughout the lifespan of our machines, the spare parts replacement will be at cost price.
5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.
Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.
