Высококачественный автоматический холодный сварочный трансформатор машина для намотки
- Категория: Станок для намотки фольги >>>
- Поставщик: Zhu,Tang,(Suzhou),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 46374.40 $* | 48693.77 $* |
| Aug-19-2025 | 45985.70 $* | 48284.98 $* |
| Jul-19-2025 | 38580.90 $* | 40509.55 $* |
| Jun-19-2025 | 45205.37 $* | 47465.7 $* |
| May-19-2025 | 39360.74 $* | 41328.47 $* |
| Apr-19-2025 | 44426.41 $* | 46647.98 $* |
| Mar-19-2025 | 44036.21 $* | 46238.45 $* |
| Feb-19-2025 | 43646.18 $* | 45828.62 $* |
| Jan-19-2025 | 43257.99 $* | 45420.42 $* |
Характеристики
Product Description

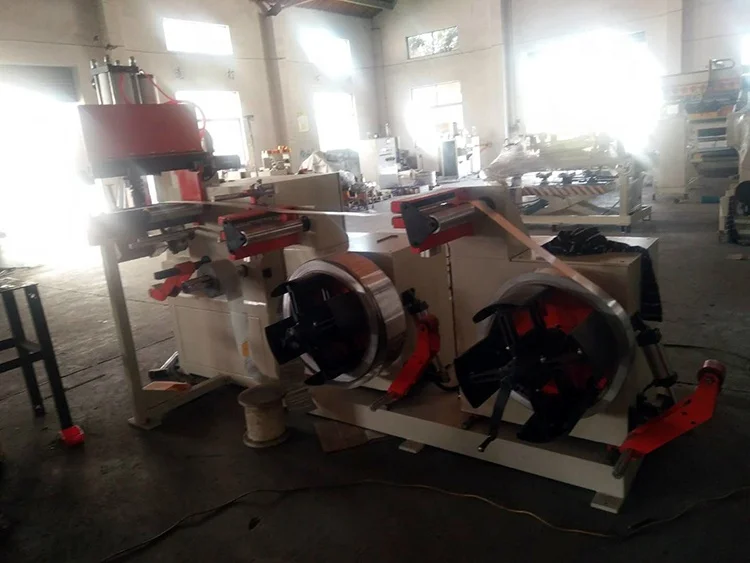

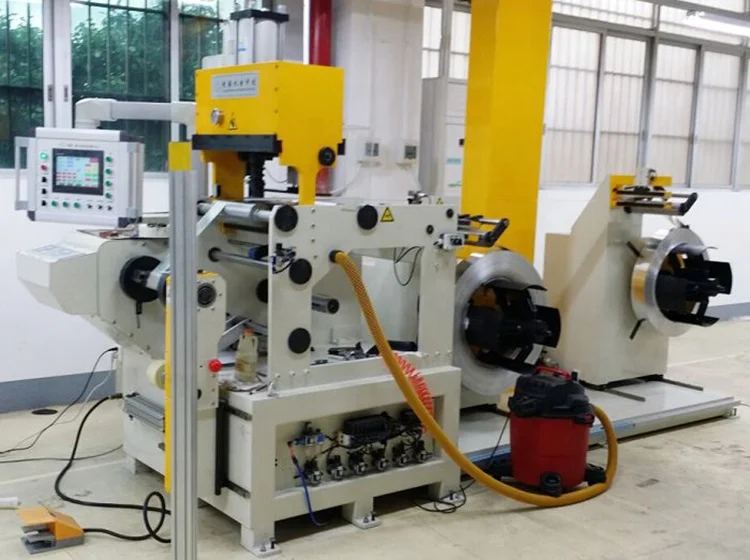

High Quality Automatic Cold Wedling Transformer Foil Winding Machine
High Quality Automatic Cold Wedling Transformer Foil Winding Machine BRJ300-2 is a dedicated equipment for the potential transformer foil winder/coiler. It can winding large-capacity & enegy-saving type potential transformer winder/coiler.
Core clamping foil type winding machine is suitable for power transformer and reactor foil coil winding.Foil coil conductor is based on different thickness of copper or aluminum foil tape, with wide strip of insulating material for layer insulation, winding the completion of the winding machine, roll forming coil.At the same time, complete the coil of the lateral surface dressing.The shape of the coil can be round, oval, rectangular, etc.
The machine adopts PLC control system.With high degree of automation and complete functions.
Main Technical Parameters:
| Model | BRJ300-2 Foil Winding Machine |
| Coil check diameter | Φ600 |
| Material bearing cylinder length | 350mm |
| Material carrying cylinder load | 1000KG*2 |
| Copper foil aluminum foil | thickness0.25-2mm |
| Spindle speed | 0~45r/min |
| Power of spindle motor | 5.5KW |
| Total weight of equipments | 3200KG |
Send Inquiry
Similar Products
Company Information
Certifications
EXIBITION
FAQ
1) Q: Are you manufacturer or trading company?
A: We are both manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service oversea?
A:We provide both technical support online and on-site services
A:We provide both technical support online and on-site services
4) Q: How does your factory control product quality?
A:Besides we strictly control each production chain, all machines have to be tested before loading.
5) Q: How can I know the machines is OK before loading?
A: We can record the testing video for your reference if you need, or you can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture customized machines as requested.
