Introduction

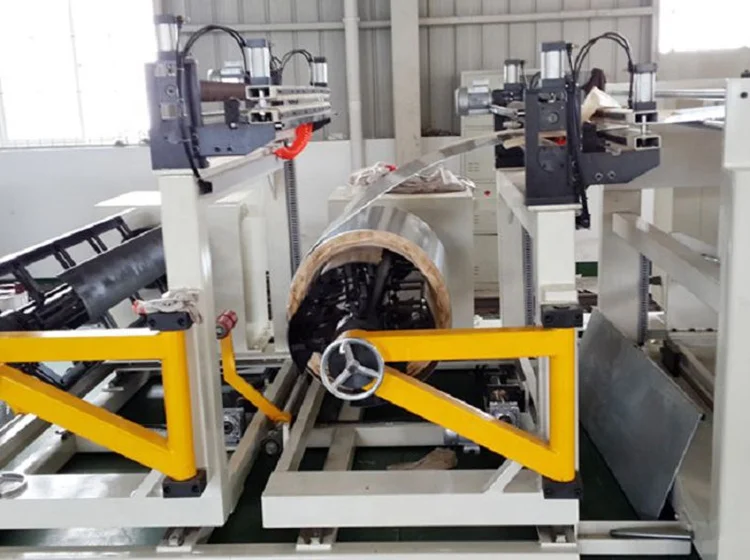

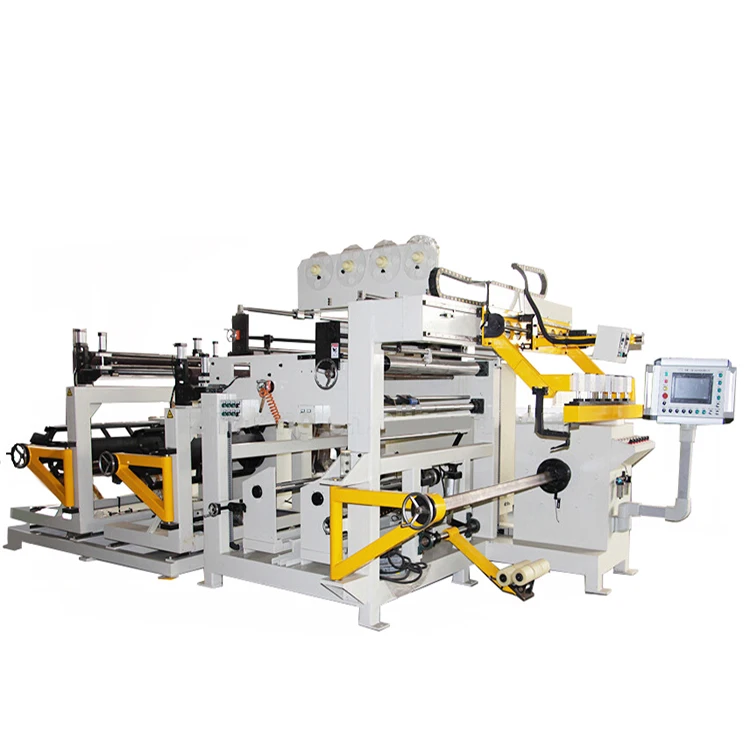

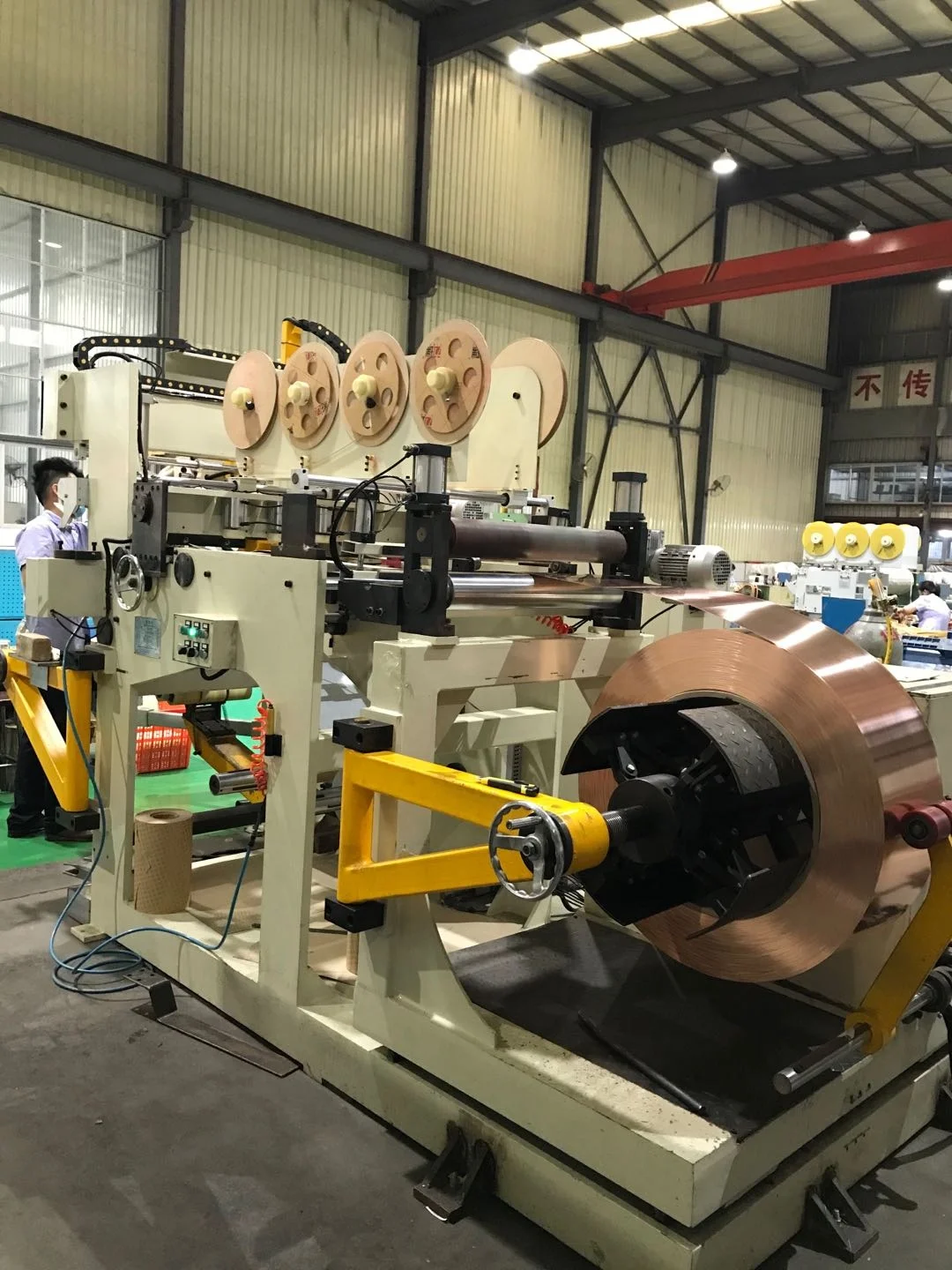

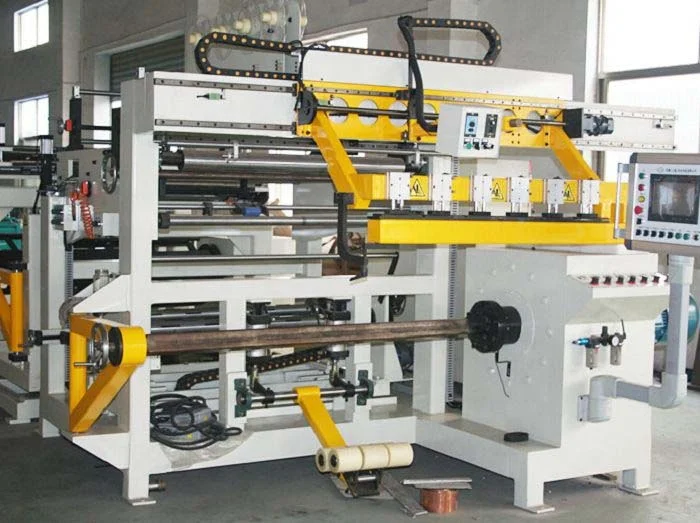

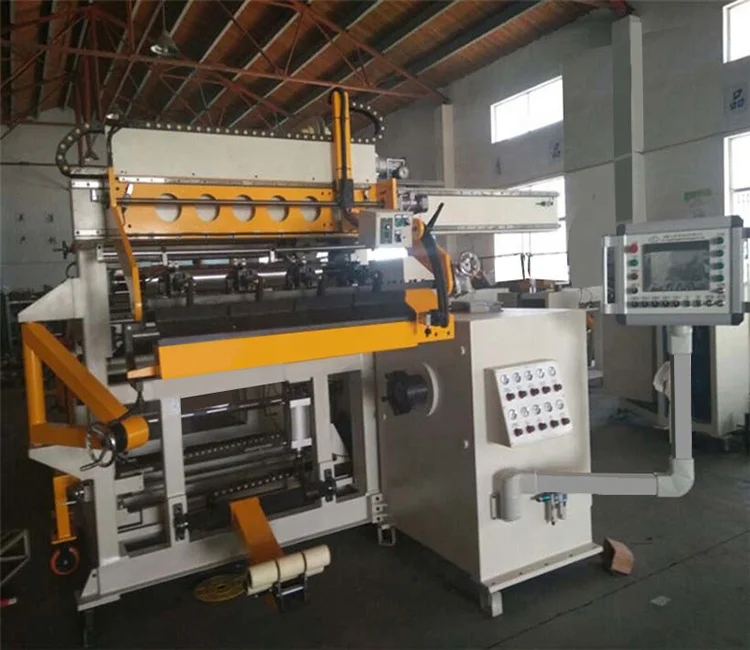

Double Layer Conductor Strip Winder Automatic Transformer Foil Winding Machine BRJ800-2 is used to wind transformer foil coils and similar products, the foil conductor can be copper or aluminum strip. This kind of foil winding machine can wind one or two layers of foil conductor and one or two layers of insulation material (such as paper or similar material). Bus bars are welded with TIG welding process. The automatic foil edge alignment makes sure that the coil edges are straight and smooth when winding. Control system is based on PLC. It features slow start, smooth running, high automation, strong pulling force, etc.



Main Components



1.Main frame

2.Winding unit

3.Foil decoiler

4.Insulation decoiler

5.End-fill strip feeder

6.Cleaning system

7.Cutting system

8.Foil deburring system

9.Edge alignment system

10.Automatic welding unit

11.Electronic control system

12.Pneumatic system



Technical Parameters



Typical standard specifications of BRJ800-2 are shown below, however these can be easily modified as requested.

Axial Length (foil width):	800mm
Max. OD. of Finished Coil:	1,000mm
Max. ID. of Finished Coil:	130mm
Finished Coil Shape:	oval, round and rectangular
Foil Thickness Min. and Max. (Aluminum):	0.3 - 3.0 mm
Foil Thickness Min. and Max. (Copper):	0.2 - 2.0 mm
Conductor Foil Material OD.:	1,000mm
Conductor Foil Material ID.:	500mm
Number of Conductor Decoiler:	2
Length of Conductor Decoiler:	850mm
Conductor Decoiler Shaft:	adjustable Dia. range 400-520mm
Winding Power:	11KW
Max. Winding Speed:	20 Rpm
Welding Mode:	TIG
End-fill Strip Feeder:	8
Edge Alignment System:	Photoelectric sensing automatic rectifying deviation
Electronic Control System:	PLC
User Interface:	10inch (254mm) touch screen industrial PC / access controller
Counting Turns Range:	0 - 9999.9
