1. 100% virgin Lexan 10 years guarantee polycarbonate hollow sheet factory price

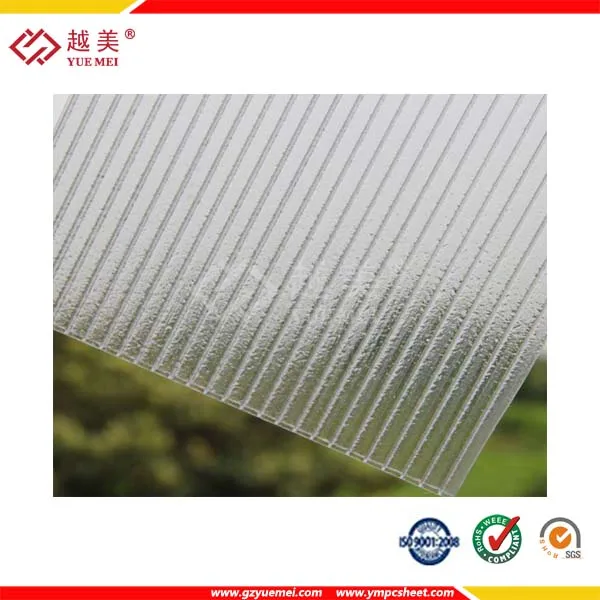

2.Polycarbonate sheet specification(Hollow Polycarbonate sheet):



   1.Standard size:2100mm*5800mm/2100mm*11800mm
   2.Length no limit, all size can be customized.

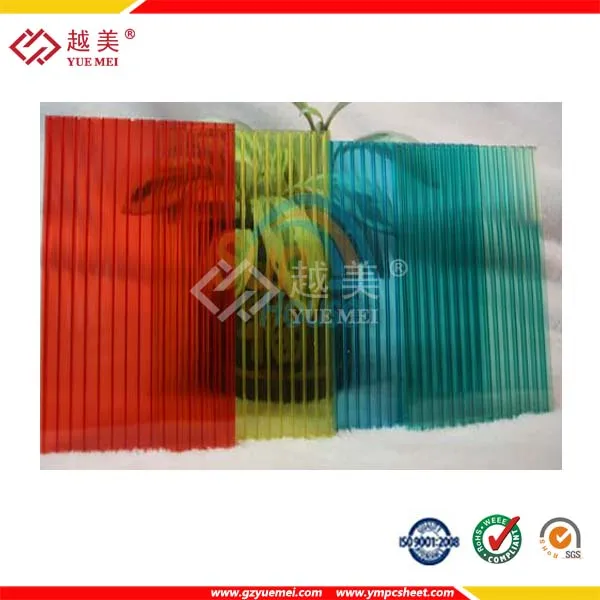

   3.Colors:clear,opal,lake-blue,green,bronze,red,yellow etc.

   4.Gurantee:10 years quality warranty

   5.UV coating on both sides



Item	Standard size (mm)	Thickness (mm)	Weight (kg/ m2)	Min curving radius (mm)	General color
PC twin-wall hollow sheet	Length: 6000   Width: 2100 1220	4	1.0	700	Clear Opal Bronze Blue Lake blue Grass green Porcelain white Silver grey Pearl white
		5	1.1	875
		6	1.3	1050
		8	1.5	1400
		10	1.7	1750





Loading Details for hollow sheet:
Thickness	Sheet Size	Quantity(20GP)	Sheet Size	Quantity(40HQ)
(mm)	(mm)	(PCS)	(mm)	(PCS)
4	2100*5800	550	2100*6000	1300
6	2100*5800	380	2100*6000	880
8	2100*5800	290	2100*6000	670
10	2100*5800	235	2100*6000	535





Thickness	Weight	Transmission % (±3%)
mm	Kg/m2	clear	opal	blue	brown	Light-green
4	1.2	80	57	45	55	45
6	1.2	79	56	36	53	42
8	1.2	78	52	30	51	40
10	1.2	77	44	25	48	35



3.The polycarbonate hollow sheet technical data :





Characteristics	Unit	Data of PC hollow sheet
Light transmission	%	40 ~ 82
Impact strength	J/m	2.1 ~ 2.3
Coefficient of thermal expansion	mm/m °C	0.065
Heat conductivity	W/m2 °C	3.0 ~ 3.9
Service temperature	°C	-40°C~+120°C
Tensile strength	n/mm2	≥60
Bending strength	n/mm2	100
Bending elastic modulus	mpa	2400
Tensile stress at break	mpa	≥65
Elongation at break	%	≥100
Sound insulation effect	db	35 decibel decrease for 10mm thick sheet





Solid polycarbonate panels:







Popular Items	Thickness(mm)	Size (L*W)	Weight(kg/m2)	Color
Big embossed sheet	2.5mm	3000*2000  1000*1500  2000*3050	2.625	Clear  Opal Green Bronze Bule  Lake bule
	3mm		3.15
	3.5mm		3.675
Small embossed sheet	2.6mm	3000*2000	2.86

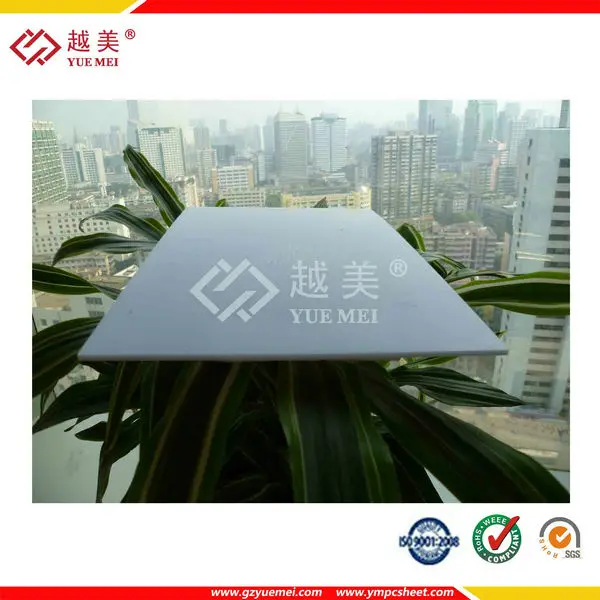

Solid sheet	1.5mm	1500*1000	1.8

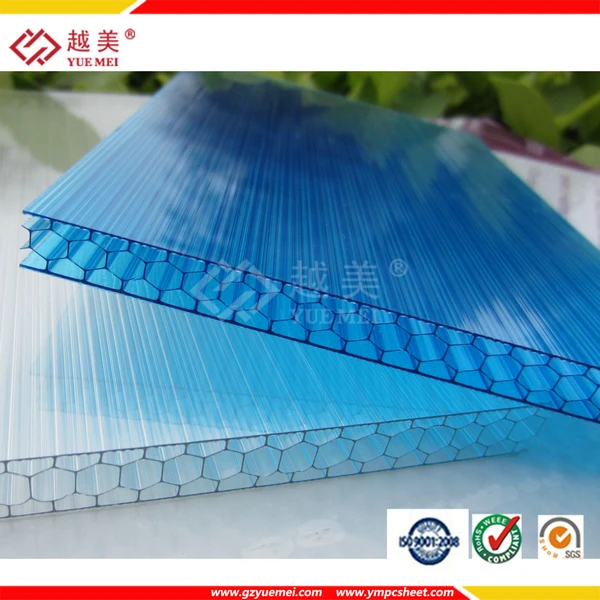

Honeycomb sheet	10mm	2100*5800	2.1
Triple wall hollow sheet	16mm	2100*5800	2.7

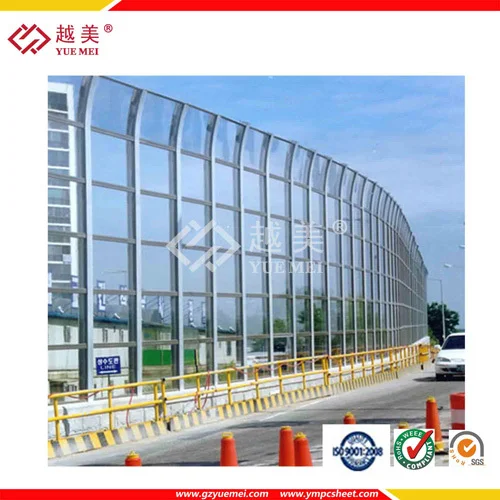

4.  Projects:

         1) Roofing ;

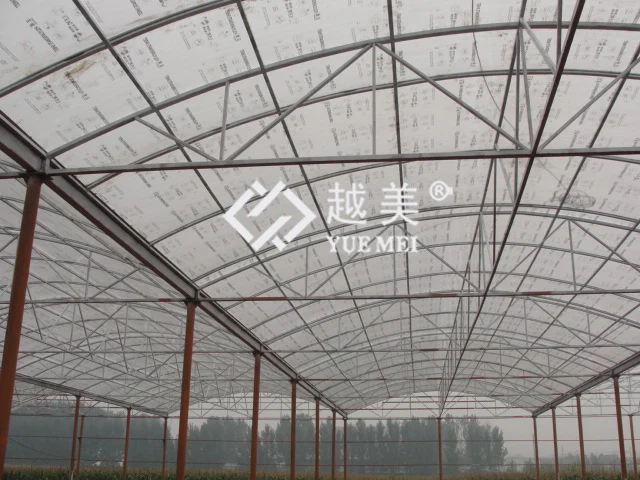

       2) Grennhouse ;

       3) Car port ;

       4) Structural insulating board  ;

       5) Skylight;

       6) Sport stadium.etc.









5.Our company information:



    1)Yuemei Factory view:









    2) Our sales Office :









         3)Material :











     4)  Certifications :









   5)Package:







   6)Loading :





Loading Details:
Thickness	Sheet Size	Quantity(20GP)	Sheet Size	Quantity(40HQ)
(mm)	(mm)	(PCS)	(mm)	(PCS)
4	2100*5800	550	2100*6000	1300
6	2100*5800	380	2100*6000	880
8	2100*5800	290	2100*6000	670
10	2100*5800	235	2100*6000	535















        7)Sales team:



Integrity, Persistent, Hard, Aggressive, Innovation is our company's spirit



    8)Show room :





6.Fairs:









Why do you want to cooperate with YUEMEI?





1) We are specialized manufacturer of polycarbonate sheet for 22 years



2) 50 micron UV layer coated



3) Proved by ISO9001:2008, SGS, ROHS ect



4) The material we use 100% virgin Bayer material



5) 10 years guarantee



6) We have a professional marketing sales team for service.



7) A variety of polycarbonate sheet products



8) Delivery about 7-10days after receive deposite.
