Экономичная экструзионная машина с одним винтом и двойной головкой для выдувания
- Категория: Blown Film Production Line >>>
- Поставщик: Ruian,Mingde,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.62 $* | 0.30 $* |
| Aug-16-2025 | 0.26 $* | 0.49 $* |
| Jul-16-2025 | 0.44 $* | 0.79 $* |
| Jun-16-2025 | 0.2 $* | 0.35 $* |
| May-16-2025 | 0.42 $* | 0.97 $* |
| Apr-16-2025 | 0.62 $* | 0.69 $* |
| Mar-16-2025 | 0.53 $* | 0.50 $* |
| Feb-16-2025 | 0.46 $* | 0.91 $* |
| Jan-16-2025 | 0.16 $* | 0.88 $* |
Характеристики

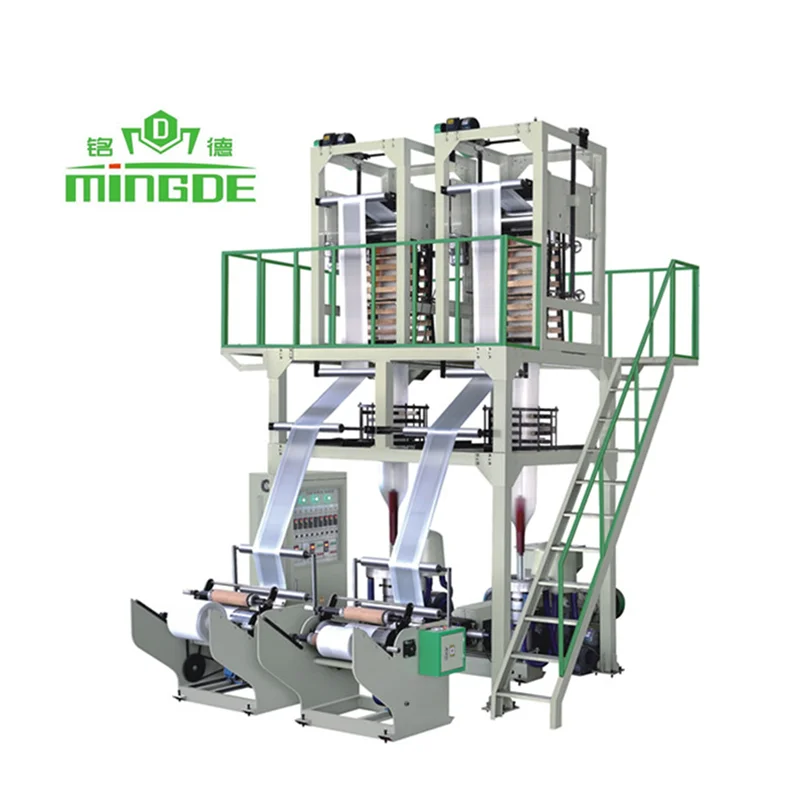

Economic single screw double-head film blowing extrusion machine plastic PE blown film extruder machine
Product Description
| Model | MD-H2-55 | MD-H2-65 |
| Suitable Material | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE |
| Max Film Width(mm) | 500*2 | 600*2 |
| Film Thickness(mm) | HD:0.008-0.08 | HD:0.008-0.08 |
| Max Extrusion Output HD | 50kg/hr | 70kg/hr |
| Extrusion Unit | ||
| Gear Box | 173 | 200 |
| Screw Diameter(mm) | φ55 | φ65 |
| Screw's Material | 38 CRMOALA | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA | 38 CRMOALA |
| Barrel's Cooling Fan | 250W*2 | 370W*2 |
| Thermo Control (zone) | 3 | 4 |
| Driving Motor (kw) | 22 | 30 |
| Extrusion Die | ||
| Die Size (mm) | HD:φ50/60*2 | HD:φ50/60*2 |
| Screen changer | Standard manual | Standard manual |
| Thermo Control(zone) | 2*2 | 2*2 |
| Air Ring | φ620*2 | φ620*2 |
| Cooling Blower(kw) | 1.5 | 2.2 |
| Center steady stick | 2 PCS | 2 PCS |
| Take-up Unit | ||
| Roller Width(mm) | φ138*550 | φ138*650 |
| Embossing roller width | 450mm | 550mm |
| Take-UP Motor (kw) | 0.75*2 | 1.1*2 |
| Take-UP Speed(M/min) | 10-60 | 10-60 |
| Height adjustable type | 700mm | 700mm |
| Winding Unit | ||
| Type of Winder | Surface friction single winder | Surface friction single winder |
| Roller Width (mm) | 600 | 700 |
| Winding Motor(KW) | 6 | 6 |
| Winding Speed(M/min) | 10-60 | 10-60 |
| Voltage | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE |
| Cover Dimensins | 5*3.2*4.3m | 5.5*3.4*4.3m |
