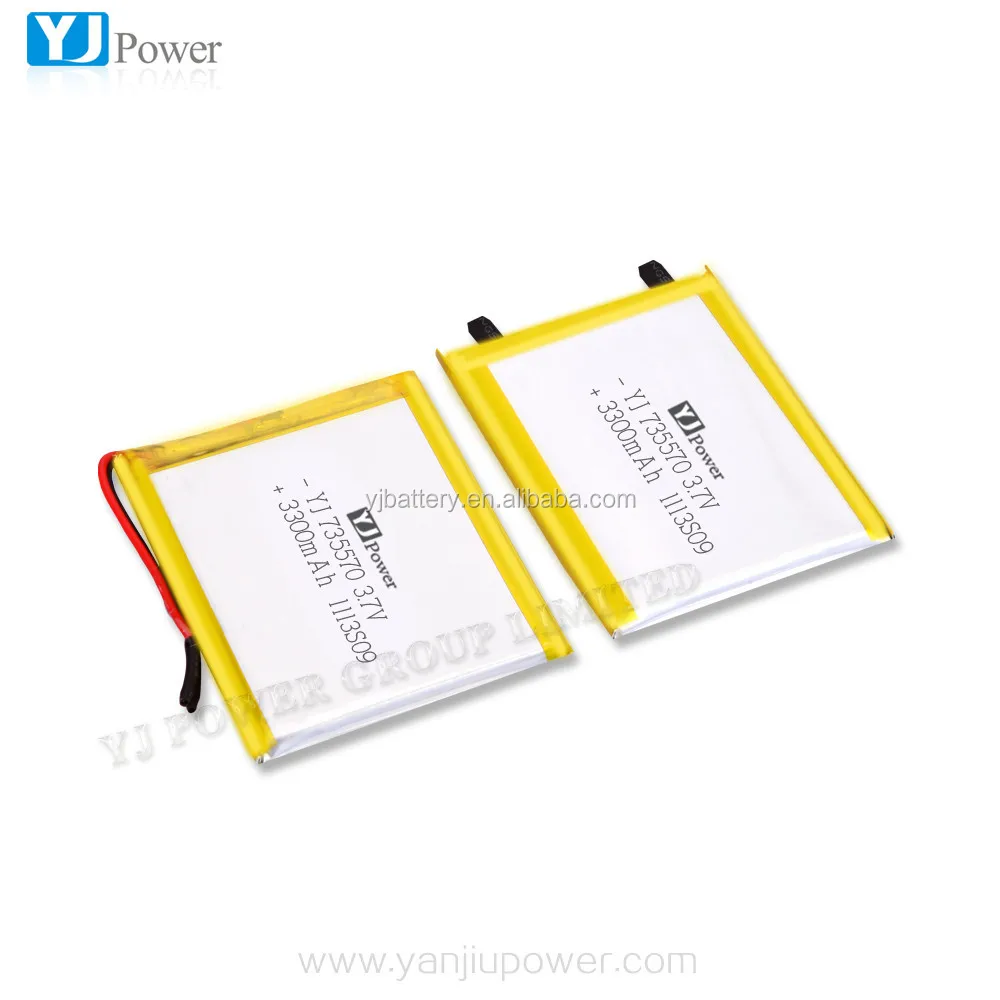

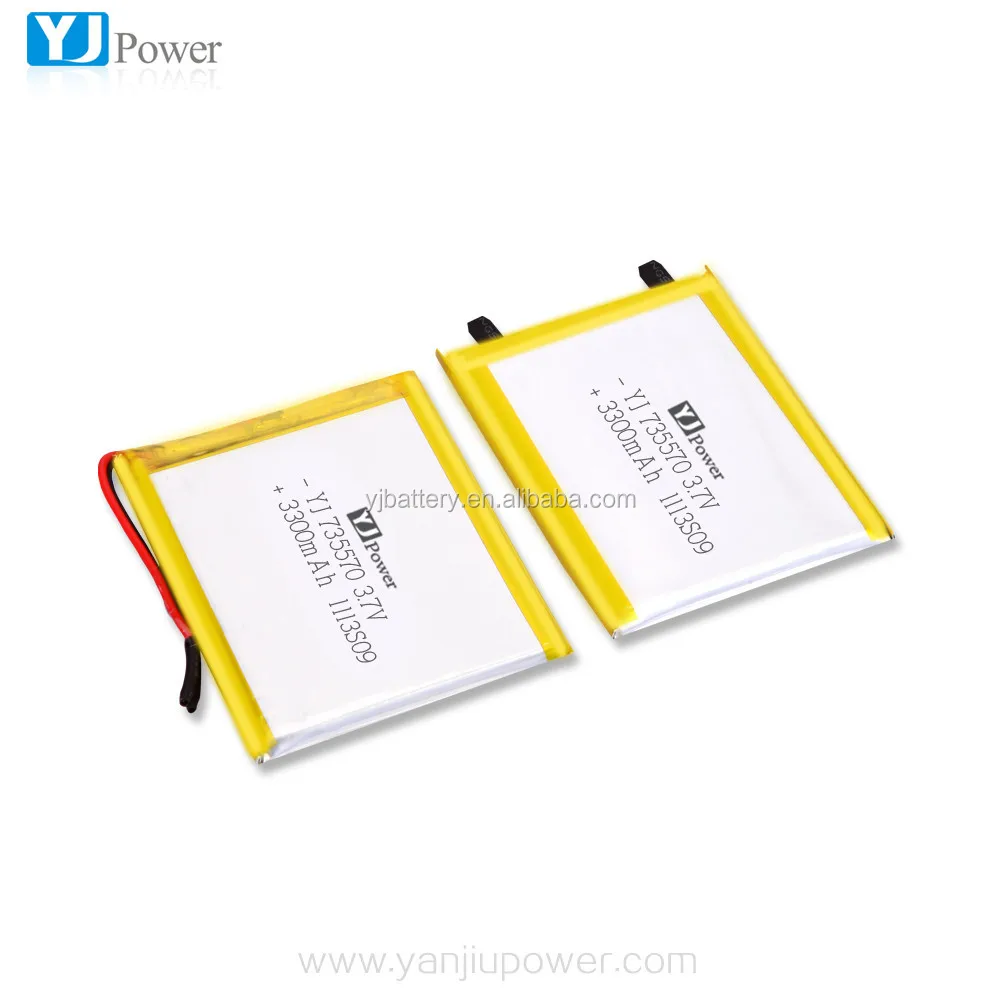

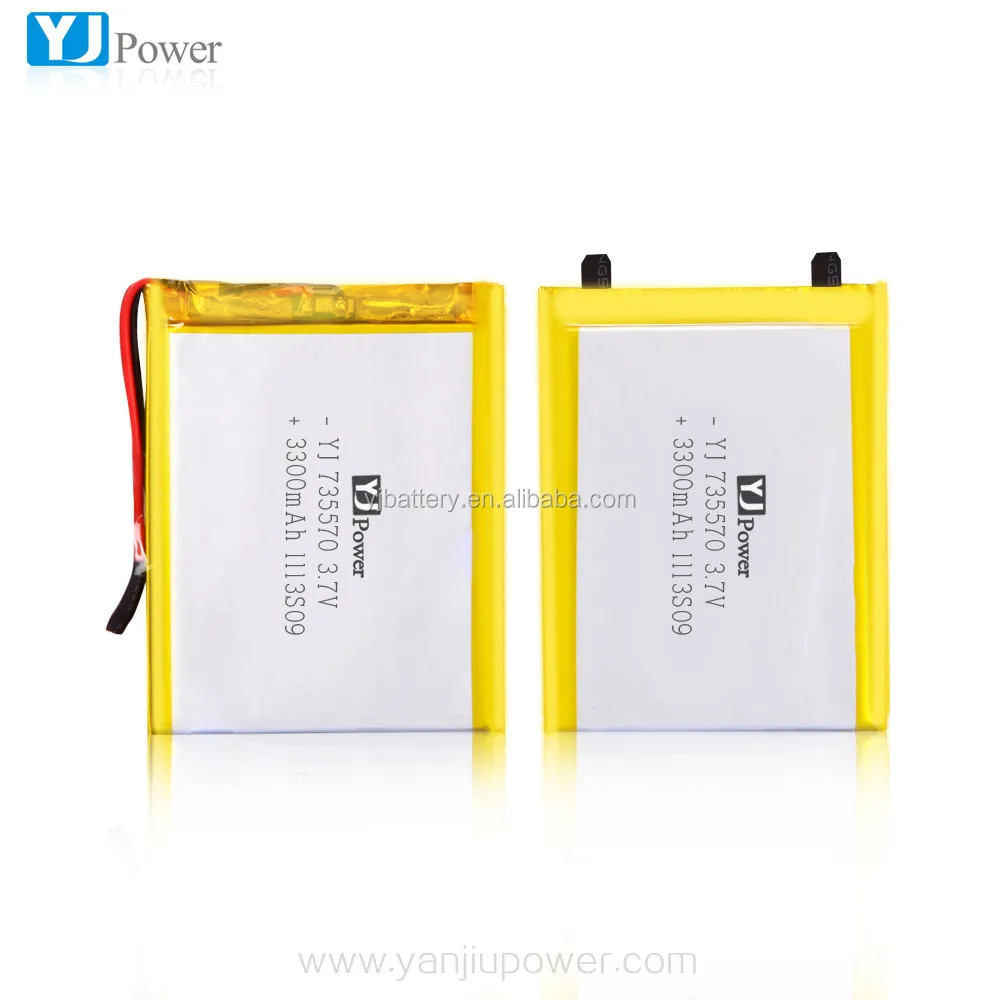

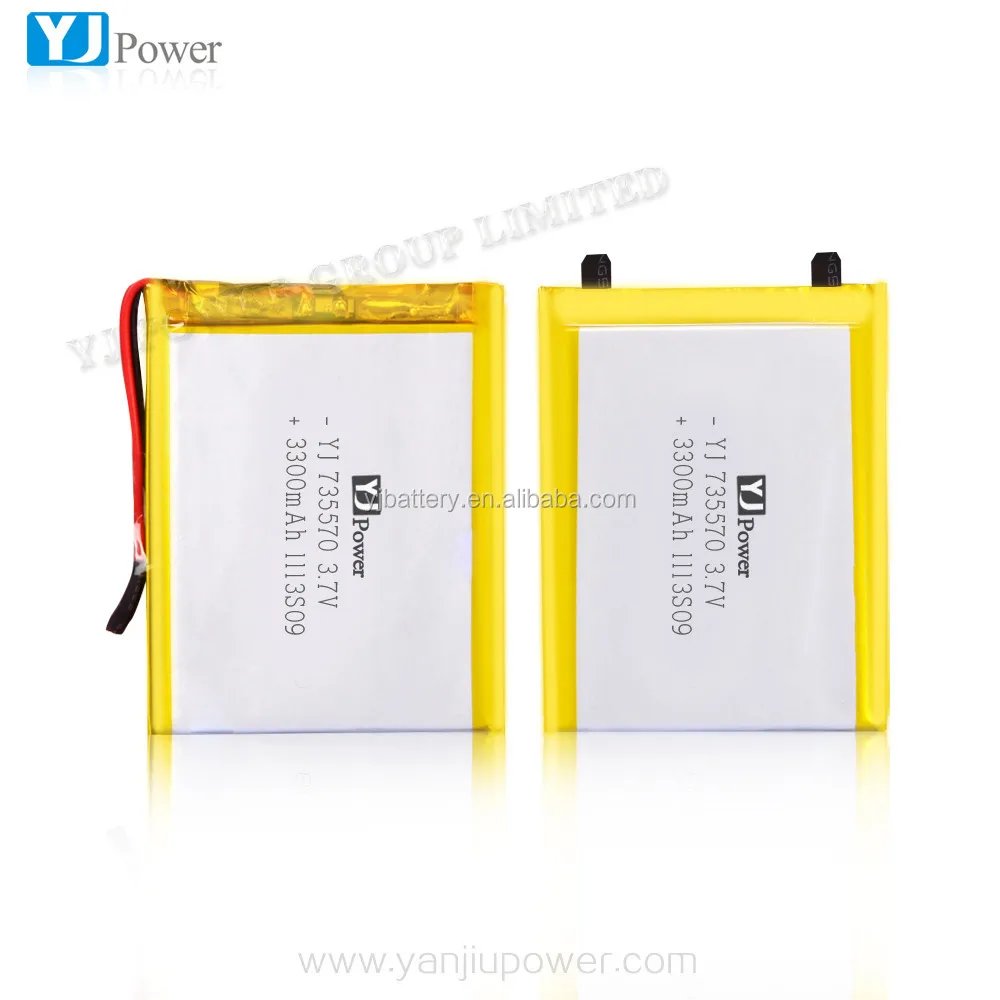

Rechargeable li-polymer battery 735570-3300mAh 3.7V
Product Description
Lithium ion polymer battery
Battery model: 735570-3300mAh 3.7V
Material of Case Soft Al-film packing foil
Nominal Capacity:3300mAh
Nominal Voltage:3.7V
Max Charge Current: 1.0C=3.30mA
Max Discharge Current: 1.5 C=4.95A
Charge method CC/CV (constant current/constant voltage)
Size: 7.3*55*70mm
Weight: About 59g
Rechargeable battery with no less than 500 times cycle life
3.7V polymer li-ion battery 735570  3300mAh 3.7V
1) Specification
No.	Item	Rated Performance		Remark
1	Rated Capacity	Typical	3300mAh	Discharge at 0.2C after standard charge fully.
		Minimum	3200mAh
2	Nominal Voltage	3.7V		Mean operation voltage during standard discharge.
3	Voltage at end of	3.0V		Discharge cut-off voltage.
	Discharge
4	Charging Voltage	4.2±0.03V
5	AC (1KHz) Impedance New Cell Max.(mW)	≤30mΩ
6	Standard Charge	Constant Current 0.5C		Charge time: Approx 4.0h.
		Constant Voltage 4.2V
		Cut-off current 0.01C
7	Standard Discharge	Constant current 0.2 C
		end voltage 3.0V
8	Fast Charge	Constant Current 1C		Charge time: Approx 2.5h.
		Constant Voltage 4.2V
		Cut-off current 0.01C
9	Fast Discharge	Constant current 1 C
		end voltage 3.0V
10	Maximum Continuous Charge Current	1.0C
11	Maximum Continuous Discharge Current	1.5C
12	Operation Temperature Range	Charge: 0~45C		60±25%RH.
		Discharge: -20~60C		Bare Cell.
13	Storage Temperature	Less than 1 year: -20~25C
	Range	Less than 3 months: -20~40C
		Less than 1 months: -30~45C
		Less than 12 hour: 45~60C
14	Storage Humidity Range	60±25%RH.
15	Weight	Approx: 59g		Whole product
16	Product Dimension	Length: Max. 71.5mm		Initial dimension
		Width: Max. 55.5mm
		Thickness: Max. 7.5mm
17	Package	Standard International transportation package, based on UN3480 PI965[RLI] Lithium lon Cells/Batteries ONLY
2) Electric features:
No.	Item	Type value	Unit
1	Over charge detection voltage	4.28±0.03	V
2	Over charge detection delay time	80-200ms
3	Over charge release voltage	4.08±0.03	V
4	Over discharge detection voltage	3.0±0.08	V
5	Over discharge detection delay time	20-60ms	V
6	Over discharge release voltage	3.0±0.25	V
7	Over current detection voltage	150±30mv	V
8	Over current protection current	1.8±0.5A	A
9	Over current detection delay time	10-20ms
10	Cycle life	≤500 times(≥70% 0.5C)







Advantages





  1) Environmental friendly

  2) High density of energy

  3) Light weight
  4) Low self-discharge
  5) Low internal resistance
  6) Long cycle life, chargeable up to 500 or 1000 times

  7) No memory effect

  8) Doesn't contain Mercury, No fire, No explosion, No leakage

  9) Very good and quick charge, capability can be charged to 90% within 10 min.

10) Thickness can be adjusted while width and height keep the same




Safety performance



Item	Test name	Result
1	Over charge	No fire,no explosion
2	Over discharge	No fire,no explosion
3	Short Circuit	No fire,no explosion
4	Drop	No fire,no explosion,no leakage
5	Hot oven	No fire,no explosion
6	Crush	No fire,no explosion
7	Needle puncture	No fire,no explosion





Application





1. GPS, MP3, MP4, PDA, PMC, PMP, PSP, portable electrograph,camcorder, portable pc, laptop, tablet pc;
2. Lights, torch, searchlight, miner lamp, safety helmets, safety headlights;
3. Bluetooth headsets, e-books, mobile DVD, mobile TV, mobile scales, handheld computer, positioning devices,interphone, storing power.
4. Wireless meter reading, wireless ordering, wireless data transmitter, handheld scanner, mini-speaker, R/C toys, robot.
