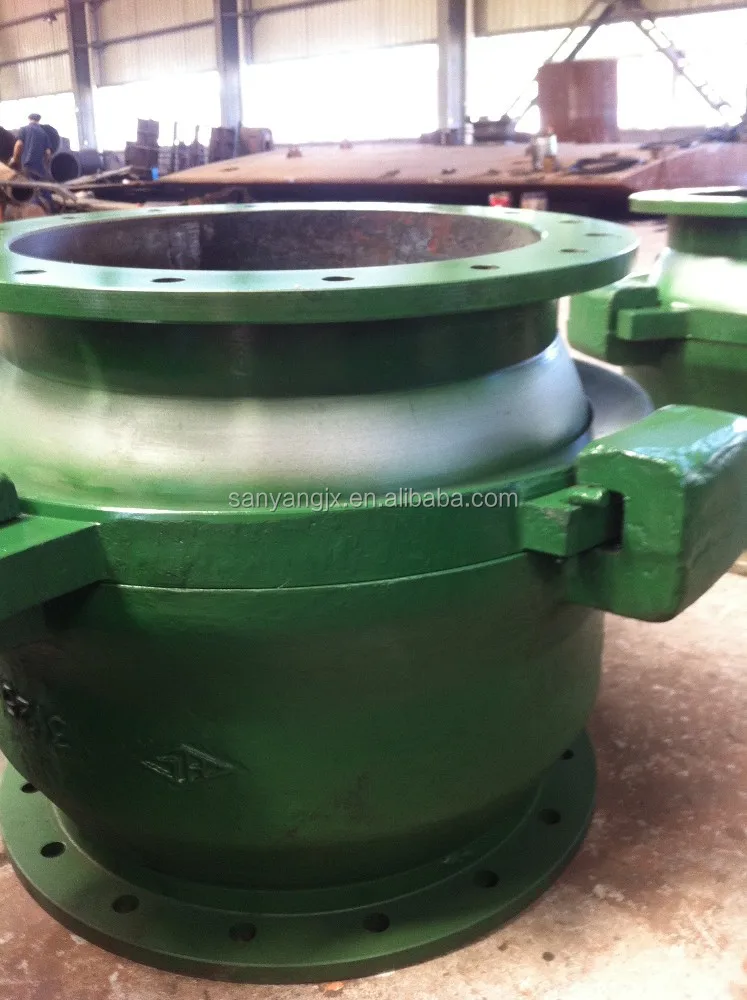

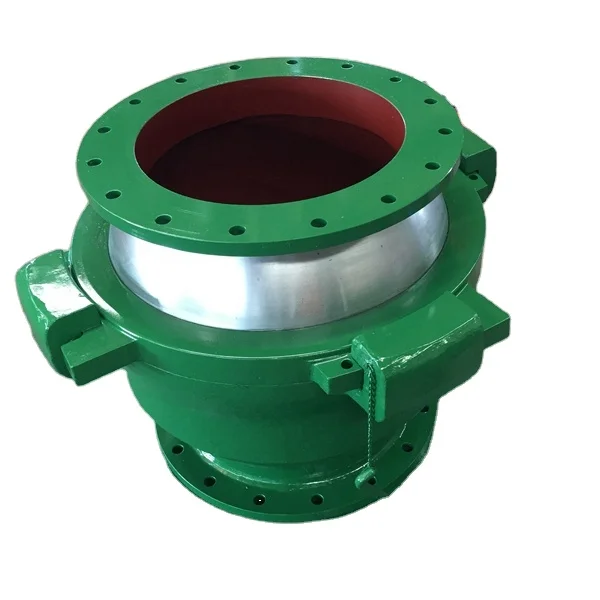

 Dredge Ball Joint

The inner pipe runs through the ball and is welded on either side of the dredge ball joint, therefore protecting the inner surface from corrosion and wear. The heavy lugs on the case securely lock the retaining ring. The wear-resistant case liner protects the inner surface of the case from wear, even when the joint is tilted at its maximum angle. The bayonet ring is a sturdy, stiff ring with a minimum of deflection under pressure. The one-piece moulded gasket ensures a leak-free joint assembly. The locking pin secures the bayonet ring against unwanted rotation.

Parameters:

* 18 Degrees tilting angle
* Easy assembly and dis-assembly
* Low maintenance required
* Replaceable liners made from wear resistant materials
* Quick fix and release of locking

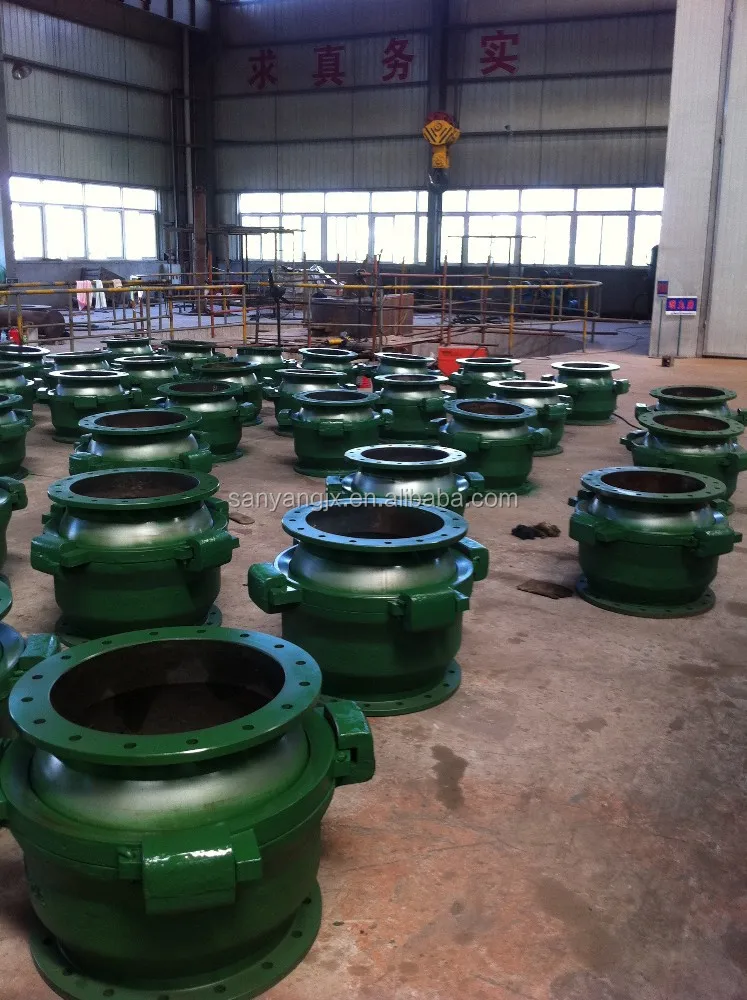

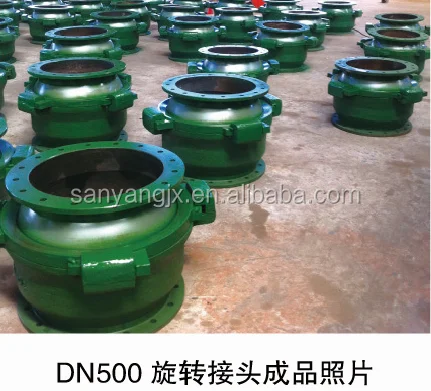

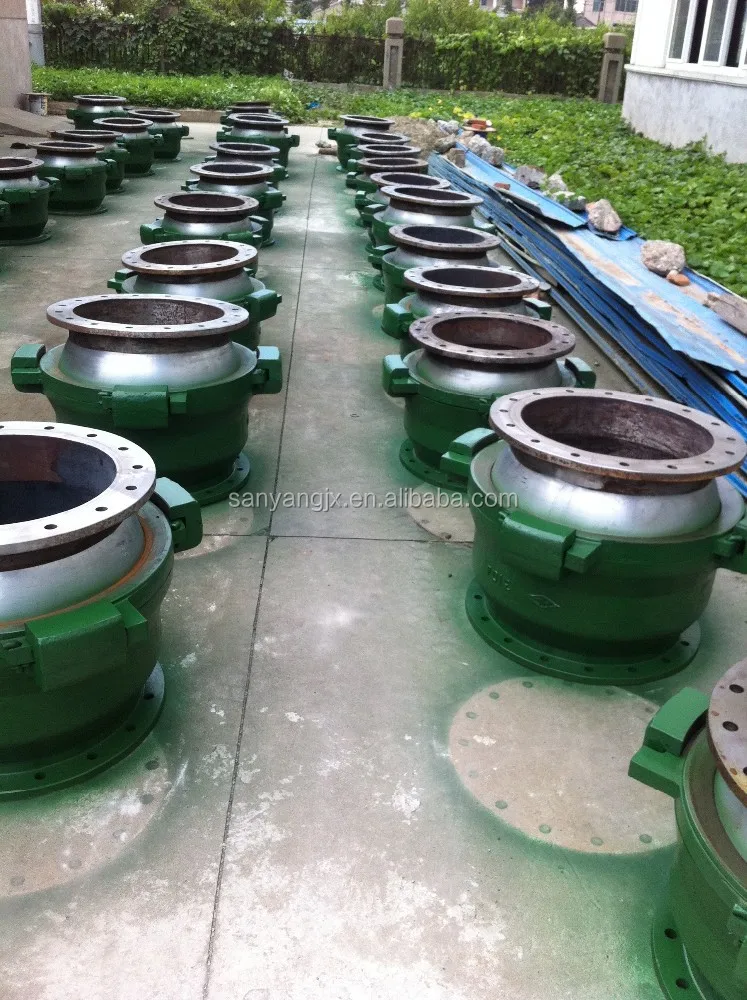

Ser No. Inner Diameter [mm] 10 bar 20 bar 30 bar Welding Type Flange Type Welding Type Flange Type Welding Type Flange Type Weight[kg] Weight[kg] Weight[kg] Weight[kg] Weight[kg] Weight[kg] DN400 400 260 292 332 368 425 461 DN450 450 356 405 471 536 630 695 DN500 500 485 549 645 718 847 921 DN550 550 601 672 858 930 1130 1,204 DN600 600 799 879 1,119 1199 1,462 1,546 DN650 650 1,189 1315 1,432 1565 1,865 1,997 DN700 700 1,264 1464 1,749 1956 2,132 2,337 DN750 750 1,566 1783 2,258 2484 2,796 3,015 DN800 800 1,847 2093 2,597 2,840 3,114 3,362 DN850 850 2,188 2438 3,108 3,365 3,894 4,153 DN900 900 2,617 2889 3,661 3,936 4,551 4,825 DN1000 1000 3,585 3883 5,043 5,341 6,321 6,617 DN1100 1100 4,753 5086 6,616 6,967 9,185 9,536 DN1200 1200 5,946 6308 8,539 8,924 10,425 10,845   More pictures of products
