Предварительно сформированный кабельный зажим Adss
US $1.00-$10.00
Анкерный зажим из алюминиевого сплава для кабеля ADSS PAL2000 новый дизайн популярный
- Категория: Power Accessories >>>
- Поставщик: Qingdao,Powtech,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1.12 $* | 1.73 $* |
| Jul-15-2025 | 1.78 $* | 1.50 $* |
| Jun-15-2025 | 1.11 $* | 1.7 $* |
| May-15-2025 | 1.58 $* | 1.24 $* |
| Apr-15-2025 | 1.93 $* | 1.29 $* |
| Mar-15-2025 | 1.62 $* | 1.74 $* |
| Feb-15-2025 | 1.40 $* | 1.3 $* |
| Jan-15-2025 | 1.33 $* | 1.79 $* |
Характеристики

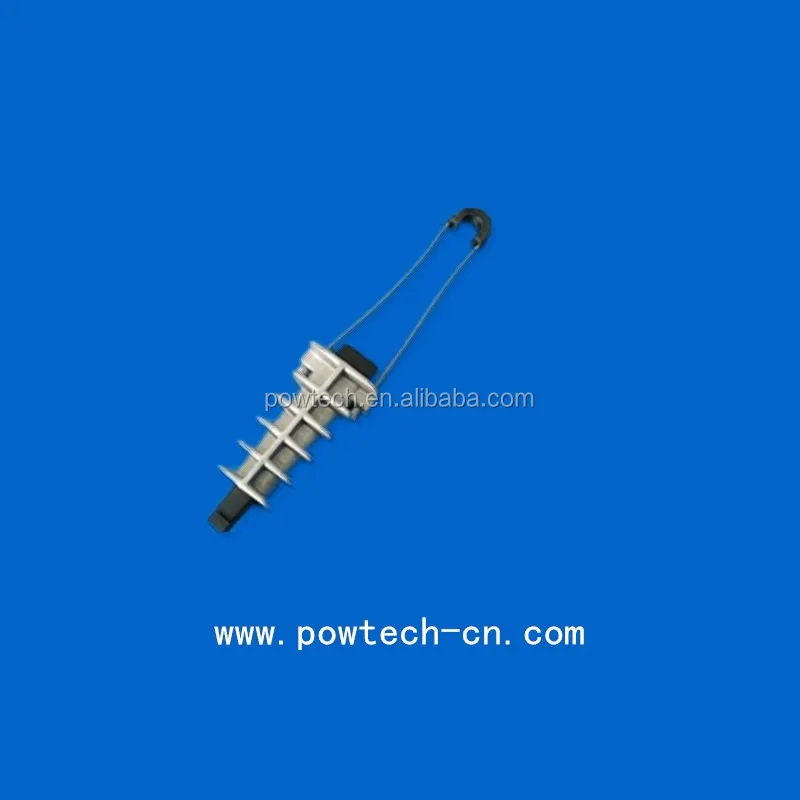

PAL2000 ADSS cable Aluminium alloy anchor clamp new design hot product
Product Description

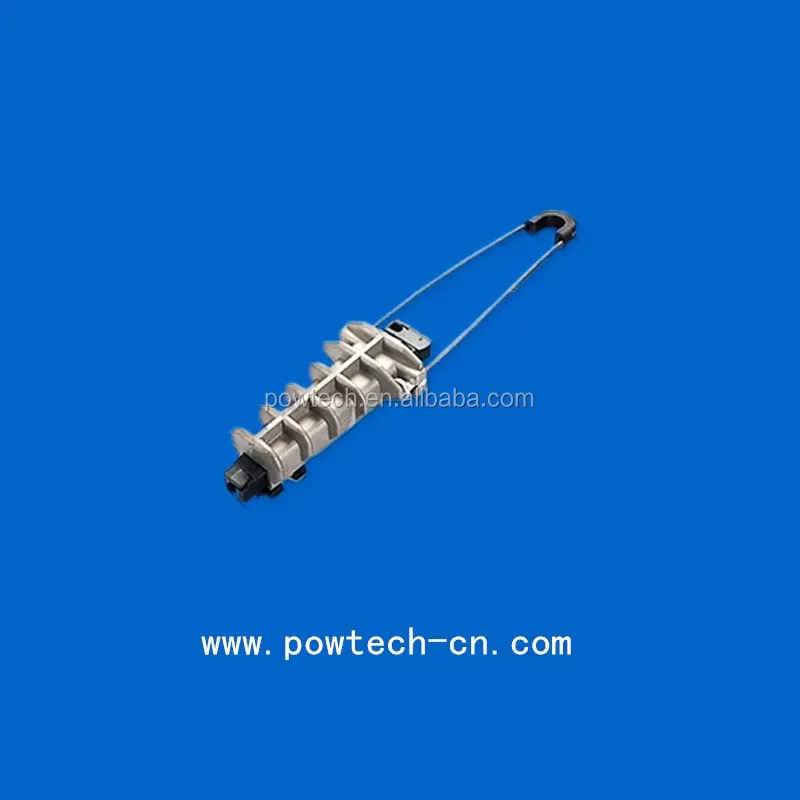

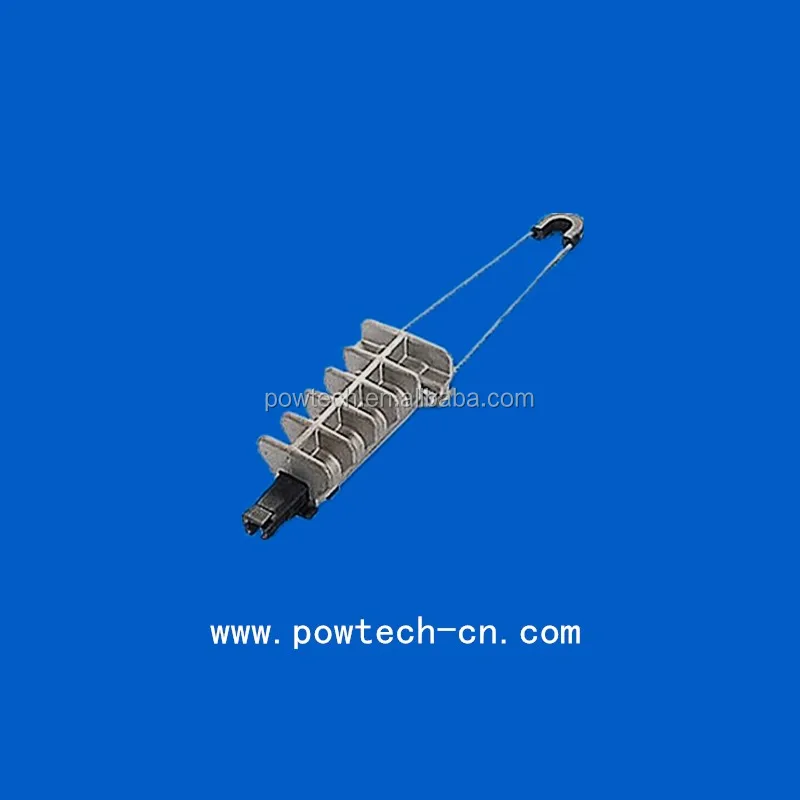

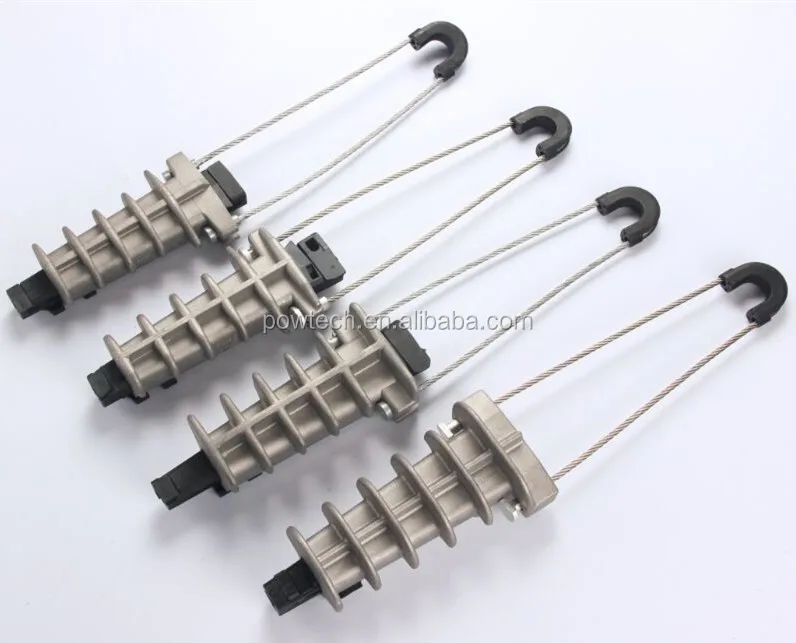

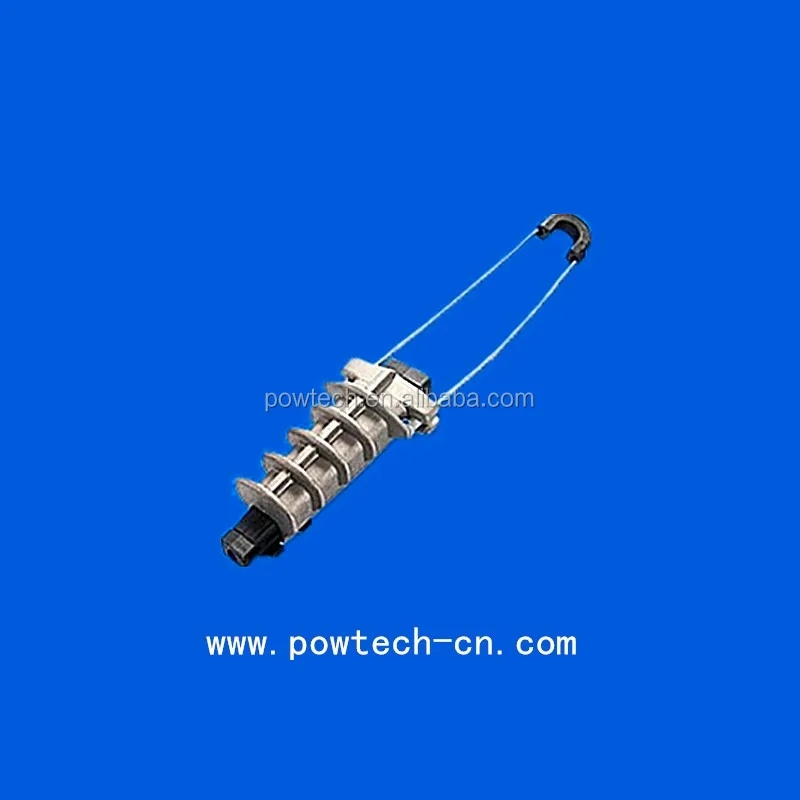

Product Name: Dead end clamp
Model: PAL
Material: High strength aluminium alloy, nylon plus fiber glass, stainless steel .
Product property: They are characterized by high mechanical stability , reduced dimensions for easier handling, high mechanical and climatic resistance. Cable gripping device in insulating material ensures the d ouble insul ation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, the is concepti on allows an easier locking on the body of the clamp.
Technical data of Dead End Clamp
Model | Suitable conductor dia. | Suitable conductor area (mm2) | Breaking load | Qty/ carton | Carton sizes cm * cm*cm | Gross weight (kg) |
PAL1000 (AL) | 8~11mm | 25~35 | 10KN | 50 | 41*28*31.5 | 21kg |
PAL1500 (AL) | 9~14mm | 35~70 | 15KN | 50 | 41*28*31.5 | 23kg |
PAL2000 (AL) | 14~16mm | 70~95 | 15KN | 50 | 41*28*31.5 | 24kg |
Structure feature
1 the wire-clamps casing adopts nylon with properties of high-strength, anti-oxidization to be die-casting for forming.
2 Adopts advanced design idea and production technology that making casing ,lead, U-shape screw, pressure-article compact and have good contact in addition to big gripping-power after being assembled.
3 The installation and use is simple, wire-clamps strength is high, without any magnetic hysteresis loss, the energy-conservation effect is well.

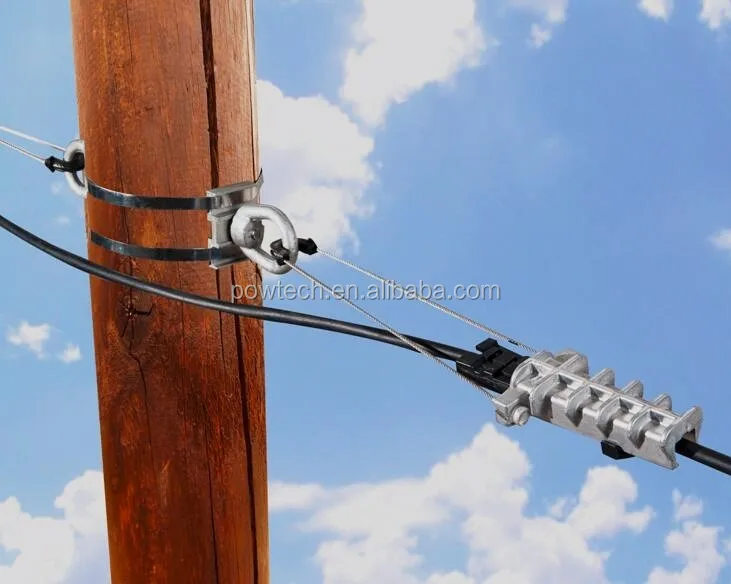

Installation
Production line
Company Information
POWTECH is a high-tech enterprise who specialzes in manfuacturing electric transmission, distribution and telecom line materials like: ABC clamp, piercing insulation connector, insulators, surge arresters, dropout fuse, isolation switch, preformed guy grips, stainless steel banding, FTTH fittings, PLC splitter, patch cord, cross arm, stay wire and all transmission line fittings. Since our establishment in 1994, we dedicated ourselves to serve our partner with one-stop service, professional service, quality product, factory acceptance test, installation training, onsite guide and many value-added services.
After more than 20years' development, we are certified by ISO9001, ISO14001, SGS, FCC, CE, RoHS and by customer-appointed lab test suthorities etc.
With the belief, there's no small or big customer, every customer deserve good srevice. We are willing to support all of our customers grow and prosper.
