Контроллер панели управления генератором DSE705 ATS модуль
- Категория: Generator Parts & Accessories >>>
- Поставщик: Chongqing,Yokden,E&M,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 48.30 $* | 50.95 $* |
| Aug-16-2025 | 47.6 $* | 49.47 $* |
| Jul-16-2025 | 40.10 $* | 42.40 $* |
| Jun-16-2025 | 46.70 $* | 48.38 $* |
| May-16-2025 | 40.57 $* | 42.40 $* |
| Apr-16-2025 | 46.13 $* | 48.91 $* |
| Mar-16-2025 | 45.56 $* | 47.54 $* |
| Feb-16-2025 | 45.9 $* | 47.18 $* |
| Jan-16-2025 | 44.46 $* | 46.48 $* |
Характеристики
Product Description

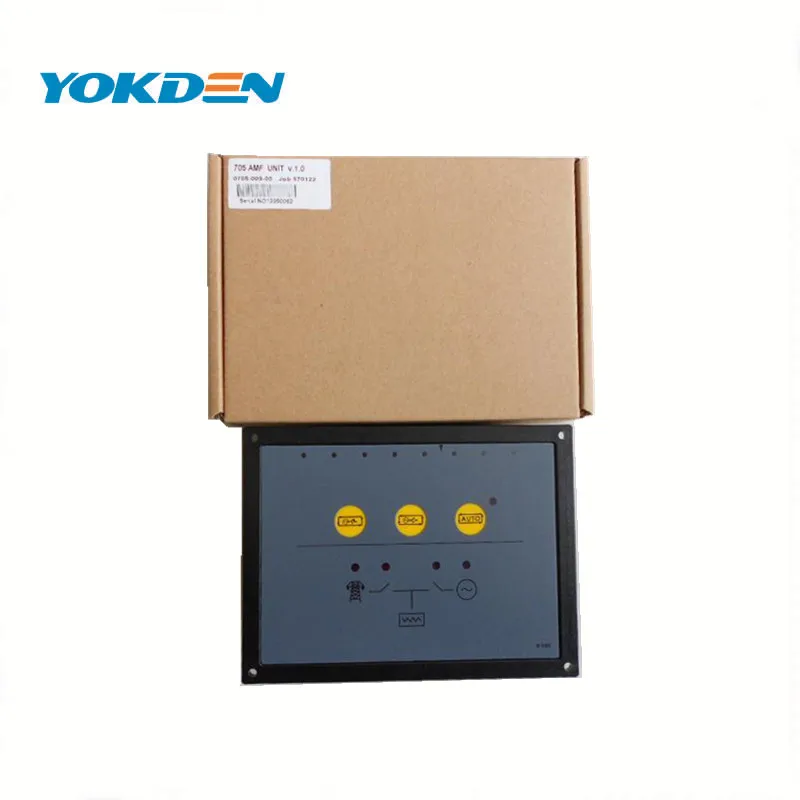

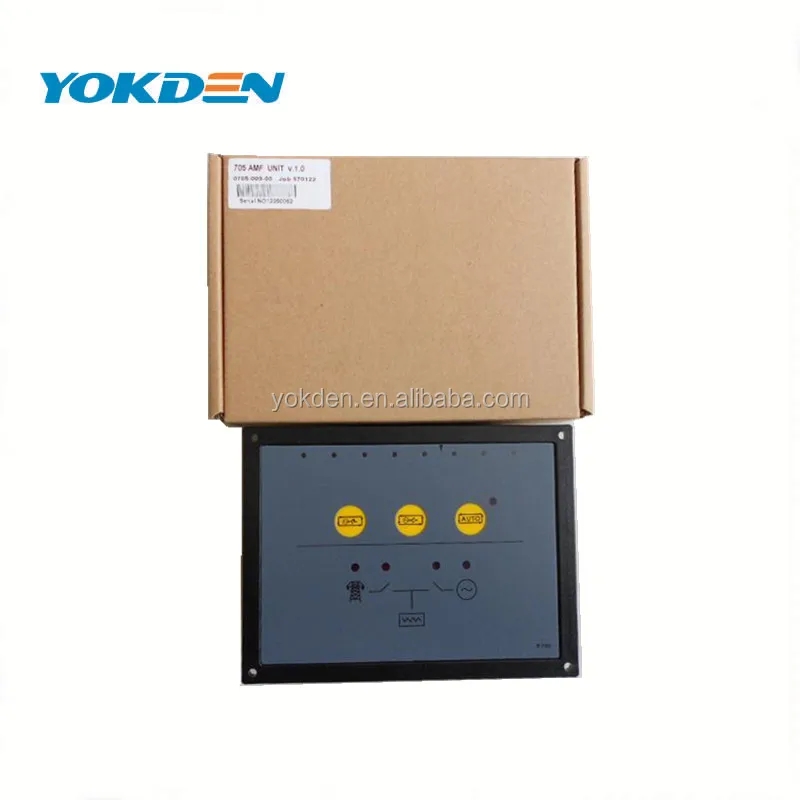

Generator Control Panel Controller 705 ATS Control Module
Specification | ||
DC Supply | 8 Volts to 35 Volts DC Continuous. | |
Cranking Dropouts | Able to survive 0 Volts for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 Volts. This is achieved without the need for internal batteries | |
Max. Current | Operating 50mA | |
Standby 10mA | ||
Alternator Input Range | 75 Volts (ph-N) to 277 Volts (ph-N) AC (+20%) | |
Mains Input Range | 15 – 277 Volts (ph-N) AC (+20%) | |
Alternator Input Frequency | 50 - 60 Hz at rated engine speed (Minimum: 75V AC Ph-N) | |
Generator available 45Hz | ||
Generator failed 20Hz | ||
Mains Input Frequency | 50 – 60 Hz | |
Start Output | 1.2 Amp DC at supply voltage | |
Fuel Output | 1.2 Amp DC at supply voltage | |
Auxiliary Outputs | 1.2 Amp DC at supply voltage | |
Dimensions | 125mm x 165mm x 28 mm | |
Charge Fail | 12 Volts = 8 Volts CF 24 Volts = 16 Volts CF | |
Operating Temperature Range | -30°C to + 70°C | |

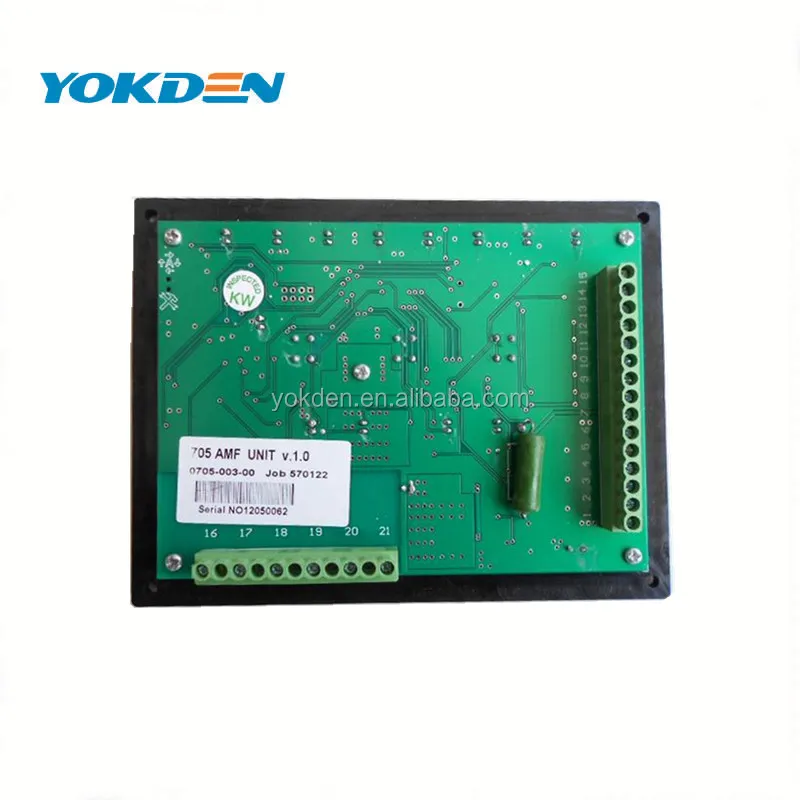

Detailed Images
1.Main Features:
Protected solid state (PSS) outputs
Front panel mounting
Front panel programming
LED indicators
Configurable timers
Configurable outputs
Single/three phase mains sensing
2.Benefits:
Transfer’s between mains and generator power
On-site module configuration to match user requirements
3.Operation:

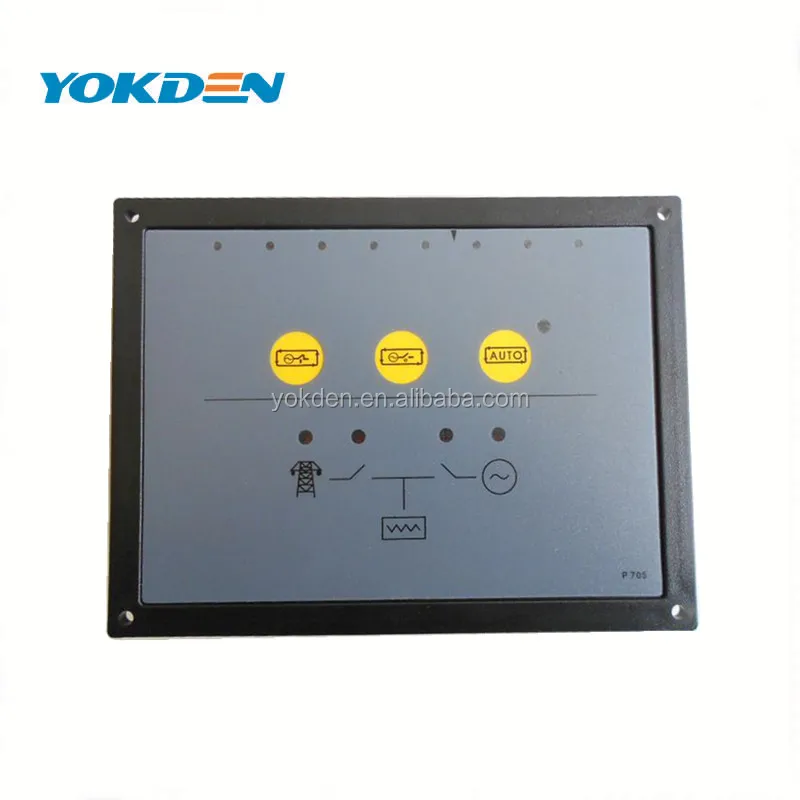

The module is operated by the three push-buttons on the front: Manual Off Load –This is used to manually start and run the engine off load. Should the mains (utility) supply fail, then the load is transferred to the generator automatically.
