Мини оптическое фиксированное увеличение низкое искажение телецентрическая
- Категория: Линзы >>>
- Поставщик: Guilin,FT-Opto,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 67.39 $* | 68.37 $* |
| Jul-16-2025 | 55.27 $* | 56.60 $* |
| Jun-16-2025 | 66.13 $* | 67.66 $* |
| May-16-2025 | 66.32 $* | 67.44 $* |
| Apr-16-2025 | 52.13 $* | 53.46 $* |
| Mar-16-2025 | 65.42 $* | 66.21 $* |
| Feb-16-2025 | 64.86 $* | 65.22 $* |
| Jan-16-2025 | 64.0 $* | 65.78 $* |
Характеристики

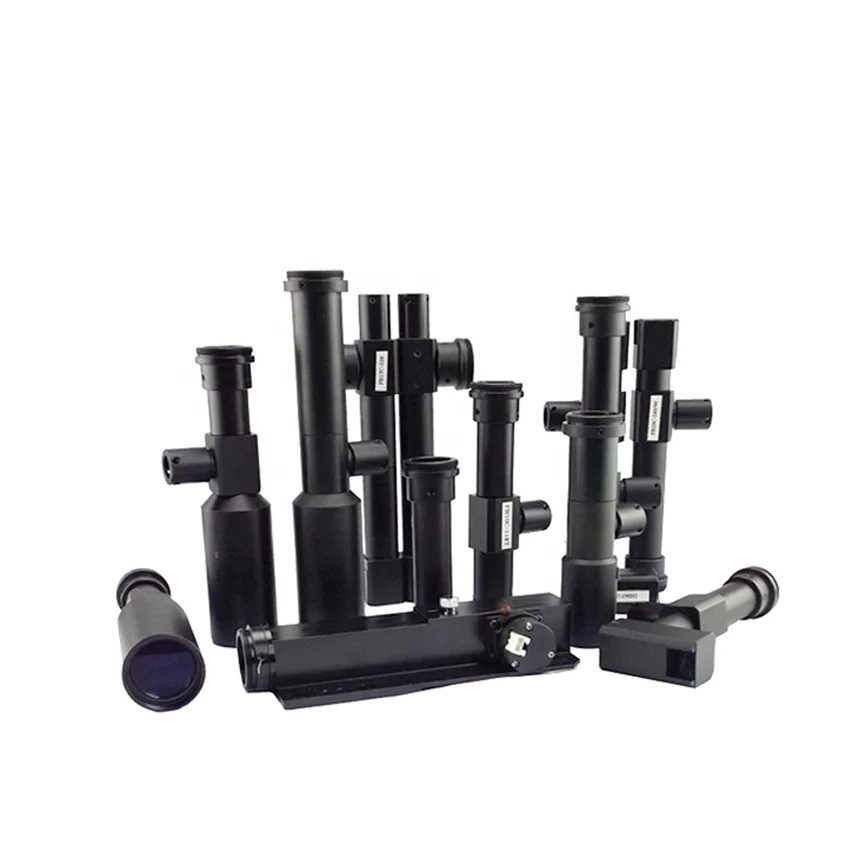

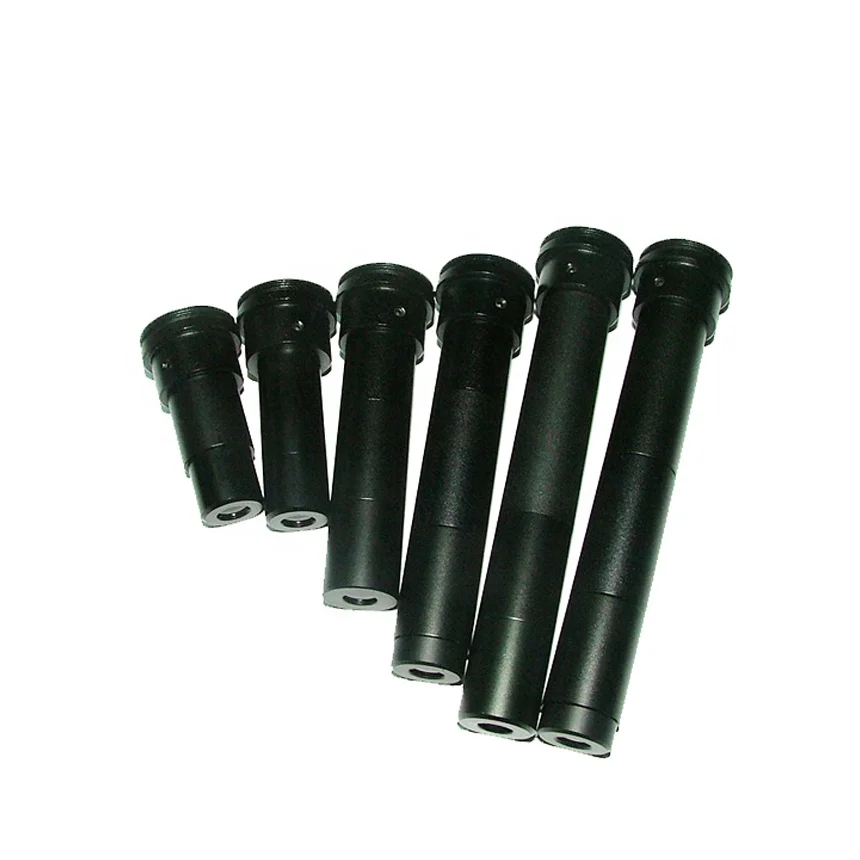

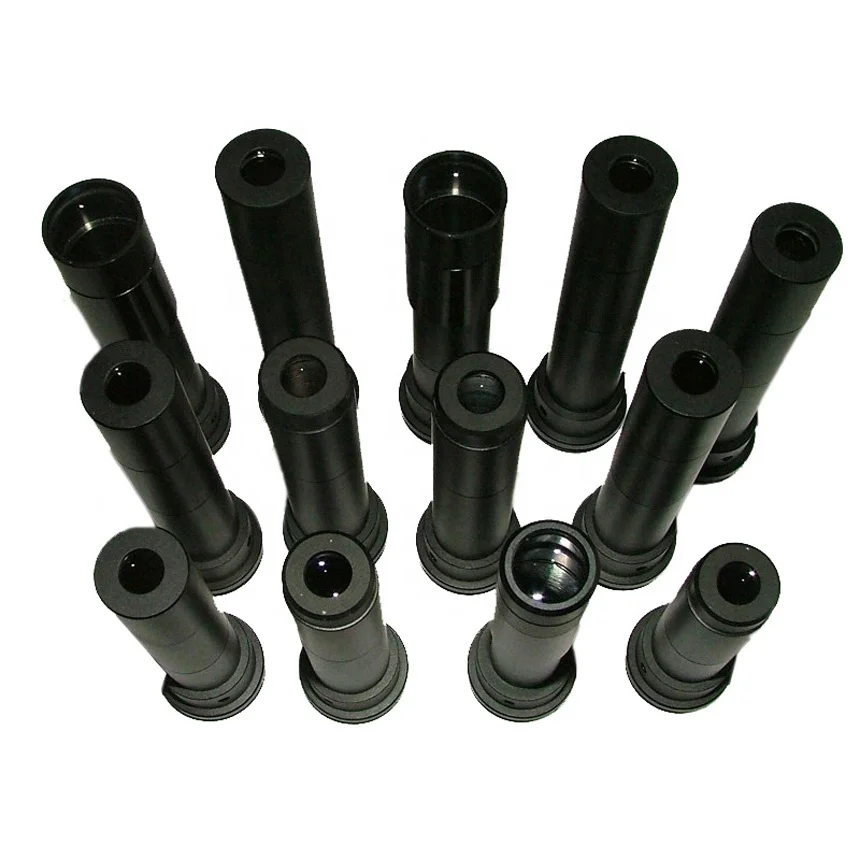

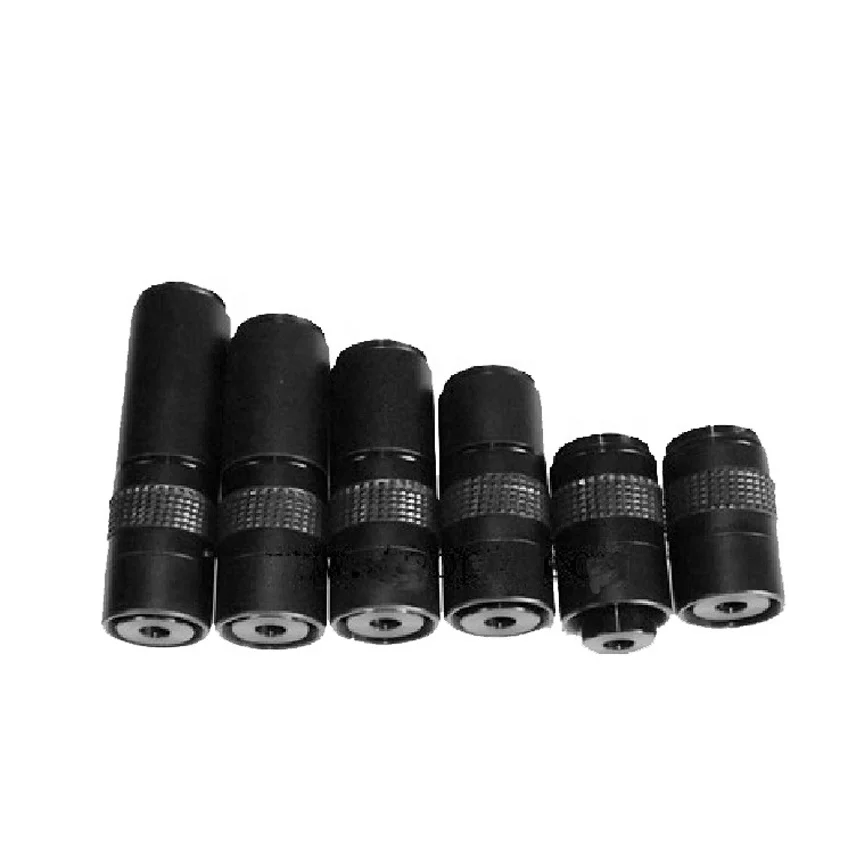

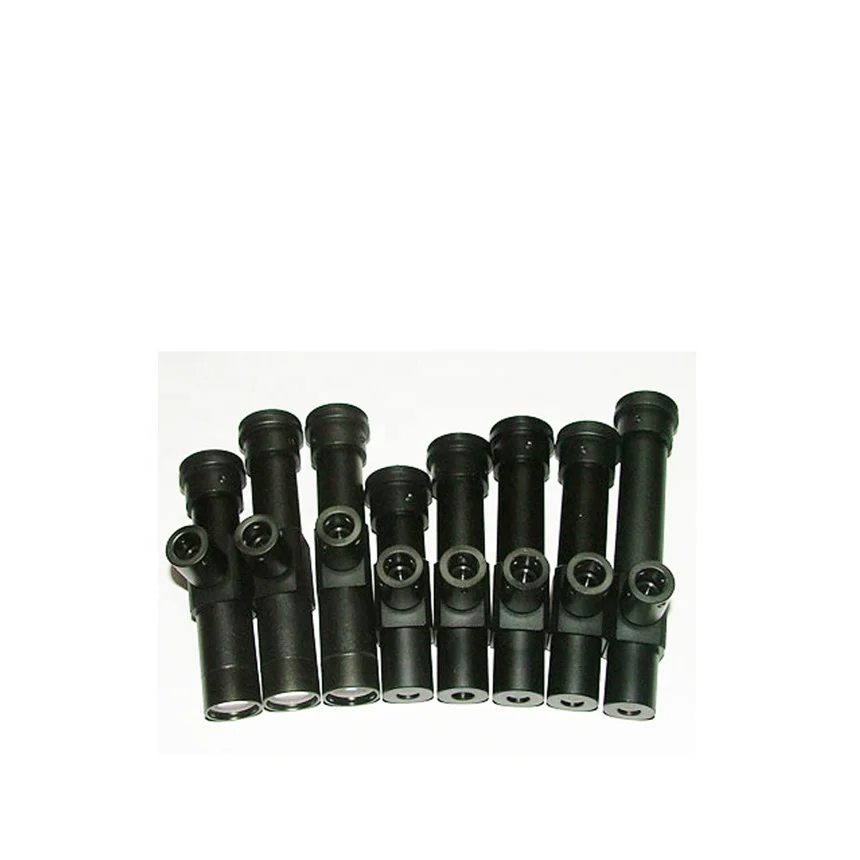

FB Series Mini optical fixed magnification low distortion Telecentric Lens
Feature
.FB Series Mini optical fixed magnification low distortion Telecentric Lens is adopt with the object-side telecentric design, standard CCD interface which is suit for 2/3'',1/1.8'',1/2'' ,1/3'',1/4''and 1/6'' CCD camera.
. This optical fixed magnification low distortion Telecentric Lens is widely used in automated manufacturing equipment, machine vision systems, such as SMT machine, solid crystal machine, rubber injection machine, etc
.Customizing all kinds of magnification and working distance lens according to customer's request, fast delivery.
| ||||||||||||||
Big NA ,low Mag.and LWD series distortion Telecentric Lens (FBnC-wdT n means magnification, wd means working distance)
|
Specification of the fixed magnification low distortion Telecentric Lens
| MODEL | COAXIAL LIGHT | MAGNIFI CATION | WD | DEPTH OF FIELD | NA | RESOLUTION | F/# | DIST | < | SENSOR SIZE | MOUNT | T1 | X | Y |
| FB03-110T | FB03C-110T | 0.3 | 110 | 4.83 | 0.028 | 0.012 | 5 | <0.13% | 1" | 1/2" | C | 122 | 70 | 21 |
| FB03-150T | FB03C-150T | 0.3 | 150 | 4.83 | 0.028 | 0.012 | 5 | <0.2% | 1" | 1/3" | C | 122 | 70 | 21 |
| FB03-180T | FB03C-180T | 0.3 | 180 | 4.83 | 0.028 | 0.012 | 5 | <0.32% | 1" | 1/3" | C | 122 | 70 | 21 |
| FB03-200T | FB03C-200T | 0.3 | 200 | 4.83 | 0.028 | 0.012 | 5 | <0.3% | 1" | 1/3" | C | 122 | 70 | 21 |
| FB33-650T | FB33C-650T | 0.33 | 650 | 7.48 | 0.016 | 0.021 | 10 | <0.9% | 1" | 1/3" | C | 108 | 70 | 7 |
| FB35-68T | FB35C-68T | 0.35 | 68 | 4.08 | 0.028 | 0.012 | 6 | <0.15% | 1" | 1/3" | C | 135 | 70 | 34 |
| FB04-150T | FB04C-150T | 0.4 | 150 | 3.62 | 0.028 | 0.012 | 7 | <0.2% | 1" | 1/2" | C | 122 | 70 | 21 |
| FB47-280T | FB47C-280T | 0.47 | 280 | 3.08 | 0.028 | 0.012 | 9 | <0.6% | 1" | 1/2" | C | 122 | 70 | 21 |
| FB05-68T | FB05C-68T | 0.5 | 68 | 1.82 | 0.044 | 0.008 | 6 | <0.1% | 1" | 1/2" | C | 130 | 70 | 29 |
| FB05-110T | FB05C-110T | 0.5 | 110 | 1.82 | 0.044 | 0.008 | 6 | <0.1% | 1" | 1/2" | C | 161 | 70 | 60 |
| FB05-180T | FB05C-180T | 0.5 | 180 | 1.82 | 0.044 | 0.008 | 6 | <0.07% | 1" | 2/3" | C | 142 | 70 | 41 |
| FB05-250T | FB05C-250T | 0.53 | 250 | 2.70 | 0.028 | 0.012 | 9 | <0.4% | 1" | 1/2" | C | 130 | 70 | 29 |
| FB05-265T | FB05C-265T | 0.5 | 265 | 2.86 | 0.028 | 0.012 | 9 | <0.4% | 1" | 1/2" | C | 152 | 70 | 51 |
| FB05-500T | FB05C-500T | 0.5 | 500 | 3.64 | 0.022 | 0.015 | 11 | <0.8% | 1" | 1/2" | C | 121 | 70 | 20 |
| FB05-510T | FB05C-510T | 0.5 | 510 | 3.64 | 0.022 | 0.015 | 11 | <0.8% | 1" | 1/2" | C | 121 | 70 | 20 |
| FB05-550T | FB05C-550T | 0.5 | 550 | 5.00 | 0.016 | 0.021 | 16 | <0.6% | 1" | 1/2" | C | 115 | 70 | 14 |
| FB06-150T | FB06C-150T | 0.6 | 150 | 1.52 | 0.044 | 0.008 | 7 | <0.05% | 1" | 2/3" | C | 161 | 70 | 60 |
| FB06-240T | FB06C-240T | 0.6 | 240 | 2.42 | 0.028 | 0.012 | 11 | <0.6% | 1" | 2/3" | C | 133 | 70 | 32 |
| FB08-65T | FB08C-65T | 0.8 | 65 | 1.81 | 0.028 | 0.012 | 14 | <0.15% | 1" | 2/3" | C | 161 | 70 | 60 |
| FB10-530T | FB10C-530T | 1 | 530 | 2.50 | 0.016 | 0.021 | 31 | <0.55% | 1" | 2/3" | C | 152 | 70 | 51 |
| FB10-630T | FB10C-630T | 1 | 630 | 2.50 | 0.016 | 0.021 | 31 | <0.35% | 1" | 1/2" | C | 171 | 70 | 70 |
>> Click here to get more latest microscope catalogue
Company Profile
Guilin FT-OPTO Co.,Ltd is a new high-tech enterprise which is specialized in high resolution zoom lens, machine vision lens, HDMI camera, LCD monitor, monocular digital microscope, measuring & tools microscope and stereo microscope. Our products are extensively used in the industry of electronic and precise industry dectection , education , laboratory and measuring instrument.
Through years of effort, our company gathered a group of professional sales and technology development personnel. Our products are widely sold in Southeast Asia, Europe and the United States countries, .
We promise to give you the most advanced technology , best products , lower operation cost and most convenient service
