DRCM-99 магнитострикционный воды Датчик уровня масла измерителем влажности и

Описание и отзывы

Трекер стоимости

Характеристики

Company Introduction

Yantai dongrun Instrument Co., Ltd. was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.





we are manufacturer in china for online water analyzer and level transmitter, pressure transmitter , level sensor since 1998, our product  have been exported to  india,  Australia,  Philippines , Indonesia , Malaysia, Italy , Chile, Hungary , Brazil, Colombia, South Africa, Canada , Ireland, New Zealand, Russia , Belarus, Israel, etc. have good quality and competitive price.



Product Introduction

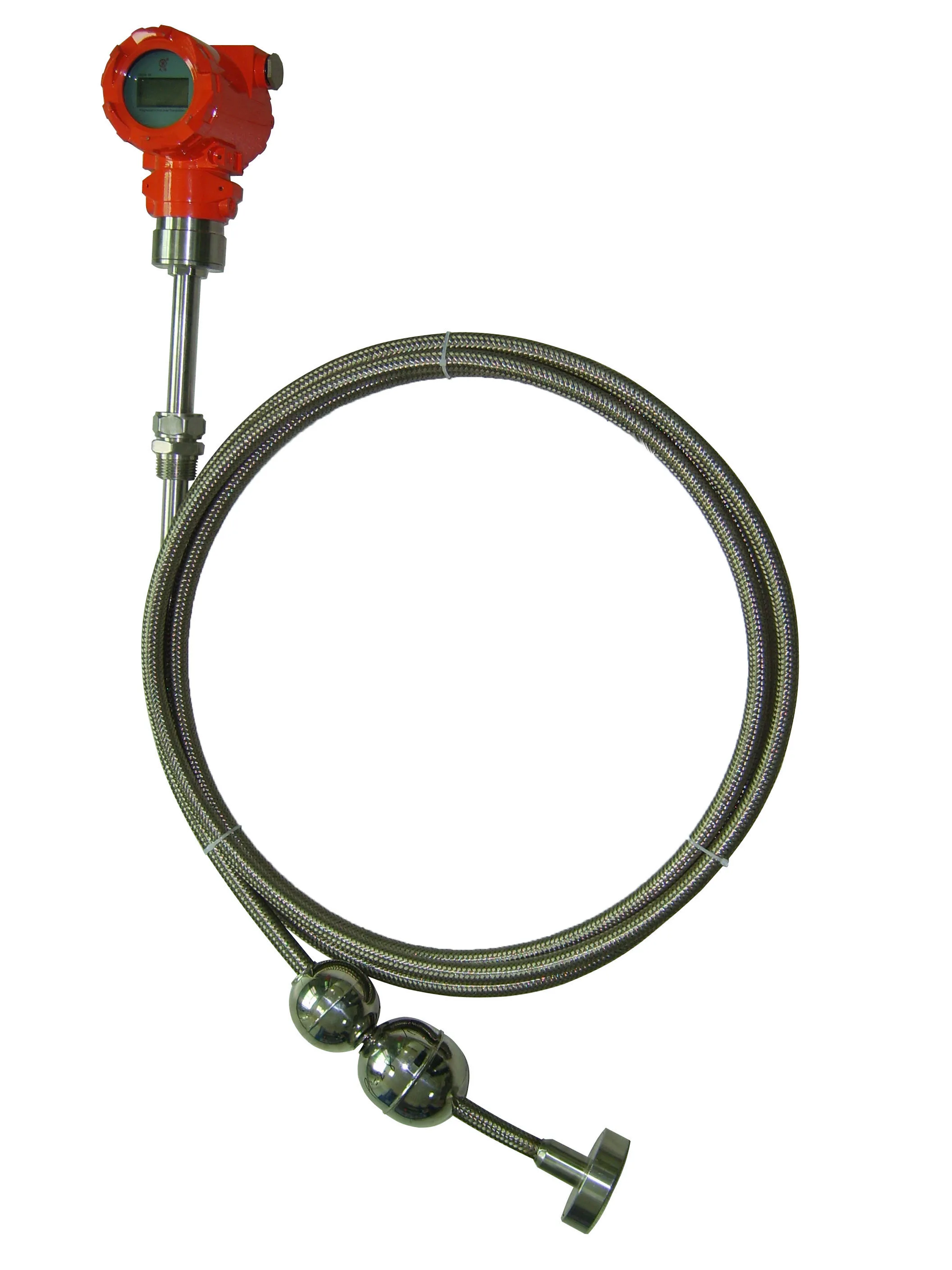

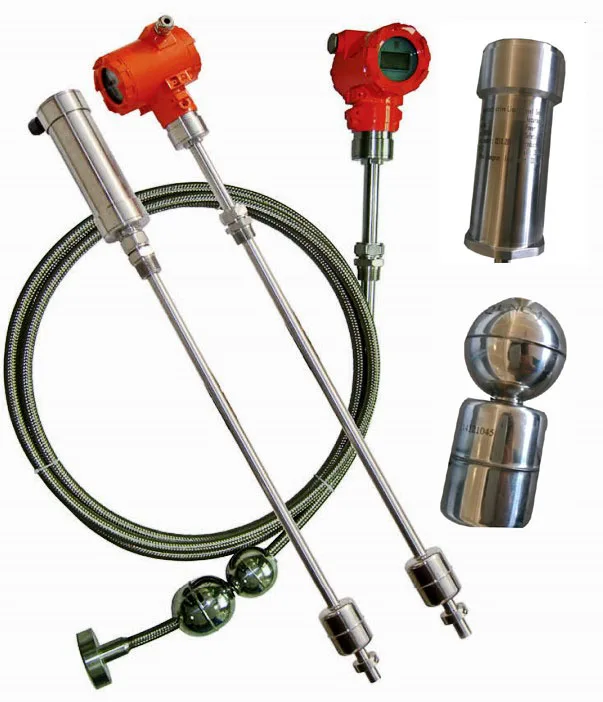

Series DRCM-99 Magnetostrictive Liquid Level Gauge adopts magnetostrictive principle and belongs to a new generation of measuring instruments. The output is a absolute value, does not require periodic re-calibration and maintenance. Series DRCM-99 provide customers with current, voltage, ModBus, Profibus and other signal output and provide effective solutions in different applications.It can be widely used to measure and control liquid level of various tanks in petroleum, chemical, water, pharmaceutical, beverage, food and other industries. It also can be applied in measurement and monitoring of hydrological measurements, water treatment and other environmental and industrial measurement process.

Feature

 Simple structure, easy for installation .

 No signal drift

 No need for periodic calibration or maintenance.

 High accuracy, no wearing parts and reliable and durable.

 Multiple choices of signal output mode

Flexible cable types apply for the large range







Technical Parameter



Measurement output	Standard type:2-wire4-20mA(HART protocol can be selected.) Digital type:ModBus, Profibus, multi-parameter( level, interface, temperature ( up to 5 points)
Liquid level measurement	Liquid level, interface, liquid level+ interface
Measurement range	0. 50m to22m
Accuracy	The maximum between 0. 01 %F. S. and +0. 5mm
Temperature output	Up to 5 single points temperature
Temperature range	-50 ~ +200C
Temperature accuracy	± 0. 25 C
Power Supply	18-36VDC
Output signal	4-20mA ,ModBus, Profibus
Explosion-proof	ExiaIICT6
Ambient humidity	0-100% R.H.(not frost)
Working temperature	Electronic unit:-4 0  ~ +80 C, waveguide:-40  ~  +125 C
Operating pressure	Rely on the pressure the float can withstand
Electronic Cabin	Cast aluminum/304 stainless steel
Probe material	304/316L /304+PTFE or FEP
Process connection	Thread or flange connection
Electrical interface	1/2” NPT thread
