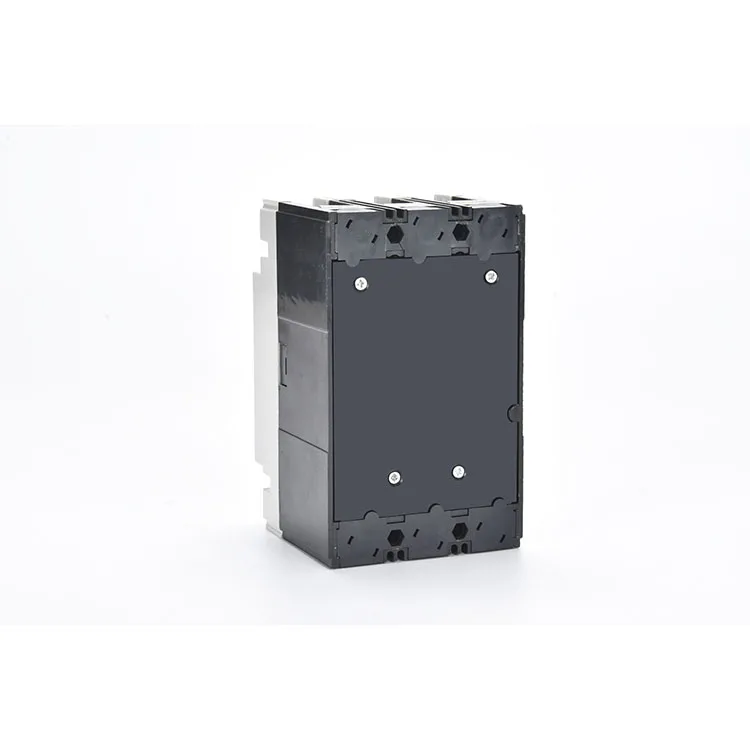

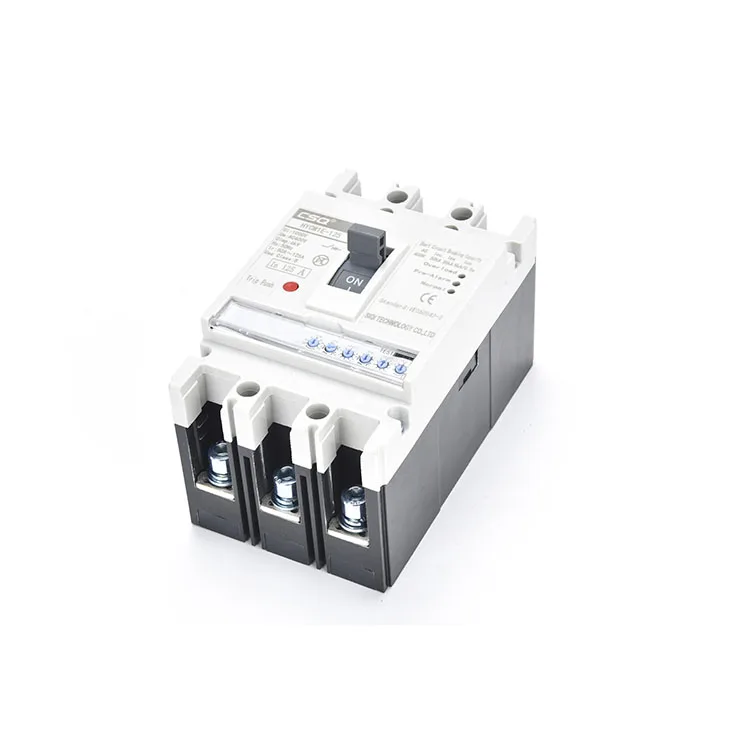

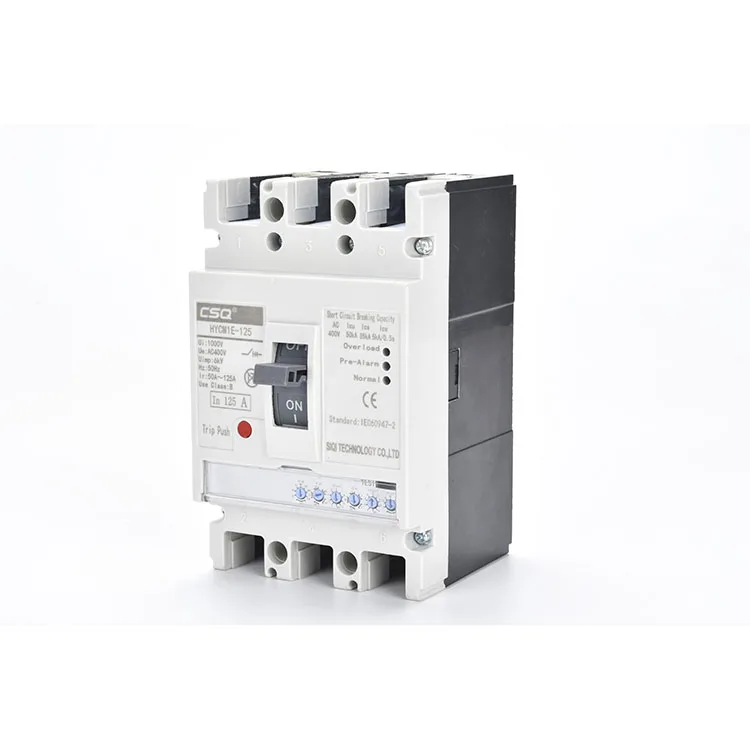

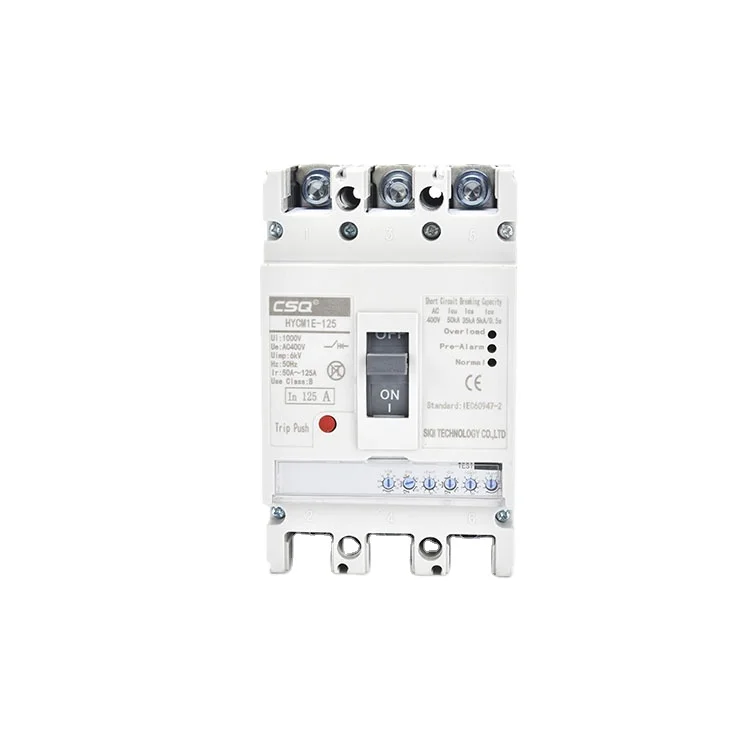

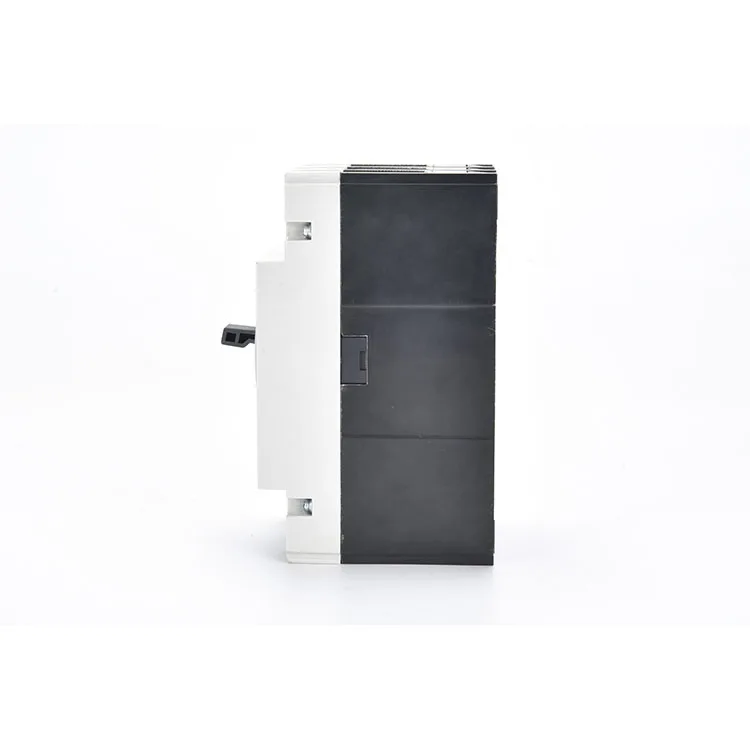

Китайский поставщик CSQ 63a 100A 125a серия MCCB HYCM1 лидер продаж автоматический выключатель 3p 4p в литом
- Категория: Промышленные контроллеры >>>
- Поставщик: Siqi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 17.50 $* | 18.57 $* |
| Aug-19-2025 | 17.89 $* | 18.98 $* |
| Jul-19-2025 | 14.69 $* | 15.18 $* |
| Jun-19-2025 | 16.96 $* | 17.68 $* |
| May-19-2025 | 14.82 $* | 15.82 $* |
| Apr-19-2025 | 16.77 $* | 17.87 $* |
| Mar-19-2025 | 16.88 $* | 17.38 $* |
| Feb-19-2025 | 16.65 $* | 17.61 $* |
| Jan-19-2025 | 16.99 $* | 17.88 $* |
Характеристики
Products Description
HYCM1 series of moulded case circuit breaker is one of our new type products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 660V and used for circuit of A.C.50Hz, rated operating voltage AC 380V(or below). Rated operating current up to 1250A for infrequency over and shtarting of the motors. Equipement with the pritection devices for over current, short circuit and undervoltage. Standard IEC/EN60497-2 and GB14048.2
Innovation structure:
More compact and aesthetically
Intergration can be installed more easier
Easier to increase or decrease of function
Intergration can be installed more easier
Easier to increase or decrease of function
Note: No code for distribution breakes; M represent motor protection circuit breakers. No code for dircet handle operation;presents electrical operation, and presents ratray-operated-handles.Rated breaking capacity grade of MCCB: D-Economical type; N-Standard type; H-high breaking capacity type.
Product Paramenters
Model No. | Frame current (A) | Rated current(A) | Rated working voltage(V) | Rated insulating voltage(V) | Rated limit breaking capacity(KA) | Rated operating breaking capacity(KA) | Pole No. | Arcing distance mm |
400V/690V | 400V/690V | |||||||
HYCM1- 63L | 63 | 6,10,16,20,25,32 ,40,50,63 | 400 | 500 | 25* | 12.5* | 3 | ≤50 |
HYCM1-63M | 63 | 50* | 25* | 3,4 | ≤50 | |||
HYCM1-100L | 100 | 16,20,25,32, 40,50,63,80, 100 | 690 | 800 | 38/5 | 17.5/4 | 3 | ≤50 |
HYCM1-100M | 100 | 50/10 | 25/5 | 2,3,4 | ||||
HYCM1- 100H | 100 | 80/20 | 42.5/10 | 3 | ||||
HYCM1- 225L | 225 | 100,125,160, 180,200,225 | 690 | 800 | 38/5 | 17.5/4 | 3 | ≤50 |
HYCM1- 225M | 225 | 50/10 | 25/5 | 2,3,4 | ||||
HYCM1- 225H | 225 | 80/20 | 42.5/10 | 3 | ||||
HYCM1- 400L | 400 | 225,250,315, 350,400 | 690 | 800 | 50/10 | 25/5 | 3,4 | ≤100 |
HYCM1- 400M | 400 | 65/10 | 32.5/5 | 3 | ||||
HYCM1- 400H | 400 | 100/120 | 50/10 | 3 | ||||
HYCM1- 630L | 630 | 400,500,630 | 690 | 800 | 50/10 | 25/5 | 3,4 | ≤100 |
HYCM1- 630M | 630 | 65/10 | 32.5/5 | 3 | ||||
HYCM1- 630H | 630 | 100/120 | 50/10 | 3 | ||||
HYCM1- 800M | 800 | 630,700,800 | 690 | 800 | 75* | 37.5* | 3 | ≤100 |
HYCM1- 800H | 800 | 100* | 50* | 3 | ||||
HYCM1-1250M | 1250 | 700,800,1000,1250 | 690 | 800 | 80* | 40* | 3 | ≤100 |
Note: * is the testing parameter when 400V, 6A has no thermal release
