Характеристики


contact photo

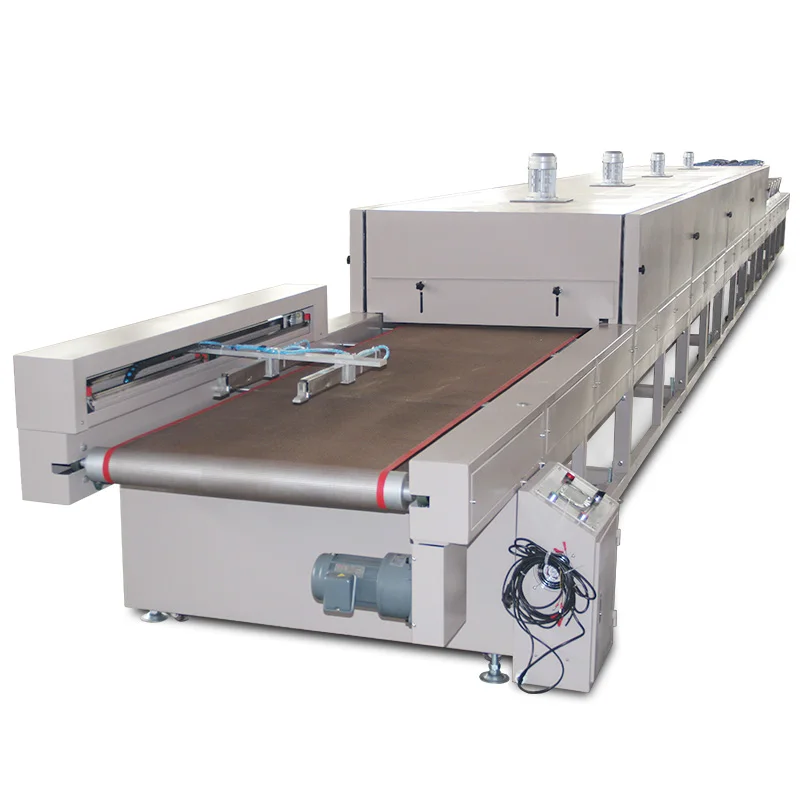

drying tunnel /screen printing drying tunnel






Product Description


















This conveyor tunnel dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryer enables the production of printed products with good colorfastness, high flexibility and high gloss



Features:


1.Intelligent temperature control system,easy operation,can control of temperature deviation effective.


2.adopt hot circulating system,save energy effectivly.


3.Teflon belt , customers' designs are welcomed


4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.


5.Adjustable belt speed and tunnel temperature controls



Parameters:

























































1



Overall output length: 1500 mm



2



Overall feedput length: 1500 mm



3



Oven tunnel length: 4000 mm



4



Over loading length: 7000 mm



5



Conveyor witdth:600mm



6



Mesh belt size :14000*600mm



7



Drying area size:4000*1000mm



8



Temperature adjustment: 0-200 Centigrade



9



Belt speed adustment: 0-50CM/MIN



10



Demension: 7000*1000*1060mm



11



Gross weight: 300 KG



Warranty



For all our machines, we provide one-year warranty.
Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.
Any warranty shipping cost to us is responsible by buyer.
Any shipping cost to buyer is responsible by us.

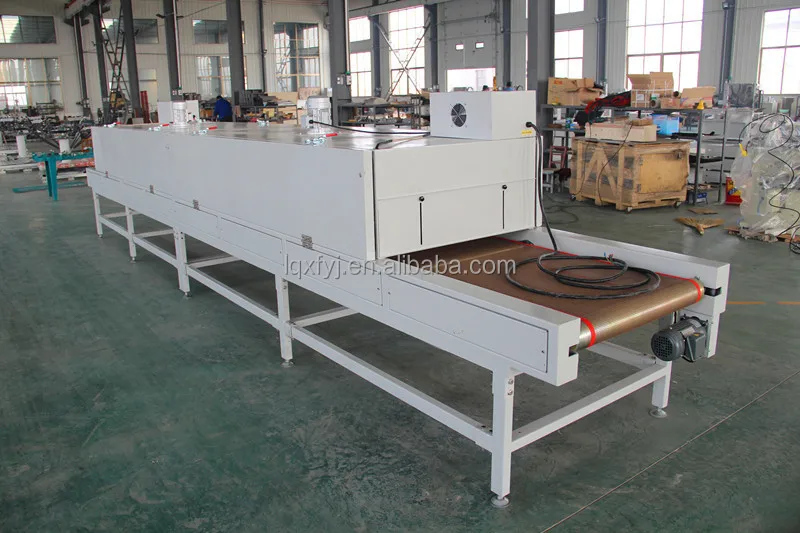

tunnel dryer.jpg4m tunnel dryer.jpg



Packaging & Shipping


 1





Our Services


Why choose us:


1. We are the screen printing drying tunnel manufacturer for more than 15 years experience.
2. Screen printing drying tunnel CE certified, uses Germany FESTO pneumatic parts.
3. Experienced international sales team, skilled in international business for many years.


 After-sale service:


1.one-year warranty for parts ,and provide the technical support forever.
2 .According to the requests of the consumers, the use and other aspects of technical guidance.
3.To ensure the supply of repair parts.
4. Responsible for the repair service.
5. On the product of "Three Guarantees".


 Ce certification:


ce1__




Linqing Xinfeng Screen Printing Machinery Factory  located in Linqing China, professional manufacturer of semi auto screen printing machine and manual screen printing machine and related pre-press and post-press equipments since 1996, such as screen stretching machine, screen exposure machine, conveyor ir dryer and uv dryer.

Our factory covers 2,000 square meters. Totally have 5 working lines, We have Lathe Machine, Grinding Machine and CNC Machining Center to get the accurate parts install on our printing machines.

We have become well respected by our customers and others in the industry due to our knowledge of the screen printing machine  process and the personal attention we give to each and every customer. We offer a complete line  of machinery and supplies of top quality and performance.
workshop corner:.jpg


FAQ


1.What's the package way of this screen printing drying tunnel?


It will be packed into wooden case to protect the machine, if you also need other machines, they also can be packed with the machine together to save the freight.
2. what's the payment ways you accept?
You can make the payment by Credit Card ( place the order via Escrow), Wstern Union, Paypal, T/T(Telegraphic Transfer) etc.


if you make the large order, you can make the payment 30% T/T in advance, 70% balance against the copy of B/L.


3. Are you manufacturer or trading company?


We're manufacturer with 15 years experience in this screen printing field, our company is located in linqing city, China, which is next to jinan city. clients are welcomed to visit our factory.


4. Whether we accept special order according customised size?


As a export manager and engineer more than 15 years in this screen printing field, we are glad and capabale to meet the client's customised demand.
