СОЛАС Тип Выкидной надувной спасательный

Описание и отзывы

Трекер стоимости

Характеристики

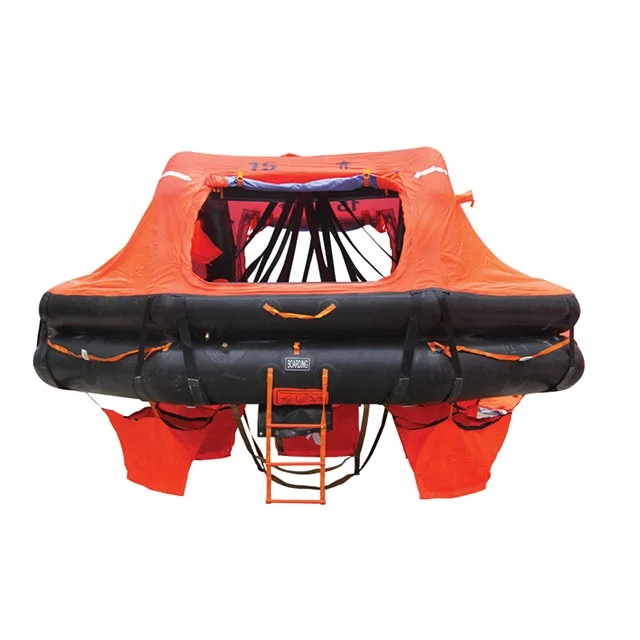

A Type Throw-over Inflatable Liferaft :

Throw-over inflatable liferaft type A is one kind of throw-over inflatable liferafts,designed for ships engaged in international voyage.It is equipped with a radar reflector,can send out a distress signal to help the search and rescue team found the rescue target.

Inflation method:After throw-over from ship,the life-raft can be inflated and opened automatically.If the ship sinks very fast and the life-raft can not be thrown-over,the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically



Product Standard:

It meets the requirements of Regulations for the Statutory Surveys of Ships and Offshore Installations"Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged on International Voyages(2004)"of P.R.C.and SOLAS 74/96 Amendment.



The main features of the liferaft:

1.Capacity:6 to 30 persons

2.Color:Orange and black

3.Gas composition:CO₂ and N₂

4.Max. Storage Height:18-43m from water surface

5.Temperature inflating range: -30 — +65°c
6.Equipment Outfit:A pack or B pack (ships engaged on short international voyage)

7.Certificate:CCS,EC,ABS,BV,RS,etc.



A Type Throw-over Inflatable Liferaf specifications:

Type	Physical forms	Capacity	Length	Width	Height	Weight	Container size
HSE-A-6	Regular octagon	6	2170	2170	1250	≤78	545×1045
HSE-A-8	Regular octagon	8	2460	2460	1300	≤90	545×1045
HSE-A-10	Regular octagon	10	2730	2730	1400	≤107	615×1095
HSE-A-15	Regular octagon	15	3300	3300	1500	≤137	670×1135
HSE-A-20	Long octagon	20	4390	3040	1500	≤170	690×1285
HES-A-25	Long octagon	25	4770	3370	1500	≤185	730×1440
HSE-A-30	Long octagon	30	5570	3275	1600	≤198	730×1440

All the measures are indicative and can be tailored according to your requests.



The A Type Throw-over Inflatable Liferaft and storage canisters:

The factory of inflatable liferaft:

If you have inquiry or any questions of our products,please send email to us.We would like to serve you.
