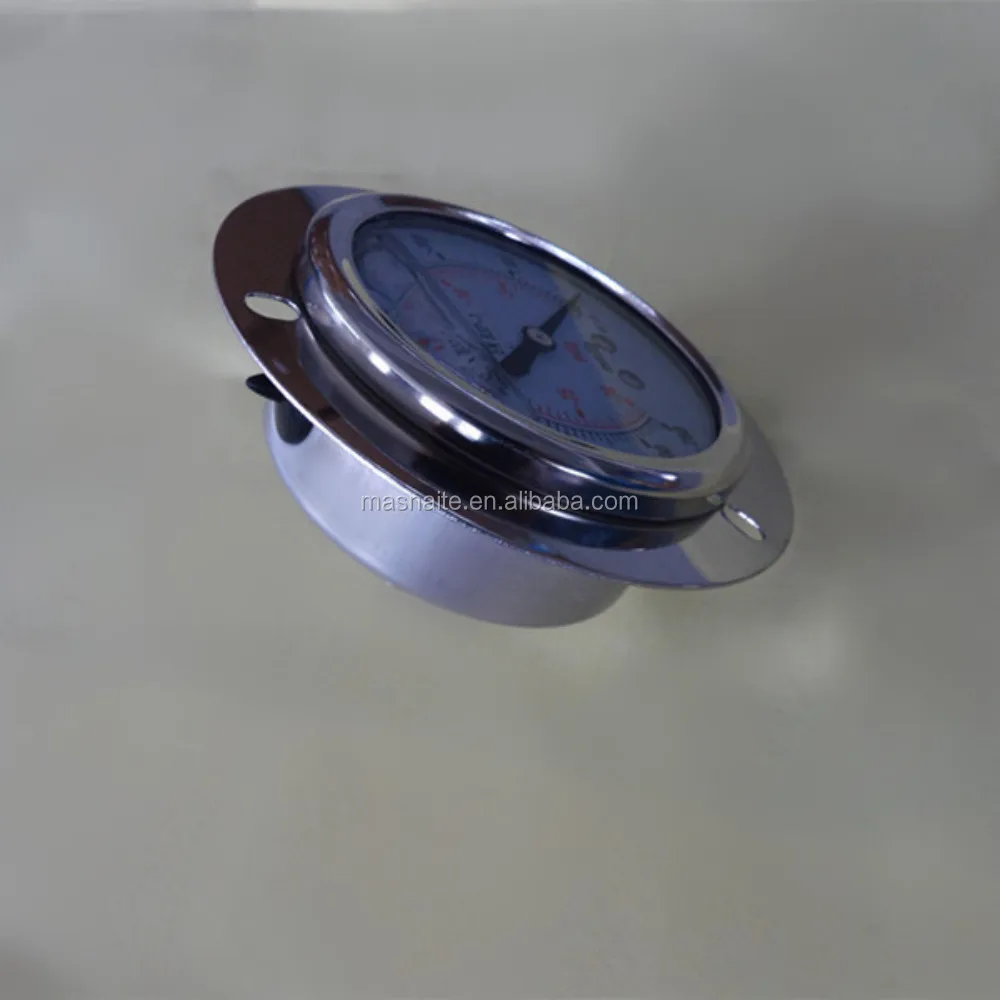

2.5" panel mount stainless steel vacuum gauge



Applications

.  Hydraulic and pneumatic systems .

.  With liquid filled case for applications with high dynamic pressure pulsations or vibration   pressure pulsations or vibration

  .  Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system



Special features

. vacuum gauge

. 304 ss case, chrome plating brass socket

.  Pressure gauge range is avilable

. Scale range: -0.1 to 100Mpa

. Glycerine and Silicone all available

. back mount is available



Description





Diameter Size	1, 1.5, 2, 2.5, 3, 3.5, 4, 6, 8 and 10 inches
Pressure range	- 0.1 - 0 -100Mpa
Case	stainless steel, plastic , forged brass and steel
Ring	stainless steel, steel or wihtout
Movement	stainless steel, brass
Socket	stainless steel, brass
Connection sizes	1/8, 1/4, 3/8 and 1/2 inches
Connection threads	NPT, BSP (G, PF), BSPT (ZG, PT)
Connection mounting	bottom, top, left, right and center back
Bourdon tube	stainless steel, phosphor bronze
Dial and pointer	aluminum
Dial plate	single and dual scale (psi, kpa,mpa, bar, kg/cm2 avaible)
Window	polycarbonate, glass, tempered glass, safety glass
Accuracy range	1%, 1.6%, 2.5% full scale
Working temperture	-20℃- 70℃
Filled medium	glycerine,silicone
Filling cap	neoprene or silica gel









Optional Extras

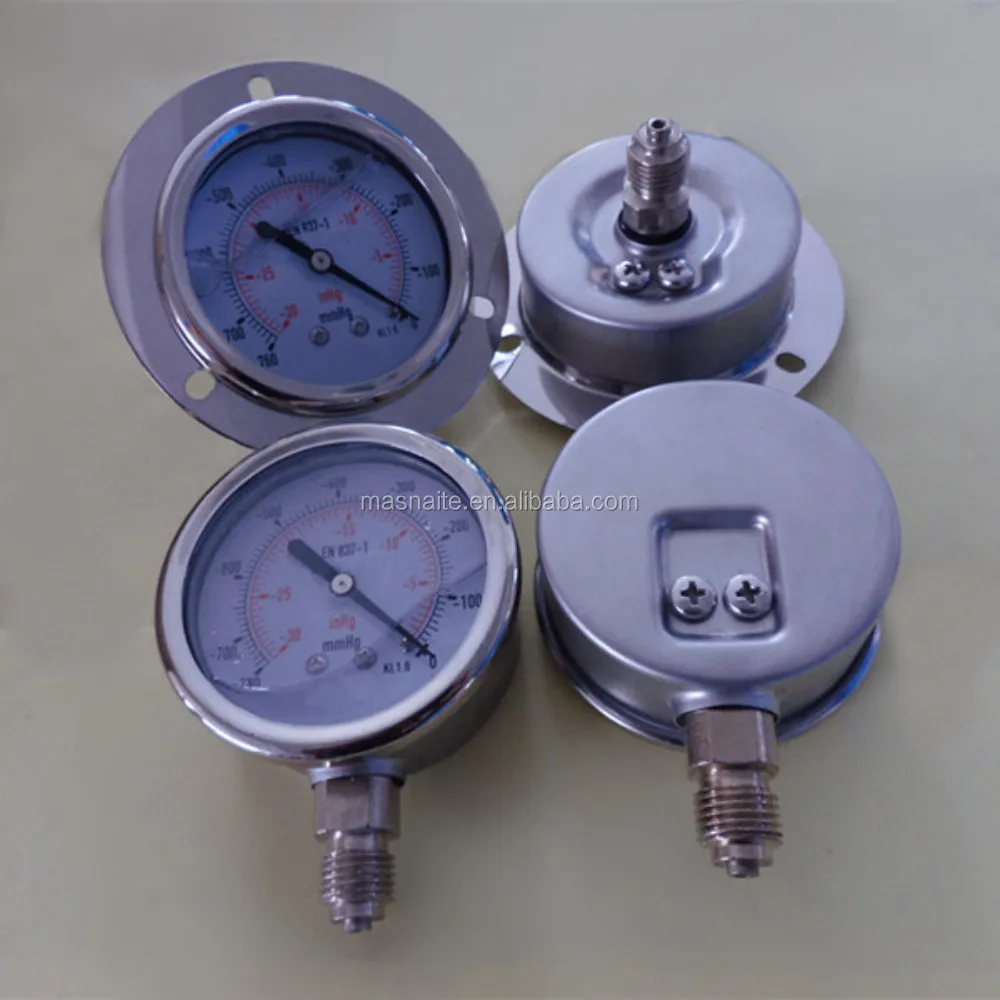

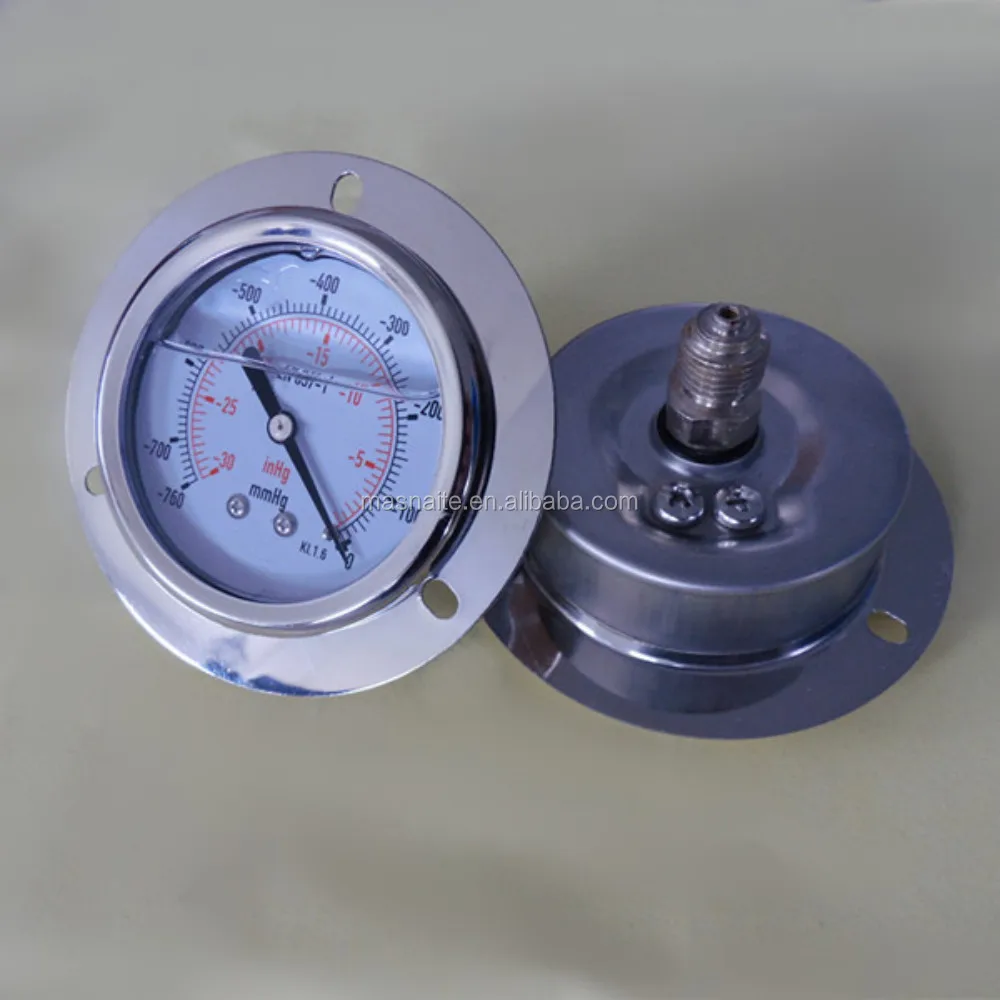

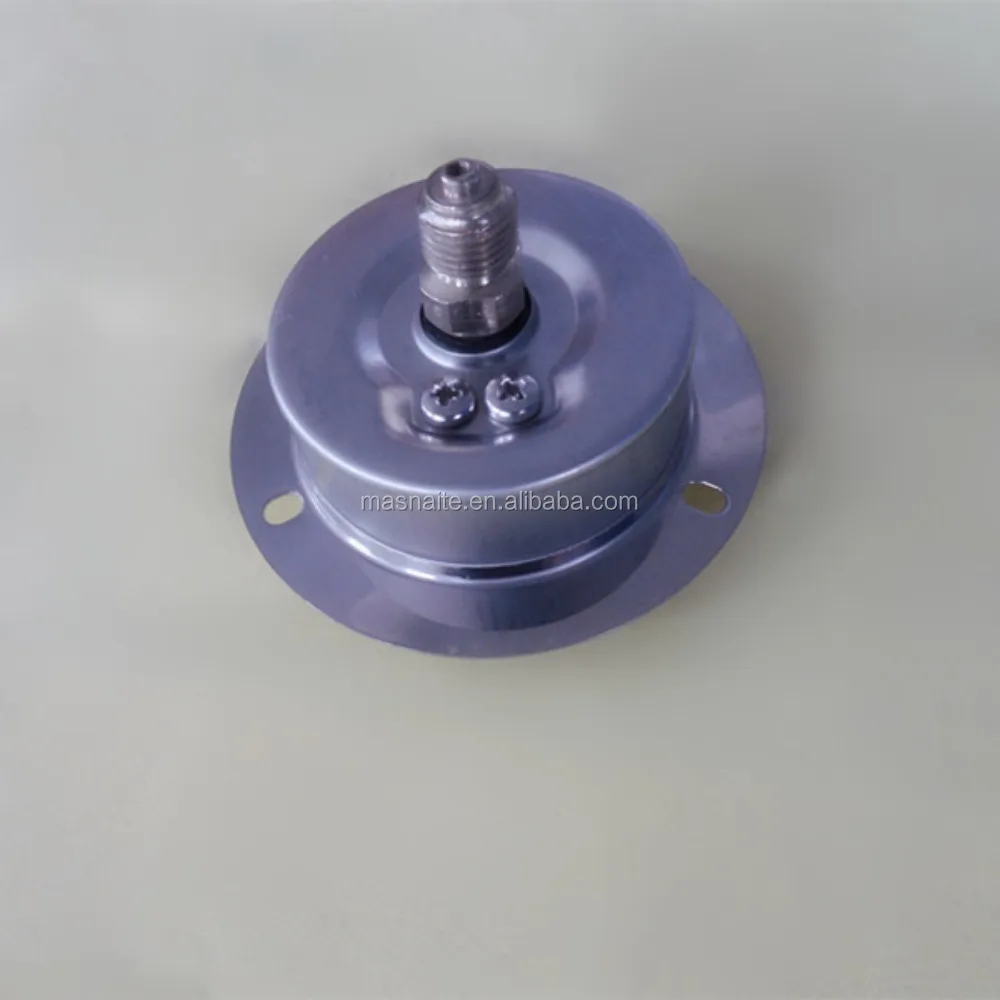

Bottom entry vacuum gauge /Back entry panel mount vacuum gauge
