Компьютеризированная многоигловая вышивальная машина Richpeace для стеганых
- Категория: Home Textile Product Machinery >>>
- Поставщик: Tianjin,Richpeace,AI,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.93 $* | 0.11 $* |
| Aug-16-2025 | 0.97 $* | 0.14 $* |
| Jul-16-2025 | 0.60 $* | 0.52 $* |
| Jun-16-2025 | 0.81 $* | 0.83 $* |
| May-16-2025 | 0.66 $* | 0.50 $* |
| Apr-16-2025 | 0.62 $* | 0.63 $* |
| Mar-16-2025 | 0.53 $* | 0.81 $* |
| Feb-16-2025 | 0.95 $* | 0.96 $* |
| Jan-16-2025 | 0.61 $* | 0.39 $* |
Характеристики
Product Description

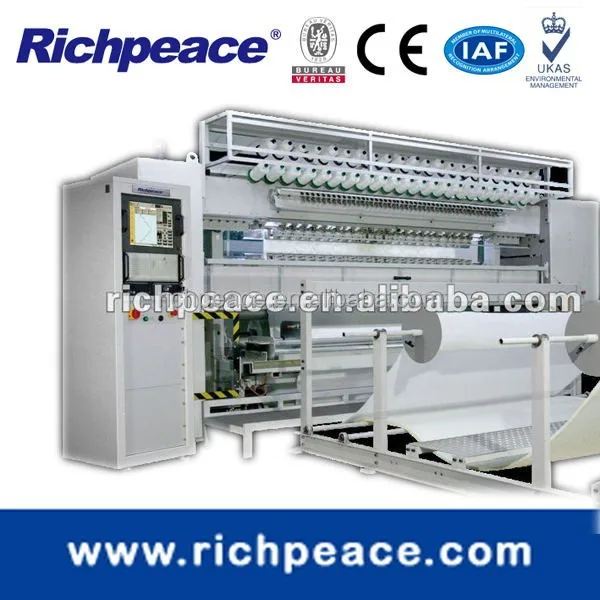

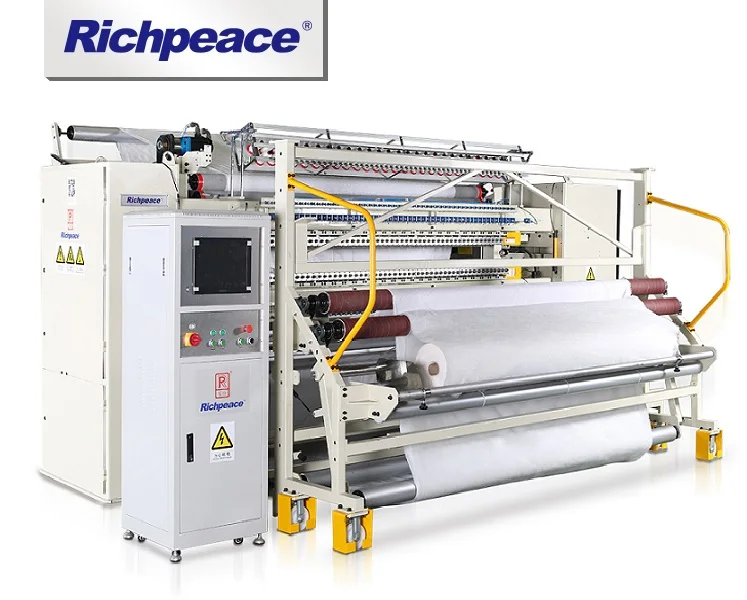

Fastest all over the world 1500rpm computerized multi needle rotary hook quilting sewing machine
the fastest Quilting machin work with the best matching Panel Cutting Machine
1 head row or 2 row Multi head lock stitch quilting Machine, is the unique design all around the world.
The head row is consisted by high speed industry sewing machine, working speed up to 1500rpm, it's the fastest lock stitch multi-head quilting machine all over the world!

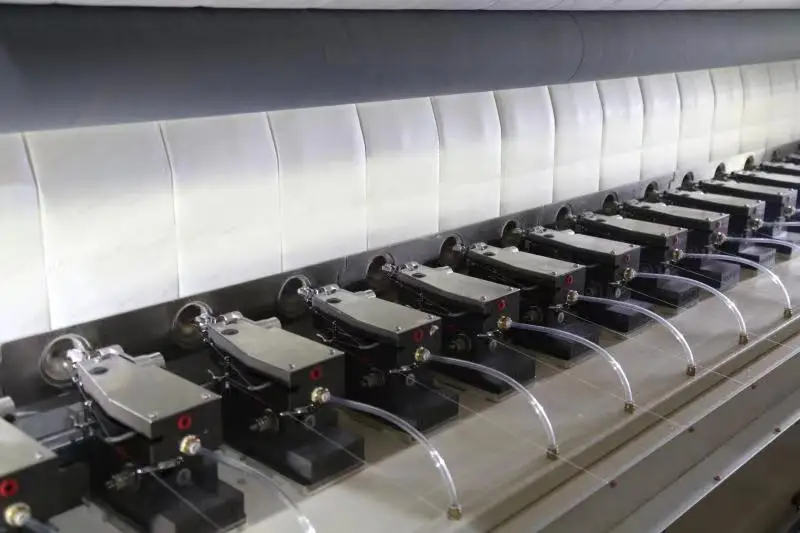

High speed sewing head, independent presser foot driving, Large size Rotary Hook set.
Advanced upper thread breakage detection function. Auto needle-lifting when machine stop.
Quilting tack and jump patterns(cover 180º,360ºpatterns)in high quality without loss of production.
It is the first one in this industry that distance between the two needle rows is easily adjustable from 105 up to 280mm(4”-11”), enable extra big patterns be quilted.
Changeover takes just few minutes
The lower needle row can be moved sideways at will up to 52.2mm, working with the higher needle row, allowing a multitude of patterns without change of needle position.
- The machine is well qualified to quilt material as thick as 50mm.
- Touch screen computer control system with graphic interface, allowing simultaneous vision and access to all machine functions.
- Automatic lubrication of machine heads, especially for needles and hooks.
- Richpeace new generation quilting software, easy operation of CAD drawing system.
- Easy setting of the machine with perfectly security.
PATTERN & SAMPLES OF THE QUILTING MACHINE
Big size quilting pattern: 315mm square
Richpeace Quilting Design System
Richpeace Welcome quilting CAD software professional edition is Suitable for single head quilting machine and multi-needle quilting machine. It is the newest development product by Richpeace design software development team. optimizing interface and function instructions. Operation more simple, more stable.
Main Features & Functions
Integrate single head function and multi-needles quilting design function.
Editing text, rectangle, oval, polyline, arch, waveform and circular
pattern and so on.
Supporting multi-needle quilting preview.
Exchanging start stitch and end stitch function.
Figure spacing adjustment function.
Jump stitch modify function.
Object lock function.
Figure horizontal or vertical position mirror function.
Figure quickly sort function.
Compatible with HPGL graphical format.
Model & Specification
| Model (Name Rule) | RPQ-L1500-R-32-105(420)-NT | RPQ-L1500-R-18-170(420)-NT | RPQ-L1500-2R-(25+26)-105(315)-NT | RPQ-L1500-2R-(16+17)-152.4(315)-NT |
| Head Space(mm) | 105 | 170 | 105 | 152.4 |
| Needle Bad Distance | None | None | 75-210 | 75-210 |
| Max.Thickness(mm) | 50 | 50 | 50 | 50 |
| Quilting Width(mm) | 3675 | 3310 | 2940 | 2753 |
| Stitch Length(mm) | 2-6 | 2-6 | 2-6 | 2-6 |
| Travel Distance in X-axis | 420 | 420 | 315 | 315 |
| Max.Working Speed | 1500rpm | 1500rpm | 1500rpm | 1500rpm |
| Power | 3-phase 380V,7KW | 3-phase 380V,7KW | 3-phase 380V,10KW | 3-phase 380V,10KW |
| Dimension | 5880x1440x2400 | 5880x1440x2400 | 5740x1100x2200 | 5740x1100x2200 |
