2015 новейшая машина для выдувания полиэтиленовой пленки мини-типа/машина производства

2015 новейшая машина для выдувания полиэтиленовой пленки мини-типа/машина производства

Категория: Рукавных пленок производственная линия >>>
Поставщик: Ruian,Xinshun,Machinery,Factory

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.69 $*	0.35 $*
Aug-19-2025	0.9 $*	0.19 $*
Jul-19-2025	0.52 $*	0.59 $*
Jun-19-2025	0.58 $*	0.88 $*
May-19-2025	0.62 $*	0.6 $*
Apr-19-2025	0.75 $*	0.10 $*
Mar-19-2025	0.79 $*	0.8 $*
Feb-19-2025	0.56 $*	0.43 $*
Jan-19-2025	0.48 $*	0.38 $*

Характеристики

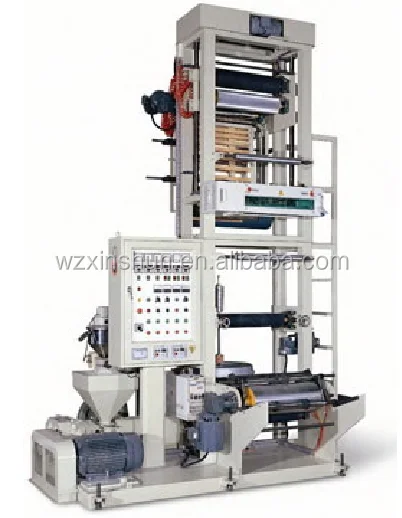

2015 Newest Mini Type PE Film Blowing Machine/Plastic Machine/Film Extruder

Summary:

This mini type PE film blowing machine, its extruder, cylinder and screw are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blow the plastic films like low density polythene (LDPE), high density polythene (HDPE) and linear low density polythene (LLDPE). It is widely applied to produce the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Extra optional devices:

1) Auto Loader

2) Quick Screen Changer

3) Film Surface Treater (Digital Corona Treatment)

4) Air Compressor

5) Rotary Die Device

Main Technical Parameters:

Model	SJ50-500	SJ50-600	SJ50-700
Film Folding Width	100-450mm	100-550mm	200-650mm
Film Single-face Thickness	0.01-0.12mm	0.01-0.12mm	0.01-0.12mm
Screw Diameter	Φ50	Φ50	Φ50
Screw L/D Ratio	28:1	28:1	28:1
Die Size	Φ50, Φ100	Φ50, Φ100	Φ80, Φ100
Max. Extrusion Output	35kg/hr	40kg/hr	45kg/hr
Main Motor Power	11kw	11kw	11kw
Traction Motor Power	0.75kw	0.75kw	0.75kw
Total Power	20kw	20kw	22kw
Winding Torque Motor	5N.m	5N.m	5N.m
Single-winder Type	Surface Friction Type
Air Ring	1
Machine Weight	1000kg	1200kg	1400kg
Overall Dimension	2.14×1.6×2.3m	2.14×1.7×2.3m	2.14×1.8×2.3m
Working Voltage	380V 3-phase 50Hz
