Детали для мини-экскаватора гидравлический земляной шнек строительного

Описание и отзывы

Трекер стоимости

Характеристики

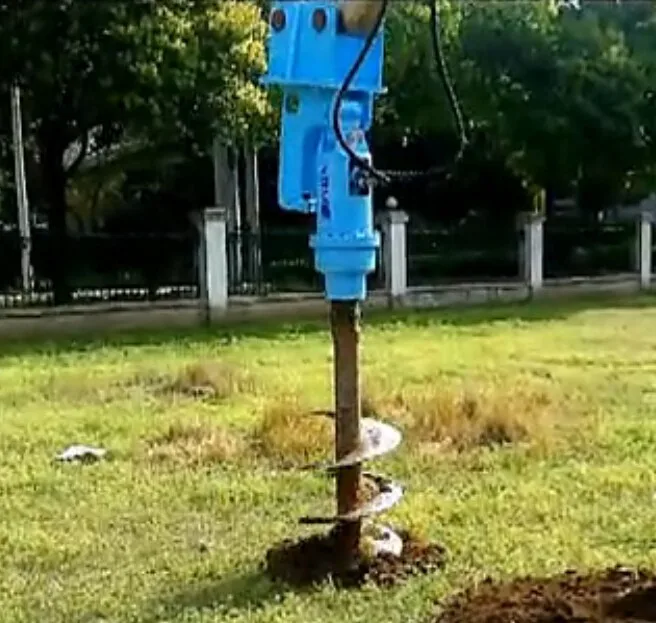

1. The structure picture about the hydraulic earth auger



Hydraulic earth drilling machine is mainly composed with power head and auger.

The power head and auger are fixed together. Auger is composed of screw blade and

bit on the end of the auger, there is also teeth on the end of the auger.

Simple construction, stronger drill ability, low production cost, high flexibility .



There are four questions to answer to aid in the correct choice of Earth Drill;



1.Make and model of Excavator/Backhoe/Skid Steer loader?



2.Diameter of hole to be drilled?



3.Depth of hole to be drilled?

4.Ground type to be drilled?



2.Product picture and specification parameter

Model	Application(T)	Torque(Nm)	Pressure(Bar)	Flow(Lpm)	Rotate Speed(Rpm)	Output Shaft(mm)
HMJ2500	1.5-3.0	790-2593	70-240	25-65	36-88	65 Rnd
HMJ3000	2.0-4.0	1094-3195	80-240	25-70	30-82	65 Rnd
HMJ3500	2.5-4.5	1374-3578	80-240	40-80	35-75	65 Rnd
HMJ4000	3.0-5.0	1374-3578	80-240	40-80	35-75	65 Rnd
HMJ6000	4.5-6.0	2570-6917	80-240	40-89	20-46	75 Sq
HMJ8000	5.0-7.0	3163-8786	80-240	48-110	20-45	75 Sq
HMJ9000	6.0-8.0	3854-9961	80-240	70-150	23-48	75 Sq
HMJ15000	10-15	5307-15967	80-260	80-170	19-41	75 Sq
HMJ20000	12-17	6715-20998	80-260	80-170	15-32	75 Sq
HMJ25000	15-22	8314-25768	80-260	80-170	12-26	75 Sq
HMJ30000	17-25	15669-30393	120-240	100-170	12-21	75 Sq
HMJS59000	20-35	27198-59403	160-350	100-250	10-22	110 Sq



3.Scope of application

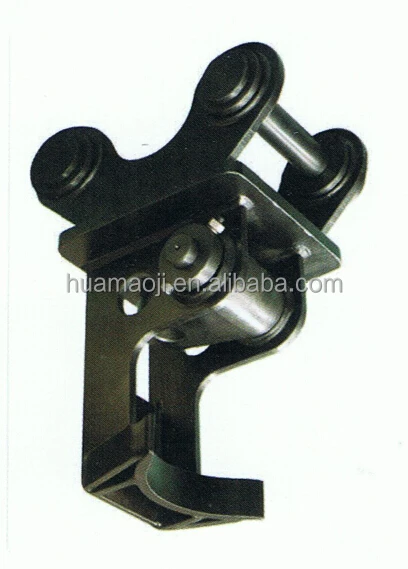

4. Other related components

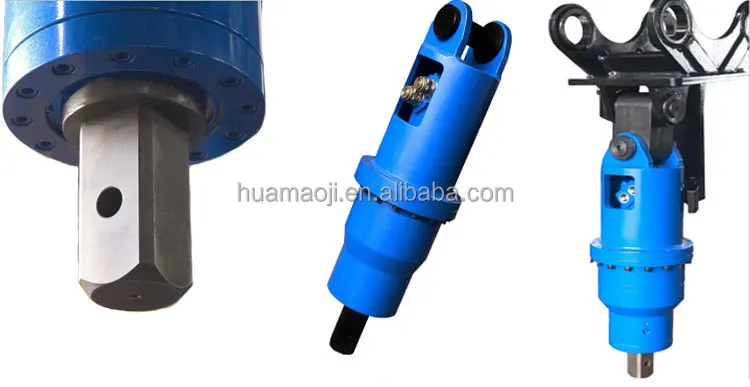

5.Product Advantage



* 1.American imported hydraulic motor. High precision gear,Double reduction gear box.



* 2. Seperated type output  shaft. Double pin cradle hitch. Special designed steel body .



* 3.  Materials are not easy to deformation



* 4.Fast drilling speed,  Efficient performance



* 5.Mature segment bond and high welding strength.

6.Application scope

 -Fence   -Landscaping   -Tree planting  -Well drilling  -Screw pile installation     -Guideboard

-Geothermy pumping source  -Stem and mast installation   -Sound barrier screen plate

-Detection and research
