TJ-40 машина для склеивания углов жесткой коробки
US $1300-$1400
Сделано в Китае автоматическая машина для обшивки бумажных коробок и
- Категория: >>>
- Поставщик: Ruian,Koten,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.92 $* | 0.22 $* |
| Aug-19-2025 | 0.1 $* | 0.87 $* |
| Jul-19-2025 | 0.14 $* | 0.91 $* |
| Jun-19-2025 | 0.67 $* | 0.22 $* |
| May-19-2025 | 0.91 $* | 0.44 $* |
| Apr-19-2025 | 0.94 $* | 0.89 $* |
| Mar-19-2025 | 0.6 $* | 0.67 $* |
| Feb-19-2025 | 0.66 $* | 0.29 $* |
| Jan-19-2025 | 0.68 $* | 0.77 $* |
Характеристики

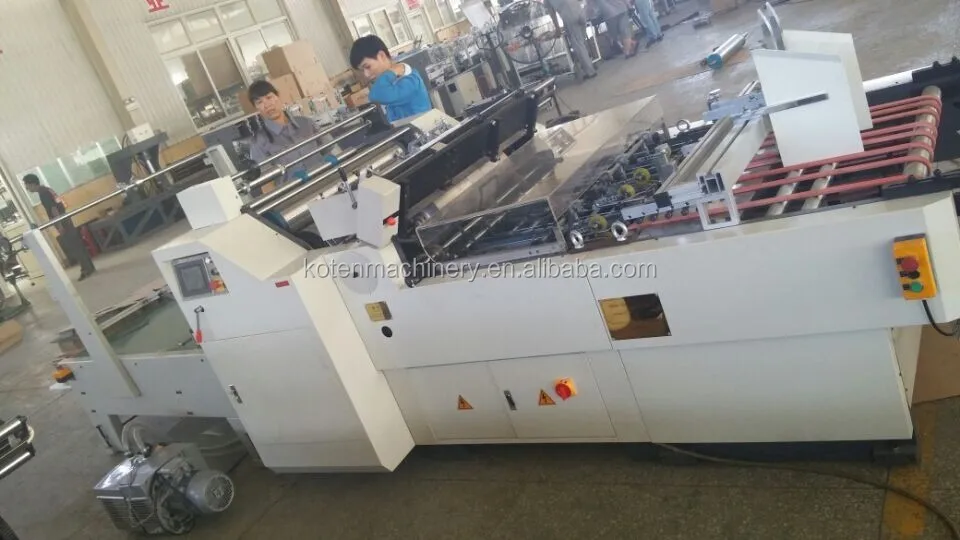

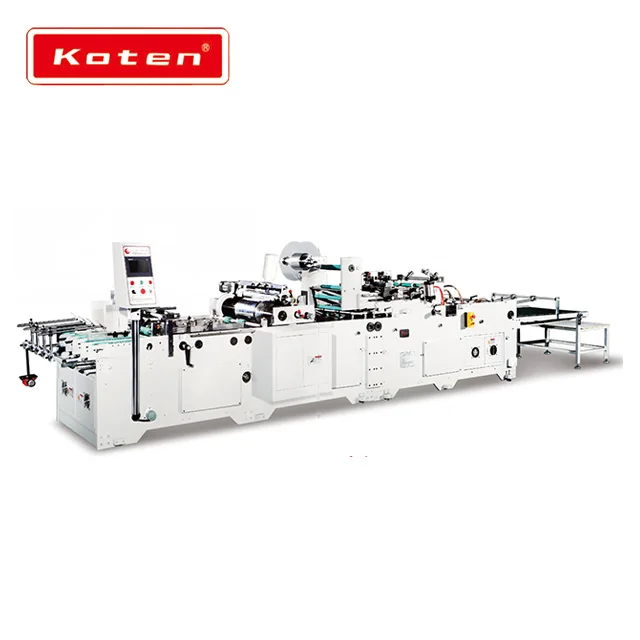

Automatic Paper Box Window Patching Machine
Product Description
TC-1020 Window Patching Machine is widely used in the film patching to be package with or without the window of the phone box, wine box, napkin box, cosmetic box, toy box milk case, card etc. It can be used for the function of the paper gluing, film patching, film cutting of card 200-500g/m2 and flute within 3mm thick.
Main Specifications
Technical Parameters of Window Patching Machine.
Model | TC-1020 (Single line) | TC-1020 (Double line) |
Max.Paper Size | 1020*630mm | 480*630 |
Min.Paper Size | 140*140mm | 140*140 |
Max.Film Size | 410*300mm | 200*300 |
Min.Film Size | 80*60mm | 80*60 |
Sheet Thickness | 0.05-0.20mm | 0.05-0.20 |
Max.Working Speed | 6000s/h | 12000s/h |
Cardboard | 200-500g/m2 | 200-500g/m2 |
Corrugated Paper | ≤3mm | ≤3mm |
Total Power | 10KW 380V 50HZ | 12Kw 380V 50HZ |
Total Weight | 2850KG | 3000Kg |
Overall Dimensions | 5000*1960*1750mm | 5000*1960*1750 |
When the roller pull out of the dimension | 5000*3160*1750mm | 5000*3160*1750 |
Packaging & Shipping
Automatic Paper Box Window Patching Machine's packaging and loaded at the NINGBO port.
Our Services
Every Automatic Paper Box Window Patching Machine before shipping will be tested again and again by our engineer in order to keep the machine with good quality, our sales teams also will check the machine again before packaging as a second time quality confirmation.
