DLH5060 сварочный аппарат
- Категория: Манипулятор >>>
- Поставщик: Wuxi,Datang,Welding,&,Cutting,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.99 $* | 0.38 $* |
| Aug-17-2025 | 0.7 $* | 0.30 $* |
| Jul-17-2025 | 0.65 $* | 0.43 $* |
| Jun-17-2025 | 0.10 $* | 0.14 $* |
| May-17-2025 | 0.26 $* | 0.60 $* |
| Apr-17-2025 | 0.34 $* | 0.55 $* |
| Mar-17-2025 | 0.95 $* | 0.10 $* |
| Feb-17-2025 | 0.75 $* | 0.25 $* |
| Jan-17-2025 | 0.59 $* | 0.0 $* |
Характеристики
Model | DLH3040 | DLH4050 | DLH5060 | DLH6070 | DLH7080 | ||||
Column vertical stroke (mm) | 3000 | 4000 | 5000 | 6000 | 7000 | ||||
Boom horizontal stroke (mm) | 4000 | 5000 | 6000 | 7000 | 8000 | ||||
Column rotation angle (°) | ±180 | ||||||||
Column rotation speed (rpm) | 0.3 | ||||||||
Boom vertical speed (mm/min) | 1000 | ||||||||
Boom horizontal speed (mm/min) | 120~1200 VFD (inverter) | ||||||||
Boom end max loading (kg) | 200 | ||||||||
Trolley feeding speed (mm/min) | 2500 | 2000 | |||||||
Trolley rail span (mm) | 1800 | 2000 | |||||||
Voltage | 380V-3PH-50HZ | ||||||||

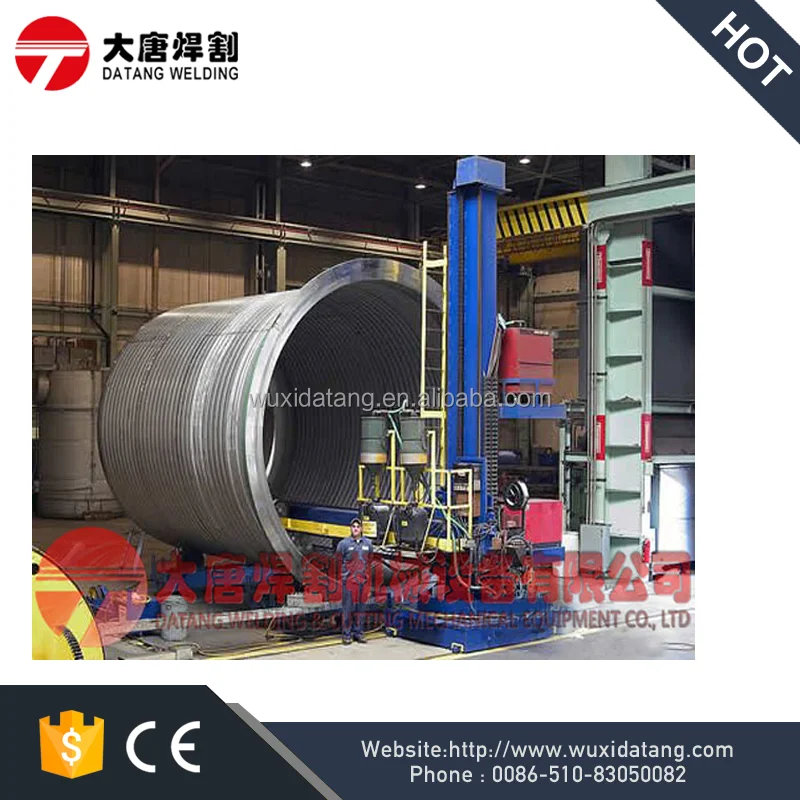

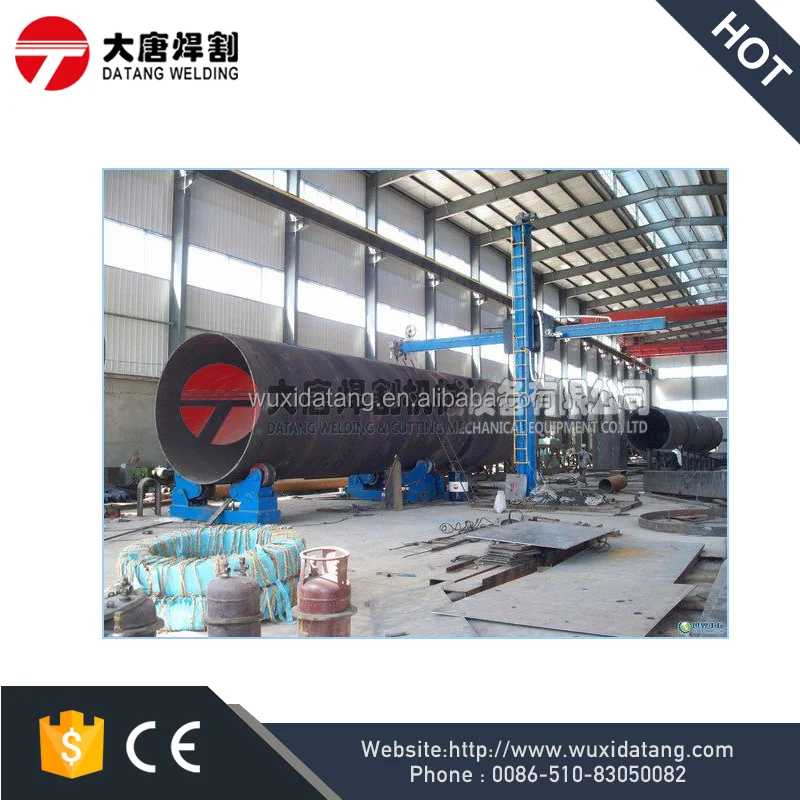

The boom of machine can weld inside and outside seams of small tanks,also can weld longitudinal and transverse seams of big tanks.
Precise Positioning
![]()
DATANG Welding manipulator includes fixed type,fixed with rotation type and traveling with rotation type.
Custom design
It has some optional functions,such as Auto-tracking of welding arc.TV monitor,The flux recovering and conveying system etc.
Options:
Motorized cross slide Flux recovery system Auto Tracker system Welding osscillator
ARC hight controller TV monitoring system Welding machine Wireless controller
