Промышленные термостаты для шкафов NTL 10A-F

Категория: Instrument Parts & Accessories >>>
Поставщик: Wenzhou,Natural,Automation,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.82 $*	0.93 $*
Aug-16-2025	0.46 $*	0.40 $*
Jul-16-2025	0.90 $*	0.21 $*
Jun-16-2025	0.53 $*	0.11 $*
May-16-2025	0.36 $*	0.23 $*
Apr-16-2025	0.4 $*	0.92 $*
Mar-16-2025	0.35 $*	0.41 $*
Feb-16-2025	0.0 $*	0.54 $*
Jan-16-2025	0.56 $*	0.45 $*

Характеристики

Products Description

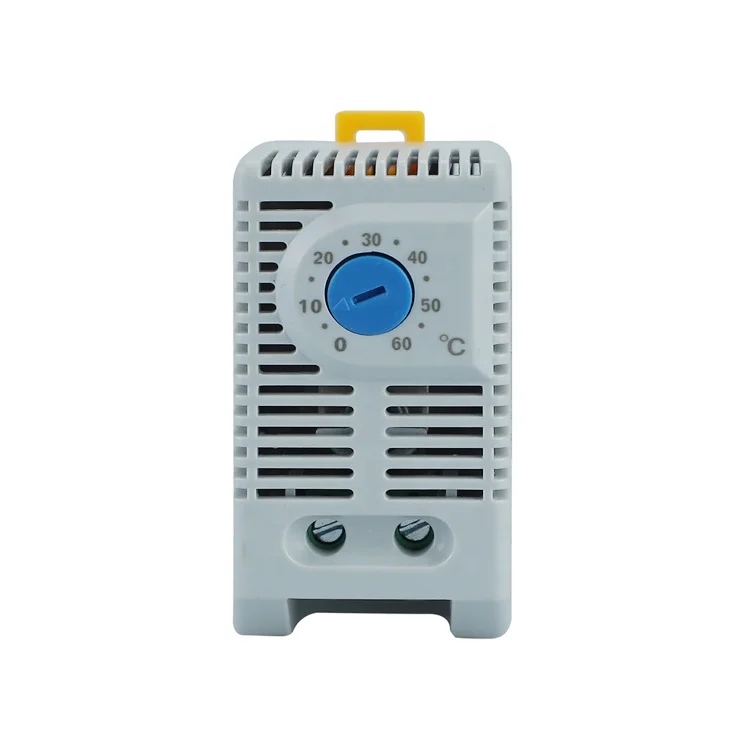

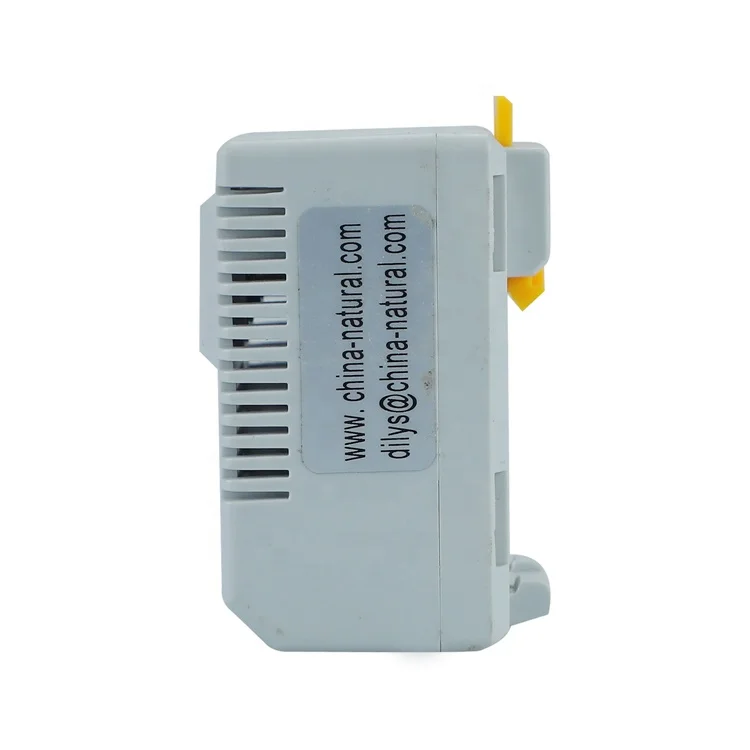

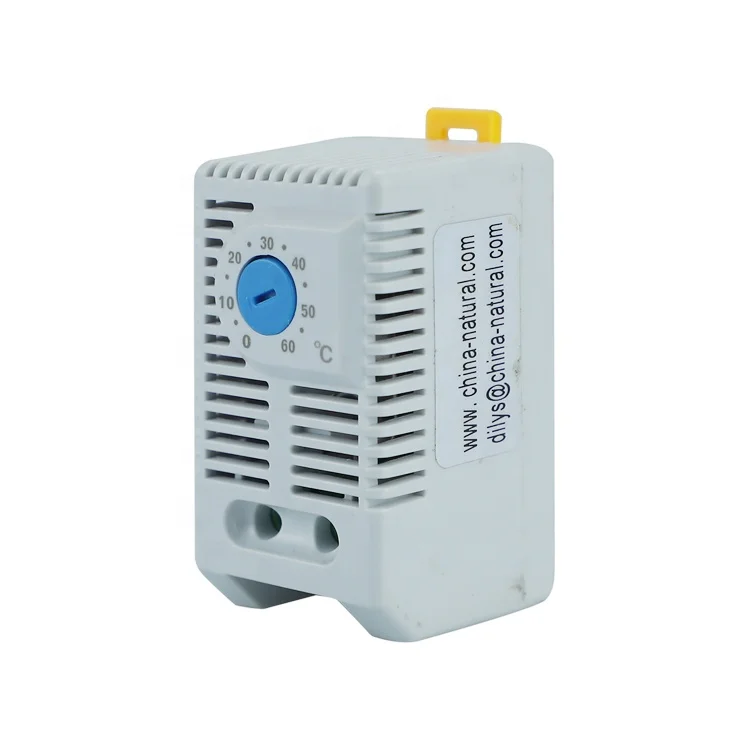

NTL 10A-F / NTL 10B-F / NTL 10A-M / NTL 10B-M
Switch temperature difference	+/-5°C
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Service life	>100,000 cycles
Max. switching capacity	250VAC, 10 (2) A / 120VAC, 15 (2) A DC 30W at 24VDC to 72VDC
Max. inrush current	AC 16A for 10 sec.

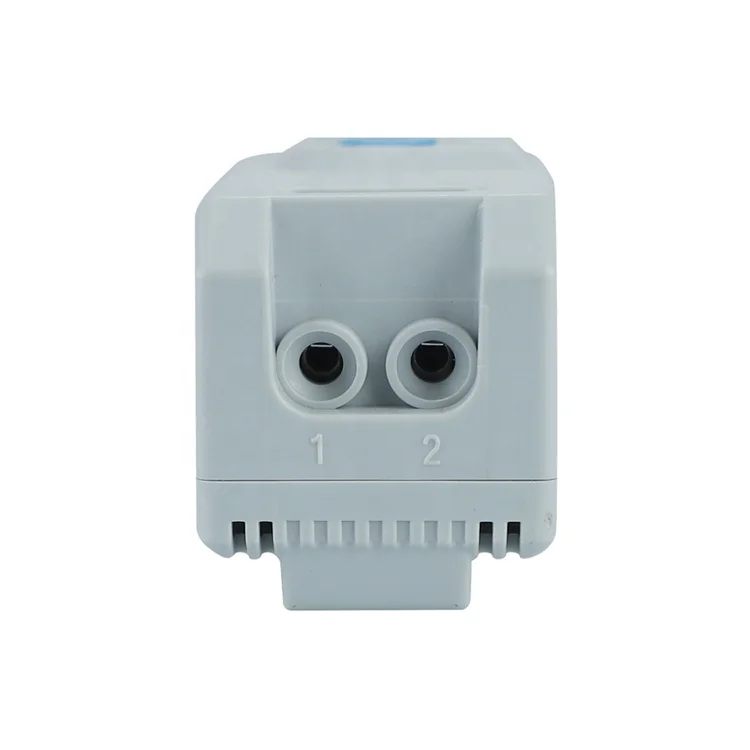

Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14)stranded wire¹ 1.5mm² (AWG 16)

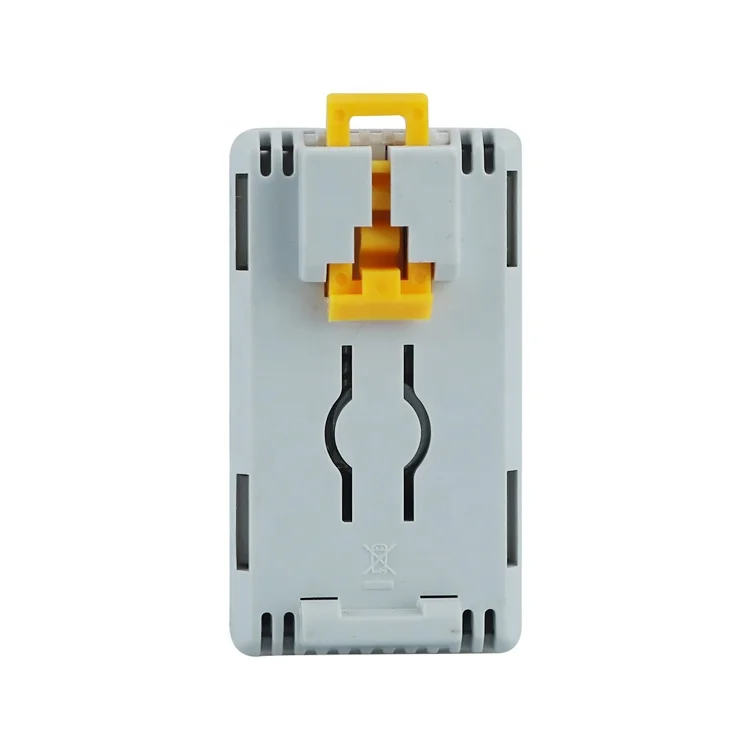

Mounting	clip for 35mm DIN rail, EN 60715
Casing	plastic according to UL94 V-0, light grey
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operating/Storage temperature	-45 to +80°C (-49 to +176°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type	IP20

* Large setting range
* Small size
* Simple to mount
* High switching performance

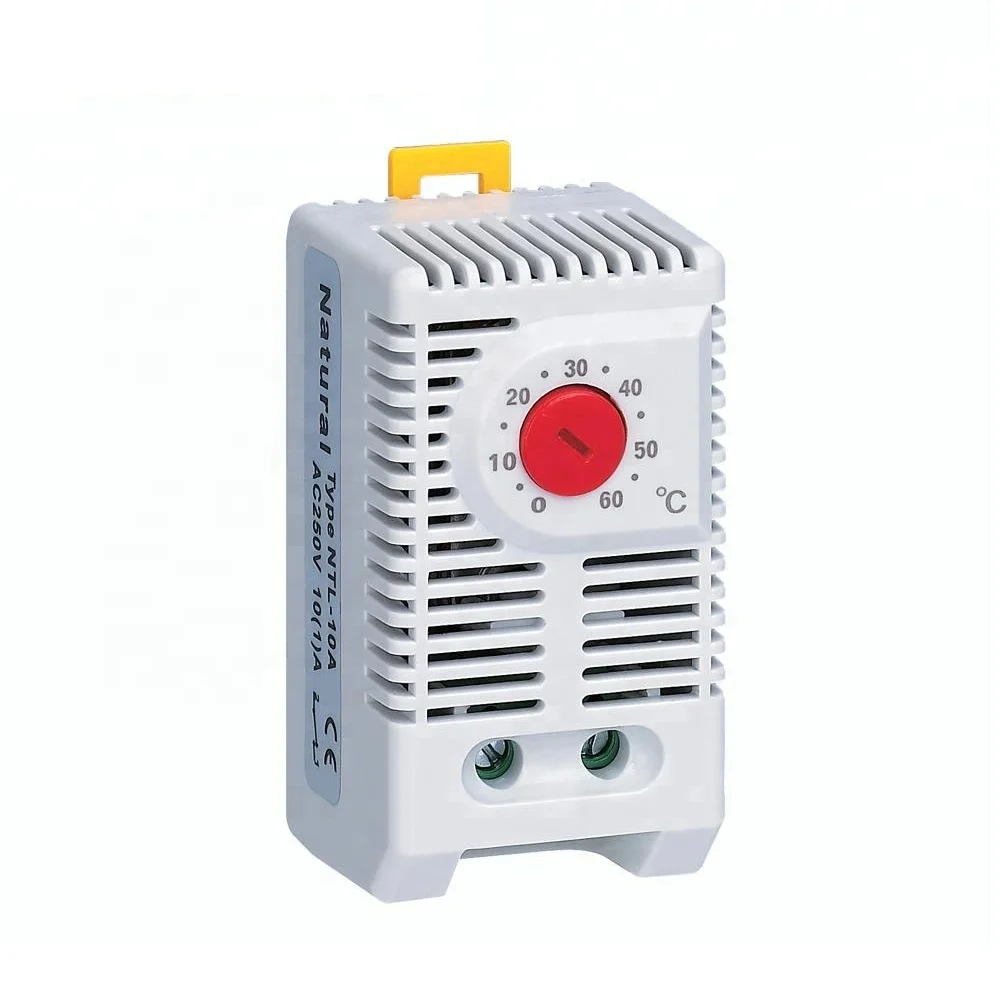

NTL 10A-F / NTL 10A-M: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.
NTL 10B-F / NTL 10B-M: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers
or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is
rising
