(Cast & Blown &Laminating & Printing Film

General introduction

Our steel corona station has been specifically designed to meet the needs of the standard blown film ,Cast & Blown &Laminating & Printing Film line. It is equipped with covered ground rolls and segmented stainless aluminum electrodes. A compact and simple construction allows for 2 sided and adjustable lane treating. The electrode system provides simple, trouble-free air-gap adjustment. Add in its economical price and you have a system that fits into any budget.



Standard Treat Widths

The conventional treated widths are following, but it can be customized according to needs

• 23.62 inch (600 mm)


• 31.50 inch (800 mm)


• 39.37 inch (1000 mm)


• 47.24 inch (1200 mm)

Electrode Assembly

4 lines tooth stainless aluminum,

Flip-Type Segments

The length of segmented parts can be customized

Single side or double side treatment in option

Electrode Air-Gap Adjustable from Outside the Station

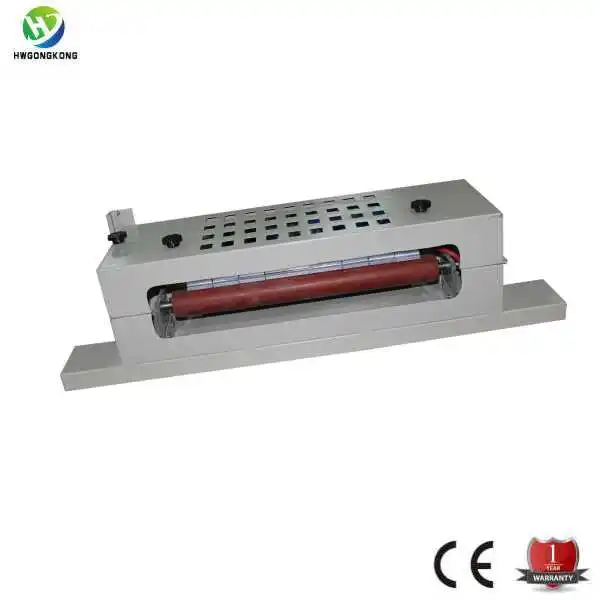

Treater (Ground) Roll

Steel, Dead Shaft Mounted on Free-Running Bearings

Conventional diameter is 46MM,70MM 90MM 100MM,

It can be customized if necessary.

Silicone Sleeve Dielectric

Optional Features/Accessories



Pneumatic cylinders for electrode retraction

Roller rotation sensor to stop the corona in the case of a stationary or broken web

Ozone exhaust equipment





Details parts pictures





Please contact us for more machine technical datails and proposal. We can send you machine videos for clear understanding
