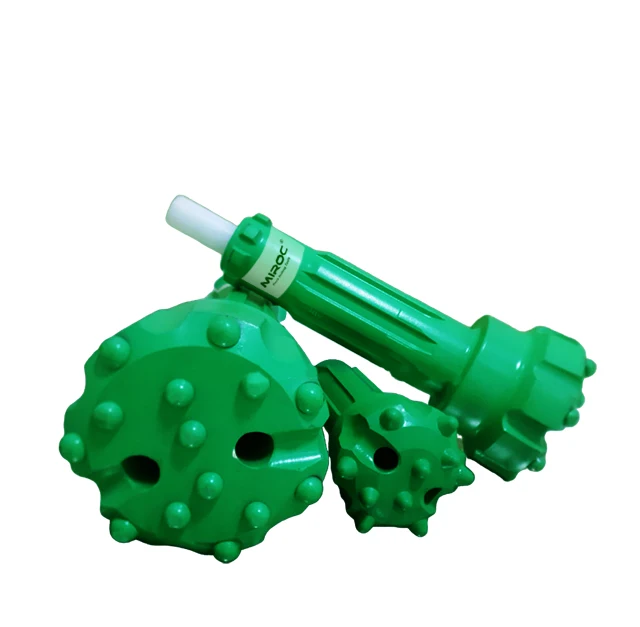

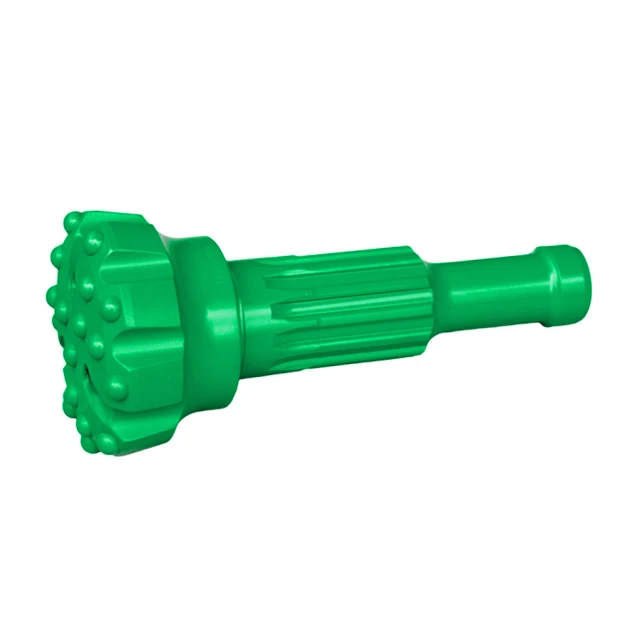

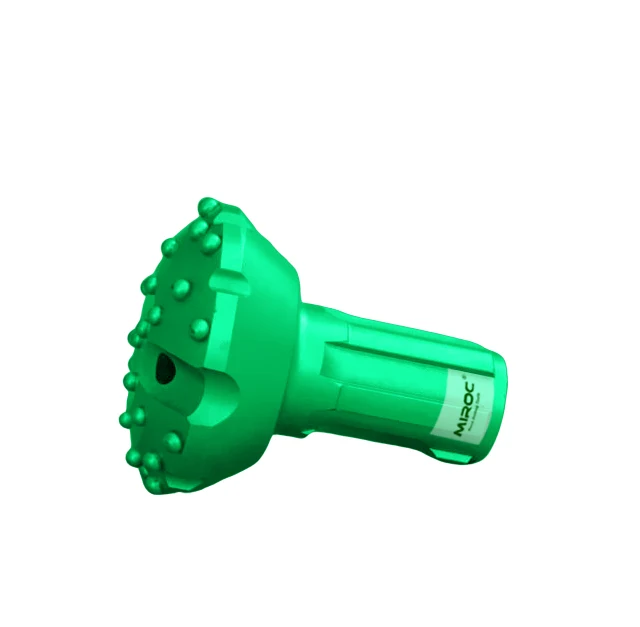

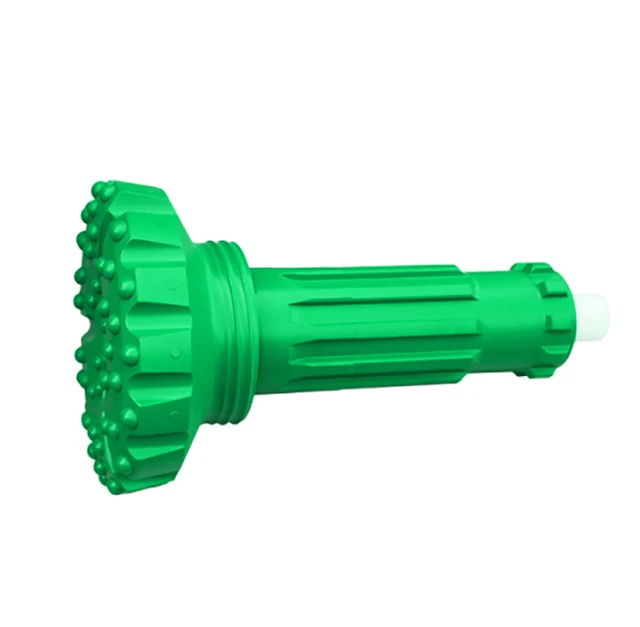

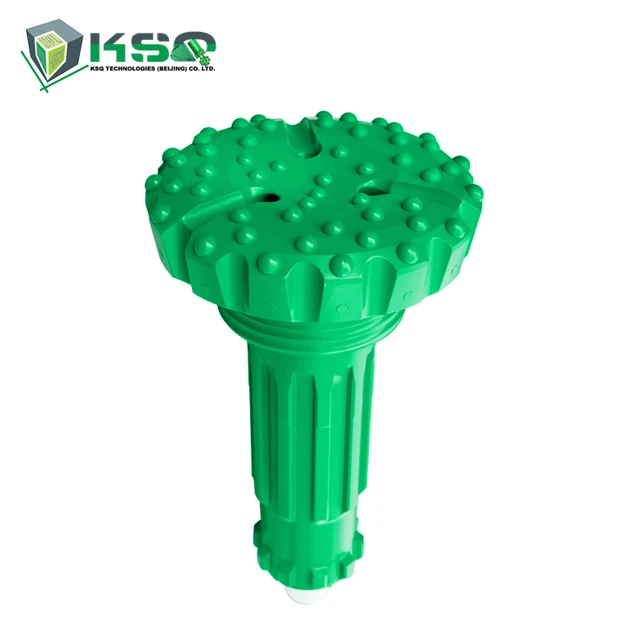

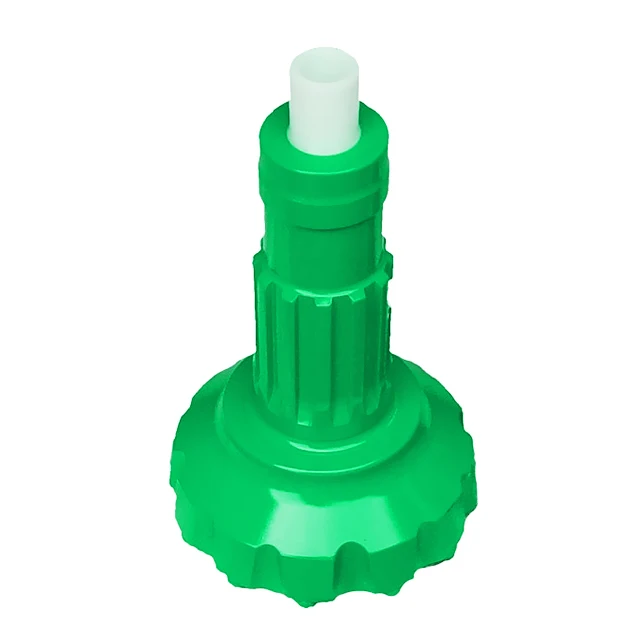

Product Description

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths

• Color: Green,Blue or Based on Customer requirements

Applications of DTH Bit

• Underground mining
• Tunneling

• Quarry benching operations

Specification of DTH Bits

Part Number	Product Code and Brief Description	Flushing Holes	Diameter (mm)	Weight (kg)	Gauge Buttons ( No.x mm)	Front Buttons ( No. x mm)	DTH Hammer
4148301682	DTH65PQ	1	68 - 72	1.5	4 x12	3 x 12	DTH65
4148301683	DTH75PQ	3	75 - 77	2.4	5 x 12	3 x 12	DTH70
4148301684	DTH76PQ	2	76 - 78	2.5	5 x 12	3 x 12	DTH76
4148301685	DTH76-78	2	78 - 82	2.6	5 x 12	3 x 12	DTH76
4148301686	DTH80PQ	3	82 - 84	3	5 x 12	6 x 12	DTH80, DTH80X
4148301687	DTH90A	3	90 - 95	3.6	6 x 14	4 x 12	DTH80, DTH80X
4148301688	DTH80XD-90	3	90 - 95	3.4	6 x 12	4 x 12	DTH80XD
4148301689	DTH80-II-80	3	80 - 82	3	5 x 12	4 x 12	DTH80-II
4148301690	DTH90B	3	90 - 95	3.8	6 x 14	4 x 12	DTH90, DTH90-I
4148301691	DTH90T1	2	90 - 95	3.6	6 x 14	1 x 12, 3 x 12 (Spherical)	DTH90, DTH90-I
4148301692	DTH90T2	2	90 - 95	3.8	6 x 14 (Spherical)	4 x 12 (Spherical)	DTH90, DTH90-I
4148301693	DTH90T3J	3	90 - 95	3.6	6 x 14 (Ballistic)	4 x 12 (Ballistic)	DTH90, DTH90-I

Technical Manual of DTH Hammer

	3 Inch	3.5 Inch	4 Inch	5 Inch	6 Inch	8 Inch
Drilling diamter(mm)	Φ82-85	Φ90-93	Φ105-130	Φ130-152	Φ152-305	Φ203-305
Hammer length(mm)	867	908	1052	1387	1450	1551
External diamerer(mm)	Φ71	Φ81	Φ92	Φ114	Φ136	Φ181
Weight(kg)	19	21.8	38	69	126	277
Working pressure(Mpa)	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1
Air consumption(m3/min)	3-12	4.3-14.2	3.5-18	5.7-18	8.5-25	12-31
Torque(N.M)	150	205	304	590	822	1560
Lmpact frequenc(Time/Min)	≥800	950-1500	≥800	810-1470	820-1475	860-1510
Connection thread	inside 48.8x4.2	outside API 2-3/8"	inside API 2-3/8"	outside API 3-1/2"	outside API3-1/2	outside API4-1/2"
Connection thread	Φ47-6	Φ53-8	Φ64-8	Φ84-8	Φ99.5-8	Φ128-10
Bit shank	3"- 85	3.5"- 90	4"- 105/115/130	5"- 130/140/152	6"- 152/165/178/194/203/ 216/230/254/305	8"- 152/165/178/194/203 /216/230/254/305

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
