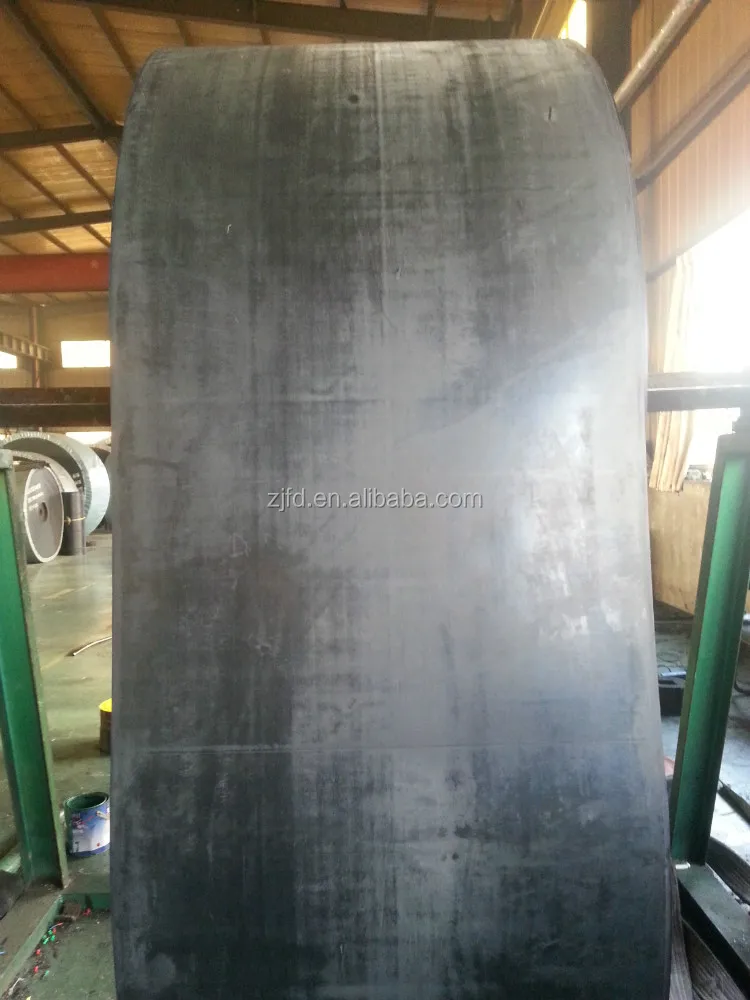

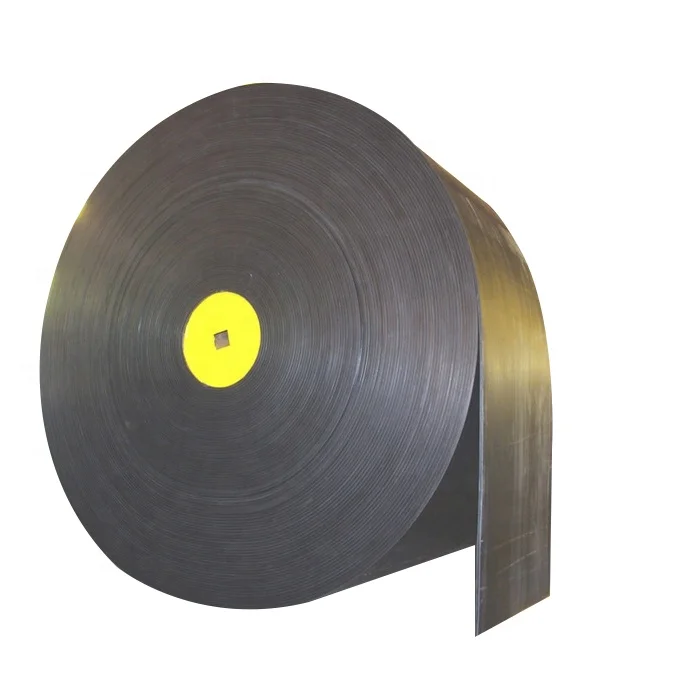

stone crusher EP conveyor belt rubber Conveyor Belt

1. tensile strength 15MPA TO 25MPA
2. rubber lose 70MM3-350MM3
3. thickness 4mm-50mm
4. width 10mm-2400mm
5. ply number 1-10

Construction of our ruber conveyor belt

1. EP fabric Carcass( Warp is polyester and weft is polyamide)
2. NN fabric Carcass( Warp and weft both nylon)
3. Steel cord (ST630-ST6300)
4. Special rubber layer with good fabric adhesion properties( skimmed layer)
5. Cover rubber( special quality requirement)

Advantage of our conveyor beltng

1. Light weight, thin
2. High elasticity
3. Impact resistant
4. Low elongation
5. Good flexibility and good through ability
6. High abrasion

Application of our conveyor belt

1. Cement, concrete plants, bulk handling
2. Coal, mining, sand, gravel, stone crusher
3. Steel industry, heating and power
4. Road construction machinery, etc

Conveyor belt specification

Fabric type	Fabric structure		Fabric type	Fabric thickness	Cover rubber thickness		Width	Length
	warp	weft			Upper	Lower
EP	EP	EP	EP-100	0.75	1.5-8	0-4.5	400-2500	<=300
			EP-150	0.8
			EP-200	0.90			500-2500
			EP-250	1.15
			EP-300	1.25
			EP-400	1.45			800-2500
			EP-500	1.55



Fabric type	Fabric structure		Fabric type	Fabric thickness	Cover rubber thickness		Width	Length
	warp	weft			Upper	Lower
NN	NN	NN	NN-100	0.75	1.5-8	0-4.5	400-2500	<=300
			NN-150	0.8
			NN-200	0.9			500-2500
			NN-250	1.15
			NN-300	1.25
			NN-400	1.45			800-2500
			NN-500	1.55

Conveyor belt technical data sheet

We could offer conveyor belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc

.

Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
DIN 22102	Mpa	%	mm3	N/mm   (≤1.5mm)	N/mm   (>1.5mm)	N/mm
DIN 22102-Z	15	350	250	3.5	4.5	5
DIN 22102-W	18	400	90	3.5	4.5	5
DIN 22102-Y	20	400	150	3.5	4.5	5
DIN 22102-X	25	450	120	3.5	4.5	5



Standards	Cover Rubber			Adhesion
	Tensile StrengTD	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
AS 1332	Mpa	%	mm3	N/mm   (≤1.9mm)	N/mm   (>1.9mm)	N/mm
AS 1332-N17	17	400	200	4	4.8	6
AS 1332-M24	24	450	125	4	4.8	6

Conveyor belt production process as following

1.conveyor belt raw materials



2.conveyor belt rubber smelting(rubber smelting with the internal mixer and open mill)

3. fabric calendar



4.conveyor belt shaping(shaping up the belt)



5.conveyor belt vulcanization

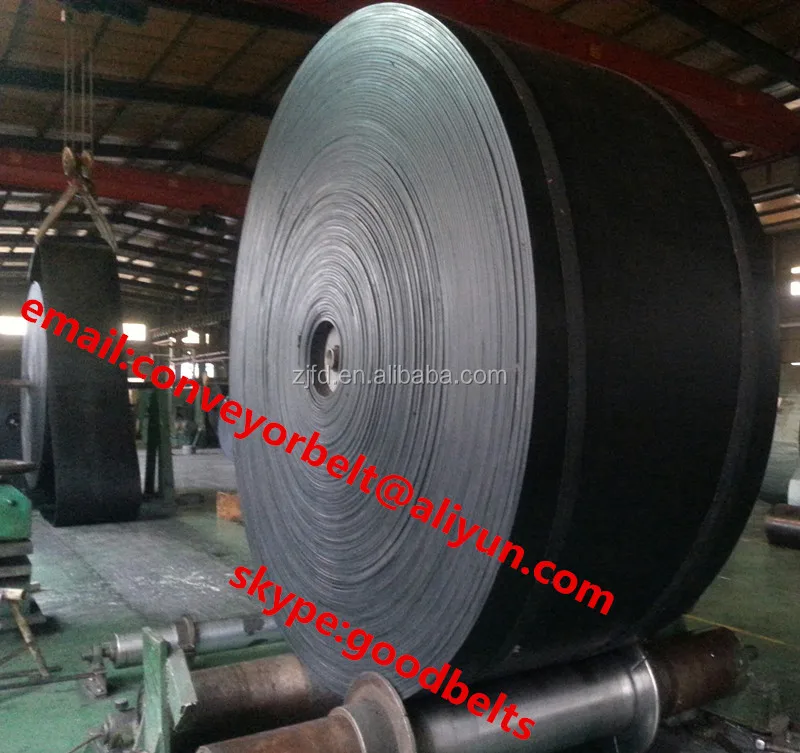

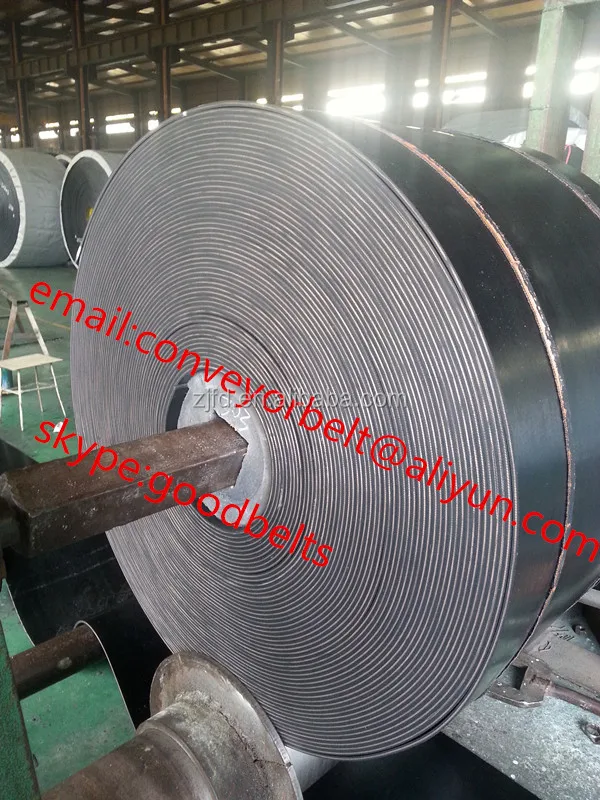

6.Conveyor belt finished



7.conveyor belt package and loading



8.quality control test room and test machine most of them are GOTECH brand





stone crusher EP conveyor belt ,any inquiry welcome to here
