Стандарт ASME трубчатый теплообменник из нержавеющей стали и

Описание и отзывы

Трекер стоимости

Характеристики







Tube Heat Exchanger

vortex hot film heat exchanger membrane vortex hot film heat transfer using the

latest technology, to increase the heat transfer effect by changing the fluid motion

state, when the medium through the vortex tube surface, powerful flush the pipe

surface, thus improve the thermal efficiency. Up to 10000 °C w/m2 .

At the same time the structure to achieve the corrosion resistance, resistance to

high temperature, high pressure, anti scaling function. Other types of heat exchanger

fluid channel as fixed direction flow form, formed on the surface of heat exchange

tube flow around, convective heat transfer coefficient decrease.



Description:



Design code: ASME VIII-1, PD5500, JIS,API660,TEMA



Quality Rule: DNV, NORSKE, ISO 9001:2008



Thermal Calculation: HTRI software



Mechanical Calculation: PVElite software



Special Material: Ti, Copper Nickle, Monel, Hastelloy



Features:

• High-efficiency heat transfer;


• Processing of tube plates and baffle plates using the CNC Machining Center;


• Professional welding;


• Flexible hydraulic expansion

Material	Mild Steel	Carbon Steel	Low temperature CS	SS304/L	SS316/L
Plate	SA36	SA516 Gr.70N	SA516 Gr.70N	SA240 304/L	SA240 316/L
Pipe	-	SA106 Gr.B/SA53-B	SA333 Gr.1 / 6	SA312 TP304/L	SA312 TP316/L
Tube	-	SA179	SA179	SA213 TP304/L	SA213 TP316/L
Tubesheet	-	SA266 Gr.2N	SA350 LF2 CL.1	SA182 F304/L	SA182 F316/L
Forging	-	SA105N	SA350 LF2 CL.1	SA182 F304/L	SA182 F316/L
Fitting	-	SA234 WPB	SA234 WPB	SA403 WP304/L	SA403 WP316/L
Bolt	-	SA193 B7	SA193 B7	SA193 B8	SA193 B8
Nut	-	SA194 2H	SA194 2H	SA194 G8	SA194 G8



Products Infomation



Shell and Tube Heat Exchanger
Design Code:	ASME VIII-1, PD5500, TEMA, API660, API661
Diameter Range:	Up to 2 Meter
Length Range:	Up to 20 Meter
Pressure Range:	Up to 35 Mpa
Material Code:	From ASME & ASTM
Software:	HTRI, PVE lite & ANSYS
Available Material:	CS, SS, Alloy, High Alloy
Heat Exchanger Type:	S&T, Double Pipe, Jacketed, Hairpin, Air fin cooler
TEMA Type:	BEM, BEU,BKU, BET, BES, AEM, AEU, AET, AES, AKU, NEN……
Major Markets:	Refinery, Petrochemical, Chemical, Offshore, Pharmaceutical, Marine Industries

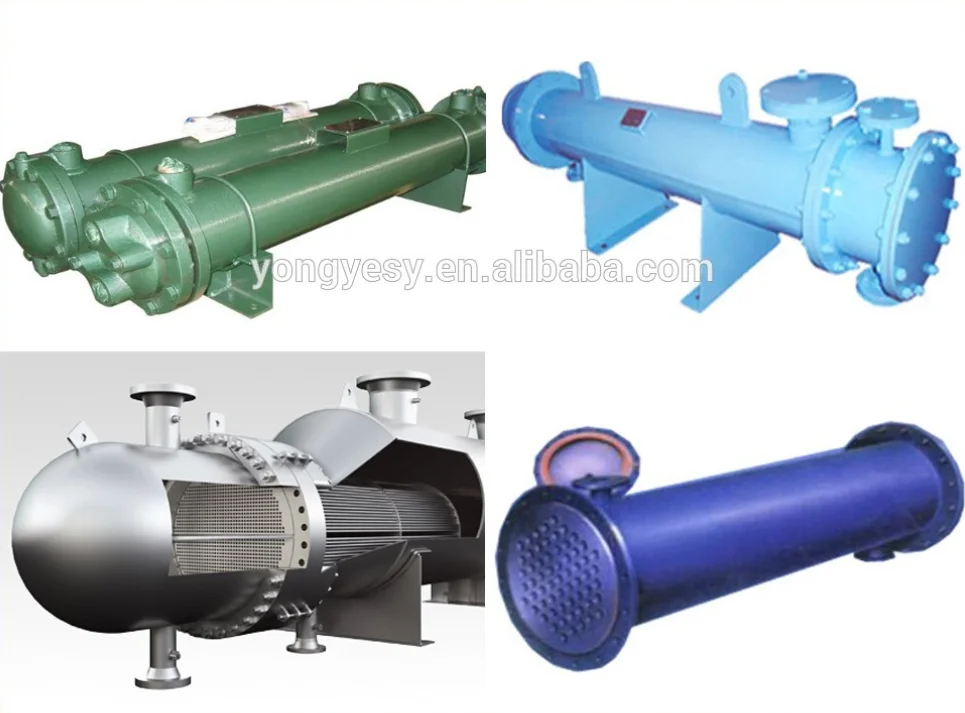

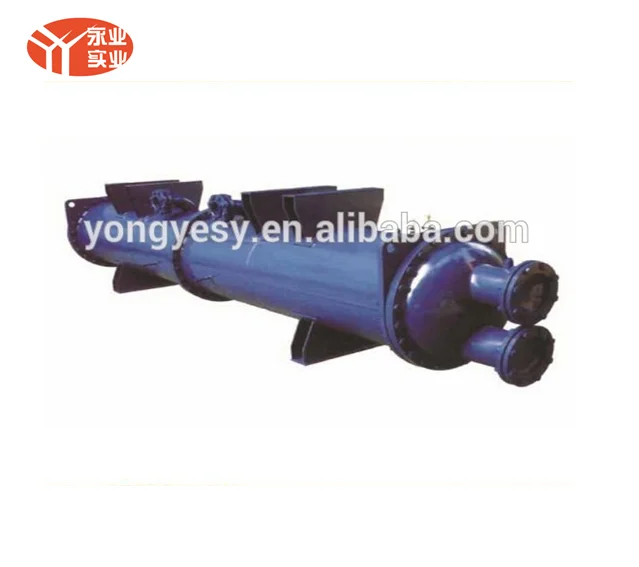

Product Display:



The production process:



Factory:









Market:





Cooperation:

Certificate:
