C240 дизельные двигатели для

Цена:10 400,00 $*

Количество:

3T with sideshifter.jpg 3T34.5M.jpg 3T standard.jpg

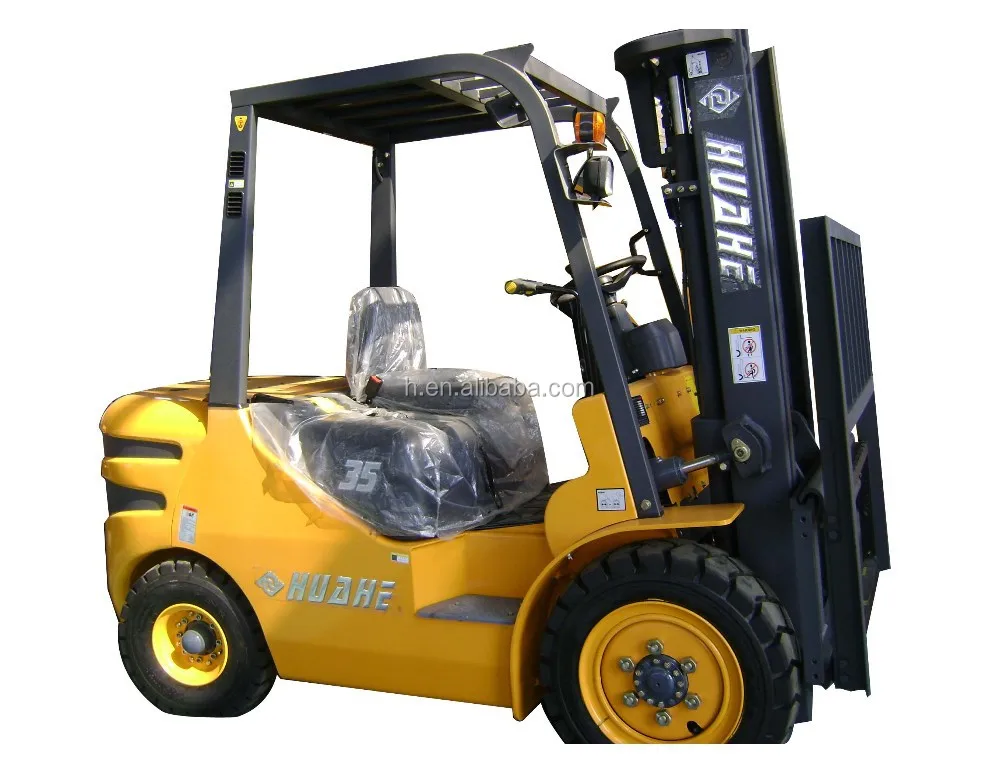

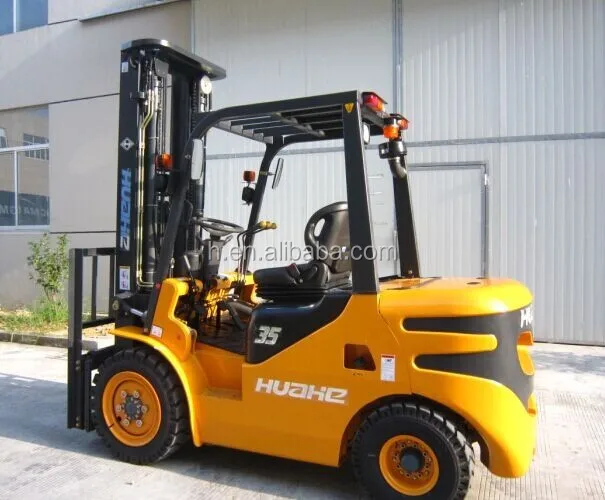

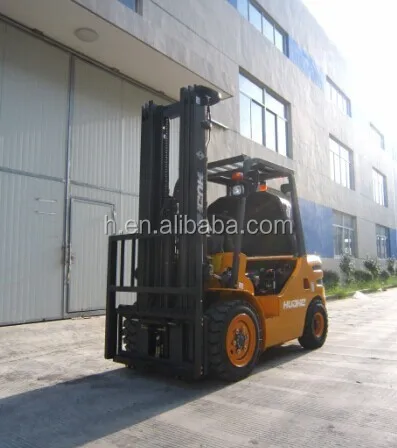

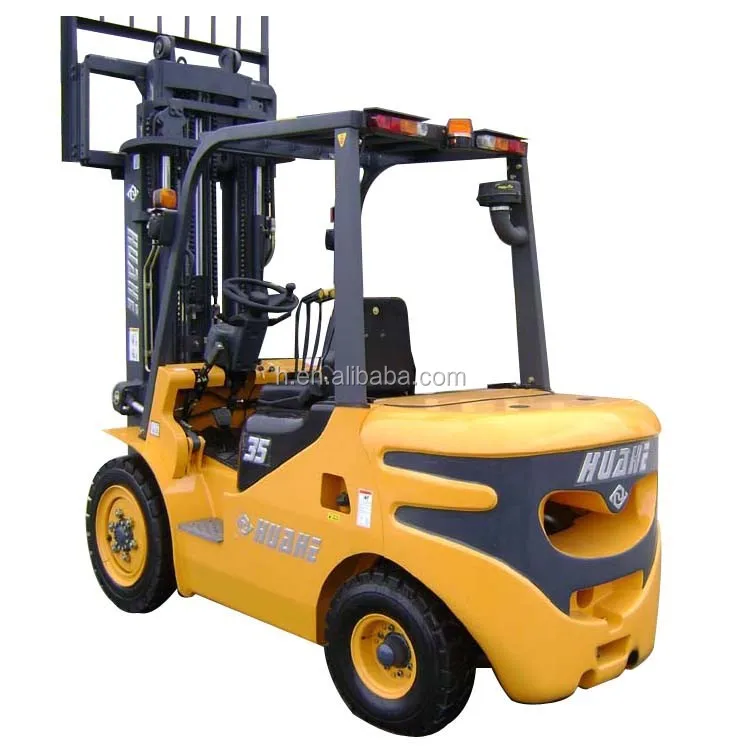

Diesel Forklift 3.5 Tons With Japanese ISUZU/YANMAR Engine

Specification Of Forklift

	origin							ZHEJIANG HuaHe forklift company
	Model									HH30Z
	Power type									Diesel
	Rated capacity								kg	3000
	Load center								mm	500
Dimension	Lift height								mm	3000
	Free lift height								mm	130
	Fork size			NUL					mm	107012545
	Mast inclination			Front/Back					deg	6/12
	Front o-verhang								mm	490
	Overall dimensions			Length to face of fork					mm	2680
				Overall width					mm	1225
				Mast lowered height					mm	2120
				Overhead guard height					mm	2120
	Turning radius								mm	2460
	Min. right angle aisle width								mm	2105
Performance	Travel speed				No load				km/h	9/20
					Full load				mm/s	8.8/18.5
	Lift speed								mm/s	480
	Max. gradeability								%	20
	Max. drawbar pull								Kn	14
	self weight								kg	4400
Wheel&Tires	Tires	Front								28*9-15-12PR
		Rear								6.50-10-10PR
	Tread	Front							mm	1000
		Rear							mm	970
	Wheelbase								mm	1650
	Min. ground (no ldad/full load)						Mast		mm	152/132
							Frame		mm	158/138
Drive units	Battery		Voltage						V/Ah	12/90
	Engine		Model							C240
			origin							Japan
			Rated output/r.p.m						kw/r.p.m	34.5/2500
			Rated torque						N.m/r.p.m	139/1800
			No. of Cylinder							4
			Displacement						cc	2369
			Type							Hydraulic
			Shift			(Fwd/Rwd)				1/1
	Operating pressure								Mpa	17.5

OPTION:

Mast of different heights

Solid tyre/Double tyre

Side shifter

Fork extension

Pipe and valves

Fork positioner

Rotator

Paper roll clamp

Bale clamp

Selling Point

Chinese Automatic Transmission With TCM Technology Improves Operator's Efficiency, Responding Rapidly And Smoothly.

Intelligent Buffer Design Avoids Sharp Collision And Minimizes The Risk Of Damage During Lower Of Loads, Wide-view Mast Also Provides High-visibility To The Operator

High-Capacity Aluminum Radiator Is Designed For Efficient Thermal Transfer Fin And Oil Cooler For The Transmission Torque Converter, Assists In Improving Iongevity Of Engines.
