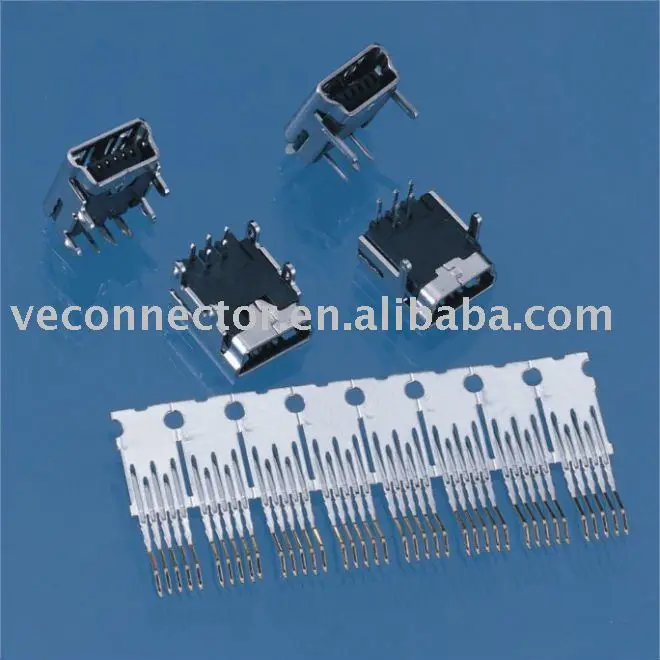

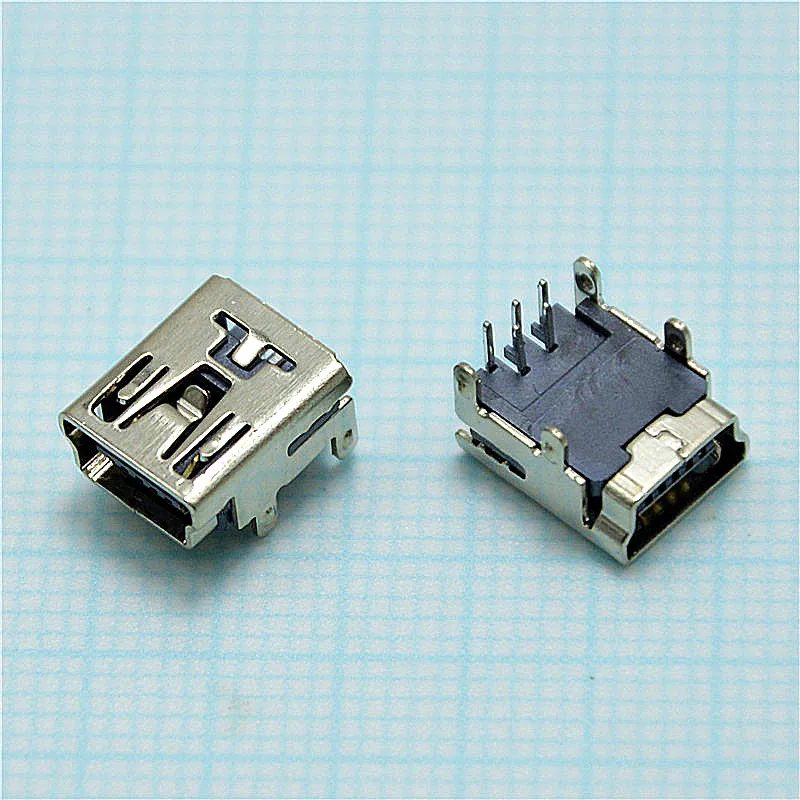

5PIN Тип B прямоугольный сквозной гнездовой разъем mini
- Категория: USB Connector >>>
- Поставщик: Dongguan,Wei,Jiang,Electronics,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.37 $* | 0.76 $* |
| Aug-16-2025 | 0.89 $* | 0.61 $* |
| Jul-16-2025 | 0.29 $* | 0.61 $* |
| Jun-16-2025 | 0.24 $* | 0.15 $* |
| May-16-2025 | 0.8 $* | 0.84 $* |
| Apr-16-2025 | 0.53 $* | 0.89 $* |
| Mar-16-2025 | 0.14 $* | 0.44 $* |
| Feb-16-2025 | 0.67 $* | 0.78 $* |
| Jan-16-2025 | 0.67 $* | 0.29 $* |
Характеристики
Mini USB Key Specifications/Special Features:
MATERIALS
Contact: Brass/Phosphor Bronze
Housing: High Temperature thermoplastics, Insulator: LCP, UL 94V-0 Rated, Black/White/Nature
Shell: Brass/Phosphor Bronze
PLATING
Contact: gold plated (gold flash: FU"/3U"/6U''/15U''/30U'')
Shell: Gold/Nickel/Tin
Materials and plating can be varied according to customer definition
ELECTRICAL CHARACTERISTICS
- Rated current: 1A
- Insulation resistance: 100 Mohms min (at 500VDC)
- Contact resistance: 50 mohms max
- Dielectric withstanding voltage: 100VAC (for 1 minute)
- Operating temperature: -25 - 85 deg. C
- Insulator material: LCP (UL94V-0)
- Contact material: phosphor bronze
- Durability: 5000 cycles min
