Высокое качество оборудование для испытаний STO-100P цифровой дисплей-автомат проверки усилия завинчивания
- Категория: Испытательное оборудование >>>
- Поставщик: Shenzhen,Tony,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 452.78 $* | 475.30 $* |
| Aug-19-2025 | 448.59 $* | 470.84 $* |
| Jul-19-2025 | 376.67 $* | 395.2 $* |
| Jun-19-2025 | 441.82 $* | 463.54 $* |
| May-19-2025 | 384.53 $* | 403.3 $* |
| Apr-19-2025 | 433.56 $* | 455.33 $* |
| Mar-19-2025 | 429.93 $* | 450.7 $* |
| Feb-19-2025 | 426.55 $* | 447.60 $* |
| Jan-19-2025 | 422.74 $* | 443.71 $* |
Характеристики

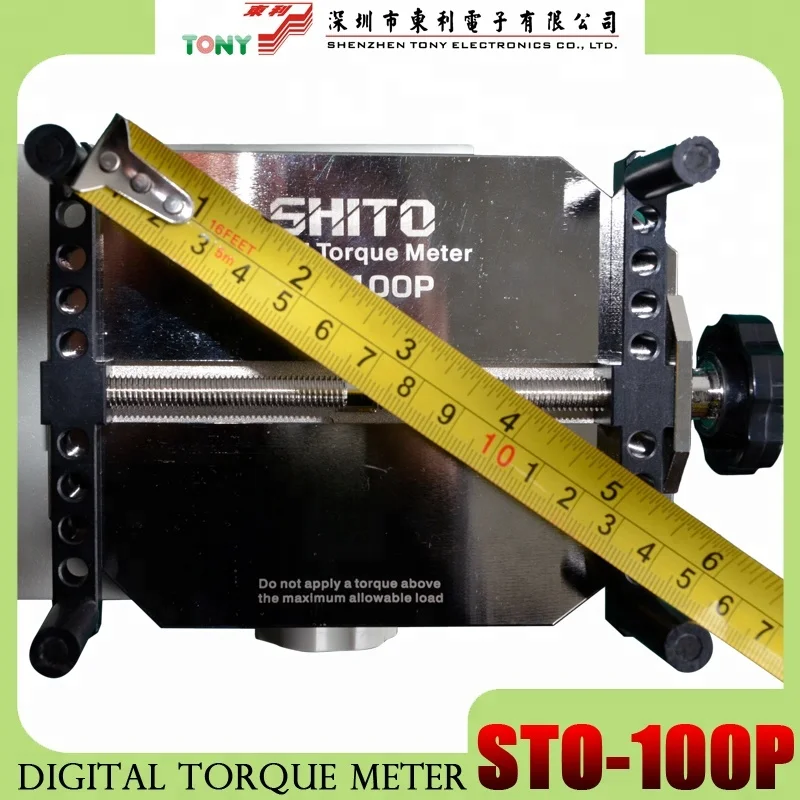

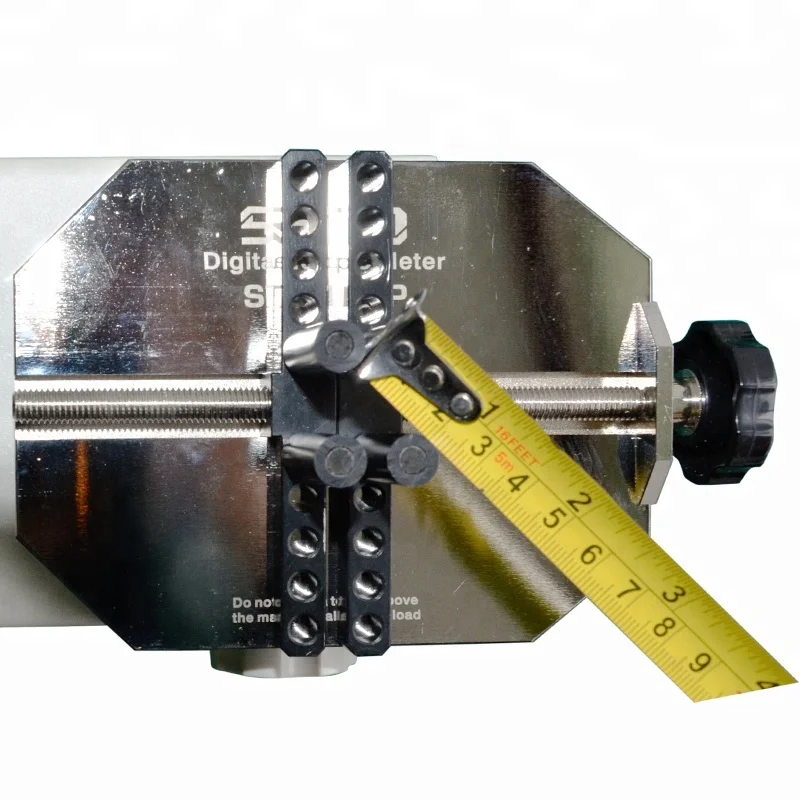

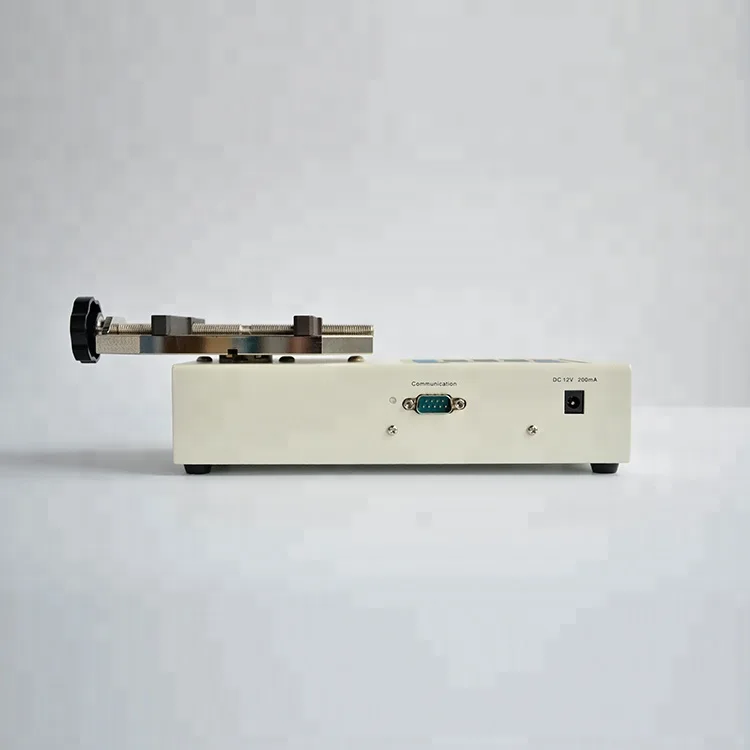

Testing Equipment STO-100P Digital Bottle Cap Torque Tester
·According to the size of the measured object, put the four cylinders respectively to homologous holes location.
·
Turn the knob of the test clip clockwise to tight the measured object.
·
Proceed torque measure of the bottle cover (The concrete test method is in accordance with the user guide of intellectualized
torque meter).
·
Turn the knob of the test clip counterclockwise loosen the measured object.
·
The measuring caliber: Φ18—150mm.
·According to the size of the measured object, put the four cylinders respectively to homologous holes location.
·
Turn the knob of the test clip clockwise to tight the measured object.
·
Proceed torque measure of the bottle cover (The concrete test method is in accordance with the user guide of intellectualized
torque meter).
·
Turn the knob of the test clip counterclockwise loosen the measured object.
·
The measuring caliber: Φ18—150mm.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Tony |
Model Number | STO-100P |
Power | Electronic |
Accuracy | 0.5% |
Input Charger | AC220V 50Hz(110V/120V optional) |
Output Charger | DC12V 300mA |
Continuous use time | 50 hours |
Responsive frequency | 600Hz |
Charging time | < 8 hours |
Battery life | > 500 Rounds |
Size | 123*230*65mm |
Net Weight | 2kg |
Power | 1.2V*6 Ni-MH battery |
Products Description
Model | Measuring range | Accuracy | Responsive |
STO-10P | 0.15-10.00kgf.cm | ||
0.015-1.000N.m | |||
0.15-9.00Lbf.in | |||
STO-50P | 0.5-50.0kgf.cm | ± 0.5% +1 digit | 600HZ |
0.05-5.00N.m | |||
0.5-45.0Lbf.in | |||
STO-100P | 1.5-100.0kgf.cm | ||
0.15-10.00N.m | |||
1.5-90.0Lbf.in |
