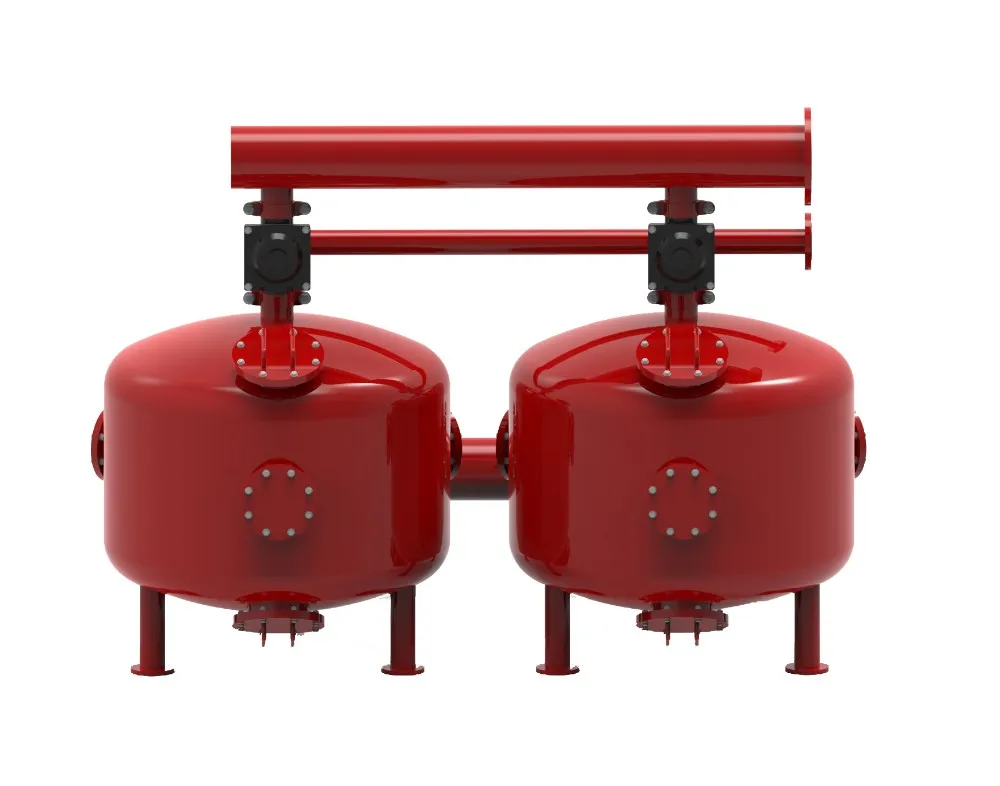

AIGER S660 Self Cleaning Sand Filter

Brief Introduction

  AIGER S660 Self Cleaning Sand Filter is a high efficiency filter, It can effectively remove the suspended substance, microorganisms, and other fine particles in water. Ultimately achieve to reduce water turbidity, purify water quality.



Main parts

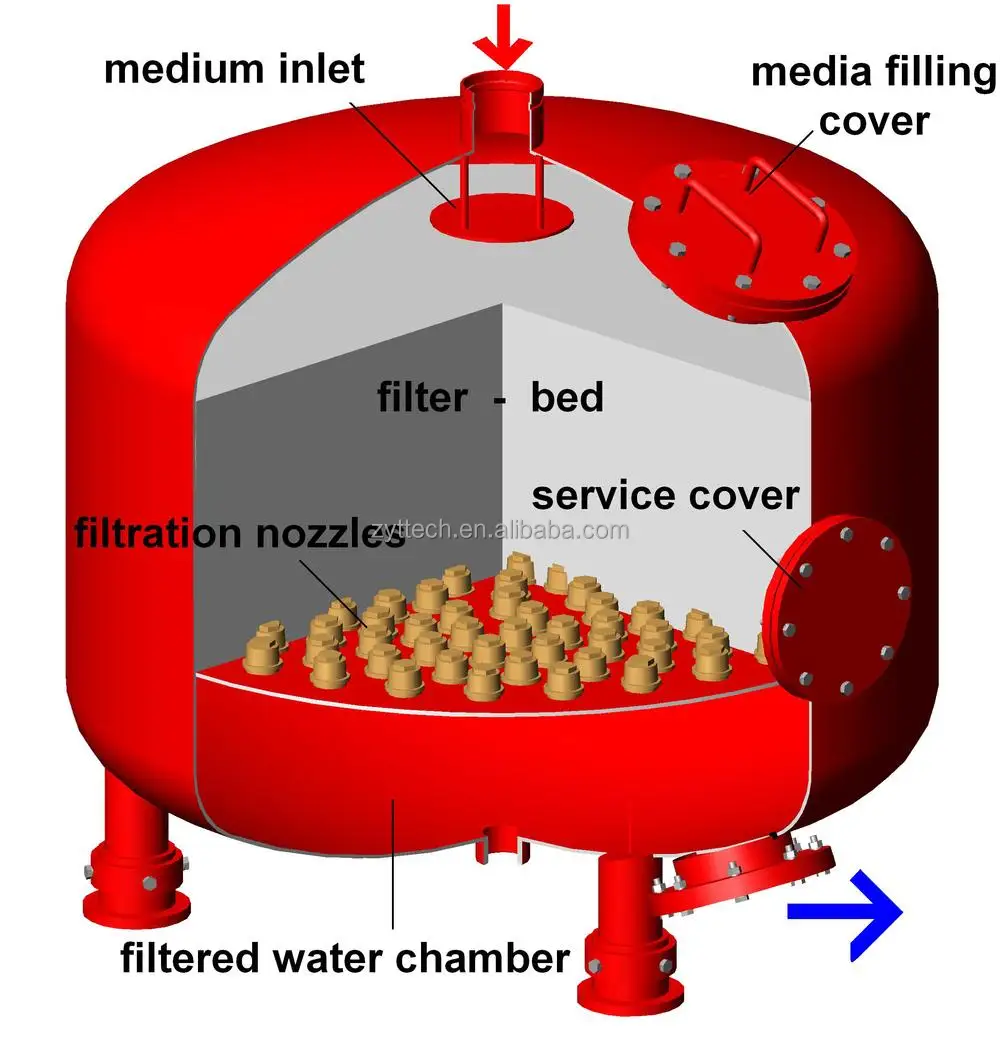

AIGER S660 Self Cleaning Sand Filter is consisted of a filtration system and a control system. Filtration system generally consists of the filter unit, three automatic valves, import and export pipeline, sewage pipeline. The filter unit includes a filter medium. Control system usually consists of PLC timing controller, differential pressure controller, and electromagnetic three-way valve.



Technical parameters

Brand	AIGER
Single filter water flow:	2~50m³/h
Precision	Effluent turbidity  less-than three
Pressure rating	0.25MPa~0.5MPa
Working temperature range	0~65°C
Inlet and outlet Connection:	flange
Backwash water	for total filtered water 1 to 3%
Control mode	DP control; PLC timing control
Sewage way:	automatic  drain
Rated operation voltage	220V, 50HZ
Installation:	flexible









 FAQ

1. Are you maufacturer on water flter  ?

Yes ,We are maufacturer and we have a strong team ,who have profession engineers ,with rich experience .They

will design a best solution for you .



2. Can you tell me your main market ?

We have worldwide customers : Australia ,Thailand ,Korea ,  Vietnam ,USA ,and so on .



3.Can you give me more contact information ?

Tel:+86 (10)57465017
Cell Phone:+8613641081566
Contact Name: David Wang (Sales manager)
