Характеристики
PRODUCT DESCRIPTION
ZM Type Workshop Housing Products
① Good corrosion resistance: the structure is galvanized, greatly improving the moisture-proof and anti-corrosion performance;
② Short construction period: mechanized batch production can be carried out with short processing cycle; Full bolt assembly and connection can be realized, with short installation cycle;
③ Low cost: low amount of structural steel, light deadweight, low requirements for foundation, and bulk packing, greatly saving the number of boxes.
Note: ZM type houses can be used not only as workshops and warehouses, but also as large offices and restaurants after improvement
② Short construction period: mechanized batch production can be carried out with short processing cycle; Full bolt assembly and connection can be realized, with short installation cycle;
③ Low cost: low amount of structural steel, light deadweight, low requirements for foundation, and bulk packing, greatly saving the number of boxes.
Note: ZM type houses can be used not only as workshops and warehouses, but also as large offices and restaurants after improvement
PRODUCT PARAMETERS
Product specification | Length | Can be customized according to need | |
width | ≤18000mm | ||
height | Eaves height≤7000mm | ||
Roof form | Double slope, roof slope 1:5 | ||
storey | single storey only | ||
Design Parameters (standard) | roof dead load | 0.3KN/㎡ | |
roof live load | 0.5KN/㎡ | ||
(snow load) | |||
wind load | 0.45KN/㎡ | ||
anti-seismic | 8 degrees | ||
Recommended function | mainly used for warehouse, factory, dining hall, big office, etc. | ||
structure | Column | 2-M300 profile steel T=3.0mm, material Q345 | |
Beam | 2-M300 profile steel, T=3.0mm, material Q345 | ||
Maintain Article | C170 profile steel, T=2.0mm, material Q345 | ||
painting | all structure is hot dip galvanized, galvanization coating is 120g/m² | ||
roof | Material | colour steel sandwich panel | |
According to the functional characteristics, colour steel veneer can be used | |||
Insulation | Polystyrene, fire rating B2 | ||
Glass wool, fire rated A grade | |||
wall | Material | colour steel sandwich panel | |
According to the functional characteristics, colour steel veneer can be used | |||
Insulation | Polystyrene, fire rating B2 | ||
Glass wool, fire rated A grade | |||
/ | |||
door | size | According to the need to determine the door size | |
Material | For office: laminated wood door or aluminium alloy door | ||
For warehouse: sandwich panel sliding door, electric lifting door, etc | |||
window | size | Size can be determined according to function | |
Frame material | Standard: Steel | ||
Matching: aluminium alloy, broken bridge aluminium alloy | |||
glass | standard: single glass | ||
Matching: hollow window | |||
ceiling | common room | Standard: waterproof gypsum board | |
Optional: Calcium silicate board, mineral wool sound-absorbing board, aluminium buckle board *Prepared according to function and climate | |||
water room | PVC, Aluminium composite panel | ||
floor | common room | Floor tiles, wood floors (according to the function) | |
water room | anti-sliding floor tiles | ||
electricity | we can offer the scheme/designing/construction technique services | ||
socket | multifunctional socket(250V/10A) three flat pins socket (250V/16A) Can be equipped with European, American, and Australian standards according to demand | ||
Cables | BV-1.5mm² / BV-2.5mm² / BV-4mm² | ||
Voltage | 220/380V | ||
breaker | High segmentation miniature circuit breaker | ||
water | we can offer the scheme/designing/construction technique services | ||
water supply | PPR | ||
drainage system | UPVC | ||

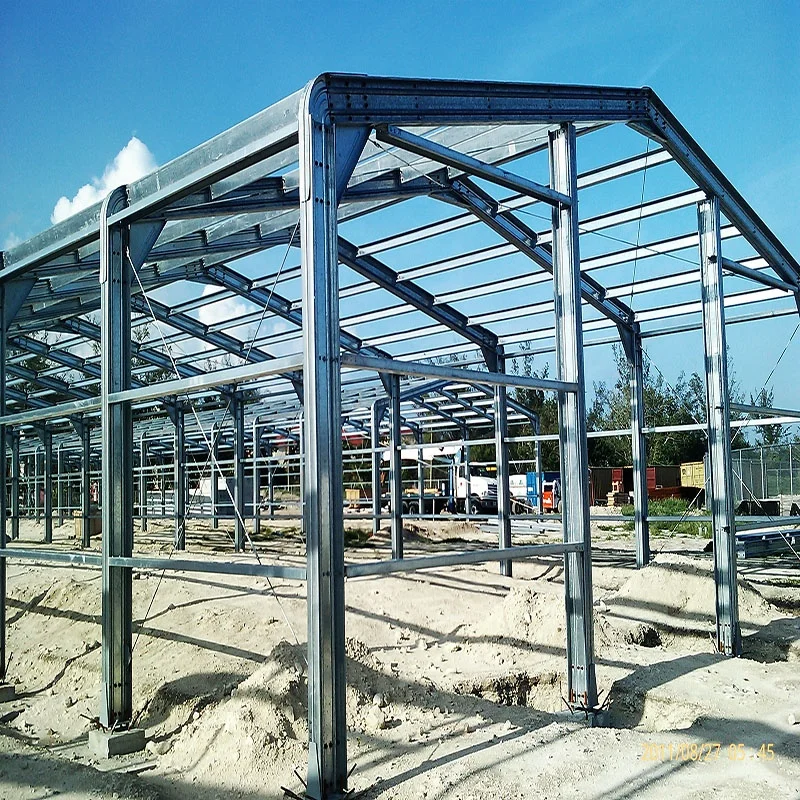

ZM Product Installation Process
1.Fixing Of Skeleton And Wallboard
2.Install Wall Purlin
3.Route Cable
4.Installation Of Roof Truss Beam
5.Installation Of Purlins
6.Installation Of Integral Roof Truss
LAYOUT
Clinic Layout
Warehouse Layout
Layout Of Two Span Workshop
Restaurant Layout

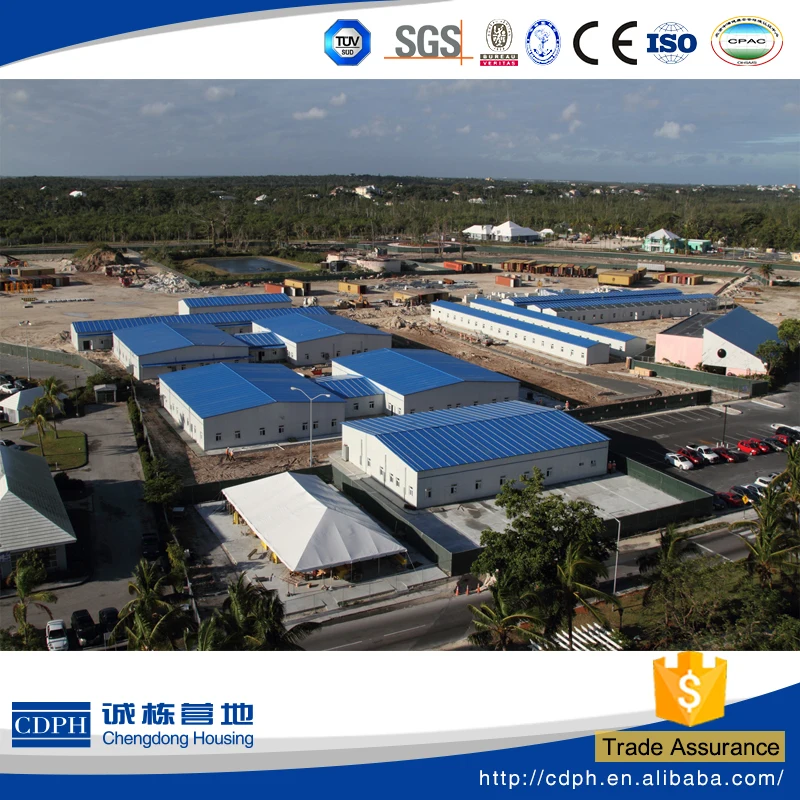

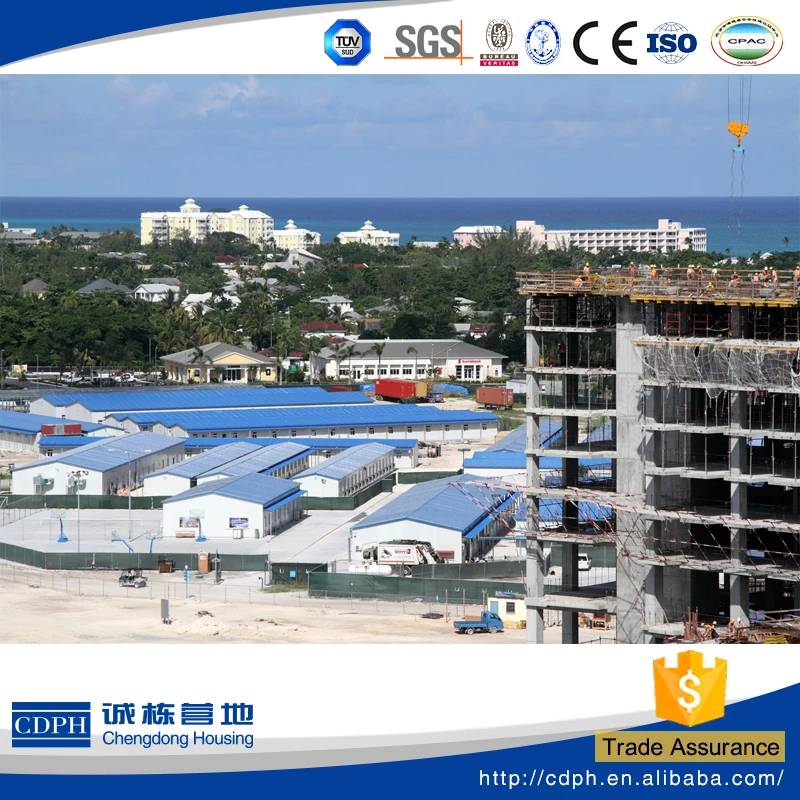

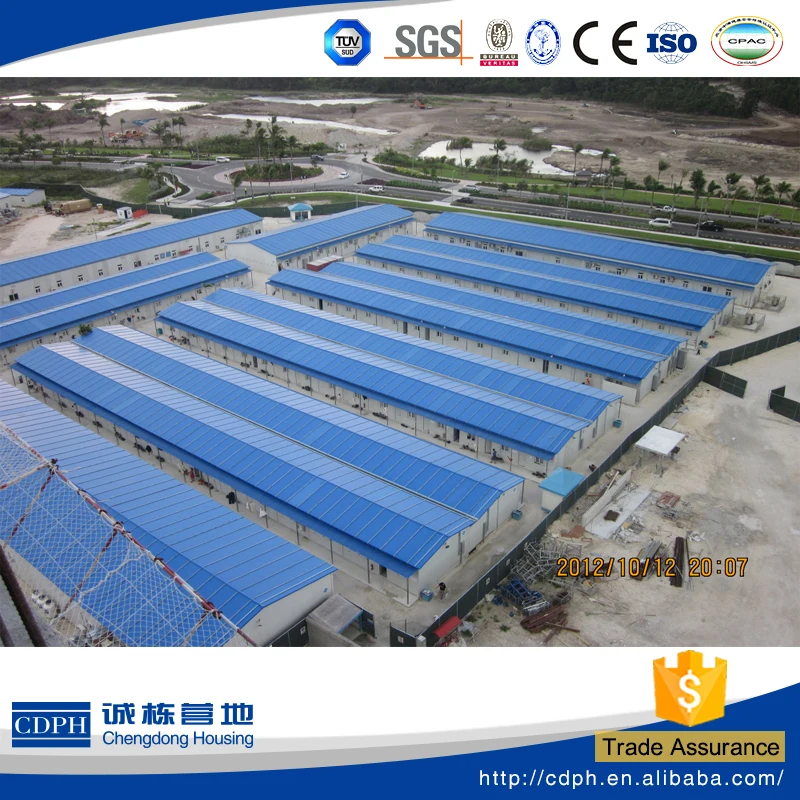

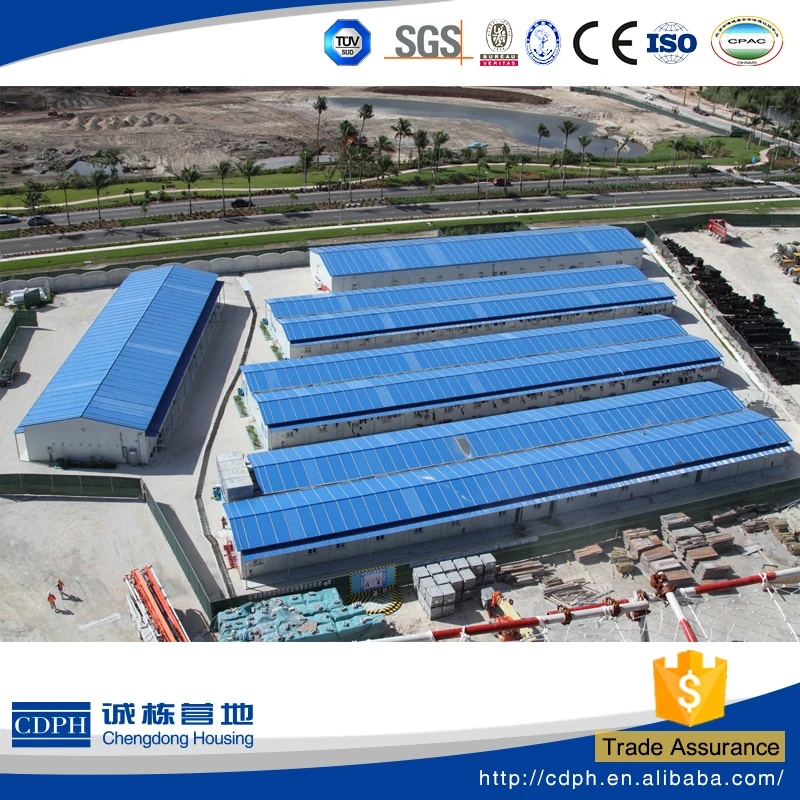

PROJECT CASES
Project Introduction
This project is a dairy product and beverage factory jointly built with Ningbo Dairy Group to improve the local diet and living standard in Nigeria;The total area of the house is more than 20000 square meters;The contract amount is more than 2 million dollars.
Afgan Peace Keeping Project
Algeria Mosque Construction Project
Chad Pipeline Construction Project
Gabon Accommodation Project
Namibia Rod Construction Project
Pakistan Broadcasting Station Project
Peace Keeping In Liberia
PNG Bridge Construction Project
PNG Refining Project
Qatar Harbor Construction Project
Russia Petroleum Project
Russia Mining Camp Project
FACTORY PRODUCTION
VR

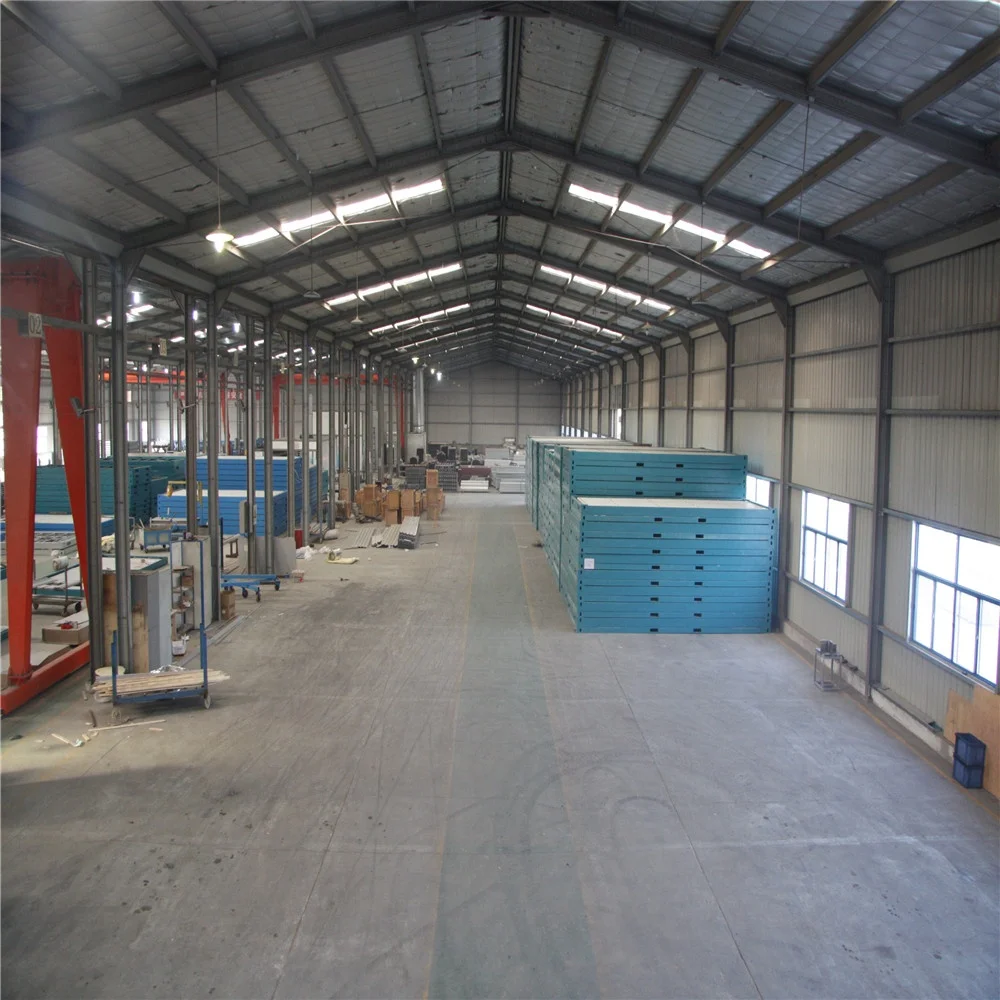

Factory Workshop Display
CERTIFICATIONS
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1. What is the maximum size of the room?
A: The maximum span of this house type is 18 meters. There is no specific limit on the total length of the house. It is
recommended that it should not exceed 100 meters, and the eaves height can be up to 7 meters.
Q2. Can the room be spanned?
A: It can be connected. However, when working in offices and restaurants, it is not recommended to cross because of the drainage problem at the cross section.
Q3. What is the thickness of the wall top plate? What is insulation?
A:The wall top plate can be color steel veneer (the minimum thickness of the top plate is 0.5mm/the minimum thickness of the wall plate is 0.4mm) or color steel composite plate (the normal thickness is 50, 75, 100mm). The thermal insulation layer is polystyrene and glass wool, and rock wool is too heavy to be used.
Q4. Can this kind of house be disassembled repeatedly? What is the loss rate?
A:It is not recommended to disassemble and assemble the enclosure materials repeatedly, which will result in a damage rate of 20%~30%. The molded parts of enclosure materials need to be replaced. The structure can be disassembled and used repeatedly.
Q5. How long is the service life of the house?
A: The general service life of the house type is 10-15 years.
Q6. How is this house packaged and transported?
A：Usually, large pieces are transported by container liner. The large materials of the room will be put into the container in
nude, and the small parts such as hardware and electricity will be put into the wooden box. If there are sanitary wares, they will also be packed in wooden boxes.
Q7. Can it be used as the second floor?
A: This room type can be used as part of the second floor, because the distance between columns on the first floor is very small, so it is not suitable for the second floor cargo platform of large warehouses.
Q8. What is the installation speed of this room type?
A: Because of all bolted connections, 8 people can complete the installation of 1000 square meters of this room in 14 days.
Q9. How about the wind pressure and earthquake resistance of the house?
A: It can withstand the wind pressure of 0.5KN/M2 (28m/s or 101KM/H) and withstand a strong earthquake of magnitude 7.
