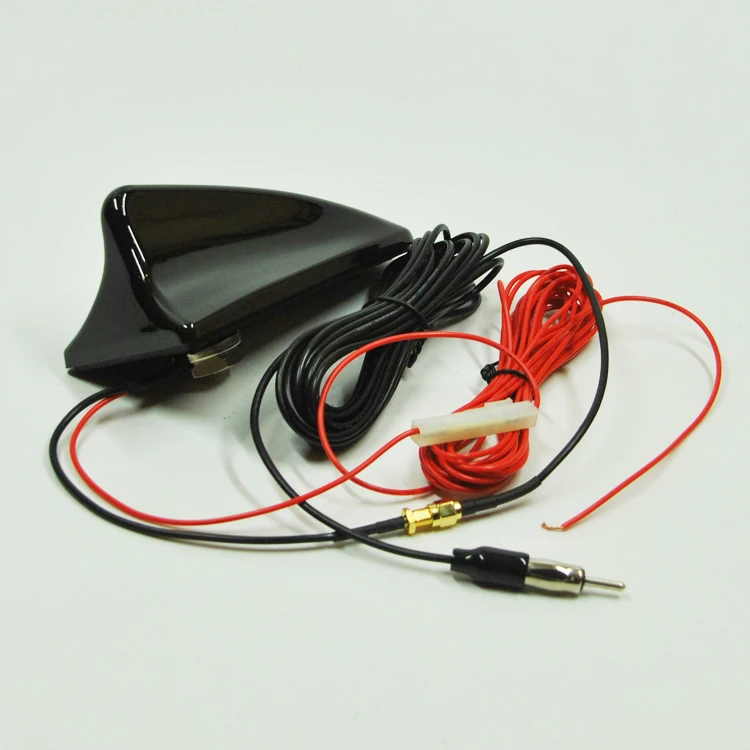

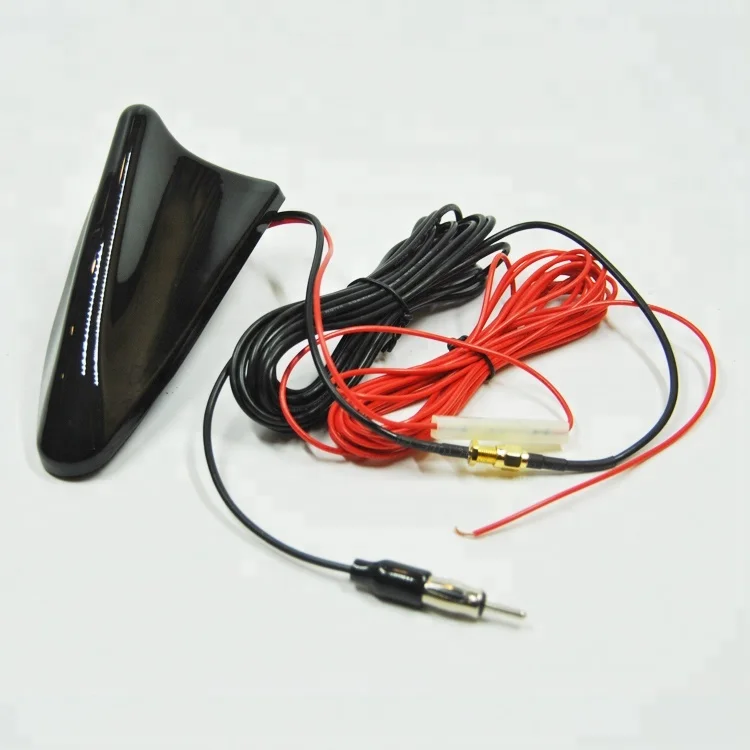

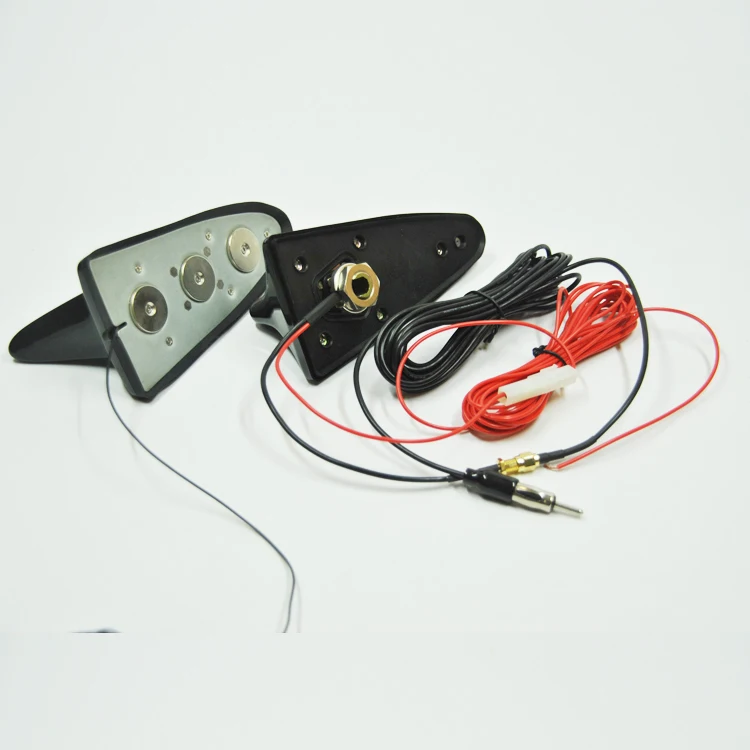

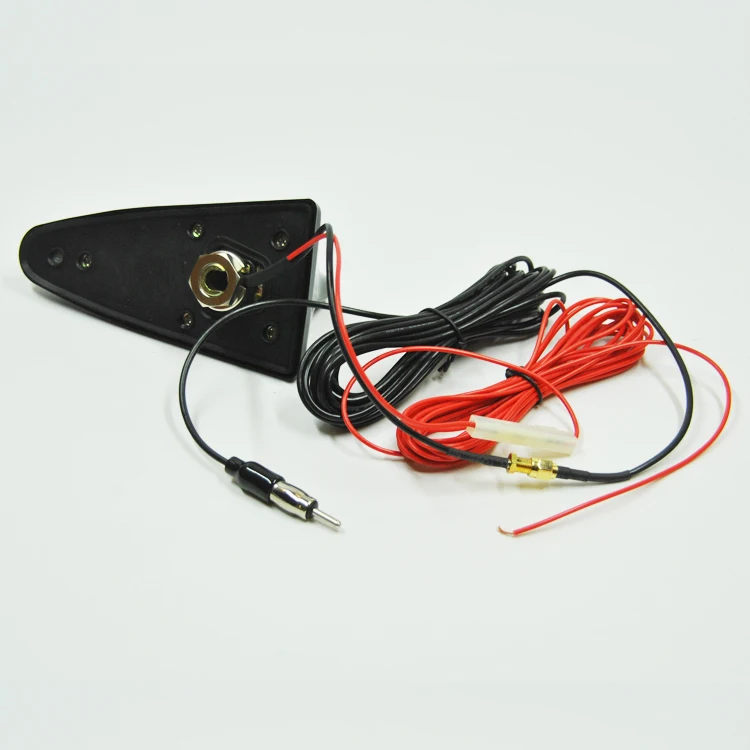

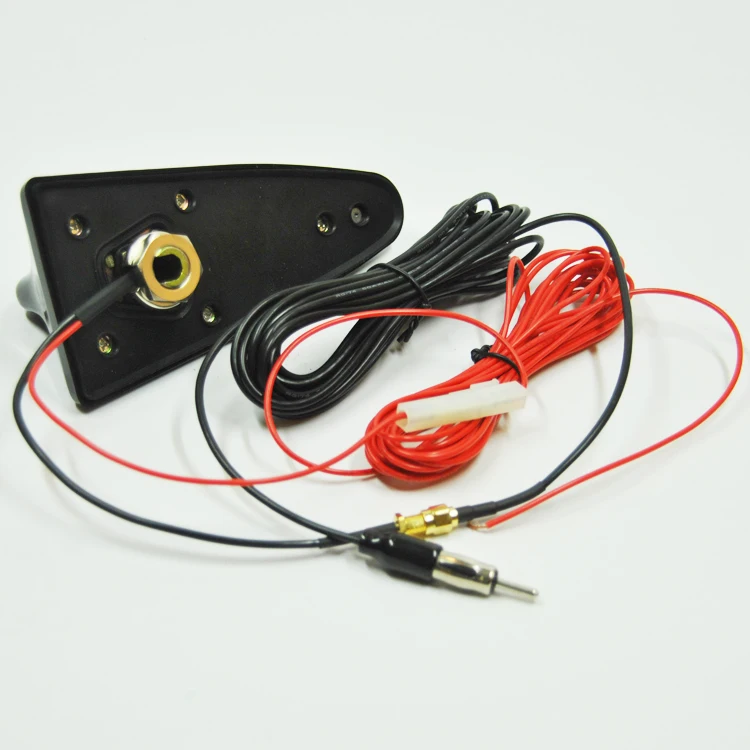

Автомобильный радиоприемник с высоким коэффициентом усиления am fm GPS GSM антенна 4 функциями винтовым методом для автомобиля на задней

Описание и отзывы

Трекер стоимости

Характеристики











SPECIFICATION



1.GPS Part:
Center Frequency:1575.42 MHz+-3 MHz
V.S.W.R :1.5 : 1
Band Width : 5 MHz
Impendence: 50 ohm
Polarization Type: RHCP

LNA / Filter
LNA Gain(Without cable) :30 dB Typical
Noise Figure:1.5 dB
DC Voltage : 2.2~5 V
DC Current : 5~15 mA



2.GSM/3G Part

Frequency: 824~894MHz/1710~1990MHz

                    880~960MHz/1710~1990MHz

V.S.W.R: 2.0:1

Impendence : 50 ohm

Typical Gain: 2dBi

Cable: RG174  3m/5m or others

Connector: SMA/SMB/MCX or others

Working Temp : -40 Degree~+85 Degree
Humidity  :55%~75%RH
Waterproof :IP67



3.FM/AM,DVB-T Part



Operating frequency:530-1650khz,88-108mhz/

Operating Voltage:12V DC

Operating Currert:50mA

Amplifier Gain: AM20+/-3d  FM:20+/-3dB

Output impedance:75ohm

Operating Temperature:-20C+85C

Storage Temperature:-40C+90C







4.WIFI,5.4G/5.8G Part:

Opereting frequency:2400-2500mhz/5.4G-5.8G

Gain:2dbi

V.S.W.R:<2.0:1

Connector:SMA,SMB,MCX,FME

Output impedance:50 ohm





Refund & Replacement







1. We can guarantee the product quality within one year.



2. If the items cannot be working, we can return payment or replacement to customers.



3. Any items must be returned in their original condition to qualify for a refund or replacement.



4. The buyer is responsible for all the shipping cost incurred.







Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!
