100KW 1MW 10MW free energy hydro power plant water turbine generator

Material	Steel plate/Copper
Rated Power	50KW-20MW
Rated Voltage	400V-10KV
Speed range	150RPM-1000RPM
Frequency	50hz/60hz
Excitation	brushless or static excitation system
Lifespan	50 years
Application	Electricity Generation
Turbine Valve	Butterfly Valve, Gate Valve, Ball Valve
Layout pattern	Horizontal or Vertical
Generator Insulation	F/F
turbine Efficiency	92%-96%
Generator Efficiency	90%-93%

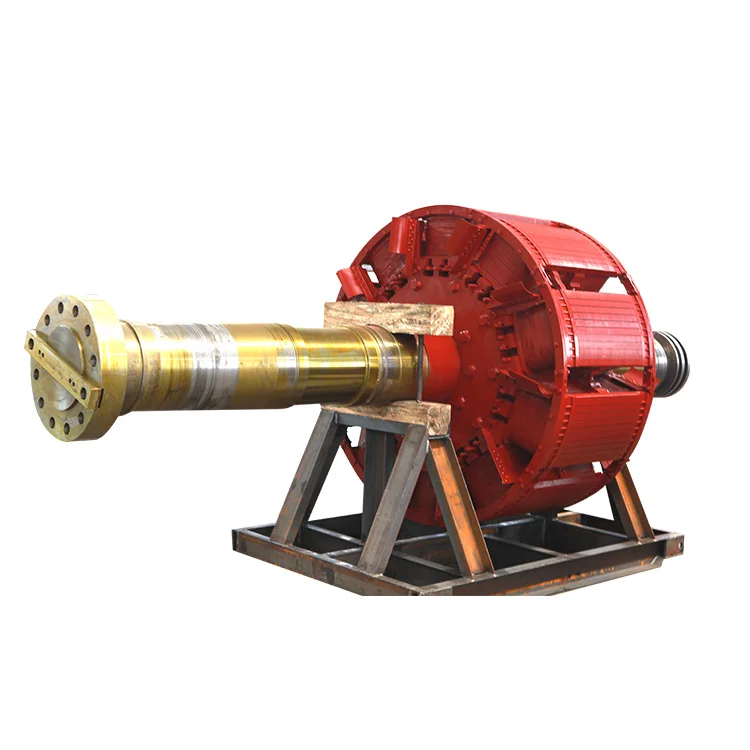

Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type. Components including stator, rotor, base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.

Main Features
1) Simple structure ,easy in installation and maintation.
2) Adopting high quality material with high efficiency.
3) Optional color ,type and material.
4) Professinal advice to the most suitable generator according to the station parameter.
5) Long lifespanof 30----50 years.
