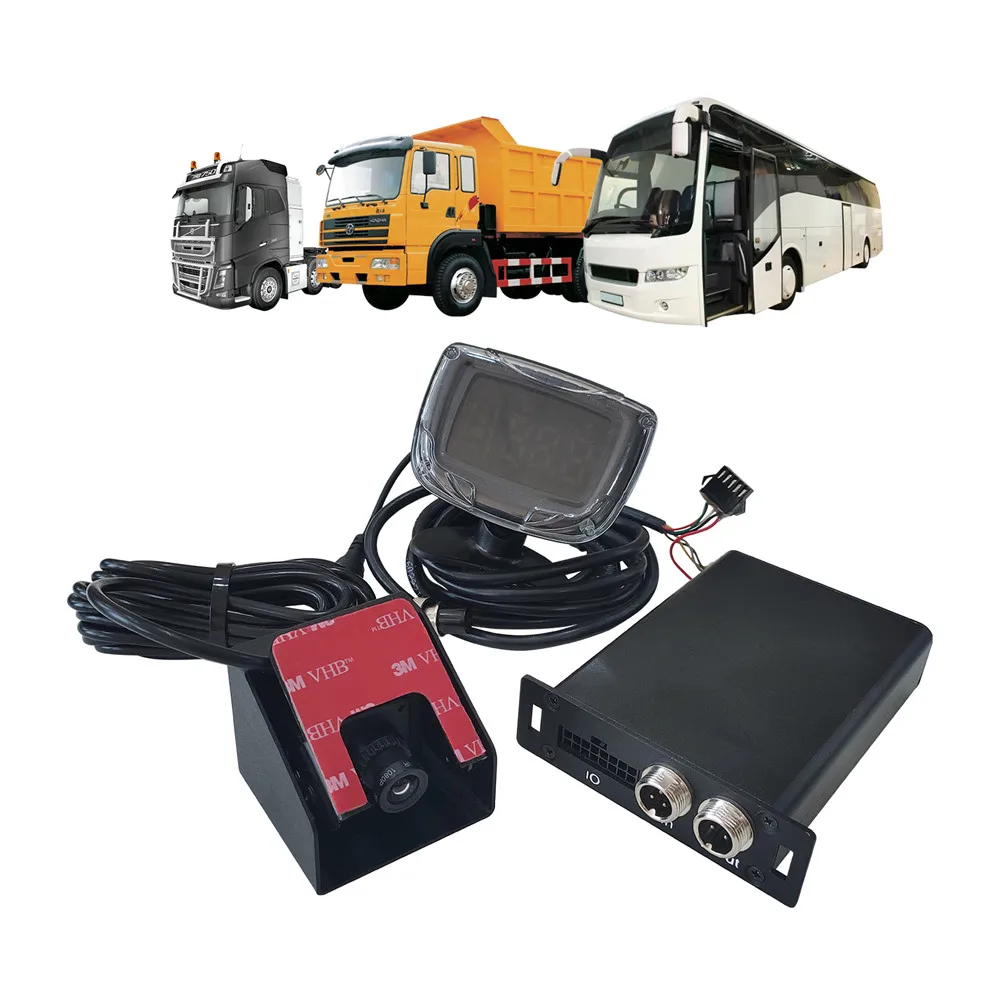

Bus accessories front collision warning system and land departure warning system AWS650

Product Description

Specification
Input voltage	DC9-DC36V
Input current (complete operation)	400MA(12V) 260MA(24V)
Average power consumption	6W
Signal input high voltage	12V
Signal input low voltage	<0.7V
Signal output high voltage	12V
signal output Low voltage	0V
Input	3
Output	3
Integration Method	RS232,I/O

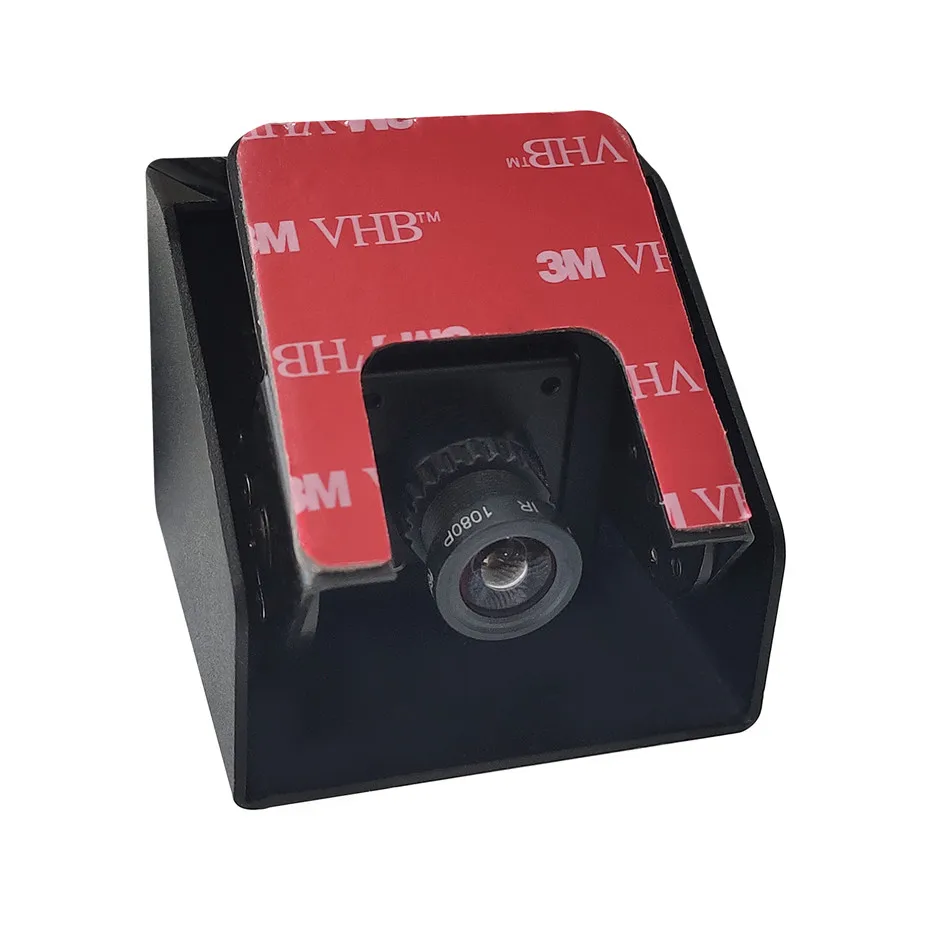

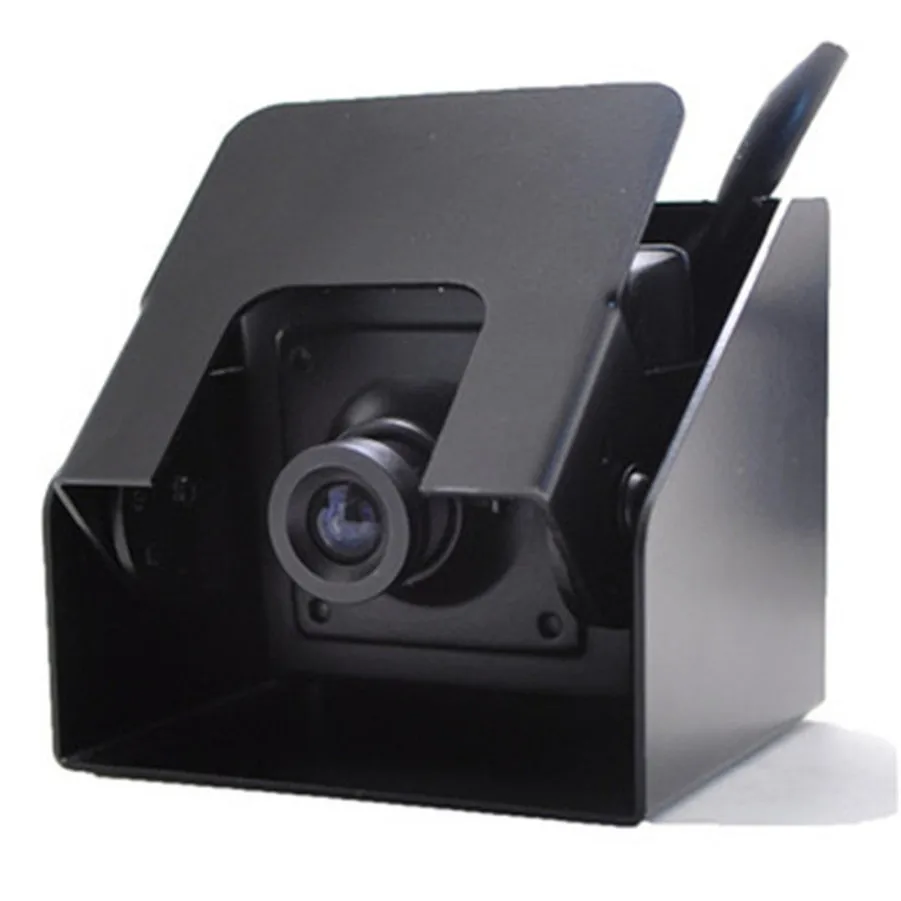

1.The camera is used to acquire the video signal of the road condition, and then transmit the video signal back to the controller.

Camera
Size	5cm5cm4.8cm
Sensor	1/3” CCD
Pixel	752(H)*582(V)
Signal format	PAL
Resolution	700TVL
Minimum illumination	0.1Lux(Color)/0.001Lux(Black)of F1.2
SNR	48db(Minimum)/54db(Maximum)

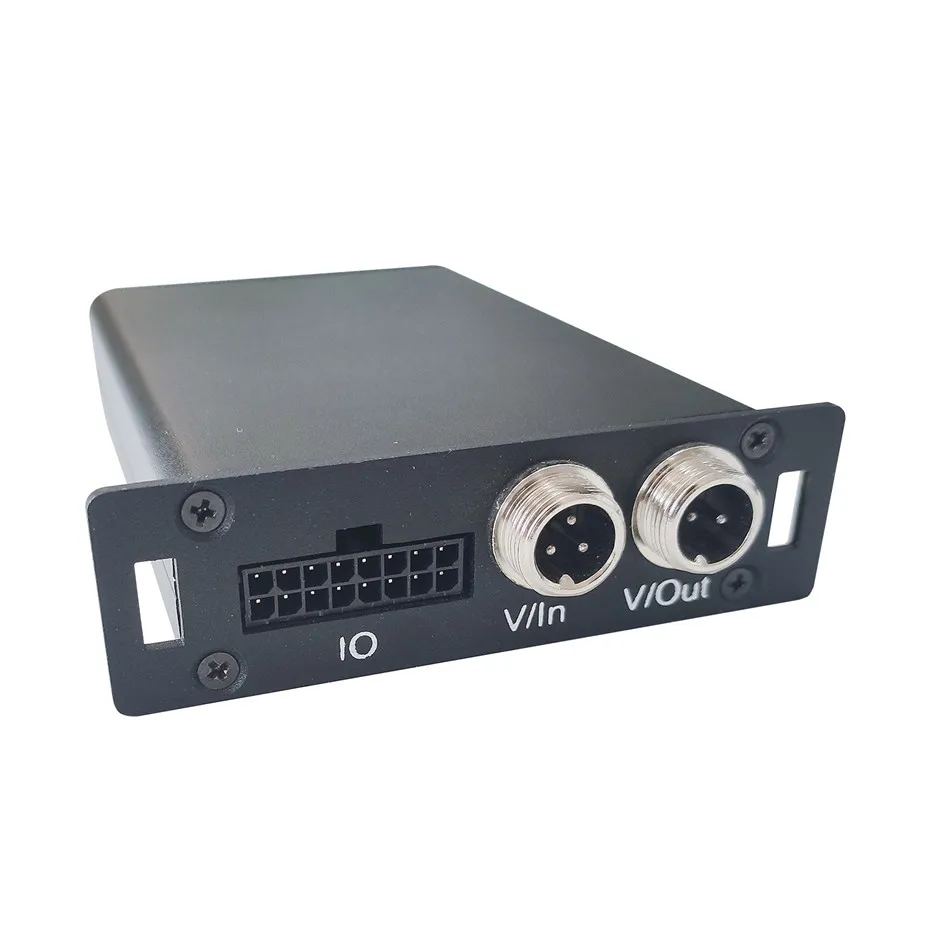

2.Through the software algorithm, the controller identifies the obstacles and lane lines of the road surface, and judges whether the vehicle is dangerous through certain rules and warns the dangerous situation.

Controller
Size	10.2cm*8.5cm
Housing material	Aluminium alloy
Input voltage	DC9-DC36V
Input current	220MA(12V) 110MA(24V)
Working temperature	-20℃-80℃
Storage temperature	-40℃-80℃

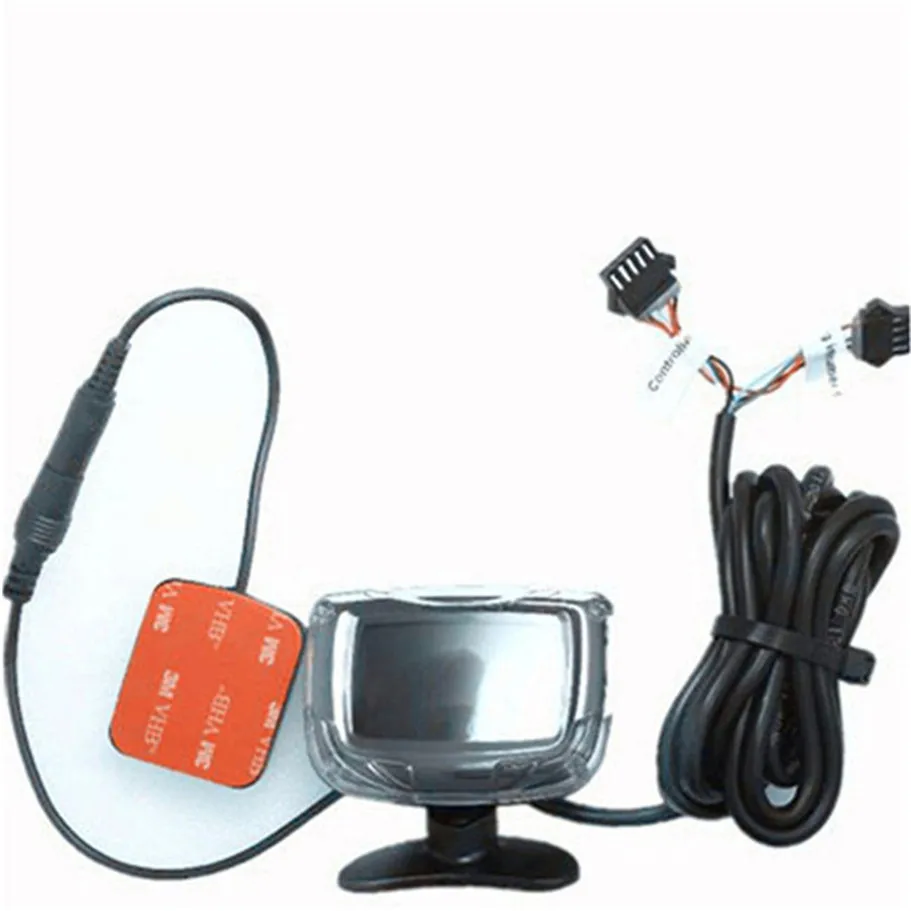

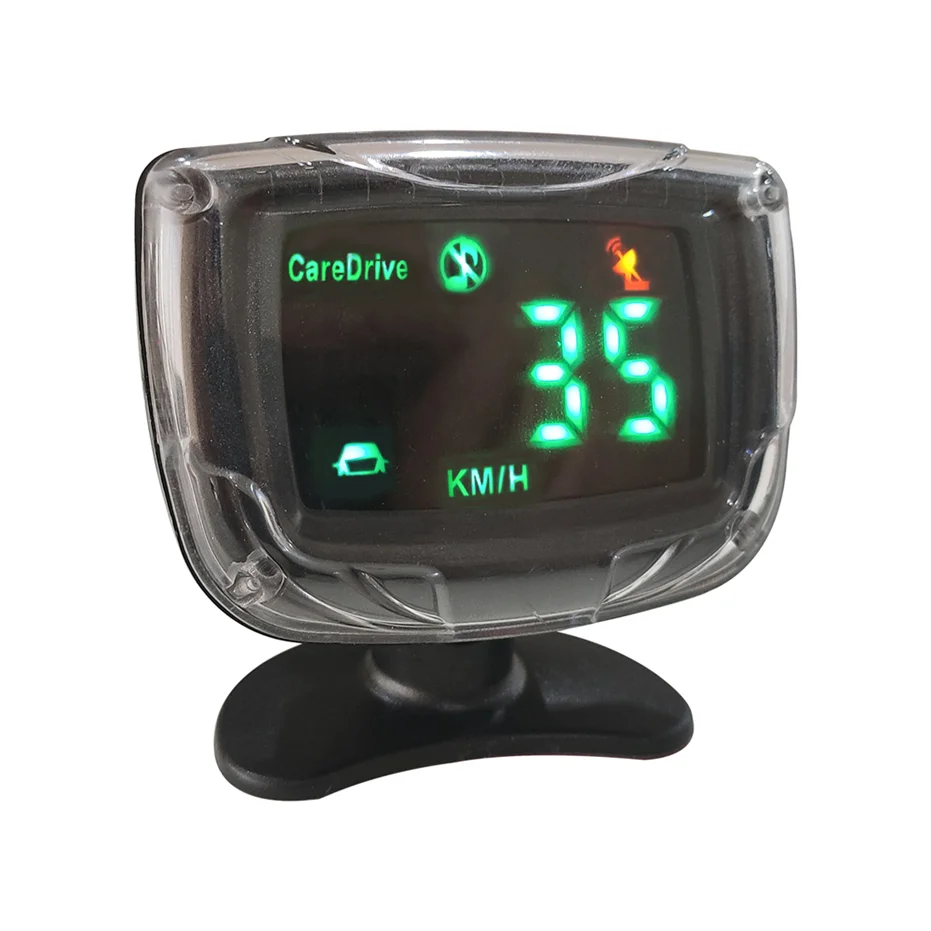

3.The alarm display mainly functions as visual alarm and voice alarm. Users can get information such as vehicle speed, front distance and lane line identification from the alarm display.

Display
Size	7.5cm*6.6cm
Housing material	Plastic
Display color	Red

Function

1. Lane Departure Warning (abbr. LDW)

Takes the foresee camera as mainly sensor, detects and trails the landline upon the machine’s visual technology,combining driver’s characteristic to judge if the vehicle has out-land dangerous, providing sound and lamplight warning for drivers.

2. Forward Collision Warning (abbr. FCW)

Takes the camera as mainly sensor, detects and trails the front vehicle upon machine’s visual technology, combining driver’s characteristic to judge if the vehicle too close to front vehicle dangerous, providing sound and lamplight warning for drivers.

3. Video output function

CareDrive’s commercial vehicle AWS system can output the landline recognition effect, vehicle recognition effect, vehicle signal and other information by overlaying them to original image through OSD function; enable car video to record directly. Equivalently appreciate other secondary function like the high-performance foresee camera, black box, points record and so on.

4.Overspeed Driving Warning

AWS650 will detect the vehicle speed and give alert if the vehicle speed is over the setting parameter. It can help drivers avoid traffic accidents caused by overs peeding driving.
