Латунная вставка, внутренняя резьба, фитинги для труб PPR
US $10.00-$200.00
U-образный полый поликарбонатный лист соединительная панель используемая для автомобиля с УФ-покрытием 6 мм/8 мм/10
- Категория: Пластиковые строительные материалы >>>
- Поставщик: Haining,Gensin,Plastic,Sheet,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.84 $* | 0.98 $* |
| Aug-19-2025 | 0.54 $* | 0.79 $* |
| Jul-19-2025 | 0.9 $* | 0.35 $* |
| Jun-19-2025 | 0.85 $* | 0.81 $* |
| May-19-2025 | 0.74 $* | 0.21 $* |
| Apr-19-2025 | 0.69 $* | 0.14 $* |
| Mar-19-2025 | 0.74 $* | 0.26 $* |
| Feb-19-2025 | 0.15 $* | 0.99 $* |
| Jan-19-2025 | 0.5 $* | 0.89 $* |
Характеристики
U lock Polycarbonate Sheet PC Multiwall Hollow Jointed Panels UV Coating Anti-leaking For Roofing 100% Lexan Raw Material
Product Description

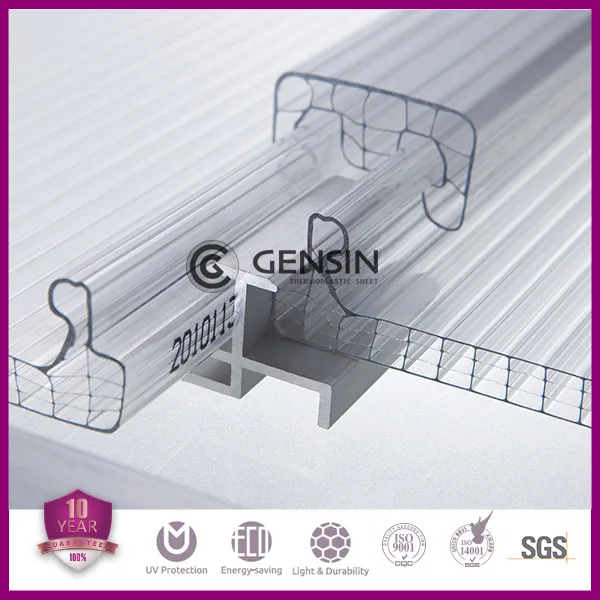

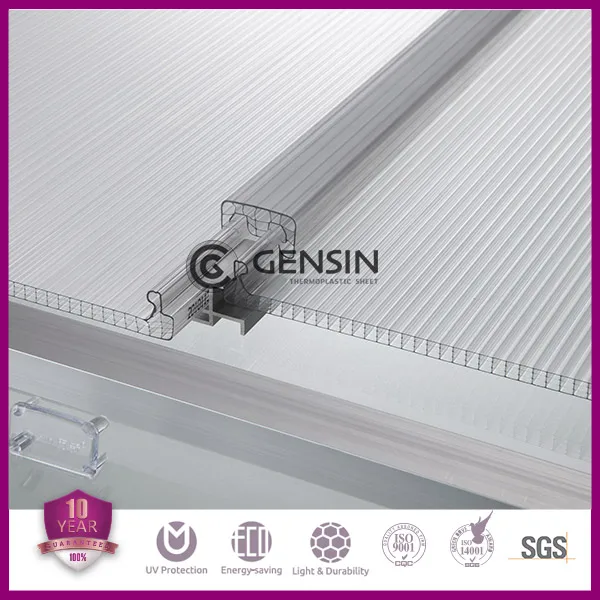

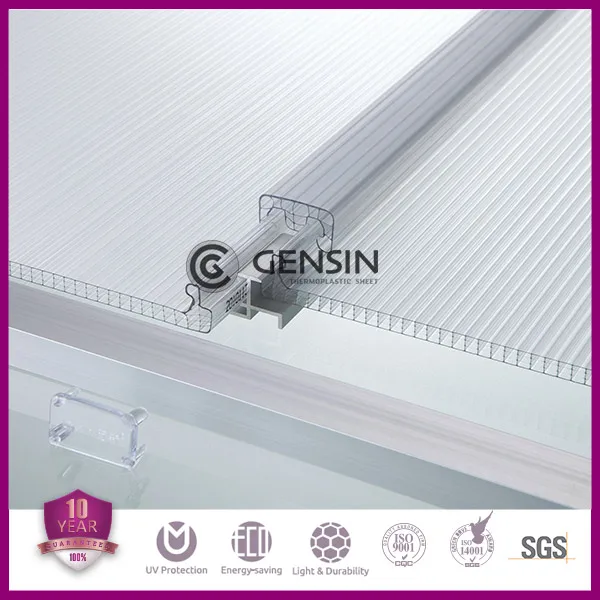

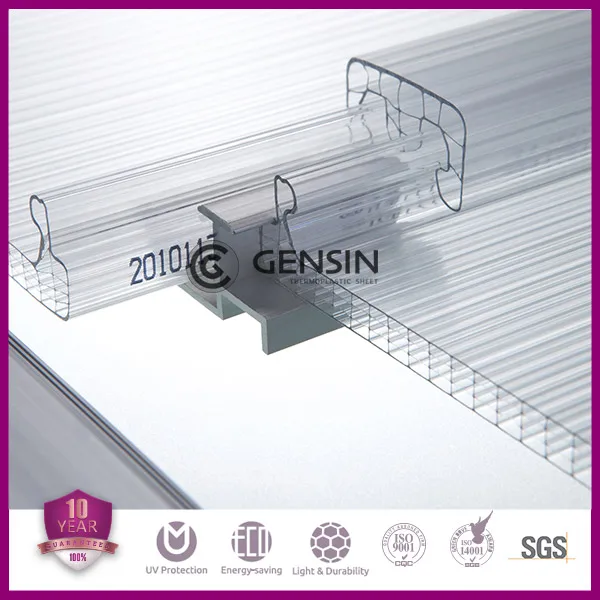

Lixin LGU locking design system uses a free slip mountings a fundamental solution to the ordinary polycarbonate sheets at different using temperatures the thermal expansion shrinkage problem, vertical rib edge design makes the whole system to prevent the installation of water leaking, innovative side of the U-lock design, making
installation easier and faster, combined with stronger, easier to maintain. GENSIN R & D team can develop specific color,structure, and different light transmission capabilities of the new thermal insulation to meet the needs of individual users.80μm high concentration of UV co-extruded layer to ensure that product more than 15 years of continuous use.
Structure Display
U-lock 4-wall R-Structure Hollow Sheet Data | ||||||||||||
Structure |
Item No. |
Thickness (mm) |
Weight (kg/sqm) | Stand Width(mm) | Rib Distance (mm) |
U-value (w/sqm*k) |
UV Side |
LT(%) Clear | LT (%) Bronze |
LT(%) Opal White | LT (%) Green |
LT(%) Blue
|
U-lock 4-wall R- Structure | LGU4RS6T1700 | 6 | 1.7 | 600 | 6 | 2.63 | 1/2 | 73 | 30 | 27 | ||
| LGU4RS8T1900 | 8 | 1.9 | 600 | 6 | 2.57 | 1/2 | 72 | 29 | 26 | |||
| LGU4RS10T2300 | 10 | 2.3 | 600 | 6 | 2.41 | 1/2 | 70 | 28 | 25 | |||
| Technical Data Of PC Sheet | |||
| No. | Characteristics | Unit | Data |
| 1 | Impact Strengt | J/m | 850 |
| 2 | Light Transmission | % | According to the Thickness and Color |
| 3 | Specific Gravity | g/m³ | 1.2 |
| 4 | Coefficient of Thermal Expansion | mm/m℃ | 0.065 |
| 5 | Service Temperature | ℃ | -40 to 120 |
| 6 | Heat Conductivity | W/m²℃ | 2.3 to 3.9 |
| 7 | Tensile Strength | N/mm² | >60 |
| 8 | Flexural Strength | N/mm² | 100 |
| 9 | Modulus Of Elasticity | MPa | 2400 |
| 10 | Tensile Stress At Break | MPa | >65 |
| 12 | Elongation At Break | % | 100 |
| 13 | Specific Heat | KJ/kg K | 1.17 |
| 14 | Heat Deflection Temperature | ℃ | 140 |
Advantage | |
1 | Light weight |
2 | Excellent impact resistance |
3 | Good light transmission |
4 | Good weather resistant and UV protection |
5 | Sound and heat insulation |
6 | Simple process and installation |
7 | Grade B1 fire resistance |
8 | An engineering plastic of excellent integration capability |
Product Show
Color Selection
Project Show
Polycarbonate sheet has high light transmittance, good impact resistance, good thermal insulation, easy installation, and widely used in construction and decoration.
Company Information
HAINING GENSIN Plastic sheet co., ltd is the largest manufature of polycabronate sheets in east china, establshed since 2003, located in haining(between Hangzhou and Shanghai ).
Packaging & Shipping
For solid sheets, PE film on both sides, and packed on wooden pallets.
Fair Show
Every year we will take an active part in many related building materials exhibition and advertising exhibition
FAQ
1,HOW TO CHOOSE THE SUITABLE SHEETS FOR US?
If you are not sure that which kind of sheet that you will use,you can contact us,and tell us your application,our sales will introduce the suitable sheets for you,and we will give you more information about the sheets
2,WHAT'S THE PRICE OF THE SHEETS?
Please contact us,and inform your sheets' thickness,size,quantity and other requirements,our sales will quote our best price to you.Also you can send us your project detail drawing,we will check and quote to you.
3,THERE IS NO SHEETS AND PROFILES THAT I WANT?
If that,you can send us your special sheets or profiles drawing with details,we can quote to you.
