Индивидуальный светодиодный COB-модуль переменного тока чип высокой мощности постоянный ток 66 в 100 Вт монолитный блок светодиодов для наружного
- Категория: >>>
- Поставщик: Zhongshan,Alight,Optoelectronic,Industry,Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.52 $* | 0.44 $* |
| Aug-18-2025 | 0.41 $* | 0.63 $* |
| Jul-18-2025 | 0.98 $* | 0.88 $* |
| Jun-18-2025 | 0.89 $* | 0.3 $* |
| May-18-2025 | 0.12 $* | 0.1 $* |
| Apr-18-2025 | 0.92 $* | 0.54 $* |
| Mar-18-2025 | 0.56 $* | 0.63 $* |
| Feb-18-2025 | 0.61 $* | 0.19 $* |
| Jan-18-2025 | 0.70 $* | 0.35 $* |
Характеристики

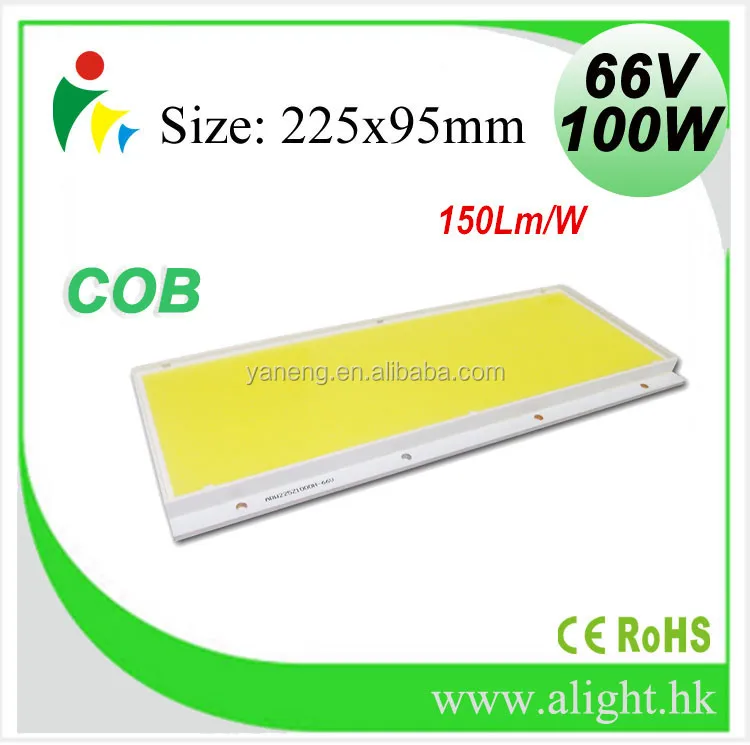

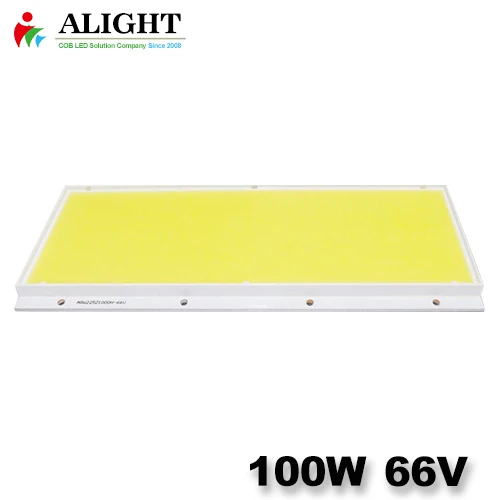

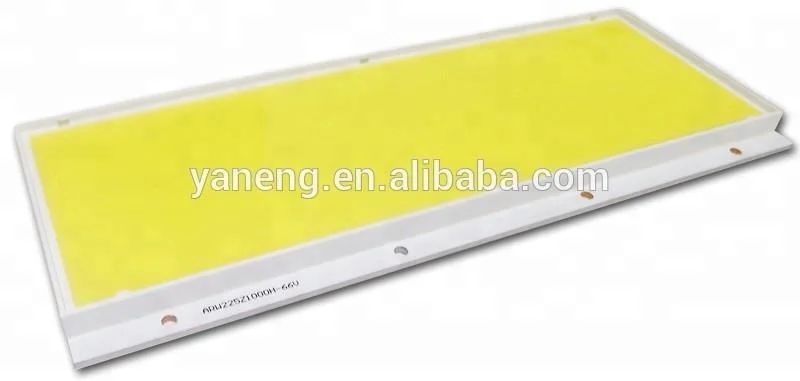

Customized AC LED COB Module high power led chip DC66v 100w led cob for outdoor lighting
l Device Selection Guide
Part No. | Chip | Lens color | |
Material | Emitting color | ||
ARW225S1000N-66V | InGaN | White | Yellow Diffused |
l Parameter
item no | lighting area(mm) | pcb type | lighting source type | color temperature range(K) |
ARW225S1000N-66V | 221×76 | Aluminum | upper lighting | 2700~8000 |
l Optical Characteristics
Symbol | Parameter | Min | Type | Max | Unit |
If | Operating current | - | 1550 | - | mA |
Vf | Forward Voltage | 63 | 66 | 70 | V |
Φ | Luminous Intensity | 14000 | 15000 | 12000- | Lm |
Tc | Color temperature | - | 6500 | - | K |
Ra | color rendering index | 75 | 80 | - |
|
l Absolute maximum rateings
Symbol | Parameter | Min | Type | Max | Unit |
P | power dissipation | - | 100 | - | W |
To | junction temperature | -40 | - | 65 | ℃ |
Tstg | storage temperature range | -40 | - | 85 | ℃ |
Rth | thermal resistance | - | 0.8 | - | ℃/W |
Note: the condition of the test result data in the diagram above is Tc=25 degree ,the product of Light Panel with color temperature is 5000k.
About Alight COB LEDs:
Specification:
* Waltage: 1W-100W be available.
* Apply low constant current driver, Voltage: 3V DC-66V DC
* Color Temperature:2700k--8000k
* Light Color: white/red/green/blue(RGB) for each item.
* Light characteristic: very uniform, durative, stedy, no glare, no sharp dot lights, no double images, handsome looks, very suitable for indoor lighting
* Shape and Size: long, round, square and any other shape and size according to your application.
* Encapsulation Technology and Design Copyrights reserved, passed CE& RoSH and ISO 9001 :2000 certification,
OEM: COB LED light panel size and parameter can be customized according to your product application.
Description
The White source color devices are made with InGaN on sapphire White Light Emitting Diode.
Applications
LED daylight lamp
Reading lamp
Street lamp
LED backlight
Indoor and Outdoor commercial lighting
Decorative and Entertainment lighting
Industrial use, printing machines
1. Marine Lights: 2. Indoor lighting (LED table lamp):
3. Outdoor Lighting (LED street and Flood light)
COB Test effect: (Soft, no glare, no sharp dot lights )
Company Information
Alight Optoelectronic Industry Commerce Co., Ltd. founded in 2001, located in Xiaolan Town , Zhongshan City, Guangdong Province. It is earliest LED encapsulate factory in Zhongshan City.
In 2007, we cooperated with Semiconductor Research 13th Institute of China Electronics Technology Group and begin the research on new LED light panel encapsulate technology.
Since 2008, we adopted our patent Chip-on-Board encapsulation LED panels in industrial and commercial illumination field. We R&D successfully different types of COB LED lamps to replace traditional incandescent bulb,fluorescent lamp, compact fluorescent energy-saving lamp, high voltage sodium lamp etc.
In the future, we will continue to leverage the support from the Semiconductor Research 13th Institute, innovative products and with COB panel as the light sources, continue research and develop high efficiency, energy-saving, high quality and low price LED semiconductor lighting products, devote ourselves to Green Earth
COB LEDs with 3 years warranty.
OEM Watt, Voltage and size as you need.
Our Services
1) Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM, and your costumed lighting we can help you to design and put into produce.
3) Distributorship are offered for your unique design and some our current models.
4) Protecting your selling areas, idea of design and all your private information.
Tips:
1.Price term: EXW.
2. Payment: West Union, T/T.
3. Warranty: 3 years.
4. Lead Time: 15-30 working days after the orders are confirmed.
5. Transportation: express, air or sea.
6. Valid period: 30 days.
