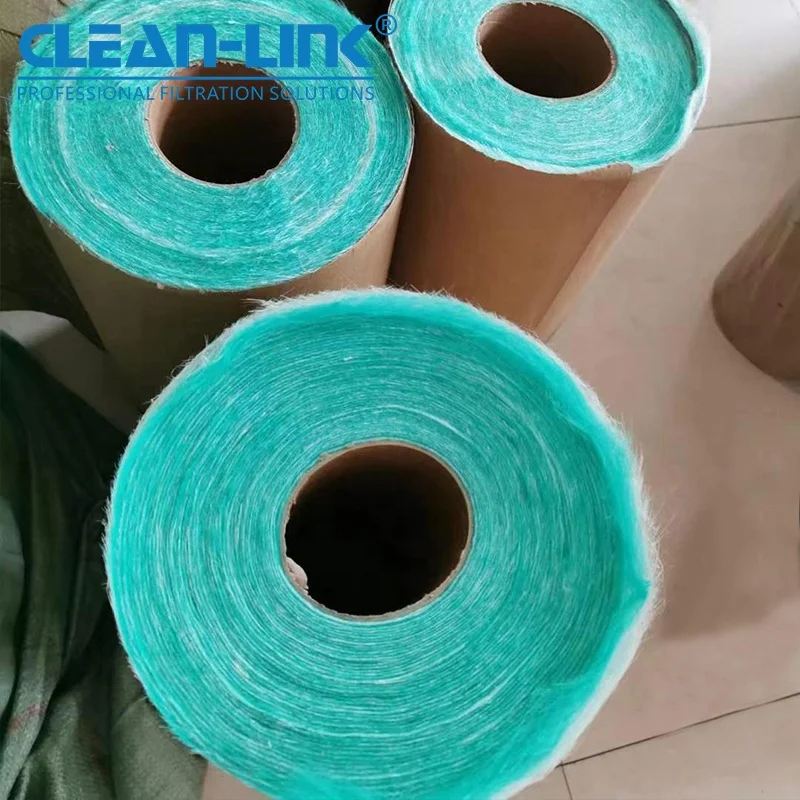

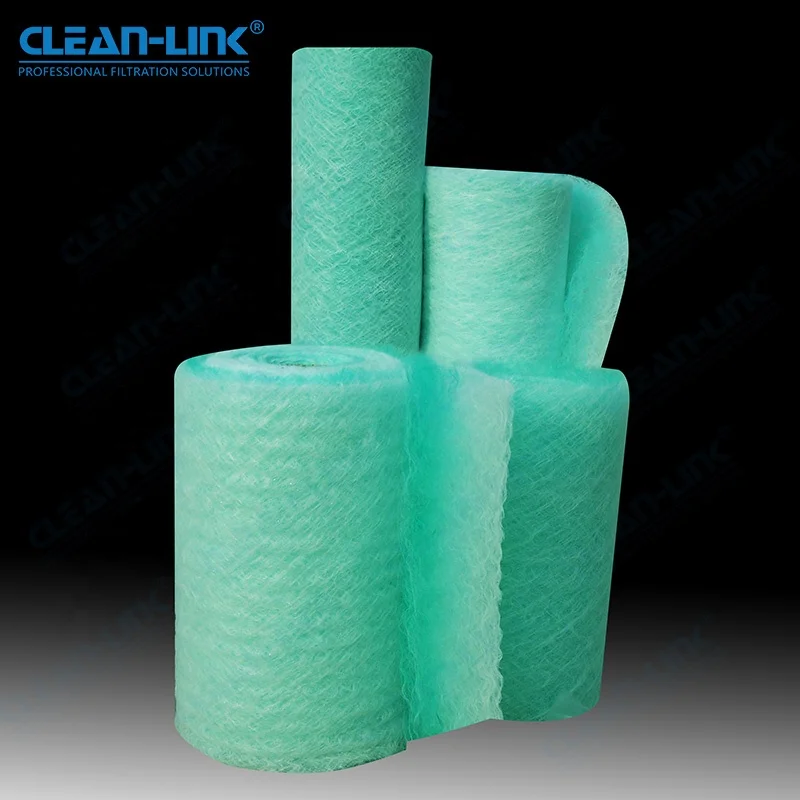

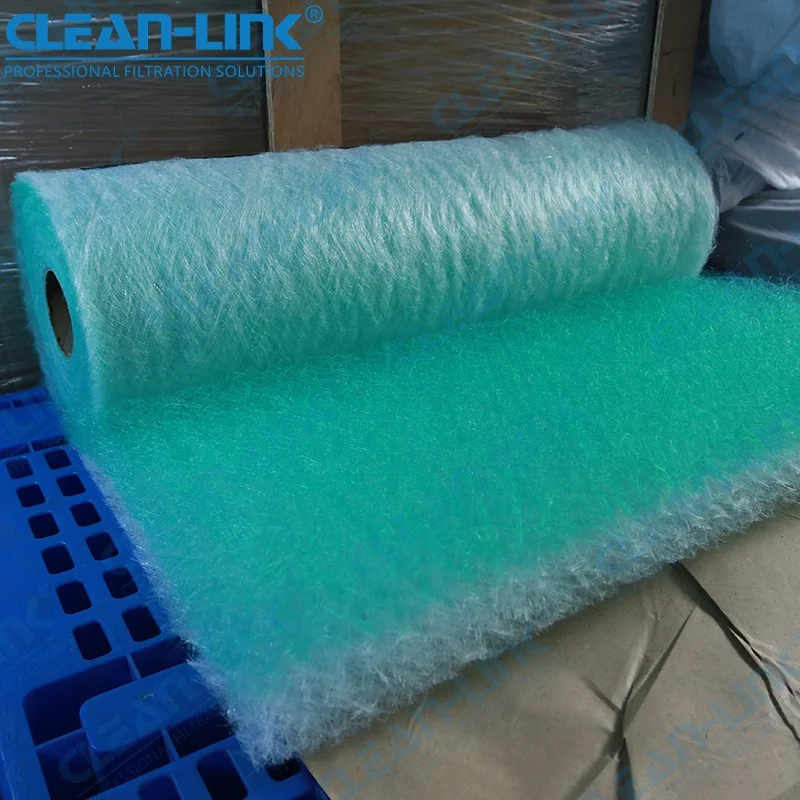

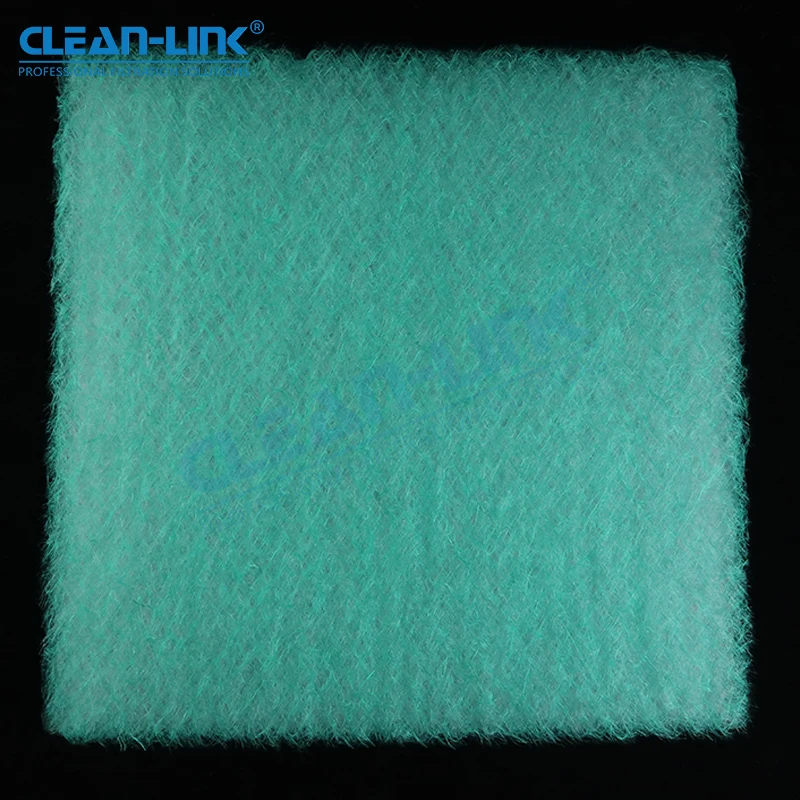

Clean-Link fibreglass filter roll  for spraybooth

Speciality:

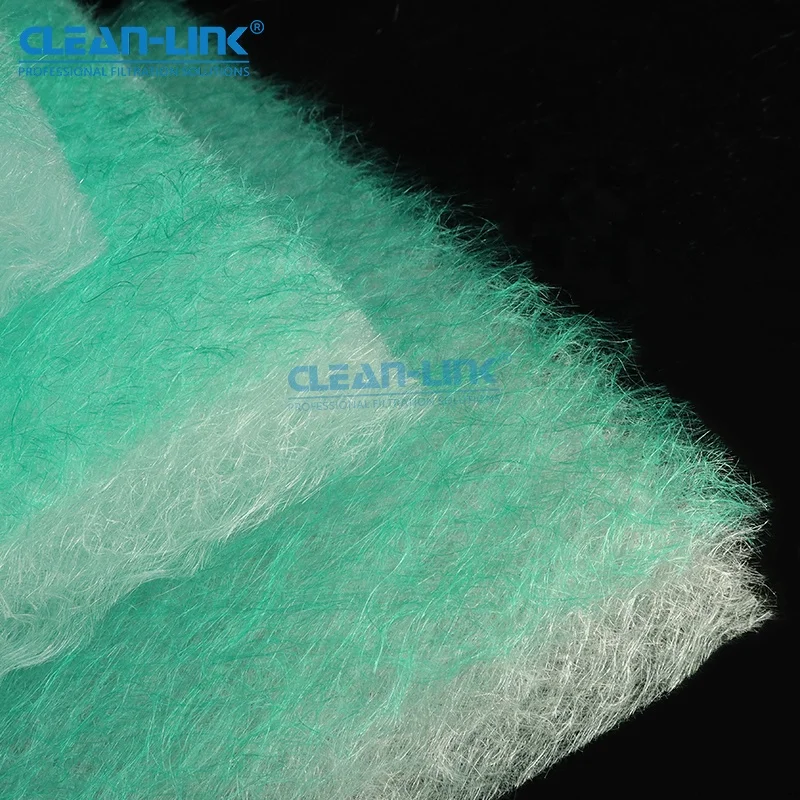

• Gradient Density Structure; the windward side is green, the leeward side is white.

• Made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
• It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially, PA-50/60/PA-100 is suitable for using heat recovery system
• High strength fiberglass increasing structure; the windward side is green ,the leeward side is white.
• The low compression performance maintains its outlook,which is completely useful for the filtration fibre to keep the oil mist and the dust
• Nonflammability, heat resistance 170℃
• The compression packing may save the fare and the storage space in the transportation. After decompression, it will regain its original condition
• Outer frame may choose the paper frame , the galvanization iron frame, or aluminium alloy frame.

Specification:



Model	PA-50/60	PA-100
Weight	240 g/m2	320 g/m2
Filter efficiency	92%-96%	97%-99%
Initial resistance	15Pa	20Pa
Final resistance	250Pa	280Pa
Air velocity	0.7-1.5m/s	0.7-1.75m/s
Dust holding capacity	3200-3600 g/m2	3600-4900 g/m2
Maximum temperature	170℃	170℃
Normal thickness	50/60mm	100mm
