Высокое качество Мини постоянного тока 24В dc Кондиционер куб ФТ/мин для индустрии Алюминиевый Электрический безщеточный машинный вентилятор насос центрифужный
- Категория: Centrifugal Fans >>>
- Поставщик: Ningbo,Wonsmart,Motor,Fan,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 39.99 $* | 40.37 $* |
| Jul-16-2025 | 32.56 $* | 33.64 $* |
| Jun-16-2025 | 39.51 $* | 40.40 $* |
| May-16-2025 | 38.67 $* | 39.33 $* |
| Apr-16-2025 | 31.40 $* | 32.50 $* |
| Mar-16-2025 | 38.31 $* | 39.86 $* |
| Feb-16-2025 | 38.94 $* | 39.43 $* |
| Jan-16-2025 | 37.28 $* | 38.52 $* |
Характеристики
Product Description
High quality mini 24 volt dc air conditioning cfm industry aluminium electric brushless car fan pump centrifugal blower
Suitable for air cushion machine/fuel cell/medical equipment and inflatables.
Suitable for air cushion machine/fuel cell/medical equipment and inflatables.
Specification
Part name | High quality mini 24 volt dc air aluminium electric brushless car fan |
Part No | WS9290-24-220-X200 |
Rated votlage | 24VDC |
Max power consumption | 180W |
Life time(MTTF) | 2,0000hours |
Unit weight | 0.5kgs |
Bearing | NMB ball bearing |
Unit size | D92*L90 mm |
Insulation class | Class F |
Driver board | External |
Speed control | PWM or 0~5V |

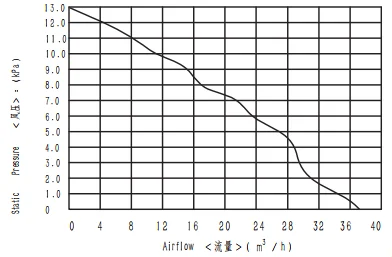

P-Q Curve for 24v dc fan brushless blower
WS9290-24-220-X200 blower fan airflow against air pressure performance curve as
left chart
Wiring diagram for driver controller.
We can supply standard drivers for this blower. If you want to design your own driver you can refer to the wiring diagram on the left picture.

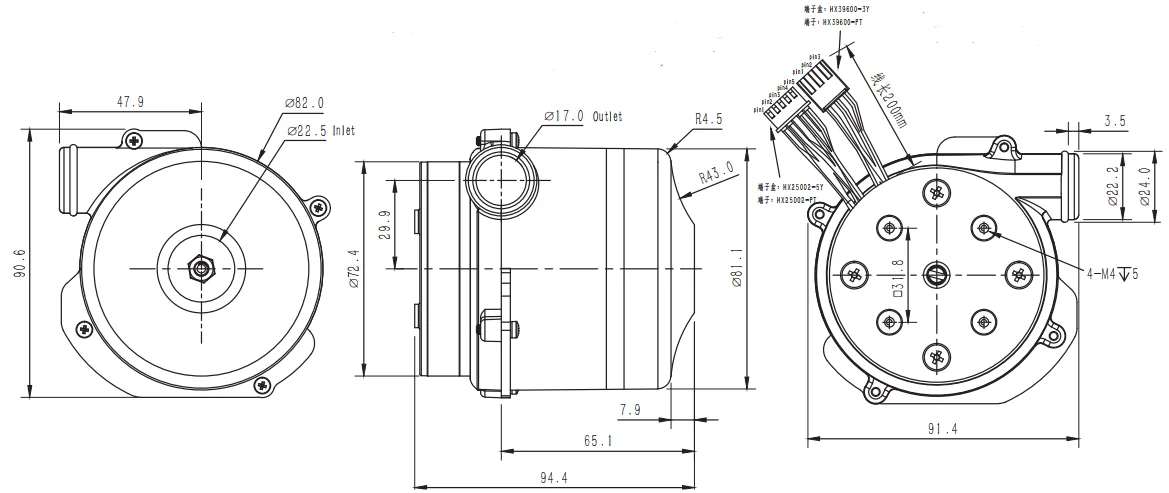

Drawing
Product drawing as below:
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Company Introduction
dc motors and brushless dc blowers. Our blower’s max airflow reaches 200 cubic meter per hour and a max
pressure of 30 kpa. With our high quality parts and precise manufacturing process, WONSMART motors and
blowers can serve more than 20,000 hours.
pressure of 30 kpa. With our high quality parts and precise manufacturing process, WONSMART motors and
blowers can serve more than 20,000 hours.
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in
Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and
Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and
CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment.
All products are 100% inspected before delivery to guarantee all the products arrive at the customers with
satisfied quality.
Wonsmart is certificated by I S O 9 0 0 1and I S O 1 3 4 8 5.we have paid attention to product quality and
Wonsmart is certificated by I S O 9 0 0 1and I S O 1 3 4 8 5.we have paid attention to product quality and
customer service. Our professional and spry team hold the same goal of being one of the best brushless motor
and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan
and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan
and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Our Services & Strength
We also accept ODM and OEM projects and customized specification.
We also accept ODM and OEM projects and customized specification.
FAQ
Are you factory or trading company?
We are factory with 4,000 square meters and we have been focus on high pressure
We are factory with 4,000 square meters and we have been focus on high pressure
BLDC blowers for more than 10 years
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
This blower fan is with BLDC motor inside and it needs a controller board to run.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.

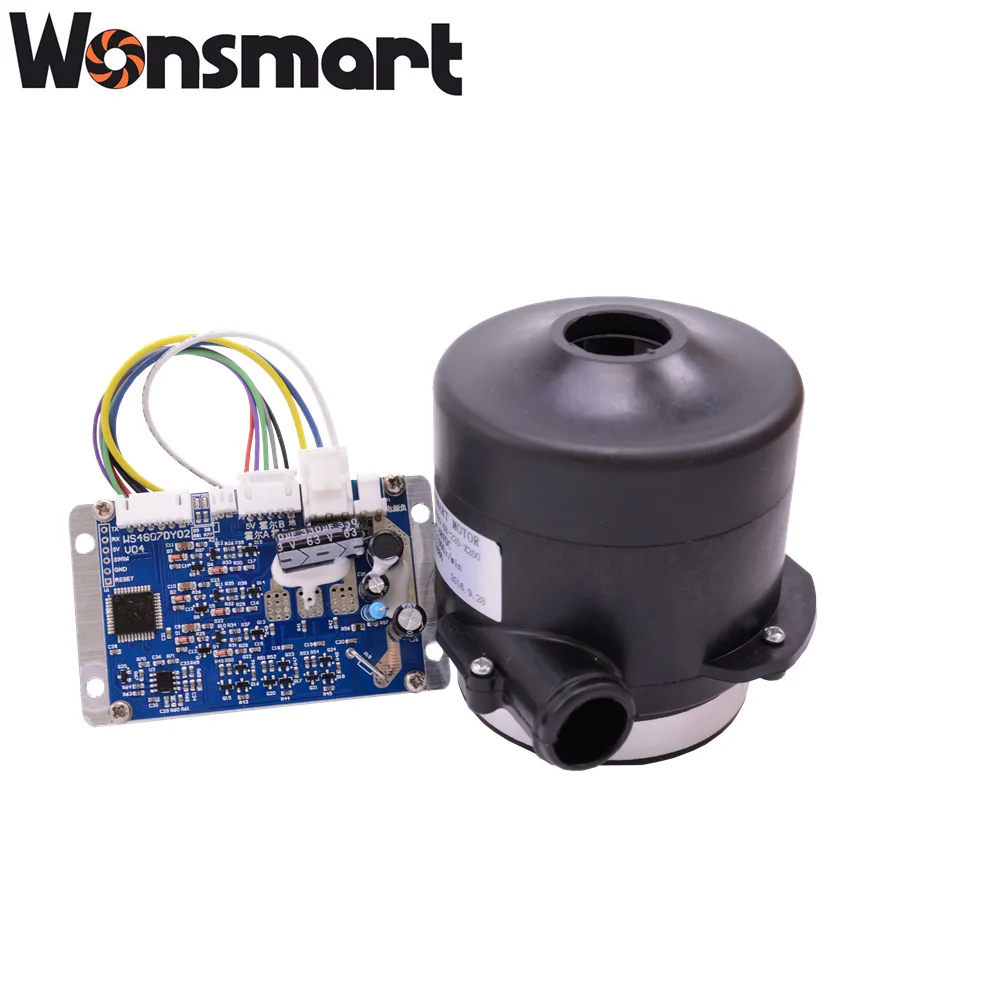

Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is
also with a potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can
ask us to choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you
can ask us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine
to insulate the blower noise.
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
This blower fan is with BLDC motor inside and it needs a controller board to run.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is
also with a potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can
ask us to choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you
can ask us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine
to insulate the blower noise.
