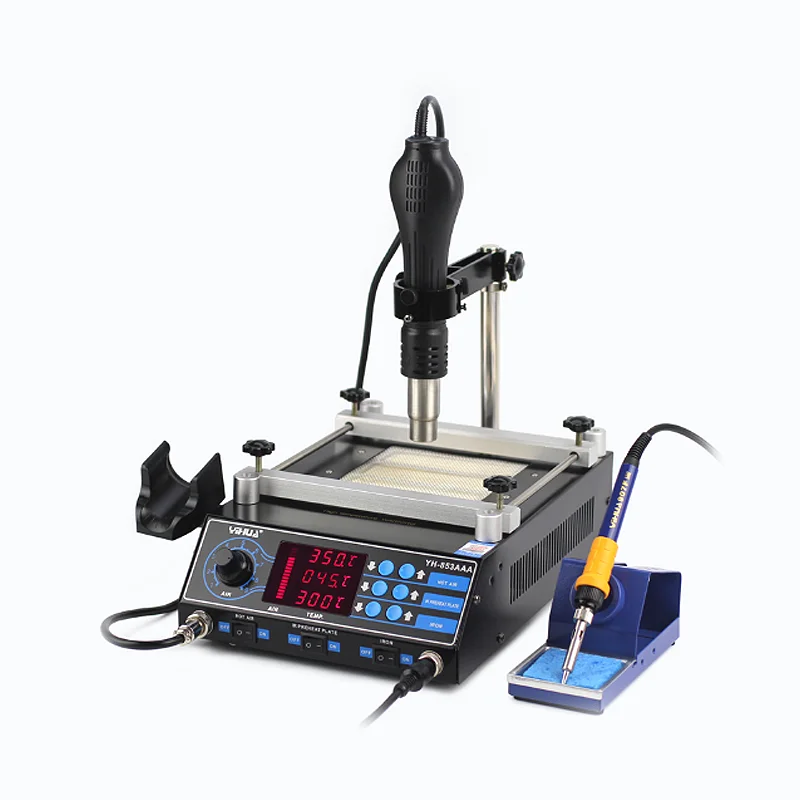

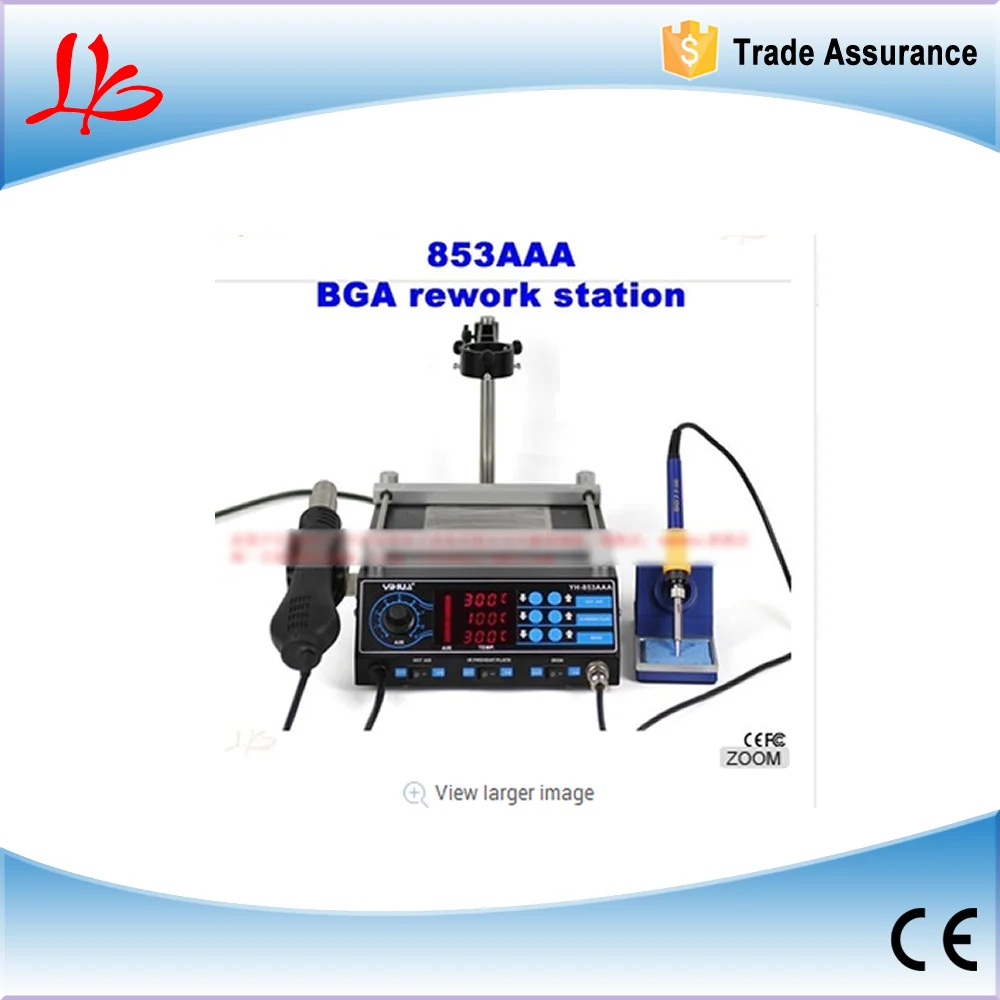

Мини bga наладочная станция 853AAA машина

Feature

Using microcomputer processor PID programmable temperature control technologyPreheating station is to use a glaze layer having a high thermal effect,

Good thermal shock resistance of the ceramic as the substrate, high-quality nickel branded alloy wire once sintering.

It has a high thermal effect, overall good, good thermal stability, uniform heating, high dielectric strength, clean, easy to install and so on features.

Air Gun heater use ceramic heater, heating elements firmly wrapped around the model ceramic, rapid and uniform heating.use the upgraded version fan, the airflow larger than the ordinary fan, spiral out of the wind, long life.

1.Soldering iron part using HAKKO heater, heating up rapidly, temperature stability, long service life; antistatic design to prevent electrostatic damage to delicate SMD components.

2.The machine has a self-test function, full intelligent over-temperature, short-circuit, open circuit, overload and fault display and protection functions.

3.853AAA preheating station using the user-friendly design, the cover affixed with a high-temperature, insulated protection pads to prevent scalding operation. The stent uses magnetic induction technology, card board bracket to prevent protective pads suck hood above, can rotate 360 degrees, flexible card board, it is suitable for the circuit boards of different shapes and sizes.

4.853AAA temperature correction function-to adapt to the environmental impact, or replace the heating elements, soldering iron tips etc. spare parts caused by temperature deviation, can use this function calibration temperature. The correction temperature range is -50 °C ~ +50 °C.

5.853AAA has Celsius / Fahrenheit temperature display functionmeet

different market needs to design the temperature display mode, you can choose under customary interest.

Data

Voltage  AC220C±5%

Max power consumption  1270W

Preheating station parts

Temperature Range  50~ 300  °c or 50~400  °c /152~572 °F or 152~752 °F

Temperature Stability  ±2  °c

Display Type  LED

Area  120*120mm

Hot Air Reworks parts

Airflow type brushless fan spiral out wind

Air Flow ≤130L/min

Temperature Range  100  °c -480  °c /212°F ~896 °F

Temperature Stability 100  °c -480  °c /212 °F ~896 °F

Display Type  LED

Handle cable length  ≥100cm

Soldering Iron parts

Temperature Range 200 °c -480 °c /392°F~896 °F

Soldering iron heater Hakko heater

Solder iron holder blue Ferro-alloy iron holder

Soldering iron handle Blue iron handle

Temperature Stability ±1°c

Tip of ground voltage  <2mV

Tip ground impedance <2 ohm

Display Type  LED

Handle cable length ≥100cm

QTY  4PCS/Outer carton

Inner box size 37*35*18cm

Outer carton box size 73*40*39cm

Goods weight 5.54kg/pcs

General Usage

1). Suitable for de-soldering and soldering BGA, SOIC, CHIP, QFP, PLCC package SMD IC,

 Particularly suitable for de-soldering BGA module, computer motherboard north and south bridge,

all kinds of mobile phone motherboard SMT IC and LED lights.

2). Shrinking, Paint drying, adhesive removal, thawing, warming, Plastic welding etc.

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.

5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

LyBGA factory is located in Shenzhen, China.

Our factory owns 2 brands , Ly and Bauer.

We has 10 years experiences in manufacturing and exporting BGA rework stations.

Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …

CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
