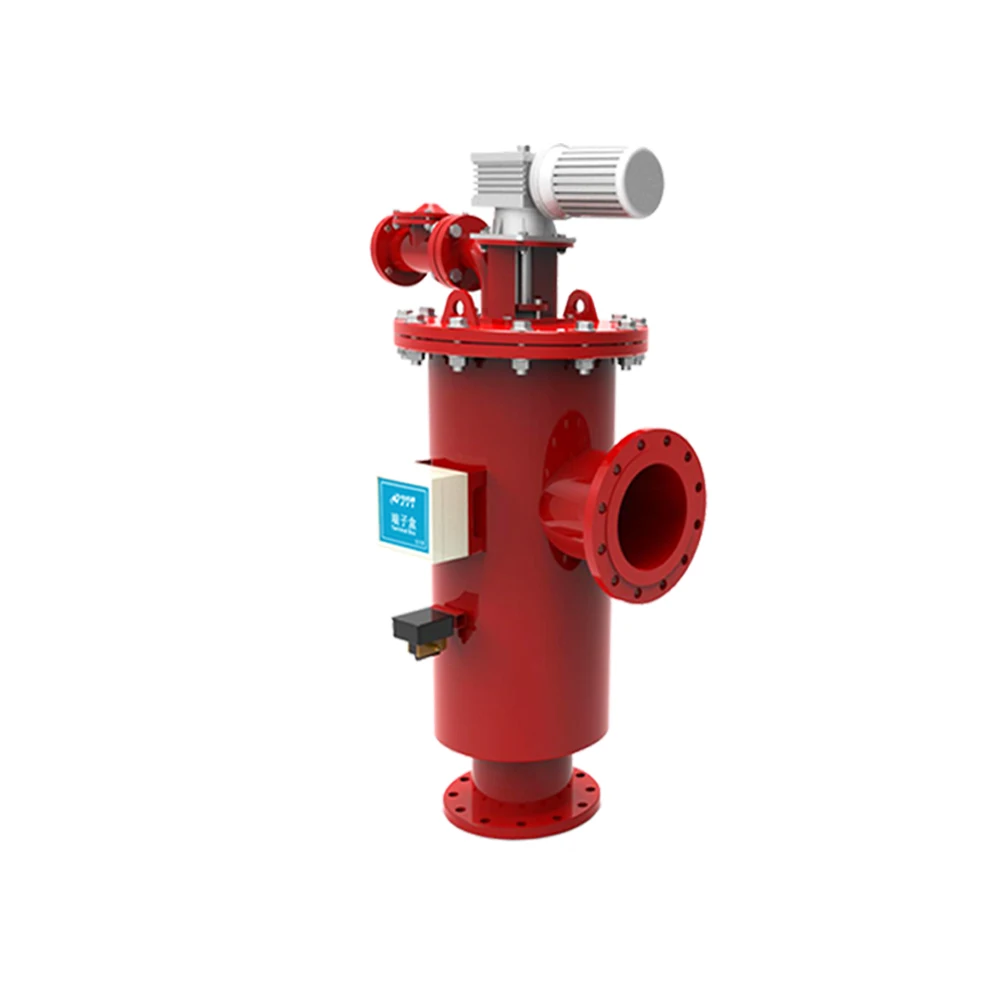

Automatic Backwashing Filter for Waste Water Resource Filtration
Brief Introduction
Automatic Backwashing Filter for Waste Water Resource Filtration is vertical electric brush type filter ,the screen is 304 or 316 stainless steel ,It is suitable for harsh environment ,High oil content ,large dirt load in water ,the motor drives the stainless steel brush to rptate in the water ,cleaning dirt,and the dirt outlet from the drain valve .
Feature
Adopts Israeli advanced and specialized filter technology with characteristics of large flow, auto back flushing, saving water, can fully improve the utilization rate of water. More over it can achieve the advantages
1) highest cleaning efficiency
2)Reliable and Compact filter element
3)Super big flowrate ,and best preformance .
Application
Filtration products has been used widely in variety aspects , In lots of project which refer to the solid/liquid/ separation ,Such as :
- Water treating, Raw water treating , Recycle water , Chilling water treat
- Agricultural irrigation ,such as Farms Water , Golf Water Filtration , Orchards and Groves Water Filtration , Vineyard Water Filtration etc .
- Papermaking factory
- Steel and lron plant
- Petroleum Chemistry
Working principle
Liquid into the filter via the water inlet, Impurities is deposited on the stainless steel mesh, Filtered clean water from the outlet flow out, With the accumulation of impurities inside the cartridge, the filter cake formed in the surface of the cartridge, which leads to gradually pressure , drop increasing between the inlet and outlet ,it begin the automatic cleaning process, when the pressure reaches the default .
The automatic self cleaning finished by rotating cleaning brush and switching the drain valve .open the drain valve is blocked so that a negative pressure within the cartridge, the cartridge attached to the inner wall of the filter cake was cleaning brush cleaning off the relationship because of negative pressure through the sewage discharge valve in this body. The cleaning process is within 60 seconds, the system continues to flow cleaning.
Technical parameters
| Brand | AIGER A600 Series |
| Cleaning way | brush way |
| Single filter water flow: | 80 ~ 4200 m3 / h |
| Pressure rating: | 1.0Mpa/1.6Mpa/2.5Mpa |
| Filtering precision: | 50 ~ 3000μm |
| Inlet and outlet size | 4'-32‘ |
| Working temperature range: | 0 ~ 65 °C |
| Inlet and outlet | Connection: flange |
| Backwash time: | 30s |
| Backwash water: | for total filtered water 1 to 3% |
| Control mode: pressure control; | PLC timing control; manual control |
| Drive way: | motor drive |
| Sewage way: | automatic brush |
| Installation: | vertical |
| lnstallation Environment: Outdoor Type; | Indoor or outdoor |
Selection of Automatic Backwashing Filter for Waste Water Resource Filtration
if the size can't meet you need ,we can customize for you ,Please kindly let me know your Filtering percision ,
Inlet and Outlint size Filter low ,and so on .just email our sales .We will recommend you a suitalbe filtration products ,which achieve your max benefit .

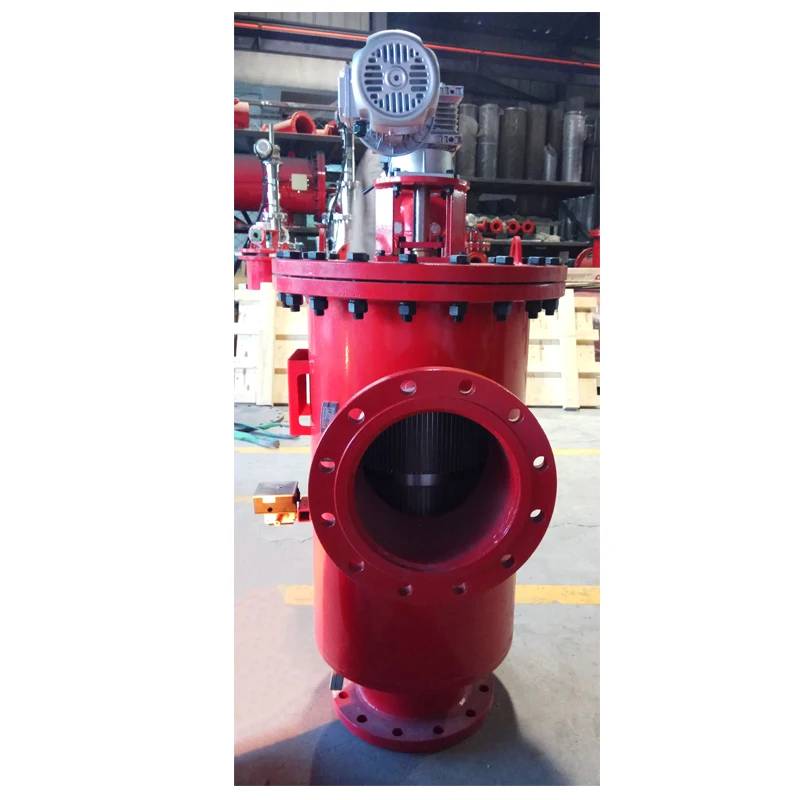

Details parts .
Sucessful on site
About us
FAQ
1. Are you maufacturer on water flter ?
Yes ,We are maufacturer and we have a strong team ,who have profession engineers ,with rich experience .They will design a best solution for you .
2. Can you tell me your main market ?
We have worldwide customers : Australia ,Thailand ,Korea , Vietnam ,USA and so on .
