Машина для черепицы с каменным
- Категория: Материалы для кладки >>>
- Поставщик: Cangzhou,Zhongtuo,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 95200.96 $* | 99960.36 $* |
| Aug-17-2025 | 94400.53 $* | 99120.50 $* |
| Jul-17-2025 | 79200.16 $* | 83160.95 $* |
| Jun-17-2025 | 92800.16 $* | 97440.36 $* |
| May-17-2025 | 80800.43 $* | 84840.45 $* |
| Apr-17-2025 | 91200.96 $* | 95760.63 $* |
| Mar-17-2025 | 90400.86 $* | 94920.9 $* |
| Feb-17-2025 | 89600.78 $* | 94080.84 $* |
| Jan-17-2025 | 88800.76 $* | 93240.97 $* |
Характеристики

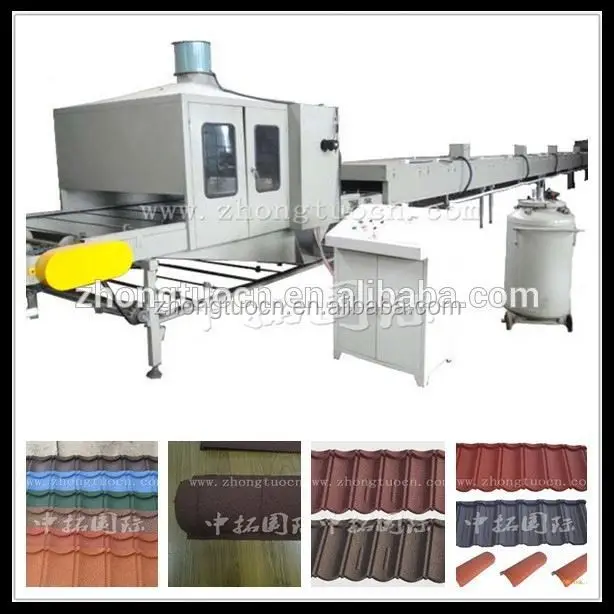

stone coated roof tile machine
Product Description
stone coated roof tile machine : coated metal roof tile is a modern environmentally friendly roofing material with the basic of
0.4mm Al-zine coated steel.
Covering color vermiculite surface which carried under the high temperature technology.
It is high-performance, stable, energy-efficient and easy operation.

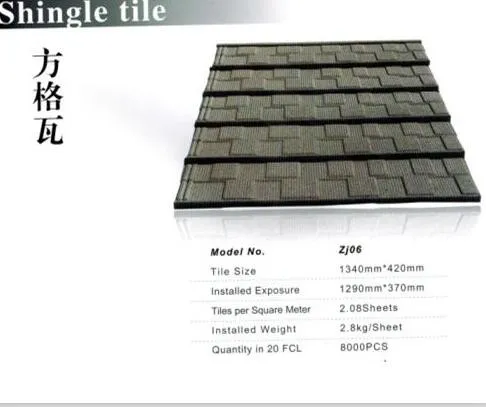

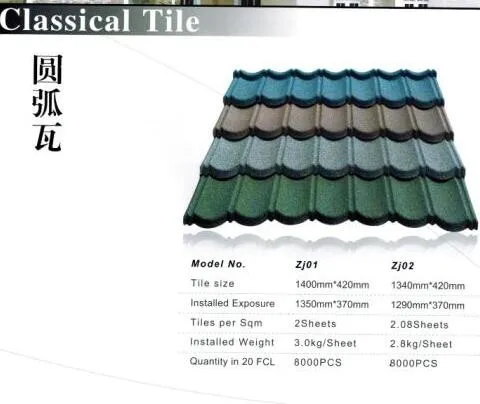

Sample roof panel:
NO. 1 Auto bottom glue spraying section | |
Appearance size | 4000*1000*2000mm |
Driving section | 3KW Excitation motor or frequency speed regulation (AS per customers’ requirements ) |
Automatic pressure spray tank | 1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
Automatic glue machine motor | Servo motor ; Power: 750w ; PLC |
Automatic spray gun | 4 set (spare parts) |
Dust collecting fan | 1 set ; Power: 200w |
Damp proof lamp | 1 pc ; Power: 100w |
Conveying device | Chain reciprocating |
Air compressor | 1 set ; Power: 7.5kw |
Dust control of axial flow fan | 1 set ; Power: 200w |
Agitator | 1 set ; Power: 1.5kw |
NO. 2 Auto stone coated section | |
Appearance size | 3500*1000*1500mm |
Framework | Steel welding |
Conveying device | Chain reciprocating |
Automatic sand hopper | 1 set ; Capability: 200kg |
Bucket lift | 1 set |
Manual sandblast gun | 4 sets |
NO. 3 The first time drying section | |
Appearance size | 25000*1000*1200mm |
Framework | Steel welding |
Frame type thermal insulation wall | 1.2mm cold steel with Rock wool |
Automatic temperature controller | 4 sets ; Range: 0°~160° |
Infrared heating tube | 30pcs ; Power: 30kw |
Conveying device | Chain reciprocating |
Air cooling device | 1 set ; Power: 200w |
NO. 4 Auto face glue spraying section | |
Appearance size | 3000*1000*2000mm |
Framework | Steel welding |
Damp proof lamp | 1 pc ; Power:100w |
Automatic pressure spray tank | 1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
Conveying device | Chain reciprocating |
Automatic spray gun | 4 sets (spare parts) |
Manual patch glue gun | 4 sets |
Dust control of axial flow fan | 1 set ; Power: 200w |
Automatic glue machine motor | Servo motor ; Power: 750w |
NO. 5 The second time drying section | |
Appearance size | 30000*1000*1200mm |
Framework | Steel welding |
Frame type thermal insulation wall | 1.2mm cold steel with Rock wool |
Automatic temperature controller | 4 sets ; Range: 0°~160° |
Infrared heating tube | 30pcs ; Power: 30kw |
Conveying device | Chain reciprocating |
Air cooling device | 1 set ; Power: 200w |
About the workers need:
PLACE | QTY. |
Panel loading | one |
Bottom spraying | one |
Stone coating | one |
Fill stone | one |
Face glue | one |
Bottom glue mixing | one |
Finish goods receiving | one |

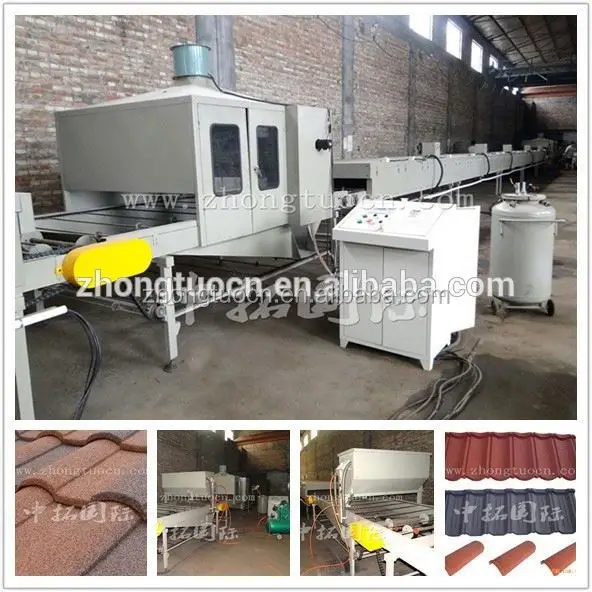

the picture of production house
Our Services
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
Packaging & Shipping
Payment Terms: 30%T/T after signed the contract,balanced before delivery
Company Information
