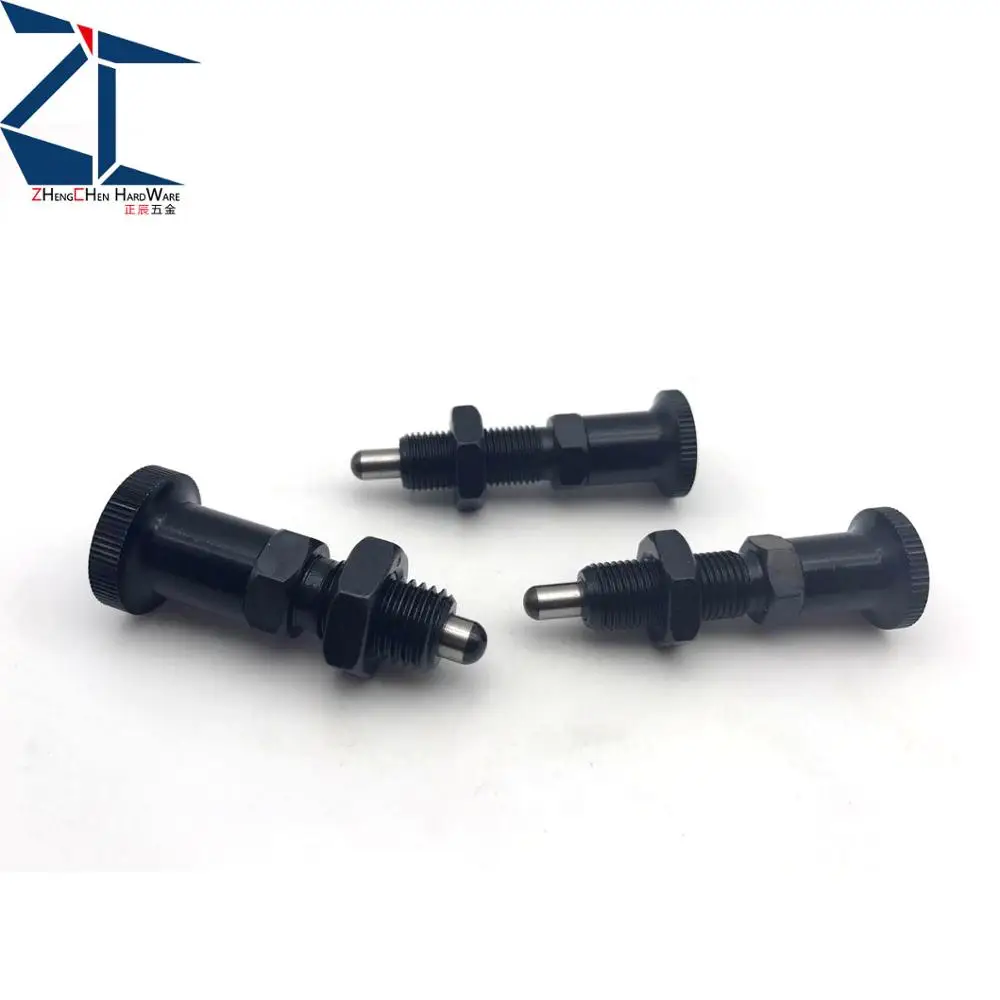

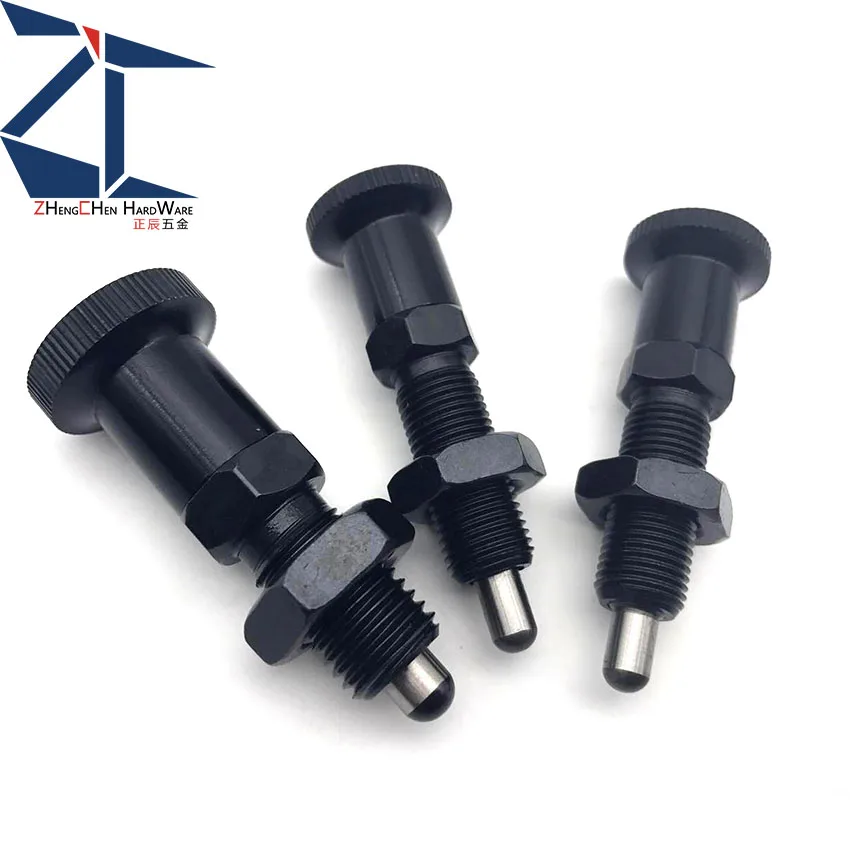

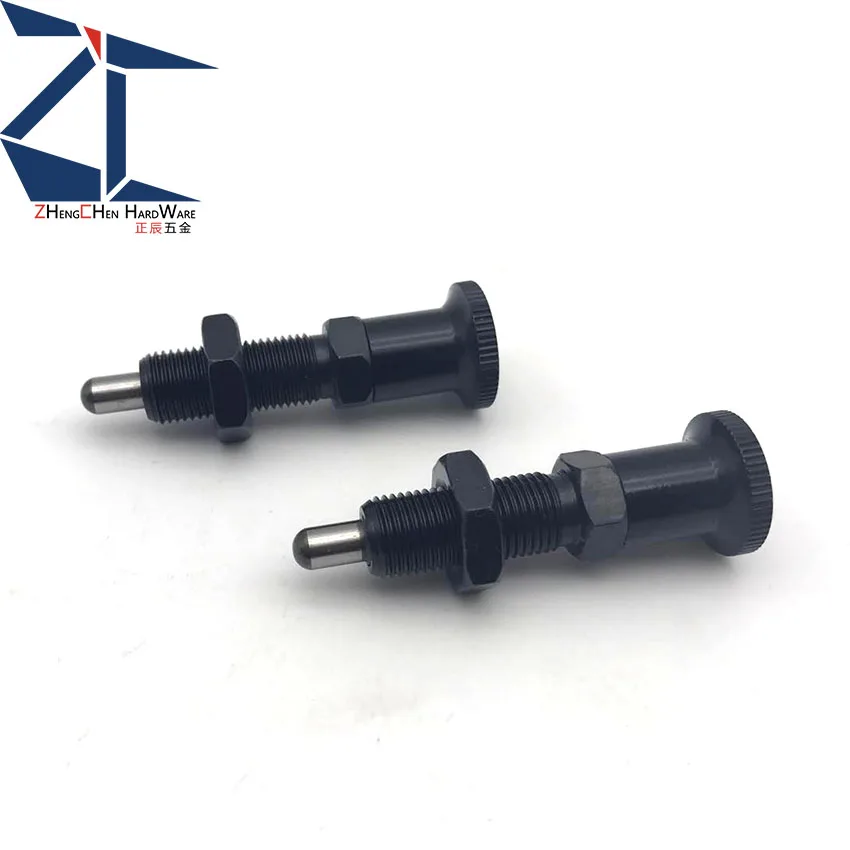

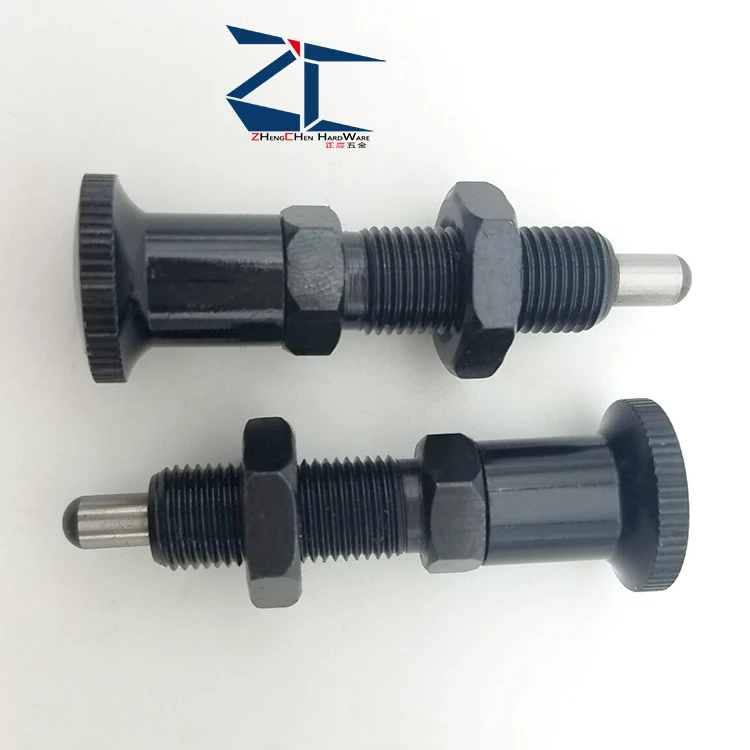

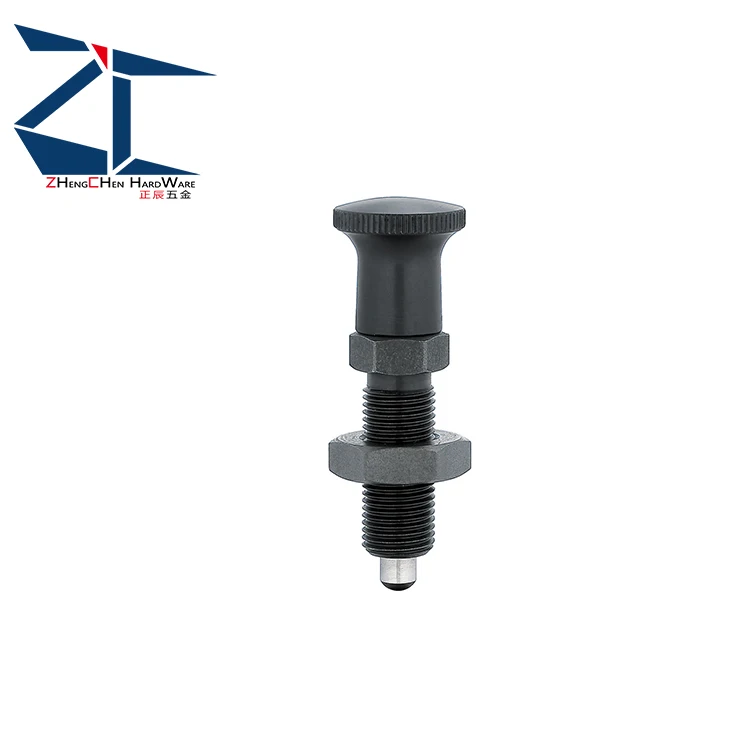

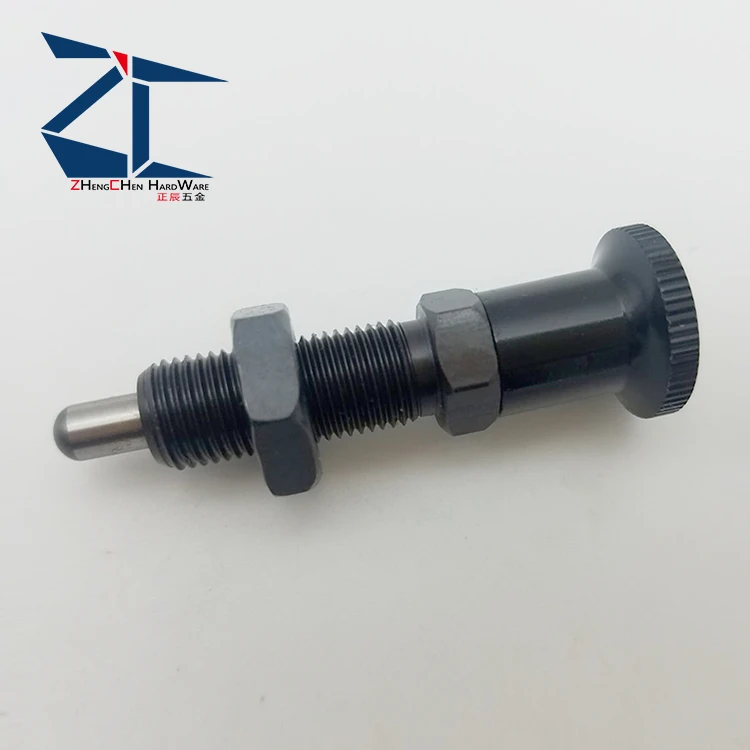

Сферический пружинный индексирующий поршень PXYKN
- Категория: Прочие крепежи >>>
- Поставщик: Dongguan,Zhengchen,Hardware,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2.88 $* | 2.17 $* |
| Aug-20-2025 | 2.26 $* | 2.13 $* |
| Jul-20-2025 | 2.91 $* | 2.3 $* |
| Jun-20-2025 | 2.26 $* | 2.3 $* |
| May-20-2025 | 2.63 $* | 2.30 $* |
| Apr-20-2025 | 2.77 $* | 2.3 $* |
| Mar-20-2025 | 2.27 $* | 2.66 $* |
| Feb-20-2025 | 2.34 $* | 2.78 $* |
| Jan-20-2025 | 2.57 $* | 2.73 $* |
Характеристики
stainless steel type link here
Product Description
Materials
[ ! ]For M=5, 6 and 8L, the pin hardness is 40~45HRC.
| Screw | Return Type | Rest Position | Knob | Main Body | Pin | Spring | (Lock Nut) | ||||||||
| Spherical | Tapered | Flat | Spherical | Tapered | Flat | [ M ]Material | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ H ]Hardness | [ S ]Surface Treatment | [ M ]Material | [ M ]Material | [ S ]Surface Treatment | |
| Fine Thread | PXAN | PXAT | PXAF | PXYAN | PXYAT | PXYAF | 2017 Aluminum Alloy (Black Anodize) | 1213 Carbon Steel | Black Oxide | 1045 Carbon Steel | 50~60HRC | Black Oxide | 631 Stainless Steel | - | - |
| PXKN | PXKT | PXKF | PXYKN | PXYKT | PXYKF | 1018 Carbon Steel | Black Oxide | ||||||||
| SXPAN | SXPAT | SXPAF | SXYAN | SXYAT | SXYAF | 303 Stainless Steel | - | 440C Stainless Steel | 45HRC~ | - | - | - | |||
| SXPKN | SXPKT | SXPKF | SXYKN | SXYKT | SXYKF | 303 Stainless Steel | - | ||||||||
[ ! ]For M=5, 6 and 8L, the pin hardness is 40~45HRC.
Specifications
| Part Number |
| SXPAN12L PXKF10 |
Mass (g)
[ ! ]M dimensions with "L" have longer strokes compared to the conventional products. [ ! ]Relief at Thread Base: None for M=5 and 6; provided for M=8~16.
kgf=Nx0.101972
| M | PXA_SXPA_ | PXK_SXPK_ | PXYA_SXYA_ | PXYK_SXYK_ |
| 5 | 4.5 | 5.5 | 5 | 6 |
| 6 | 6.7 | 8.7 | 8 | 10 |
| 8 | 12 | 17 | 13 | 18 |
| 10 | 20 | 27 | 23 | 30 |
| 12 | 32 | 42 | 38 | 48 |
| 16 | 70 | 90 | 79 | 99 |
| Part Number | Pitch (Fine Thread) | D | D1 | S | B | L | L1 | L2 | L3 | L4 | L5 | SW1 | SW2 | SR | Load (N) | ||||||||
| Type | M | Return Type | Rest Position | min. | max. | ||||||||||||||||||
| 5 | 0.5 | 10 | 8.1 | 5 | 2 | 35 | 41 | 15 | 3 | 14 | 2.7 | 1.5 | 7 | 8 | 1 | 1 | 6 | ||||||
| Return Type Rest Position | 6 | 0.75 | 12 | 9.2 | 5 | 2.5 | 36 | 42 | 15 | 4 | 13.5 | 3.2 | 1.5 | 8 | 10 | 1.3 | 1 | 6 | |||||
| (Spherical) PXAN PXKN SXPAN SXPKN | (Tapered) PXAT PXKT SXPAT SXPKT | (Flat) PXAF PXKF SXPAF SXPKF | (Spherical) PXYAN PXYKN SXYAN SXYKN | (Tapered) PXYAT PXYKT SXYAT SXYKT | (Flat) PXYAF PXYKF SXYAF SXYKF | 8 | 1.0 | 15 | 11.5 | 4 | 4 | 40 | 46 | 16 | 5 | 14 | 4 | 1.5 | 10 | 13 | 2 | 3 | 9 |
| 8L | 6 | 42 | 48 | 12 | |||||||||||||||||||
| 10 | 1.0 | 18 | 13.8 | 5 | 5 | 45 | 50 | 17 | 5 | 15 | 5 | 2.0 | 12 | 17 | 2.5 | 5 | 11.5 | ||||||
| 10L | 8 | 48 | 53 | 16 | |||||||||||||||||||
| 12 | 1.5 | 21 | 16.2 | 6 | 6 | 54.5 | 60.5 | 20 | 6 | 17 | 6 | 2.5 | 14 | 19 | 3 | 6.5 | 14.5 | ||||||
| 12L | 10 | 58.5 | 64.5 | 20 | |||||||||||||||||||
| 16 | 1.5 | 26 | 21.9 | 7 | 8 | 68 | 75.5 | 26 | 8 | 23 | 8 | 3.0 | 19 | 24 | 4 | 7.15 | 18 | ||||||
| 16L | 12 | 73 | 80.5 | 25 | |||||||||||||||||||
[ ! ]M dimensions with "L" have longer strokes compared to the conventional products. [ ! ]Relief at Thread Base: None for M=5 and 6; provided for M=8~16.
kgf=Nx0.101972
