LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter

LE1-D old type Motor Starter

LE1-D magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, safe and reliable performance etc.

General Description:

LE1-D series magnetic motor starter are suitable for 50Hz or 60Hz, rated voltage up to 660V, current up to 95A circuit. In order to protect motor starting, accelerating the motor to rated rev, against overload operation and artificially breaking the circuit of protected motor.

Structure Feature:

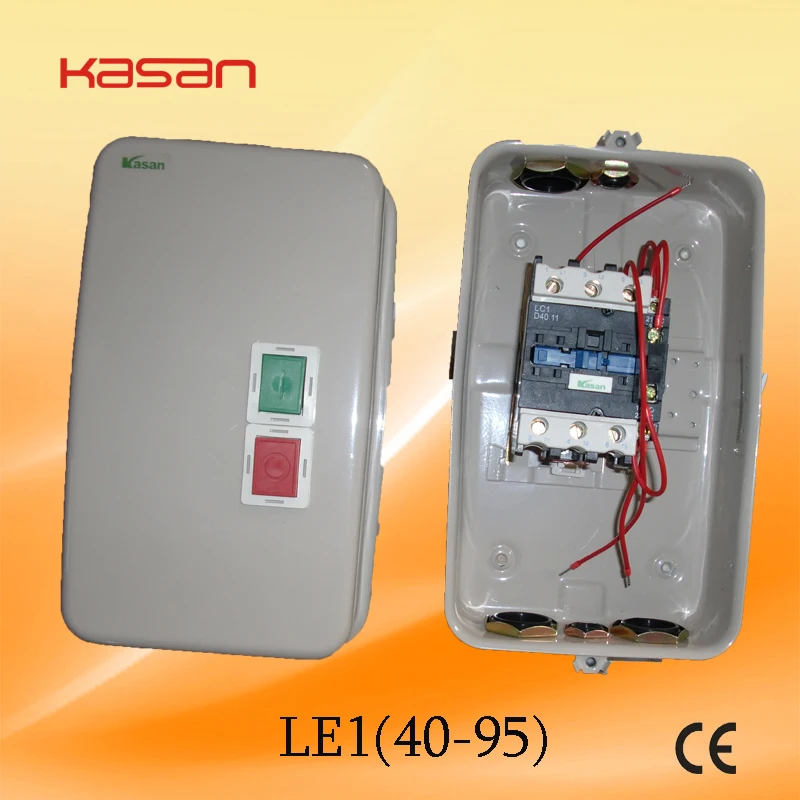

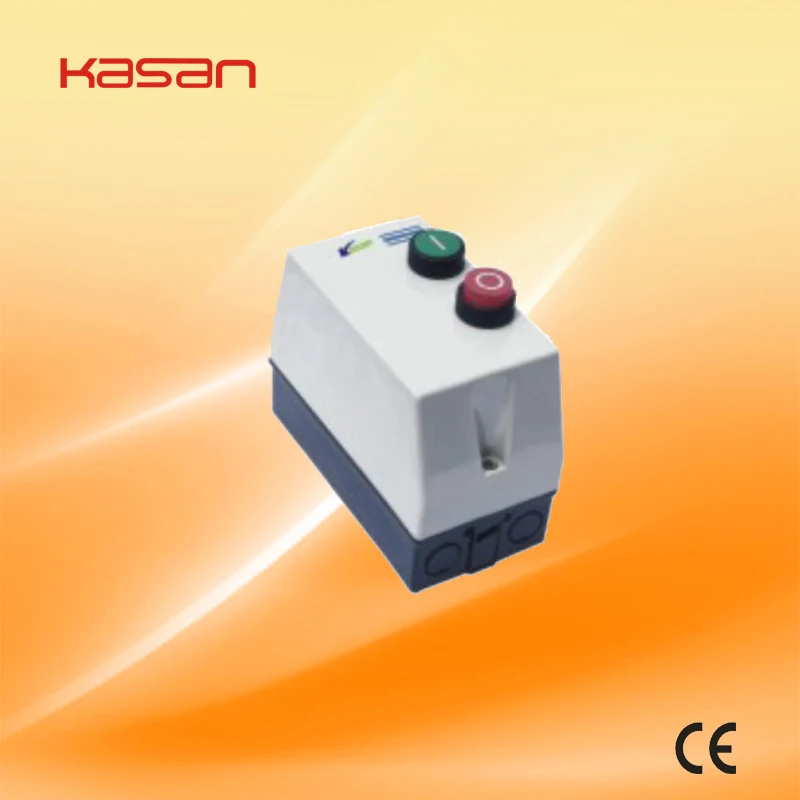

1. Sealed: Plastic box LE1-D09~D32

and iron box platstic coated LE1-D40~D95, protection up to IP65;

2. Operation system with manual "START" and "STOP" buttons. With thermal overload relay consisting a inversable starter;

3. Install different accessories derive many kinds of other products;

4. Select LC1-D contactor with standard 35mm rail, which can be fixed directly at the base of starter. Wires extracted from the three phase of the thermal overload relay can be inserted the three phase main contacts of the contactor, easy assembly and connection.

Technic Data

Starter model	Rated current	Controlled motor maximum power						Matched Thermal relay
Starter model	Rated current	220V~230V	380V~400V	415V	440V	500V	660V~690V	Matched Thermal relay
LE1-D09	9	2.2	4	4	4	5.5	5.5	LR2D1312 LR2D1314
LE1-D12	12	3	5.5	5.5	5.5	7.5	7.5	LR2D1316
LE1-D18	18	4	7.5	9	9	10	10	LR2D1321
LE1-D25	25	5.5	11	11	11	15	15	LR2D1322 LR2D2353
LE1-D32	32	7.5	15	15	15	18.5	18.5	LR2D2355
LE1-D40	40	11	18.5	22	22	22	22	LR2D3353 LR2D3355
LE1-D50	50	15	22	30	30	30	30	LR2D3357 LR2D3359
LE1-D65	65	18.5	30	37	37	37	37	LR2D3361
LE1-D80	80	22	37	45	45	55	45	LR2D3363 LR2D3365
LE1-D95	95	25	45	45	45	55	45	LR2D3365
